A HEALTHY ENVIRONMENT FOR HEALTHY LIVING

JESSICA TILLMAN | 201258439

A HEALTHY 6 FOR HEALTHY LIVING

• 2. CREATING COMMUNITY THROUGH DESIGN

§ DIVIDING PUBLIC SPACES INTO FUNCTIONS § MEETING PLACES § SOCIAL SPACES

• 1. ADDRESSING PEOPLES NEEDS

§ DIFFERENT DWELLING TYPES § INTEGRATING GENERATIONS § ALL DWELLINGS HAVE ACCESS TO PRIVATE/COMMUNAL GREEN SPACE § COMBINATION OF SOCIALLY INTERACTIIVE SPACES AND PRIVATE

• 3. CONNECTING WITH THE OUTSIDE

§ INTEGRATED PLANTING § VIEWS AND VISTAS TO COMMUNAL, PUBLIC AND PRIVATE SPACES § NATURE PLAYGROUND

• 4. TRANSFORMING SPACES INTO VIBRANT

PLACES

§ ACTIVE COMMUNITY CENTRE § LARGE GREEN SITE TO BE DIVIDED INTO SMALLER VERSATILE AND FUNCTIONAL AREAS § PRIVATE, COMMUNAL AND PUBLIC AREAS

• 6. PROTECTING THE ENVIRONMENT

§ REDUCED CARDON FOOTPRINT § RENEWABLE ENERGY § DISTRICT HEATING SYSTEM

• 5. SUSTAINABLE LIVING

§ PASSIVE DESIGN STRATEGIES § MULTIFUNCTIONAL SPACES § ENERGY EFFICIENT SOLUTIONS

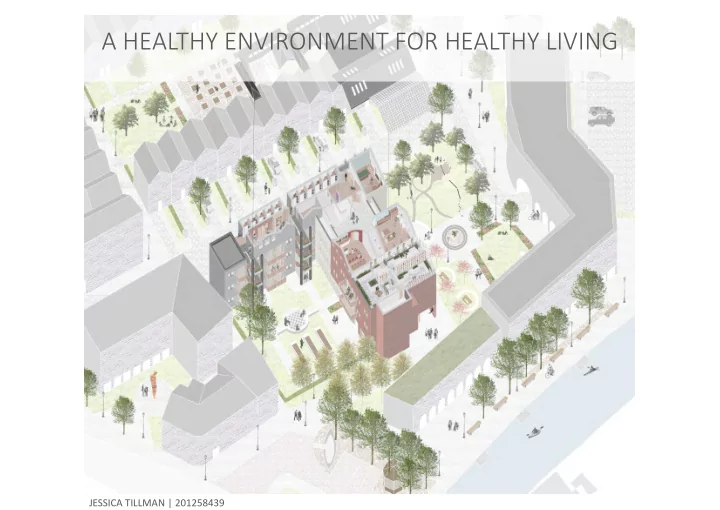

MASTERPLAN MODEL

SITE SECTION 1:200 @ A1

Communal allotment spaces are provided between the town houses and apartments and in the co-living private garden as a means to allow the residents to be self sufficient and as a casual platform for social interaction.

BUILDING FOR THE COMMUNITY

I have chosen to focus on co-living as a response to high levels of loneliness and depression in Bootle amongst the elderly and young adults. This facility is designed to cater the needs of the users and promote interaction between generations within the building and the surrounding environment and community.

The ground floor opens out onto the public square and the café encourages interaction with the wider community. The spaces is more defensive as you enter the building with a fully enclosed communal garden for the residents.

Ma Main entrance View from Public square

Approach from public square to main entrance

Yo Young adult shared entrance View from Browne street

Approach from Browne Street to the Under 25’s individual entrances.

FIRST AND SECOND FLOOR FLOORPLAN 1:200 The middle two floors of the building is made up of 3 sections: The young adult units “Catch up cosy corner” for extra care residents Extra care units Alternative corner layout with assisted bath rooms

PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION

5

YOUNG ADULT FLAT LAYOUT WITH SOCIAL STAIRS

PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION

5

EXTRA CARE FLAT UNITS – INDEPENDENT & 2 BED

5 3rd FLOOR Extra care residents and young adults integrated social floor with communal rooms, roof top greenhouse and “study cubby holes”.

“Study cubby holes”, Library & Reading room

Communal Lounge

A place to integrate and interact…

Communal family dining & Art room

Greenhouse and external seating

AXONOMETRIC OF CO-LIVING FACILITY

INHABITED SECTIONAL PERSPECTIVE

Showing relationship between the public square and co-living private garden

Roof build up Porcelain tiles - 20mm spacing Gravel drainage layer Screed -1:40 fall to gutter DPM 120mm Natural Wool Insulation Bituminous Membrane 260mm 5-layer CLT structural panel Planter build up Vegetation Soil substrate Filter fabric 25mm drainage/storage Root barrier DPM Concrete slab Void Steel plate CLT Wall build up Brick façade Raked mortar joint Brick tie (steel plate fixed to CLT) Air gap Vapour control layer 100mm Natural Wool Insulation DPM 120mm 3-layer CLT structural wall panel Bespoke Masonry Wall build up Outer brick leaf Air gap 30mm Insulation Block brick (inner leaf) 50mm Insulation Plasterboard Steel beam + Lintel Fixed double glazing Capping stone Steel lintel Brick (outer leaf) Void Block brick (central leaf) Cavity tray 70mm Insulation DPM Block brick (inner leaf) Plasterboard glued to blockwork Intermediate floor build up Plywood panel (match CLT dado rail) 25mm grooved insultation with underfloor heating 50mm Fermacell (fire & acoustic properties) Resilient acoustic layer 260mm CLT structural floor with exposed soffit Internal Ground floor Plywood panel flooring Screed 150mm Concrete slab DPM 125mm Insulation 1 2 4 5 3

STRUCTURE SECTION & BAY ELEVATION PUBLIC CAFÉ, EXTRA CARE UNITS & GREENHOUSE

MASONRY à STRUCTURE OF COMMUNAL AREAS + MATERIAL FOR OUTER LEAF Block brick construction will be used for the communal areas on the ground and top floor. The masonry construction represents the traditional construction of the surrounding context. CLT à STRUCTURE AND FINISH OF FLATS Engineered timber was selected as the primary material used in the building forming the structure and internal finishes of the prefab unit modules. Chosen to reduce construction time for the flats, using timber in the flats increases the thermal performance within the space in comparison to brick, the living spaces will have improved thermal quality with less energy required to maintain the temperature.

STRUCTURAL STRATEGY

GALVANISED STEEL à EXPOSED STAIRCASE The floor will be made up of a composite steel deck to allow the continuation of services running through the apartment units. The stairs will be made up of a steel beam with timber tread covers to decrease the overall use of steel for the structure. Intumescent paint is required for the columns to allow for fire protection.
