A GPU Run-Time for Event-Driven Task Parallelism Reservoir Labs, Inc. R-Stream Team : Athanasios Konstantinidis Benoit Meister Muthu Baskaran Tom Henretty Benoit Pradelle Tahina Ramananandro Sanket Tavargeri Ann Johnson Richard Lethin

SLIDE 1

Reservoir Labs

2.3.15

Reservoir Labs, Inc.

1

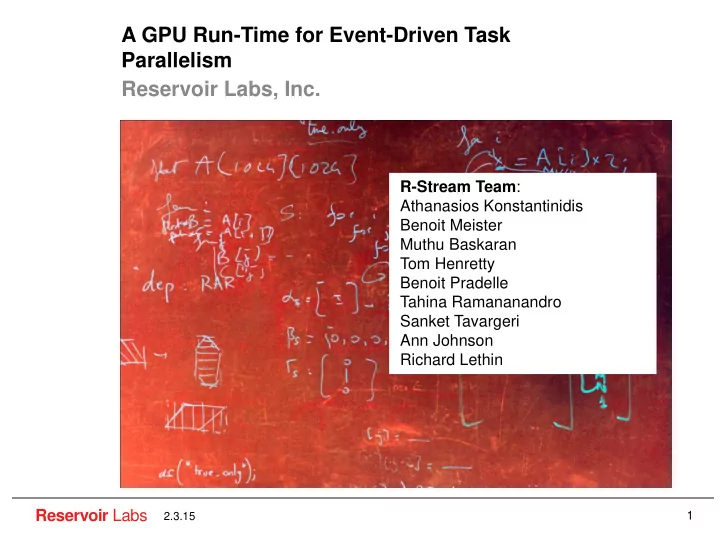

A GPU Run-Time for Event-Driven Task Parallelism

R-Stream Team: Athanasios Konstantinidis Benoit Meister Muthu Baskaran Tom Henretty Benoit Pradelle Tahina Ramananandro Sanket Tavargeri Ann Johnson Richard Lethin

SLIDE 2

Reservoir Labs

2.3.15

Massive data parallelism is required
Hides global memory access latency
What if our program is not data-parallel ?

2

GPU Programming with CUDA

Dependence graph (DAG) of an SPMD computation

SLIDE 3

Reservoir Labs

2.3.15

Massive data parallelism is required
Hides global memory access latency
What if our program is not data-parallel ?
We find synchronous chunks of data-parallel

computations i.e., wavefronts

3

GPU Programming with CUDA

Dependence graph (DAG) of an SPMD computation

Global synchronization

verhead from repeated

kernel invocations

SLIDE 4

Reservoir Labs

2.3.15

Implements an Event-Driven Tasks execution model
A single persistent GPU kernel executes the entire

DAG (manages thread-block-level parallelism)

On-the-fly dependence resolution
Light-weight synchronization based on atomics
Work-stealing for load-balancing

4

A GPU Run-Time for Task Parallelism

Dependence graph (DAG) of an SPMD computation Task Light-weight atomic synchronization (Event)

SLIDE 5

Reservoir Labs

2.3.15

Dependence counters
Each task has a dependence counter (dcount)
After task completion decrement successors’ dcount
Task becomes active if dcount becomes zero

5

Dependence Resolution – Event-Driven Tasks (EDTs)

Task

(active)

Task

(inactive) dcount(0) dcount(1)

Task

(inactive) dcount(2) Events

SLIDE 6

Reservoir Labs

2.3.15

6

Run-Time Architecture

work queue work queue work queue thread block thread block thread block work stealing codelets codelets codelets

Task meta-data

SLIDE 7

Reservoir Labs

2.3.15

7

Run-Time Architecture

work queue work queue work queue thread block thread block thread block work stealing codelets codelets codelets

Task meta-data

Defines persistent GPU kernel

SLIDE 8

Reservoir Labs

2.3.15

8

Run-Time Architecture

work queue work queue work queue thread block thread block thread block work stealing codelets codelets codelets

Task meta-data

Task parameters
dependence counters
Codelet type
Integer vectors
Defines persistent GPU kernel

SLIDE 9

Reservoir Labs

2.3.15

9

Run-Time Architecture

work queue work queue work queue thread block thread block thread block work stealing codelets codelets codelets

Task meta-data

Task parameters
dependence counters
Codelet type
Integer vectors

Codelet

Prologue Computation Epilogue

SLIDE 10

Reservoir Labs

2.3.15

10

Run-Time Architecture

work queue work queue work queue thread block thread block thread block work stealing codelets codelets codelets

Task meta-data

Task parameters
dependence counters
Codelet type
Integer vectors

Codelet

Unpacks parameters Computation Dependence resolution

SLIDE 11

Reservoir Labs

2.3.15

11

Run-Time Architecture

work queue work queue work queue thread block thread block thread block work stealing codelets codelets codelets

Task meta-data

Global memory

Work Queue

Put Get

SLIDE 12

Reservoir Labs

2.3.15

Workers
Unrestricted amount
Max stealing rounds
Intra-Thread-block

configuration agnostic

12

Run-Time Architecture

work queue work queue work queue thread block thread block thread block work stealing codelets codelets codelets

Task meta-data

SLIDE 13

Reservoir Labs

2.3.15

Simple stencil programs from the PolyBench suite
Jacobi-2D 5pt, FDTD-2D, ADI
Compared against best known wavefront

implementations

Konstantinidis et al. LCPC 2013
Rectangular parametric tiling is applied
For run-time tile-size exploration

13

Experimental Evaluation

Rectangular Tile

Task

Thread-block parallelism

SLIDE 14

Reservoir Labs

2.3.15

NVIDIA GTX 670
Compute Capability: 3.0
Driver/Runtime Version: 6.5
Global Memory: 2GB
Multiprocessors: 7
ECC: OFF

14

Experimental Evaluation

SLIDE 15

Reservoir Labs

2.3.15

15

Experimental Evaluation

SLIDE 16

Reservoir Labs

2.3.15

Jacobi 2D 5pt – Execution Timelines

16

Experimental Evaluation

Time Worker Worker

23 workers 16 workers

SLIDE 17

Reservoir Labs

2.3.15

Jacobi 2D 5pt – Execution Timelines

17

Experimental Evaluation

10 workers 16 workers 23 workers

SLIDE 18

Reservoir Labs

2.3.15

Jacobi 2D 5pt – Execution Timelines

18

Experimental Evaluation

Time Worker Worker

30 workers 23 workers

SLIDE 19

Reservoir Labs

2.3.15

Jacobi 2D 5pt – Execution Timelines

19

Experimental Evaluation

Time Worker Worker

30 workers Redundant workers (7) Active workers (23)

SLIDE 20

Reservoir Labs

2.3.15

FDTD 2D – Execution Timelines

20

Experimental Evaluation

Time Worker Worker

33 workers 22 workers

SLIDE 21

Reservoir Labs

2.3.15

ADI – Execution Timelines

21

Experimental Evaluation

Time Worker Worker

33 workers 22 workers

SLIDE 22

Reservoir Labs

2.3.15

Effective task-parallelism with on-the-fly dependence

resolution

Single persistent GPU kernel prevents global

synchronization overhead

Evaluated against wavefront parallelism on stencil

computations

22

Conclusions

SLIDE 23

Reservoir Labs

2.3.15

Questions ?
