slide-1

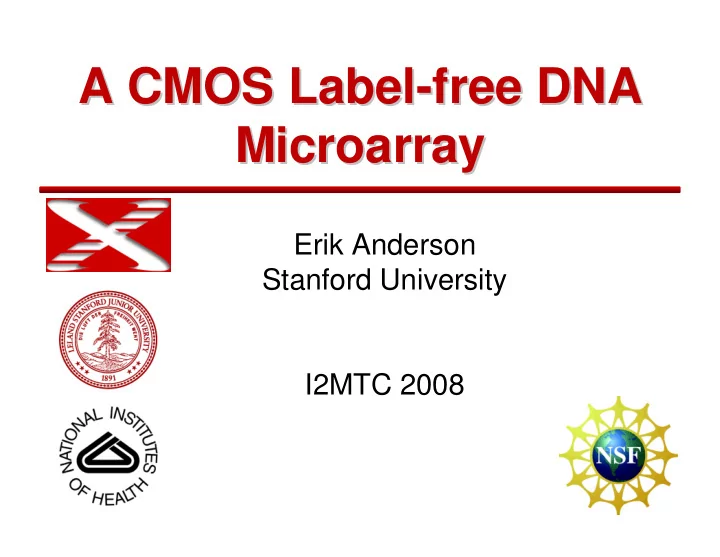

SLIDE 1

A CMOS Label A CMOS Label-

  • free DNA

free DNA Microarray Microarray

Erik Anderson Stanford University I2MTC 2008

slide-2
SLIDE 2

Erik Anderson 2

Motivation Motivation

www.dnavision.be

  • Affymetrix + Agilent alone had $2.4 billion (USD)

in revenue in 2007 for bio-analytic measurements

  • Drug discovery
  • Diagnostics
  • Research
  • Forensic testing
  • Growing interest in personalized medicine
  • Therapeutics tailored to your genetic profile
  • Conventional microarrays are expensive, big bulky

systems (optics, lasers, reagents)

  • Can we leverage integrated circuit fabrication

techniques for a low-cost approach?

slide-3
SLIDE 3

Erik Anderson 3

Outline Outline

  • Motivation
  • Background
  • Charge sensing of DNA polymerization
  • CMOS sensor
  • Conclusions
slide-4
SLIDE 4

Erik Anderson 4

DNA DNA

  • Contains genetic instructions to construct and regulate cellular

components

  • Consists of 4 nucleotides
  • Adenine (A), Thymine (T), Cytosine (C), Guanine (G)
  • Usually found double-stranded, but single-stranded version exists too
  • A only binds with T, C only binds with G
slide-5
SLIDE 5

Erik Anderson 5

Microarray Microarray Basics I Basics I

A A G C T T A A G C T T T T C G A A T G C A T T C G A A T G C A C C G C T T C C G C T T G G C G A A G G C A A A G C C G

Spot 1 Spot 3 Spot 2 Target ssDNA Probe ssDNA Fluorescent Label

A A G C C G www-als.lbl.gov

slide-6
SLIDE 6

Erik Anderson 6

Microarray Microarray Basics II Basics II

Images courtesy of Affymetrix

Affymetrix Gene Chip Microarray Scanner – Cost: ~$200k Gene Chip Image

  • Light from a grid location indicates the presence of the corresponding target

in a sample

  • Limitations: Expensive and not portable
slide-7
SLIDE 7

Erik Anderson 7

TAG4 Example from SGTC TAG4 Example from SGTC

  • TAG4 = yeast genome used with optical scanners
  • Run time

– DNA Extraction 2 hr – PCR & labeling 2 hr – Hybridization preparation 0.5 hr – Hybridization 6-16 hr – Wash & Stain 3 hr – Scan of chip 0.25 hr

  • Cost per chip (“Academic Prices”)

– Chip $150-300 – Reagents $50-150

  • 100,000 features or “spots” which are 8 m x 8 m
  • Probes are 20 nucleotides in length
  • Targets range from 100-200 nucleotides

– 10-100 ng/mL amplified (PCR) to concentrations of 1 g/mL

  • Works well when you are interested in massively parallel detection

– Suitable for point-of-care applications?

slide-8
SLIDE 8

Erik Anderson 8

Post Processing Challenges Post Processing Challenges

Thewes et al. ISSCC 2002. Han et al. ISSCC 2007.

slide-9
SLIDE 9

Erik Anderson 9

System Requirements System Requirements

  • Suitable for point-of-care applications

– Leverage IC fab technology for low-cost approach – Label-free – Easy post-processing – Integrate microarray with the “readout” – Reduced number of features from conventional

  • ptical techniques – goal is 25
  • Detects targets at 10 g/mL
slide-10
SLIDE 10

Erik Anderson 10

DNA Polymerization DNA Polymerization

Second strand CANNOT be synthesized Second strand CAN be synthesized Polymerase Polymerase works at double-strand / single-strand junctions

C C G C T T C C G C T T A A G C T T A A G C T T T T C G A A T G C A T T C G A A T G C A A

Targets Probes

slide-11
SLIDE 11

Erik Anderson 11

Principle of Detection Principle of Detection

Transient current

dNTP (e.g. A, T, C, G)

Polymerase

+

A C C A G A T G G T C T A C

H+

Electrode

e-

  • System detects a NON-equilibrium charge distribution
slide-12
SLIDE 12

Erik Anderson 12

Polymerization Chemical Reaction Polymerization Chemical Reaction

3’ SAM

  • 5. Induced charge

+

  • 1. Enzyme + dNTP·Mg

+ catalytic Mg2+

  • 4. Liberated H+, PPi·Mg

and catalytic Mg2+

+

H

Double-stranded DNA

5’

O O O Base Base Base

3’

Probe DNA

Base H

  • 3. New fixed

charge

  • 2. Nucleotide

incorporation

P O O O H O : Base O

Primer DNA

P P Mg O O O O O O O H P P Mg P Base O O O O O O O O O O : O O

Not drawn to scale

slide-13
SLIDE 13

Erik Anderson 13

Induced Charge Induced Charge

Charge is 0.1 electrode- widths above electrode Immobilize DNA close to electrode to maximize induced charge

Electrode location

What fraction of a charge is induced on a nearby electrode?

slide-14
SLIDE 14

Erik Anderson 14

CMOS System Requirements CMOS System Requirements

  • Linear, monotonic signal response
  • “Low power” ( back-of-envelope estimate, ≤ 42

mW)

– Die surface temperature should not rise more than 1 ° C above ambient over 5 minutes

  • “Low noise”

– Amplifier noise ≤ other system noise contributions

  • Electrode area large enough for spotting DNA
  • nto electrodes ( ≥ 100 – 200 square m)
  • Easy post-processing
  • ±1 V swing at output (use thick gate-oxide

devices)

slide-15
SLIDE 15

Erik Anderson 15

CMOS Architecture CMOS Architecture

slide-16
SLIDE 16

Erik Anderson 16

OTA OTA

Vb Vb Vb In- In+ Vo,lo

Vb Vb Vb Vo Vhi Vlo Vcm In+ In-

Vb In+ In- Vo,hi

Common-mode feedback Bias Bias Input

slide-17
SLIDE 17

Erik Anderson 17

OTA Specs OTA Specs

250 kHz Unity Gain 1.7 mW Power per pixel 110 dB PSRR- 70 dB PSRR+ 110 dB CMRR 75° Phase Margin 82 dB Gain(Vo = -1V) 63 dB Gain(Vo = 1V) 110 dB Gain 0.18 m CMOS (3.3V devices) Technology Simulated for typical corner at 75 ° C

slide-18
SLIDE 18

Erik Anderson 18

Reset Logic Reset Logic

Used to extend dynamic range

Saturation Detector

  • +
slide-19
SLIDE 19

Erik Anderson 19

Easy Post Easy Post-

  • Processing

Processing

Polymer that we apply Passivation from fab Silicon Electrode in top metal Standard CMOS fab

slide-20
SLIDE 20

Erik Anderson 20

Temporal Noise Temporal Noise

  • Noise spectral density is not the right analysis
  • Signal is observed in time → want time domain noise
  • Temporal noise = variance of noise at a particular

instant in time

= Temporal noise

slide-21
SLIDE 21

Erik Anderson 21

Electronic Noise Contributions Electronic Noise Contributions

kHz GBW 250 =

Hz nV Vn 22

2 =

Hz fA In 1

2 =

pF C 30

1 =

pF C 30

1 =

K T 300 = pA Iavg 1 =

pF C 30

1 =

6.0 V Shot 11.7 V

  • Cap. Reset

10.5 V Thermal Current 19.5 V Thermal Voltage 244 V Flicker

Comments Value @1 sec Equation

Hz f 1

min =

kHz f 250

max = 2 10

10 4 . 2 V K f

× =

2

2 n

  • V

A ω ) ln( 2

min max

ω ω

f

K

1

C kT

2 1 int 2

C t In

2 1 int

2 C t qIavg

slide-22
SLIDE 22

Erik Anderson 22

Die Photo + Test Board Die Photo + Test Board

Bondwires encapsulated in epoxy Die Pixel

300 m

slide-23
SLIDE 23

Erik Anderson 23

Minimum Detectable Current Minimum Detectable Current

Noise from enzymatic buffer dominates electronic noise

  • Enzymatic buffer noise is

constant w.r.t. integration time ~830 V RMS

  • Limit of detection with buffer is

25 fC

  • Corresponds to biological

limit of detection of 8 ng/mL (worst case)

  • Crosstalk dominated by system

noise → not measurable

slide-24
SLIDE 24

Erik Anderson 24

Measured Signal from CMOS Chip Measured Signal from CMOS Chip

  • Target concentration 10 g/mL

Probe: GTG CCA AGT ACA TAT GAC CCT ACT

Exposed segment

CAC GGT TCA TGT ATA CTG GGA TGA CCA TAC CTG TAC GAC TCG AGT GAC GAG ACG GCG TA

slide-25
SLIDE 25

Erik Anderson 25

Conclusions Conclusions

  • Designed first CMOS DNA polymerization

sensor

– Targeted to low-cost, point-of-care applications – Demonstrated sensor could detect useful concentrations

slide-26
SLIDE 26

Erik Anderson 26

Supplemental Supplemental

  • Following slides are supplemental
slide-27
SLIDE 27

Erik Anderson 27

Future Applications Future Applications

  • Clinical, point-of-care diagnostics
  • Personalized medicine

– Enabled by low cost fab techniques

  • Pathogen detection
  • Short segment DNA sequencing

– Sequentially add nucleotides and observe the signal

  • Simple Nucleotide Polymorphism (SNP) Detection

– SNP = an alteration in a few nucleotides, e.g. AAAA vs. ATAA – SNPs form 99.77% of all genetic variation

slide-28
SLIDE 28

Erik Anderson 28

Pathogen Detection Pathogen Detection

A A G C T T A A G C T T T T C G A A T G C A T T C G A A T G C A C C G C T T C C G C T T

Spot 1 Spot 2 Polymerase Add A, T, G, C

A

slide-29
SLIDE 29

Erik Anderson 29

SNP Detection SNP Detection

A A G C T T A A G C T T T T C G A A T G C A T T C G A A T G C A

Spot 1 Spot 2 Polymerase

A G G C T T A G G C T T

  • Trick is to make the mutation part of the target
  • Add nucleotides and read out a signal at spots where SNP is present

Add A, T, G, C

A

slide-30
SLIDE 30

Erik Anderson 30

Short Segment Sequencing Short Segment Sequencing

  • Sequentially add bases
  • Wash away unused bases between additions

A A G C T T A A G C T T T T C G A A T G C A T T C G A A T G C A C C G C T T C C G C T T G G C G A A G G C A

Spot 1 Spot 2

G G C G A A G G C A A A

A T C

C C C C

slide-31
SLIDE 31

Erik Anderson 31

Thermal Issues Thermal Issues

  • Does the power dissipation adversely affect operation?
  • Must keep surface heating low enough so that…
  • chemical reaction can still occur
  • buffer does not evaporate
  • DNA denaturing not a problem, i.e. double strand → 2 single strands
  • Denaturing occurs at high temperatures, ~ 55 °

C or higher

  • Enzyme “activity” is affected by temperature
  • “activity” = rate of enzyme performing its function
  • 43 mW → 0.5 °

C change measured over 5 minutes, buffer still present CMOS heat source

Power dissipation not a problem → no change necessary

slide-32
SLIDE 32

Erik Anderson 32

Some Electronic Some Electronic Microarrays Microarrays

Dill, Biosensor & Bioelectronics, 2004. An Electroactive enzyme (HRP) generates a current flow into the electrode. Capacitance measurement. Stagni, JSSC 2006. Redox cycling generates current. Schienle, JSSC 2004

  • Electronic approaches integrate the

microarray chip with the “reader”

slide-33
SLIDE 33

Erik Anderson 33

Immobilizing DNA Immobilizing DNA

2 Ways

  • 1. Build up ssDNA nucleotide-by-nucleotide using photolithography and

chemistry

  • Requires ~4n masks, n = sequence length (25-mer → 100 masks)
  • 2. “Spot” DNA onto location by depositing a droplet of liquid
slide-34
SLIDE 34

Erik Anderson 34

Surface Chemistry Surface Chemistry

  • 1. Wash surface with acetone and iso-propanol for 1 minute each
  • 2. 3 minute exposure to UV-ozone
  • 3. Surface immersed in 5% (w/w) (chloromethyl)phenylethyltrimethoxysilane

in ethanol solution with gentle shaking for 12 hours

  • 4. Rinsed with ethanol 3 times and dried in air
  • 5. 100 M solution of probe oligonucleotides in phosphate buffer saline at pH

7.4 (0.01M sodium phosphate, 1.0 M NaCl) was manually spotted onto the microchips and kept in a humidifier overnight, immobilizing the probes above the electrodes

  • 6. Unattached probes washed away in DI water
  • 7. Chips blocked with 50 mM ethanolamine solution for 2 hours at room

temperature

slide-35
SLIDE 35

Erik Anderson 35

Diffusion Diffusion-

  • based Crosstalk

based Crosstalk

  • Why does crosstalk increase with time at larger

separations when it decreases with smaller separations?

  • Look at the induced voltage. Smaller separations are

affected by a reflecting boundary.

slide-36
SLIDE 36

Erik Anderson 36

On Pulse Shapes On Pulse Shapes

  • Possible causes of variation in height and width

– DNA crowding – Spots not identical – dNTPs diffuse to each spot – varying distance – Distribution of polymerase

slide-37
SLIDE 37

Erik Anderson 37

Quantization Noise Quantization Noise

12

2

Noise Power =

For a 5V range

  • 12 bits → 352 V
  • 16 bits → 22 V
  • 24 bits → 86 nV

For a 3.3V range

  • 12 bits → 232 V
  • 16 bits → 15 V
  • 24 bits → 57 nV
slide-38
SLIDE 38

Erik Anderson 38

Electronic Noise (Theoretical vs. Measured) Electronic Noise (Theoretical vs. Measured)

slide-39
SLIDE 39

Erik Anderson 39

Correlated Double Sampling Correlated Double Sampling

  • Popular technique in image

sensor read out circuits

  • Sample integrator output at

beginning and end of integration period and subtract

  • Cancels thermal reset noise of

integration capacitor and partially cancels 1/f noise Can CDS reduce noise?

slide-40
SLIDE 40

Erik Anderson 40

Correlated Double Sampling? Correlated Double Sampling?

  • Correlated double sampling does not have much of an affect above 100 ms.
  • Assumes no noise added by CDS

Dotted = with CDS Solid = without CDS

slide-41
SLIDE 41

Erik Anderson 41

Number of Probes Number of Probes

  • 1011 – 1012 probes / cm2
  • 90 – 900 Million probes in 300 m square area
  • Probes occupy between 0.4 – 4% of surface

area

slide-42
SLIDE 42

Erik Anderson 42

Detection Limit & Noise Detection Limit & Noise

  • Qn/q “noise” charges at electrode
  • Each “real” charge induces f “noise” charges → Qn/(fq) “real” charges
  • Assume 1 signal charge per probe (could get multiple)
  • For P probes on the electrode → θ = Qn/(fqP) is the required fraction of

“bound” probes

  • From Langmuir-Isotherm theory, θ = [target]bulk/([target]bulk + Kd ) where Kd =

ratio of forward and reverse rate constants

  • [target]bulk = Kd Qn /(fqP)
  • P = 90 – 900 million, q = 1.6e-19, Qn = 25 fC, Kd = 10pM-10nM (depends on

many factors, e.g. probe length, target length)

  • [target]bulk= 8 ng/mL (Kd = 10nM, P = 90 million, f = 0.5) worst case
  • [target]bulk= 40 fg/mL (Kd = 10pM, P = 900 million, f = 1) best case
slide-43
SLIDE 43

Erik Anderson 43

Comparison with other Work Comparison with other Work

  • Look at other CMOS DNA chips
  • [1] Detected 31 g/mL at SNR=3∗
  • [2] not reported
  • [3] Detected ?? at SNR=1.5∗
  • This work 10 g/mL at SNR=180∗

[1] Stagni et al., IEEE Sensors, 2007. [2] Schienle et al., JSSC 2006 [3] Stagni et al., JSSC 2006

∗ = label-free

slide-44
SLIDE 44

Erik Anderson 44

Diffusion Coefficients Diffusion Coefficients

  • H+

9000 m2/s

  • K+,Cl-

2000 m2/s

  • Mg2+

1400 m2/s

  • Source: Kovacs Micromachined Transducers,

CRC Table
