Product line up
2
Blue Label Gold Label Platinum Label
Blue Label Plug & Play : Ease of Use
Gold Label Flexible and Easy Upgrades and Customization Platinum Label Custom Chemical Engineering Solutions

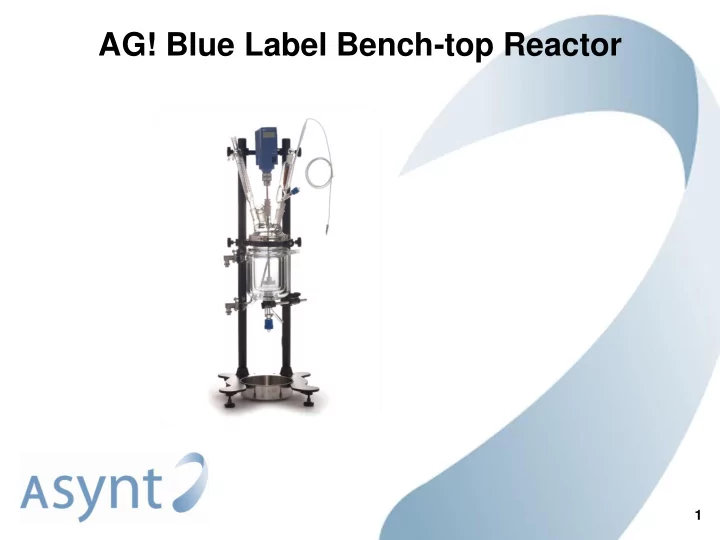

AG! Blue Label Bench-top Reactor 1 Product line up Platinum Label - - PowerPoint PPT Presentation
AG! Blue Label Bench-top Reactor 1 Product line up Platinum Label - - PowerPoint PPT Presentation
AG! Blue Label Bench-top Reactor 1 Product line up Platinum Label Gold Label Blue Label Blue Label Plug & Play : Ease of Use Gold Label Flexible and Easy Upgrades and Customization Platinum Label Custom Chemical Engineering Solutions 2
SLIDE 2
SLIDE 3
Blue label bench-top reactor
3
Interchangeable Scale-up Variety of Vessel Options Wide Temperature Range Time & Cost Saving Maximum Heat Transfer No Dead Space Leak-proof Flush Valve Compact Design Rigid Inlet/Outlet Complete Package Resource Saving
SLIDE 4
Interchangeable scale-up
4
From 300ml to 5L (w/o Ring Baffles) 3L (with Ring Baffles)
Scale Up
SLIDE 5
Variety of vessel options
5
Double Wall
Double Wall with Ring Baffle
Triple Wall
with Ring Baffle
Triple Wall Filter Reactor
SLIDE 6
Variety of vessel options
6
Triple Wall with Ring Baffles Triple Wall Double Wall with Ring Baffles Double Wall Filter Reactor
SLIDE 7
Wide temperature range
7
- Note. Data from a case study conducted by Huber, tested on AG! 10L reactor with Huber Unistat 1005w ( HTF: Kryothermal S)
- 120℃ ~ +230 ℃
ΔT: 60 60℃ (Trip iple le Wall) ΔT: 110 110℃ (Doubl ble e Wall)
１L Double Wall Reactor, 1L Triple Wall Reactor with Ring Baffles
SLIDE 8
Maximum heat transfer
8
Faster
- Note. Data from the AG! Test on 1L Double wall
and Double wall with Ring Baffles Reactors with LAUDA RP890C (Silicone oil)
- Note. Data from the AG! Test on
1L Triple wall and Double Wall Reactors with LAUDA RP890C (Silicone oil)
Typical Reactor AG! Double Wall
with Ring Baffles
SLIDE 9
Time & cost saving
9
! Chassis
Need to scale up? → Change the vessel only!
! Easy Installing
No special tool needed to install AG! Bench-top Reactor
SLIDE 10
No dead space
10
AG!
M16 for HTF, 15φ
SLIDE 11
Leak-proof flush valve
11
Note. Pressure Sensitive Spring Loaded Flush Valve Prevents Leakage
SLIDE 12
Compact design
12
Perfect for those with limited space
380mm 380mm
SLIDE 13
Rigid inlet / outlet
13
SLIDE 14
Complete package
14
Vessel Flexible Coupling Flush Valve Temperature Probe Holder Head (Glass Cover) Temperature Sensor Probe Quick Release Clamp Condenser O-ring Vent Adapter M16 for HTF Dropping Funnel PTFE Stir Bearing Support Structure PTFE Stir Shaft
SLIDE 15
Complete package
15
Head (Glass Cover) Quick Release Clamp Condenser Dropping Funnel Mechanical Stir Bearing Temperature probe and port Stir Shaft
SLIDE 16
Complete package Head configuration
16 Condenser with vent adaptor Filling port for solid/liquid feed Spare port
Temperature probe with PTFE probe holder
PTFE Mechanical Seal Bearing
Dropping funnel
SLIDE 17
Complete package Vessel configuration
17
Vessel Bottom Flush Valve Inlet/Outlet Metal Adapter M16 Support Structure
SLIDE 18
Save resources How much time are you wasting?
18
Temp. Set point
Longer Preparation Time = Waste of Time, Human Resources and Utility Expense
Most of all, that much of time loss on preparation
equals less product (result).
Preparation Time
Batch Scheduling Example
SLIDE 19
Save resources
19
- Note. Data from the AG! Test on 20L Double wall and Double wall with Ring Baffles Reactors with LAUDA RP890C (Silicone oil)
AG! Only
Glass Made Ring Baffles
AG! Ring Baffles can save 40% of your time.
Make the best out of your process with our Ring Baffles.
SLIDE 20
Flexible to upgrade & customise
20
Come and talk to us. You, Asynt and AG! can find a perfect solution together.
SLIDE 21
Example of gold label reactor
21
SLIDE 22
Contact us
- Email us at sales@asynt.com for more
information
- Call us on +44 (0)1638 781709
- Find more information at www.asynt.com
