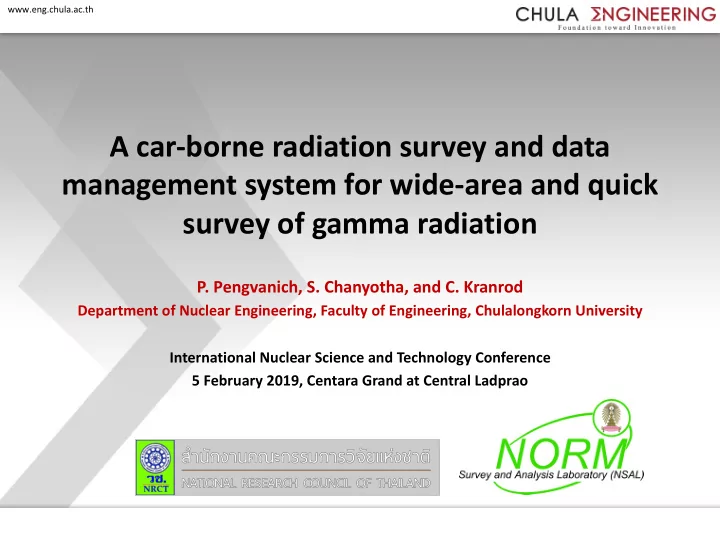

A car-borne radiation survey and data management system for wide-area and quick survey of gamma radiation

P. Pengvanich, S. Chanyotha, and C. Kranrod

Department of Nuclear Engineering, Faculty of Engineering, Chulalongkorn University International Nuclear Science and Technology Conference 5 February 2019, Centara Grand at Central Ladprao

SLIDE 2

www.eng.chula.ac.th

NORM Survey and Analysis Laboratory (NSAL)

Ø NSAL has experience working with NORM and TENORM from various

rigins.

Ø Example of NORM Surveys and Activities: § Walkover survey and in-process inspection on on- and off-shore oil and gas production facility § Environmental remediation

Radium/radon measurement in soil, ground and surface water
Removal of radium from contaminated water

§ Terrestrial radiation measurement

Car-borne survey
Radiation contained in food stuff

SLIDE 3

www.eng.chula.ac.th

Background Information

Ø Car-borne radiation survey is a great way to conduct wide-area measurement and can be performed regularly and economically. Ø Currently, radiation monitoring in Thailand is performed at fixed stations (18 on-land, and 5 underwater). Ø In emergency situation, local data may be necessary to assess the severity

f the situation.

Ø Local data at different time is also useful to evaluate how various changes (due to human activities or nature) affect the radiation level in a specific area.

SLIDE 4

www.eng.chula.ac.th

Background Information

Ø Car-borne radiation survey is a great way to conduct wide-area measurement and can be performed regularly and economically. Ø Currently, radiation monitoring in Thailand is performed at fixed stations (18 on-land, and 5 underwater). Ø In emergency situation, local data may be necessary to assess the severity

f the situation.

Ø Local data at different time is also useful to evaluate how various changes (due to human activities or nature) affect the radiation level in a specific area.

Needs A way to automatically collect data A way to manage data for future analysis

SLIDE 5

www.eng.chula.ac.th

Factors Considered

Ø Types of Data That We Want to Collect § Dose/Dose Rate/Spectrum/Count/Count Rate § Location § Time § Image/Video § Etc. Ø Data size and how to manage Ø Portability Ø Expandability Ø Connectivity Ø Software needed/Open source? Ø …Cost?

SLIDE 6

www.eng.chula.ac.th

System Diagram

SLIDE 7

www.eng.chula.ac.th

System Diagram

Programmable single board computer such as Raspberry Pi or Arduino can ideally be used in place of the portable computer if no client-side control needed.

Client Side (Survey Node) Server Side Client Side (Analysis Node)

SLIDE 8

www.eng.chula.ac.th

Client Side – Survey Node

Ø 5x5 NaI(Tl) from BICRON CORP. is selected for its fast data collection, but 1x1 and 3x3 detectors are also tested. Ø SCA system from LUDLUM Measurements, Inc. is selected as it allows real-time control and data transfer via RS-232 without additional software. Ø GPS receiver from GlobalSat is selected as it allows real-time data transfer without additional software.

SLIDE 9

www.eng.chula.ac.th

Client Side – Control and Analysis Software

Control of survey equipment can be performed and synchronized through a software interface which can be run on any OS that has Java VM support (such as Windows, Mac OS, and Linux).

SLIDE 10

www.eng.chula.ac.th

Data Acquisition

Import Mode Acquire Mode

SLIDE 11

www.eng.chula.ac.th

Data Display

Data can be loaded on top of Google map and presented using different types of display.

SLIDE 12

www.eng.chula.ac.th

Server Side – Database

Ø Data is stored both offline as raw files (text, image, video) and on a database management system installed either locally or remotely. Ø MySQL, a relational database management system, is used in this work.

SLIDE 13

www.eng.chula.ac.th

Client-Server Configurations

Two client-server configurations are currently possible Ø Local connection – same computer acts as client and server at the same time. Ø Remote connection – two computers connect remotely.* One acts as a client, the other as a server.

Computer Software data collection data analysis Database Client Software Server Database data collection data analysis

* Server can be on cloud.

SLIDE 14

www.eng.chula.ac.th

Data Handling Test

Data handling capability of the software has been tested using data from previous car-borne survey [Chanyotha et al.] Google Map can be displayed in both map and satellite modes which is useful in analysis. You can see how geological terrain and human structures around each area look like.

SLIDE 15

www.eng.chula.ac.th

Comparative Test

Comparative test has been performed against a standard system (EMF-221, EMF Japan Co.). Although the standard system is MCA whereas the in-house system is SCA, the result shows the agreement between the two.

0.0 20.0 40.0 60.0 80.0 100.0 120.0 10:04:48 10:19:12 10:33:36 10:48:00 11:02:24 11:16:48 11:31:12 11:45:36 12:00:00

ปริมาณรังสี (uSv) เวลา

ระบบมาตรฐาน

2000 4000 6000 8000 10000 12000 10:04:48 10:19:12 10:33:36 10:48:00 11:02:24 11:16:48 11:31:12 11:45:36 12:00:00

Counts เวลา

ระบบที)จัดทําขึ0น

Dose rate (nGy/hr) Count rate (per 10 sec) Time Time Standard System In-House System

SLIDE 16

www.eng.chula.ac.th

In Conclusion

Ø We have developed a radiation survey and data management system for car-borne gamma survey activity. Ø The radiation survey performed comparatively well against the standard system. Ø The data management system can store and recall data in an organized manner for future analysis.

SLIDE 17

www.eng.chula.ac.th

Ongoing Work on Expansion of Capabilities…

Ø The MySQL database by design is capable of handling concurrent multiple

connections. So it is possible to process multiple survey and analysis nodes at
nce.

Ø Further study has been planned to test the stability and limitation of the system. Server Survey Analysis Survey Survey Analysis Analysis

Multiple Connectivity

SLIDE 18

www.eng.chula.ac.th

Acknowledgement

The authors would like to acknowledge and express our gratitude for the following supports and collaborations: Ø National Research Council of Thailand Ø Institute of Radiation Emergency, Hirosaki University Ø NORM Survey and Analysis Laboratory, Chulalongkorn University

SLIDE 19

www.eng.chula.ac.th

A car-borne radiation survey and data management system for wide-area and quick survey of gamma radiation

Department of Nuclear Engineering, Faculty of Engineering, Chulalongkorn University International Nuclear Science and Technology Conference 5 February 2019, Centara Grand at Central Ladprao

NORM Survey and Analysis Laboratory (NSAL)

Ø NSAL has experience working with NORM and TENORM from various

Ø Example of NORM Surveys and Activities: § Walkover survey and in-process inspection on on- and off-shore oil and gas production facility § Environmental remediation

§ Terrestrial radiation measurement

Background Information

Ø Local data at different time is also useful to evaluate how various changes (due to human activities or nature) affect the radiation level in a specific area.

Background Information

Ø Local data at different time is also useful to evaluate how various changes (due to human activities or nature) affect the radiation level in a specific area.

Needs A way to automatically collect data A way to manage data for future analysis

Factors Considered

Ø Types of Data That We Want to Collect § Dose/Dose Rate/Spectrum/Count/Count Rate § Location § Time § Image/Video § Etc. Ø Data size and how to manage Ø Portability Ø Expandability Ø Connectivity Ø Software needed/Open source? Ø …Cost?

System Diagram

System Diagram

Programmable single board computer such as Raspberry Pi or Arduino can ideally be used in place of the portable computer if no client-side control needed.

Client Side (Survey Node) Server Side Client Side (Analysis Node)

Client Side – Survey Node

Client Side – Control and Analysis Software

Control of survey equipment can be performed and synchronized through a software interface which can be run on any OS that has Java VM support (such as Windows, Mac OS, and Linux).

Data Acquisition

Import Mode Acquire Mode

Data Display

Data can be loaded on top of Google map and presented using different types of display.

Server Side – Database

Ø Data is stored both offline as raw files (text, image, video) and on a database management system installed either locally or remotely. Ø MySQL, a relational database management system, is used in this work.

Client-Server Configurations

Two client-server configurations are currently possible Ø Local connection – same computer acts as client and server at the same time. Ø Remote connection – two computers connect remotely.* One acts as a client, the other as a server.

* Server can be on cloud.

Data Handling Test

Data handling capability of the software has been tested using data from previous car-borne survey [Chanyotha et al.] Google Map can be displayed in both map and satellite modes which is useful in analysis. You can see how geological terrain and human structures around each area look like.

Comparative Test

Comparative test has been performed against a standard system (EMF-221, EMF Japan Co.). Although the standard system is MCA whereas the in-house system is SCA, the result shows the agreement between the two.

In Conclusion

Ø We have developed a radiation survey and data management system for car-borne gamma survey activity. Ø The radiation survey performed comparatively well against the standard system. Ø The data management system can store and recall data in an organized manner for future analysis.

Ongoing Work on Expansion of Capabilities…

Ø The MySQL database by design is capable of handling concurrent multiple

Ø Further study has been planned to test the stability and limitation of the system. Server Survey Analysis Survey Survey Analysis Analysis

Multiple Connectivity

Acknowledgement

The authors would like to acknowledge and express our gratitude for the following supports and collaborations: Ø National Research Council of Thailand Ø Institute of Radiation Emergency, Hirosaki University Ø NORM Survey and Analysis Laboratory, Chulalongkorn University

Finally, you are cordially invited to visit

Ø Our booth – for other research and activities Ø Poster titled “Natural Radioactivity Concentration in Traditional Thai Herbal Medicine”

Thank you for your attention.
