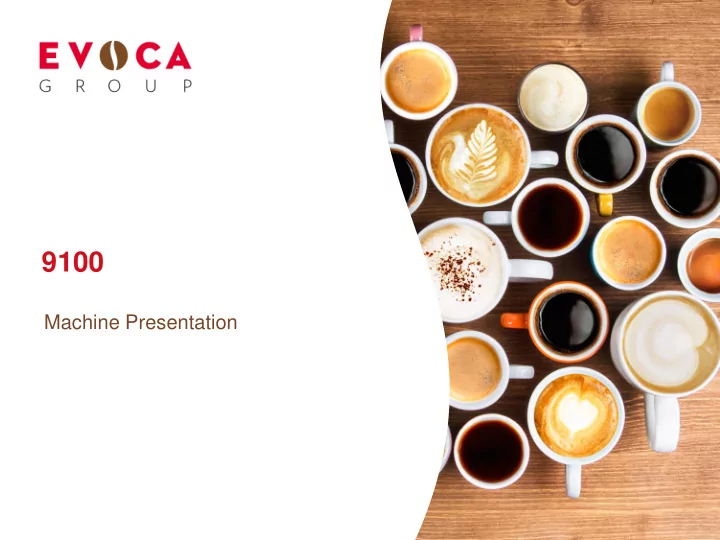

9100

Machine Presentation

HIGHLIGHTS

2

• New 10” HD Touch screen
• Can be set to for 7oz, 9oz or 12oz drinks
• New and improved operating platform
• Easy to maintain thanks to colour coded internal

parts

• LED illumination of the vend area
• Suitable for locations up to 200 drinks a day
• Available in ES, ES + FB Tea, SFB Tea or Instant

versions

• Payment available on both machines
• 9100 ES, Instant & SFB Tea is internal
• 9100 ES + FB Tea is external

DESIGN AND USER INTERFACE

• New 10” HD Touch screen can play advertising or

promotional videos and show still images

• Screen is fully customisable to suit the customers

site, for example a change of background colour

• r unique drinks icons can be used
• Guided drink customization which allows the

customer to tailor the drink to their own taste

• Nutritional information and allergens can be

clearly and easily shared via the touch screen

• You have the ability to offer 2 different drink

sizes, for example 9oz and 12oz

DESIGN AND USER INTERFACE

• There are multiple screens available (which you

can scroll through) so a wide variety of drinks can be easily offered with no limitations – set your own drinks menu

• Messages can be shown across the top of the

touch screen which are easily updated directly via the programming screens

• Possible to replace the instant coffee with milk

to double the milk capacity of the machine

• 800cc boiler with new insulation to improve

performance

PAYMENT OPTIONS

• A payment system can be fitted directly to the

9100 ES without the need for an extra module (does require an additional payment preparation kit)

• The 9100 ES + FB Tea uses an external payment

module which is fitted to the right hand side of the machine (see image to the right)

• If fitting more than one payment system a side

payment module must be fitted. ***Validator Not a Option on the 9100***

SCREEN FUNCTIONALITY

• Plays standby video – Single videos or you can create a playlist with multiple

videos

• Plays individual drink selection video – Single videos or you can create a

playlist with multiple videos

• Shows nutritional and allergen information
• Internet connection via LAN or Wi-Fi to manage RSS news feeds and e-mail

alerts

• Wi-Fi to LAN convertor allows you to connect the machine to an already

established Wi-Fi connection

• Screen managed by USB only (Giga Touch software is not required)

**NB Support maybe required from customers IT department to gain access to the network**

SCREEN DRINK PROCESS

SCREEN EXAMPLES

E-MAIL ALERT SYSTEM

• The internet connectivity on the 9100 allows the use of the e-mail alert

feature, which can send information on the following:

─ Events, which include when the machine has been opened or cleaned ─ Failures, which could include issues with the coin mech, water or machine control board ─ EVA-DTS status report

• If this feature is turned on e-mails will be sent to a designated set of

addresses whenever a predefined event or failure occurs.

• The EVA-DTS report will be sent as a pre-set timed event

**You will need to connect the 9100 to the internet via an Ethernet cable or by using a WiFi Kit**

E-MAIL ALERT SYSTEM

DIMENSIONS

11

Height 870 mm Width 450mm Depth 525mm Weight: approx 75 Kg

CAPACITY ES

12

Milk: 1.2kg 2 Mixing Bowls Solid Waste Capacity: 200 cakes

Drip Tray Capacity: 1L

Instant Coffee: 0.7kg or Milk: 1.2kg Chocolate: 1.9kg Beans: Standard - 2.8kg Dam Removed – 4kg New Insert – 2 kg

NEW TEA BREWER

13

• 9100 is now also available as ES + FB Tea
• The tea brewer is small and designed to replace a single

canister and mixer bowl

• The tea replaces the instant coffee
• The brewer is a gravity feed design which produces an

excellent cup of tea

• The brewer is easy to remove and clean and has the

normal N&W colour coding system

CAPACITY ES + FB TEA

14

Milk: 1.2kg 2 Mixing Bowls Solid Waste Capacity: 200 cakes

Drip Tray Capacity: 1L

Freshbrew Tea: 1.1kg Chocolate: 1.9kg Beans: Standard - 2.8kg Dam Removed – 4kg New Insert – 2 kg

CAPACITY SFB TEA

15

Milk: 1.2kg 3 Mixing Bowls Solid Waste Capacity: 200 cakes

Drip Tray Capacity: 1L Instant Coffee 1 0.7kg

Chocolate: 1.9kg Freshbrew Tea 1.1kg

Instant Coffee 2 0.7kg

Milk: 1.2kg Tea Brewer

CAPACITY INSTANT

16

Sugar: ???? g 4 Mixing Bowls

Drip Tray Capacity: 1L Instant Coffee 1 0.7kg

Chocolate: 1.9kg Tea ???? kg

Instant Coffee 2 0.7kg

Milk: 1.2kg

ACCESSORIES

17

• 979252 – Payment Preparation Kit
• 979254 –Liquid / Solid Waste Kit for Base Cabinet (not available on ES + FB version)
• 979202 – Base Cabinet
• 39765301 – Black Table Top for Base Cabinet
• 979270 – WiFi Kit
