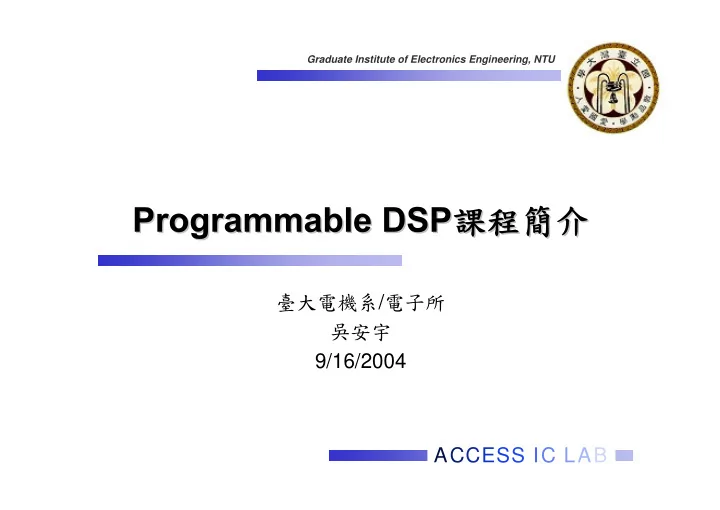

Graduate Institute of Electronics Engineering, NTU / 9/16/2004 ACCESS IC LAB ACCESS IC LAB Graduate Institute of Electronics Engineering, NTU Overview of DSP Processor Current Status of NTU DSP Laboratory (E1-304) Course outline of
SLIDE 2
SLIDE 3
ACCESS IC LAB
Graduate Institute of Electronics Engineering, NTU
DSP processor is a specially designed microprocessor for multimedia/communication applications
Data path is configured for DSP algorithms (Inner product & convolutions) Specialized (DSP-oriented) instruction sets (Single-cycle MAC, Hamming distance operations, Saturation operations, etc.) Multiple memory banks and buses (Harvard architecture) Specialized addressing modes (FFT bit reversal) Specialized execution control (Loop control) Specialized peripherals for DSP (ADC, DAC, A/V Codec)
SLIDE 4
ACCESS IC LAB
Graduate Institute of Electronics Engineering, NTU
Implementation Choices of DSP Implementation Choices of DSP Systems Systems
DSP system can be implement through many approaches Programmable DSP not
- nly makes prototyping
fast but also achieve great performance and power efficiency. DSP processor costs less than ASIC/FPGA if it is selected carefully with application-specific analysis.
SLIDE 5
ACCESS IC LAB
Graduate Institute of Electronics Engineering, NTU
SLIDE 6
ACCESS IC LAB
Graduate Institute of Electronics Engineering, NTU
SLIDE 7
ACCESS IC LAB
Graduate Institute of Electronics Engineering, NTU
SLIDE 8
ACCESS IC LAB
Graduate Institute of Electronics Engineering, NTU
Two 16-bit MACs (Multiply-and Accumulator), two 40-bit ALUs, four 8-bit Video ALUs Support for 8/16/32-bit integer and 16/32-bit fractional data types Concurrent Fetch of One instruction and Two unique data elements Two loop counters that allow for Nested Zero-overhead Looping A Modified Harvard architecture
SLIDE 9
ACCESS IC LAB
Graduate Institute of Electronics Engineering, NTU
SLIDE 10
ACCESS IC LAB
Graduate Institute of Electronics Engineering, NTU
Compute Unit Architecture Compute Unit Architecture
SLIDE 11
ACCESS IC LAB
Graduate Institute of Electronics Engineering, NTU
A single, unified 4G byte address space using 32-bit addresses The L1 memory system is the primary highest performance memory available to the core and is faster than L2 memory system The L2 memory system is off-chip and have longer access latencies
SLIDE 12
ACCESS IC LAB
Graduate Institute of Electronics Engineering, NTU
Parallel Peripheral Interface (PPI) Serial Ports (SPORTs) Serial Peripheral Interface (SPI) General-purpose timers Universal Asynchronous Receiver Transmitter (UART) Real-Time Clock (RTC) Watchdog timer General-purpose I/O (programmable flags)
SLIDE 13
ACCESS IC LAB
Graduate Institute of Electronics Engineering, NTU
ADSP ADSP-
- BF535 EZ
BF535 EZ-
- KIT
KIT Lite Lite
Key features
Attributes
ADSP-BF535 Blackfin Processor 4M x 32-bit SDRAM 272K x 16-bit FLASH memory AD1885 48 kHz AC 97 SoundMax codec Power management capability JTAG ICE 14-pin header Evaluation suite of VisualDSP++ Three 90-pin connectors for analyzing and interfacing with the processors peripheral interfaces CE Certified
System Requirements
Pentium 166 MHz or higher Minimum of 32 MB of RAM Windows 98, Windows 2000, or Windows XP One USB port
SLIDE 14
ACCESS IC LAB
Graduate Institute of Electronics Engineering, NTU
C2.4G 11 ( VLSI ) 4 ( ) 12 ( ) 13 ( ) ADI Blackfin DSP tools 11 ( ADI donation) TV-BOX 11 ( ) NTSC Camera 11 ( ) ( )
SLIDE 15
ACCESS IC LAB
Graduate Institute of Electronics Engineering, NTU
SLIDE 16
ACCESS IC LAB
Graduate Institute of Electronics Engineering, NTU
SLIDE 17
ACCESS IC LAB
Graduate Institute of Electronics Engineering, NTU
SLIDE 18
ACCESS IC LAB
Graduate Institute of Electronics Engineering, NTU
SLIDE 19
ACCESS IC LAB
Graduate Institute of Electronics Engineering, NTU
SLIDE 20
ACCESS IC LAB
Graduate Institute of Electronics Engineering, NTU
Course Outline of NTU DSP Lab Course Outline of NTU DSP Lab (Fall 2004) (Fall 2004)
9/13~9/19 Course outline No Lab 9/20~9/26 DSP introduction No Lab 9/27~10/2 Blackfin architecture No Lab 10/4~10/10 Development tool Tool installation 10/11~10/17 BF533 peripherals Access peripherals 10/18~10/24 FIR (I) Audio sampling 10/25~10/31 FIR (II) Audio equalizer 11/1~11/7 Code optimization Previous Labs 11/8~11/14 VDK Previous Labs 11/15~11/21 DPCM/ADPCM ADPCM 11/22~11/28 Storage and FAT file system Access data from storage device 11/29~12/5 Digital Audio Recorder DAR 12/6~12/12 2D image compression (I) DCT & Quantizatizer 12/13~12/19 2D image compression (II) DVR ~ 12/20~12/26 Term project
E2-144 E1-304
SLIDE 21
ACCESS IC LAB
Graduate Institute of Electronics Engineering, NTU
Course Outline of NTU DSP Lab Course Outline of NTU DSP Lab (Fall 2004) cont (Fall 2004) cont
1~3 2 144 4~17 1 304 http://access.ee.ntu.edu.tw/course/DSP_Lab/ Password : DSPprg 30 1~3 10
SLIDE 22
ACCESS IC LAB
Graduate Institute of Electronics Engineering, NTU
Course Outline of NTU DSP Lab Course Outline of NTU DSP Lab (Fall 2004) cont (Fall 2004) cont
TA (tommy@access.ee.ntu.edu.tw) 1 1 .zip ( )
SLIDE 23
