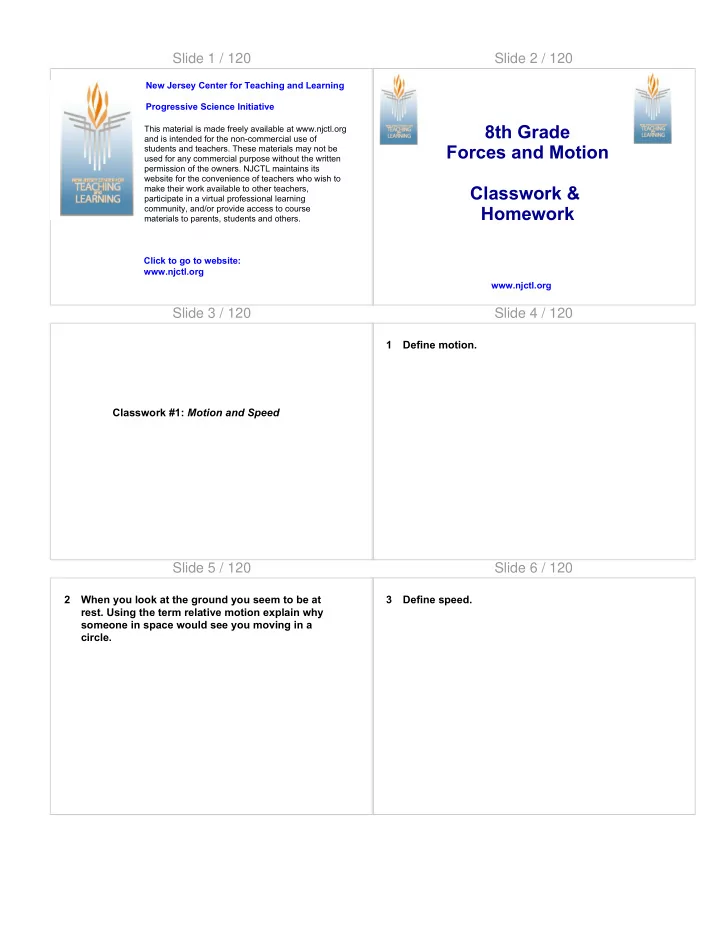

SLIDE 1 Slide 1 / 120
This material is made freely available at www.njctl.org and is intended for the non-commercial use of students and teachers. These materials may not be used for any commercial purpose without the written permission of the owners. NJCTL maintains its website for the convenience of teachers who wish to make their work available to other teachers, participate in a virtual professional learning community, and/or provide access to course materials to parents, students and others.
Click to go to website: www.njctl.org New Jersey Center for Teaching and Learning Progressive Science Initiative
Slide 2 / 120
www.njctl.org
8th Grade Forces and Motion Classwork & Homework
Slide 3 / 120
Classwork #1: Motion and Speed
Slide 4 / 120
1 Define motion.
Slide 5 / 120
2 When you look at the ground you seem to be at
- rest. Using the term relative motion explain why
someone in space would see you moving in a circle.
Slide 6 / 120
3 Define speed.
SLIDE 2 Slide 7 / 120
4 What is the formula for measuring the speed of an
Slide 8 / 120
5 Lance Armstrong can ride his bicycle at speeds of 15 m/s. If he is traveling at this speed, how long will it take him to travel 81.9 meters?
Slide 9 / 120
6 John is growing another crop of corn this year. He plows a row of his field in 90 seconds. If each row is 384 meters long, how fast does John drive his tractor?
Slide 10 / 120
7 Benjamin is learning how to ride his tricycle. His driveway is 30 meters long, and he is not allowed to ride anywhere else yet. If Benjamin travels at 3 m/s, how long will it take him to go from one end
- f the driveway to the other?
Slide 11 / 120
Homework: Motion and Speed
Slide 12 / 120
8 How can you tell that an object is in motion?
SLIDE 3 Slide 13 / 120
9 What is a frame of reference?
Slide 14 / 120
10 How long does it take a snail to travel a distance
Slide 15 / 120
11 How far (distance) does a cat run if it travels at a speed of 3 m/s for 25 seconds?
Slide 16 / 120
12 A racecar driver frequently drives his racecar at 67 m/s for as long as he can. If he drives his car at that speed for 22 seconds, how far will he travel?
Slide 17 / 120
13 Everyone in Paperville needs their newspaper before 6 a.m. on Monday. If it takes the delivery boy 3 hours to deliver the papers at 12 m/s, what is the distance of the paper route in Paperville?
Slide 18 / 120
Classwork #2: Average vs. Instantaneous Speed & Velocity
SLIDE 4
Slide 19 / 120
Men’s 100m Dash World Record Activity Sheet
Slide 20 / 120
Homework: Average vs. Instantaneous Speed & Velocity
Slide 21 / 120
14 What is the difference between average speed and instantaneous speed?
Slide 22 / 120
15 What is the average speed of a dog that runs 100 m in 30 s?
Slide 23 / 120
16 You look at your speedometer in the car on a trip to look at your speed. Is this an average speed or instantaneous speed?
Slide 24 / 120
17 List two examples of average speed and two examples of instantaneous speed.
SLIDE 5
Slide 25 / 120
18 The Admiral train is traveling east at 100 mph and the Alamo train is traveling west at 100 mph. Do they have the same speed? Do they have the same velocity? Why?
Slide 26 / 120
19 Train A leaves New York at the same time Train B leaves California. They are 2900 miles apart. If they both travel at an average speed of 120 mph. A What is the velocity of train A? B What is the velocity of train B? C How long will it take before they meet?
Slide 27 / 120
Classwork #3: Graphing Motion
Slide 28 / 120
Graphing Motion Simulation Activity Sheet
Slide 29 / 120
Homework: Graphing Motion
Slide 30 / 120
20 It is Field Day at your school and everyone is ready for the potato sack race. Each grade has selected one person to enter the race. There were nine checkpoints along the racecourse. Graph the motion of the three contestants using a separate color/line pattern for each contestant.
SLIDE 6 Slide 31 / 120
Name 10m 20m 30m 40m 50m 60m 70m 80m 90m Susie (6th) 4s 9s 11s 15s 21s 23s 28s 32s 37s Joe (7th) 5s 15s 19s 24s 29s 33s 36s 41s 46s Thomas (8th) 6s 8s 11s 15s 20s 24s 28s 31s 35s
Slide 32 / 120
21 Who won the race?
Slide 33 / 120
22 Who had the fastest speed from 0- 50m?
Slide 34 / 120
23 Who had the fastest speed from 0-70m?
Slide 35 / 120
Classwork #4: Acceleration
Slide 36 / 120
24 Define acceleration.
SLIDE 7 Slide 37 / 120
25 Write the formula for measuring the acceleration
Slide 38 / 120
26 What is the SI unit of measurement for acceleration?
Slide 39 / 120
27 Explain 3 ways that you can change motion and accelerate.
Slide 40 / 120
28 What is the acceleration of a car that starts at rest and increases its speed to 10 m/s in 2 seconds?
Slide 41 / 120
29 What is the acceleration of an object that starts at 10 m/s and slows to 2 m/s in 4 seconds?
Slide 42 / 120
30 Describe the speed of an object as seen in the acceleration graph below:
SLIDE 8
Slide 43 / 120
31 Describe the speed of an object as seen in the acceleration graph below:
Slide 44 / 120
Homework: Acceleration
Slide 45 / 120
32 Explain why going around a corner on a bicycle is considered acceleration.
Slide 46 / 120
33 A car increases its speed. Is this acceleration positive or negative? Explain.
Slide 47 / 120
34 What is the acceleration of a rocket that is travelling at 20 m/s and increases it’s velocity to 40 m/s in 4 seconds?
Slide 48 / 120
35 What is the acceleration of a dragster that deploys a parachute when travelling at 33 m/s and slows to rest in 11 seconds?
SLIDE 9
Slide 49 / 120
36 Describe the speed of an object as seen in the acceleration graph seen below:
Slide 50 / 120
37 Describe the speed of an object as seen in the acceleration graph seen below:
Slide 51 / 120
Classwork #5: Forces and Friction
Slide 52 / 120
38 Define a force.
Slide 53 / 120
39 How are forces involved in changing the motion of an object?
Slide 54 / 120
40 What is the “BIG IDEA” about the relationship between forces and acceleration?
SLIDE 10
Slide 55 / 120
41 What is the Unit for measuring force in the SI system of measurement?
Slide 56 / 120
42 Calculate the net force in the diagram seen below:
Slide 57 / 120
43 Define friction and explain its effect on motion.
Slide 58 / 120
44 What is static friction?
Slide 59 / 120
Homework: Forces and Friction
Slide 60 / 120
45 A force is a push or a pull acting on an object. How do forces affect motion when the forces are a) balanced, and b) unbalanced?
SLIDE 11
Slide 61 / 120
46 What happens to the motion of any object that feels an unbalanced force?
Slide 62 / 120
47 What types of friction occur when you ride a bike through a puddle?
Slide 63 / 120
Classwork #6: Gravity and Equilibrium
Slide 64 / 120
48 In your own words, define the law of gravitation.
Slide 65 / 120
49 What is the formula for measuring the weight of any object?
Slide 66 / 120
50 Why is the weight of a barbell smaller on the moon compared to the Earth?
SLIDE 12 Slide 67 / 120
51 What happens to the force of gravity as any 2
- bjects move farther apart?
Slide 68 / 120
52 When is an object said to be in free fall?
Slide 69 / 120
53 Define Equilibrium and relate it to the term balanced forces.
Slide 70 / 120
54 Calculate the Net force acting on the block in the diagram seen below:
Slide 71 / 120
Homework: Gravity and Equilibrium
Slide 72 / 120
55 As we move away from the center of the Earth, what happens to the force of gravity?
SLIDE 13
Slide 73 / 120
56 Explain why Jupiter’s gravitational constant is stronger than Mercury’s gravitational constant.
Slide 74 / 120
57 What is the weight of a 99 kg man on Earth?
Slide 75 / 120
58 Why does an object accelerate when it falls toward Earth’s surface?
Slide 76 / 120
59 What happens to the motion of any object that feels an unbalanced force?
Slide 77 / 120
60 If an object is in equilibrium, then the forces must be _____________________?
Slide 78 / 120
61 Calculate the net force acting on the block seen in the diagram below:
SLIDE 14
Slide 79 / 120
62 Is the object in #50 in equilibrium? Explain.
Slide 80 / 120
Classwork #7: Newton's First Law
Slide 81 / 120
63 Who were the early scientists that first studied/explained motion?
Slide 82 / 120
64 What were some of the advances that Sir Isaac Newton made in the area of physics and mathematics?
Slide 83 / 120
65 Define Newton’s 1st law of motion.
Slide 84 / 120
66 What is the relationship between an object’s mass and the amount of inertia it exhibits? Give an example to answer this question.
SLIDE 15
Slide 85 / 120
Homework: Newton's First Law
Slide 86 / 120
67 Define inertia.
Slide 87 / 120
68 Which object has more inertia? A boy or an automobile? Why?
Slide 88 / 120
69 In your own words, explain an example of Newton’s 1st law of motion.
Slide 89 / 120
Classwork #8: Newton's Second Law
Slide 90 / 120
70 How does applying a force to an object affect its motion?
SLIDE 16 Slide 91 / 120
71 What is the acceleration of a 100 kg canoe that feels a force of 1000N?
Slide 92 / 120
72 If the canoe in problem #74 is loaded to have a total mass of 500 kg and the force stays the same at 1000 N, what is the new acceleration?
Slide 93 / 120
73 A tennis ball, 0.314 kg, is accelerated at a rate of 164 m/s2 when hit by a professional tennis player. What force does the player’s tennis racket exert
Slide 94 / 120
74 You push a friend sitting on a swing. She has a mass of 50 kg and accelerates at a rate of 4 m/s 2. Find the force you exerted.
Slide 95 / 120
75 How much force would it take to push another friend who has a mass of 70 kg to accelerate at the same rate of 4 m/s 2?
Slide 96 / 120
Homework: Newton's Second Law
SLIDE 17 Slide 97 / 120
76 What is the unit of force when completing physics problems?
Slide 98 / 120
77 As the mass of an object increases, what if the effect on the resulting acceleration?
Slide 99 / 120
78 What is the acceleration of a 1000 kg car that feels a force of 5000 N?
Slide 100 / 120
79 What force causes a 1 m/s 2 acceleration of a 5 kg bowling ball?
Slide 101 / 120
80 What is the mass of an object that accelerates at a rate of 3 m/s2 when acted upon by a 30 N force?
Slide 102 / 120
81 A worker drops his hammer off the roof of a
- house. The hammer has a mass of 9 kg, and
gravity accelerates it at the usual 9.8 m/s 2. How much force does the earth apply to the hammer?
SLIDE 18
Slide 103 / 120
Classwork #9: Newton's Third Law
Slide 104 / 120
82 Define Newton’s 3rd Law.
Slide 105 / 120
83 When forces act upon two objects in contact, explain the forces in terms of “paired forces.”
Slide 106 / 120
84 Explain how a rocket works using Newton’s third law of motion.
Slide 107 / 120
85 Define momentum.
Slide 108 / 120
86 How is momentum similar / different to inertia?
SLIDE 19 Slide 109 / 120
87 What is the formula and unit for measuring momentum?
Slide 110 / 120
88 What is the momentum of a 10 kg object travelling at 3 m/s?
Slide 111 / 120
89 What is the momentum of a 10 kg object travelling at 6 m/s?
Slide 112 / 120
90 What happens to the momentum of an object if the velocity is doubled?
Slide 113 / 120
Homework: Newton's Third Law
Slide 114 / 120
91 How does Newton’s third law relate to the man jumping out of a canoe as discussed in the lesson
SLIDE 20
Slide 115 / 120
92 Compare the momentum of a fly and a train travelling at the same velocity.
Slide 116 / 120
93 How does sitting in your chair relate to Newton’s 3rd law of motion?
Slide 117 / 120
94 What is the momentum of a 13 kg shot-put travelling at 3 m/s?
Slide 118 / 120
95 What is the momentum of the same shot-put travelling at 1.5 m/s?
Slide 119 / 120
96 If the velocity of an object is cut in half, what happens to the momentum of the object?
Slide 120 / 120
97 Define “conservation of momentum” and give an example of this principle in the real world.
