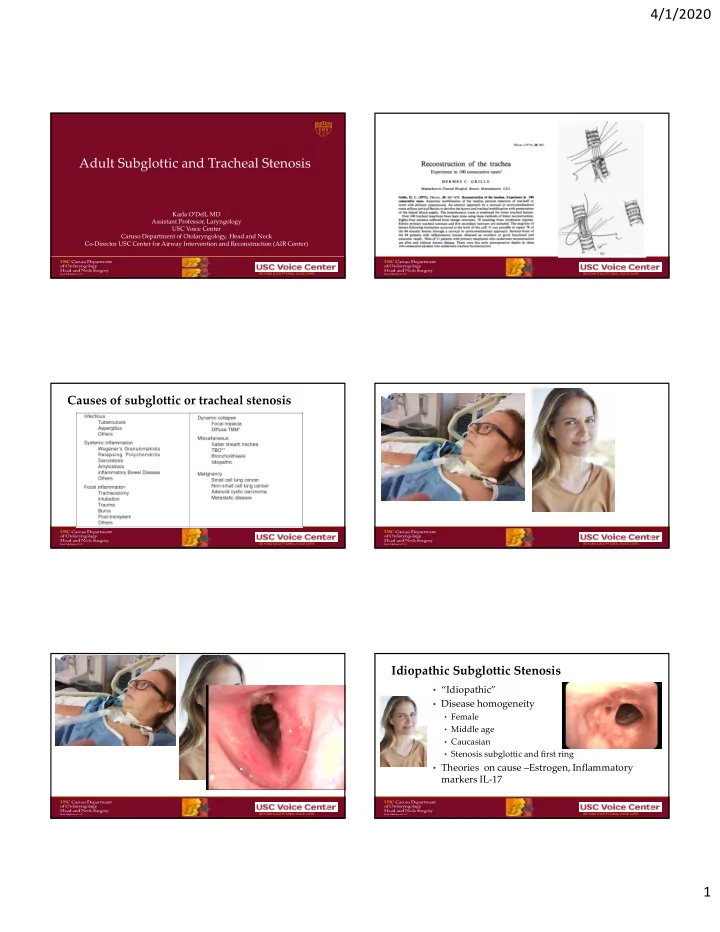

4/1/2020 Adult Subglottic and Tracheal Stenosis Karla ODell, MD - - PDF document

4/1/2020 1

BEYOND EXCEPTIONAL VOICE CARE

Adult Subglottic and Tracheal Stenosis

Karla O’Dell, MD Assistant Professor, Laryngology USC Voice Center Caruso Department of Otolaryngology, Head and Neck Co-Director USC Center for Airway Intervention and Reconstruction (AIR Center)

BEYOND EXCEPTIONAL VOICE CARE

2

BEYOND EXCEPTIONAL VOICE CARE

Causes of subglottic or tracheal stenosis

3

BEYOND EXCEPTIONAL VOICE CARE

4

BEYOND EXCEPTIONAL VOICE CARE

5

BEYOND EXCEPTIONAL VOICE CARE

• “Idiopathic”
• Disease homogeneity
• Female
• Middle age
• Caucasian
• Stenosis subglottic and first ring
• Theories on cause –Estrogen, Inflammatory

markers IL-17

Idiopathic Subglottic Stenosis

6

4/1/2020 2

BEYOND EXCEPTIONAL VOICE CARE

7

BEYOND EXCEPTIONAL VOICE CARE

North American Airway Collaborative

8

BEYOND EXCEPTIONAL VOICE CARE

In Office Bronchoscopy

BEYOND EXCEPTIONAL VOICE CARE

Pulmonary Function Tests

10

BEYOND EXCEPTIONAL VOICE CARE

11

BEYOND EXCEPTIONAL VOICE CARE

Initial Procedure- Endoscopic treatment

12

4/1/2020 3

BEYOND EXCEPTIONAL VOICE CARE

• Qvar or steroid inhaler 1 month
• Bactrim 1 month
• Series of 3 subglottic Kenalog 40-80mg injected into scar

spaced 1 month apart

• PFTs pre, post, after serial steroid, q 3 months
• Repeat series if begin to have symptoms or progressive

change in PFTs

USC- Post dilation protocol

13

BEYOND EXCEPTIONAL VOICE CARE

• First described by Ramon Franco in 2015, alternative

treatment for iSGS

Serial steroid injections

14

BEYOND EXCEPTIONAL VOICE CARE

15

BEYOND EXCEPTIONAL VOICE CARE

16

BEYOND EXCEPTIONAL VOICE CARE

Removing all tissue except thin mucosal bridges

Endoscopic Resection

17

BEYOND EXCEPTIONAL VOICE CARE

Cricotracheal resection

18

4/1/2020 4

BEYOND EXCEPTIONAL VOICE CARE

19

BEYOND EXCEPTIONAL VOICE CARE

20

BEYOND EXCEPTIONAL VOICE CARE

21

BEYOND EXCEPTIONAL VOICE CARE

Maddern procedure

22

BEYOND EXCEPTIONAL VOICE CARE

23

BEYOND EXCEPTIONAL VOICE CARE

24

4/1/2020 5

BEYOND EXCEPTIONAL VOICE CARE

• Intubation
• Cuff pressure  Necrosis  Exposed cartilage 

Circumferential scar Stenosis

• Trach tube placement
• Size of tube
• Perc trach vs. open
• High trach

Traumatic/Iatrogenic

25

BEYOND EXCEPTIONAL VOICE CARE

Cotton-Myer grade of stenosis

26

BEYOND EXCEPTIONAL VOICE CARE

27

BEYOND EXCEPTIONAL VOICE CARE

28

BEYOND EXCEPTIONAL VOICE CARE

Tracheal resection/Cricotracheal resection

29

BEYOND EXCEPTIONAL VOICE CARE

30

4/1/2020 6

BEYOND EXCEPTIONAL VOICE CARE

31

BEYOND EXCEPTIONAL VOICE CARE

32

BEYOND EXCEPTIONAL VOICE CARE

Tracheal Resection/CTR- USC

33

• In the last 5 years

Etiology # of patients % of total Idiopathic 2 4.65% Traumatic Intubation 2 5% Tracheostomy 31 72% Autoimmune/Inflammatory 0% Cancer 8 19% Total patients 43

BEYOND EXCEPTIONAL VOICE CARE

• Multi-level stenosis
• Low stenosis
• Requires team

approach

Complex cases

34

BEYOND EXCEPTIONAL VOICE CARE

35

BEYOND EXCEPTIONAL VOICE CARE

• Multi-level stenosis- Glottic and tracheal
• Manage the glottic stenosis first
• Low stenosis- Thoracic for mini sternotomy

Complex cases

36

4/1/2020 7

BEYOND EXCEPTIONAL VOICE CARE

37

BEYOND EXCEPTIONAL VOICE CARE

3 months post op

38

BEYOND EXCEPTIONAL VOICE CARE

• Radial forearm free flap with buried auricular cartilage
• Rarely used
• Option after failed resection

Composite Grafting

39

BEYOND EXCEPTIONAL VOICE CARE

40

BEYOND EXCEPTIONAL VOICE CARE

Pre op 1 month post op

41

BEYOND EXCEPTIONAL VOICE CARE

Tracheal regeneration

42

4/1/2020 8

BEYOND EXCEPTIONAL VOICE CARE

43

BEYOND EXCEPTIONAL VOICE CARE

44

BEYOND EXCEPTIONAL VOICE CARE

Any questions?

45
