3rd Grade Shapes and Perimeter 2015-11-10 www.njctl.org Slide 3 / - - PDF document

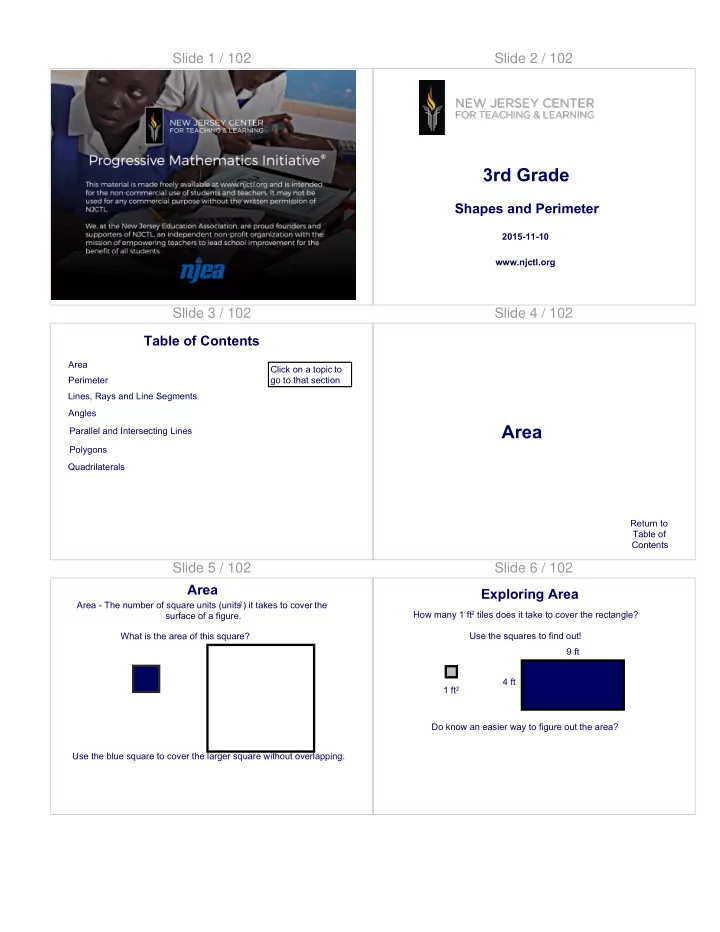

Slide 1 / 102 Slide 2 / 102

3rd Grade

Shapes and Perimeter

2015-11-10 www.njctl.org

Slide 3 / 102 Table of Contents

Area Click on a topic to go to that section Perimeter Lines, Rays and Line Segments Angles Parallel and Intersecting Lines Polygons Quadrilaterals

Slide 4 / 102

Area

Return to Table of Contents

Slide 5 / 102

Area - The number of square units (units

2) it takes to cover the

surface of a figure. What is the area of this square? Use the blue square to cover the larger square without overlapping.

Area Slide 6 / 102

How many 1 ft2 tiles does it take to cover the rectangle? Use the squares to find out! 9 ft 4 ft 1 ft2 Do know an easier way to figure out the area?

Exploring Area

Slide 7 / 102

Area = length x width Area = side x side The Area (A) of a rectangle is found by using: The Area (A) of a square is found by using:

Finding Area Slide 8 / 102

What is the area of these shapes? Drag the magnifying glass under each to see if you are right. 18 4 3 15 21

Finding Area Slide 9 / 102

1 What is the area of the figure? 9 ft. 4 ft

Slide 9 (Answer) / 102

1 What is the area of the figure? 9 ft. 4 ft

[This object is a pull tab]

Answer

36 feet squared

Slide 10 / 102

2 What is the area of the figure?

6 in. 2 in.

Slide 10 (Answer) / 102

2 What is the area of the figure?

6 in. 2 in.

[This object is a pull tab]

Answer

12 inches squared

Slide 11 / 102

3 Can use side x side to figure out the area of this shape?

Yes No

Slide 11 (Answer) / 102

3 Can use side x side to figure out the area of this shape?

Yes No

[This object is a pull tab]

Answer

Yes

Slide 12 / 102

4 Find the area of the square below. 5

Slide 12 (Answer) / 102

4 Find the area of the square below. 5

[This object is a pull tab]

Answer

25 units squared

Slide 13 / 102

5 What is the length of one side if the area of a square is 16 units

2?

? area= 16 units2

A 3 B 4 C 5 D 6

Slide 13 (Answer) / 102

5 What is the length of one side if the area of a square is 16 units

2?

? area= 16 units2

A 3 B 4 C 5 D 6

[This object is a pull tab]

Answer

4 units

Slide 14 / 102

6 What is the length of one side if the area of a square is 36 units

2?

Slide 14 (Answer) / 102

6 What is the length of one side if the area of a square is 36 units

2?

[This object is a pull tab]

Answer

6 units

Slide 15 / 102

7 Maggie wants to put down new tile in her

• bathroom. How many 1 ft by 1 ft tiles does

she need to cover the floor if it is in the shape of a square and each side has a length of 5 ft? A 5 tiles B 10 tiles C 20 tiles D 25 tiles

Slide 15 (Answer) / 102

7 Maggie wants to put down new tile in her

• bathroom. How many 1 ft by 1 ft tiles does

she need to cover the floor if it is in the shape of a square and each side has a length of 5 ft? A 5 tiles B 10 tiles C 20 tiles D 25 tiles

[This object is a pull tab]

Answer

25 tiles

Slide 16 / 102

Perimeter

Return to Table of Contents

Slide 17 / 102

Perimeter- What word do you see in the middle of perimeter?

PERIMETER

Just like the "rim" of a tire goes around the outside.

click

Perimeter

Slide 18 / 102

The perimeter of a shape is the measurement around the outside

• f the shape.

Perimeter Slide 19 / 102

3 3 3 P=9 4 4 4 4 P=16 2 2 2 2 2 2 2 1 1 P=6 P=10 How were the perimeters of the shapes above found?

Perimeter Slide 20 / 102

How can we find the missing side lengths to find the perimeter of this rectangle? 9 ft 4 ft ? ?

Perimeter Slide 21 / 102

How can we find the missing side lengths to find the perimeter of this square? 6 cm ? ? ?

Perimeter Slide 22 / 102

What is the perimeter of these shapes? Drag the magnifying glass under each to see if you are right. 18 16 20 2 3 1 1 1 3 8 12

Finding Perimeter Slide 23 / 102

8 What is the perimeter of this rectangle? 10 ft 6 ft

Slide 23 (Answer) / 102

8 What is the perimeter of this rectangle? 10 ft 6 ft

[This object is a pull tab]

Answer

32 feet

Slide 24 / 102

9 What is the perimeter of this rectangle?

5 cm. 4 cm

Slide 24 (Answer) / 102

9 What is the perimeter of this rectangle?

5 cm. 4 cm

[This object is a pull tab]

Answer

18 cm

Slide 25 / 102

10 You can use side x side to figure out the perimeter of this shape?

Yes No

Slide 25 (Answer) / 102

10 You can use side x side to figure out the perimeter of this shape?

Yes No

[This object is a pull tab]

Answer

No

Slide 26 / 102

11 What is the perimeter of this square? 7 cm.

Slide 26 (Answer) / 102

11 What is the perimeter of this square? 7 cm.

[This object is a pull tab]

Answer

28 cm

Slide 27 / 102

12 What is the length of one side if the perimeter is 12 units? ? perimeter = 12 units

A 1 B 2 C 3 D 4

Slide 27 (Answer) / 102

12 What is the length of one side if the perimeter is 12 units? ? perimeter = 12 units

A 1 B 2 C 3 D 4

[This object is a pull tab]

Answer

C

Slide 28 / 102

13 Dawn wants to put up a fence around her yard. How much fence is needed? 10 ft 20 ft

A 30 ft B 10 ft C 60 ft D 200 ft

Slide 28 (Answer) / 102

13 Dawn wants to put up a fence around her yard. How much fence is needed? 10 ft 20 ft

A 30 ft B 10 ft C 60 ft D 200 ft

[This object is a pull tab]

Answer

C Since the fence goes around the garden, it is perimeter.

Slide 29 / 102

14 Lavina wants to place a fence around a rectangular play area for her rabbits. The play area will be 7-feet long and 4-feet wide. What is the total length of fence, in feet, Lavina needs to place around the play area?

From PARCC EOY sample test non-calculator #21

Slide 29 (Answer) / 102

14 Lavina wants to place a fence around a rectangular play area for her rabbits. The play area will be 7-feet long and 4-feet wide. What is the total length of fence, in feet, Lavina needs to place around the play area?

From PARCC EOY sample test non-calculator #21

[This object is a pull tab]

Answer

22 feet

Slide 30 / 102 Perimeter Problems with Geoboards

Click for web site for interactive Geoboard from National Library of Virtual Manipulatives

Slide 31 / 102

15 What is the perimeter of the rectangle shown on the geoboard?

Slide 31 (Answer) / 102

15 What is the perimeter of the rectangle shown on the geoboard?

[This object is a pull tab]

Answer

12 units

Slide 32 / 102

16 Do both of these rectangles have the same perimeter?

Yes No

Slide 32 (Answer) / 102

16 Do both of these rectangles have the same perimeter?

Yes No

[This object is a pull tab]

Answer

Yes

Slide 33 / 102

17 Do both of these rectangles have the same perimeter?

Yes No

Slide 33 (Answer) / 102

17 Do both of these rectangles have the same perimeter?

Yes No

[This object is a pull tab]

Answer

No

Slide 34 / 102

This Geoboard shows a perimeter of 14. With your group, make as many other rectangles as you can with a perimeter of 14.

Using Geoboards Slide 35 / 102

Organize your data into a table

Length Width Perimeter 4 3 14

Organizing Perimeter Data Slide 36 / 102

How to find a missing length or width length = 9 units width= ? If the perimeter of this rectangle is 24 units, what is the unknown width? Step 1: Label the opposite length.

Perimeter Slide 37 / 102

How to find a missing length or width length = 9 units width= ? If the perimeter of this rectangle is 24 units, what is the unknown width? Step 1: Label the opposite length. Step 2: Add the two lengths together. 9 + 9 = 18 length = 9 units

Perimeter

Slide 38 / 102

How to find a missing length or width length = 9 units width= ? If the perimeter of this rectangle is 24 units, what is the unknown width? Step 1: Label the opposite length. Step 2: Add the two lengths together. 9 + 9 = 18 Step 3: Subtract the two lengths from the perimeter. 24 - 18 = 6 length = 9 units

Perimeter Slide 39 / 102

How to find a missing length or width length = 9 units width= 3 units If the perimeter of this rectangle is 24 units, what is the unknown width? Step 1: Label the opposite length. Step 2: Add the two lengths together. 9 + 9 = 18 Step 3: Subtract the two lengths from the perimeter. 24 - 18 = 6 Step 4: Divide 6 ÷ 2 = 3 The unknown width is 3 units. length = 9 units width= 3 units

Perimeter Slide 40 / 102

18 The perimeter of a rectangle is 12 inches. The length is 5 inches. What is the width? (Draw a picture to help.)

Slide 40 (Answer) / 102

18 The perimeter of a rectangle is 12 inches. The length is 5 inches. What is the width? (Draw a picture to help.)

[This object is a pull tab]

Answer

1 inch

Slide 41 / 102

19 The perimeter of a bedroom is 36 feet. The width is 8 feet. What is the length? (Draw a picture to help.)

Slide 41 (Answer) / 102

19 The perimeter of a bedroom is 36 feet. The width is 8 feet. What is the length? (Draw a picture to help.)

[This object is a pull tab]

Answer

10 feet

Slide 42 / 102

20 The perimeter of a window is 16 feet. The length is 5 feet. What is the width? (Draw a picture to help.)

Slide 42 (Answer) / 102

20 The perimeter of a window is 16 feet. The length is 5 feet. What is the width? (Draw a picture to help.)

[This object is a pull tab]

Answer

3 feet

Slide 43 / 102

21 The perimeter of a frame is 48 centimeters. The length is 15 centimeters. What is the width? (Draw a picture to help.)

Slide 43 (Answer) / 102

21 The perimeter of a frame is 48 centimeters. The length is 15 centimeters. What is the width? (Draw a picture to help.)

[This object is a pull tab]

Answer

9 cm

Slide 44 / 102

22 The shape shown has a perimeter of 34 feet. What is the length of the side that is missing a number?

4 feet 5 feet 8 feet 10 feet ? feet

From PARCC EOY sample test non-calculator #18

Slide 44 (Answer) / 102

22 The shape shown has a perimeter of 34 feet. What is the length of the side that is missing a number?

4 feet 5 feet 8 feet 10 feet ? feet

From PARCC EOY sample test non-calculator #18

[This object is a pull tab]

Answer

7 feet

Slide 45 / 102

Lines, Rays and Line Segments

Return to Table of Contents

Slide 46 / 102

I F This is a line. What can you tell me about it?

Lines Slide 47 / 102

Did you come up with these ideas?

Lines

• 1. There are arrows on both ends.
• 2. There are endpoints on both ends.
• 3. It can be named Line IF.
• 4. It can be named Line FI.

click

_____________________________________

click

_____________________________________

click

_____________________________________

click

_____________________________________

Slide 48 / 102

N P This is a line segment? What do you see?

Line Segments Slide 49 / 102

Did you come up with these ideas?

Line Segments

• 1. There are no arrows.
• 2. There are endpoints on both ends.
• 3. It can be named Line Segment NP.
• 4. It can be named Line Segment PN.

click

_____________________________________

click

_____________________________________

click

_____________________________________

click

_____________________________________

Slide 50 / 102

K W This is a ray. What do you see?

Rays

Slide 51 / 102

Did you come up with these ideas?

Rays

• 1. There is an arrow on one end.
• 2. There are endpoints on both ends.
• 3. It can be named Ray KW.
• 4. It can be named Ray WK.

click

_____________________________________

click

_____________________________________

click

_____________________________________

click

_____________________________________

Slide 52 / 102

23 The name of the line segment is RO.

True False O R

Slide 52 (Answer) / 102

23 The name of the line segment is RO.

True False O R

[This object is a pull tab]

Answer

True

Slide 53 / 102

24 What is the name of the line below?

A

CG

B

GC

C

Both A and B

C G

Slide 53 (Answer) / 102

24 What is the name of the line below?

A

CG

B

GC

C

Both A and B

C G

[This object is a pull tab]

Answer

C

Slide 54 / 102

25 Can the name of this ray be CH?

Yes No H C

Slide 54 (Answer) / 102

25 Can the name of this ray be CH?

Yes No H C

[This object is a pull tab]

Answer

No

Slide 55 / 102

26 Which one is ray BN?

A

BN

B

BN

C

BN

Slide 55 (Answer) / 102

26 Which one is ray BN?

A

BN

B

BN

C

BN

[This object is a pull tab]

Answer

C

Slide 56 / 102

Angles

Return to Table of Contents

Slide 57 / 102

An angle is made with 2 rays that meet at the same endpoint. How would you describe the vertex? Vertex

Angles Slide 58 / 102

Right Angles What do these all have in common?

Right Angles

Slide 59 / 102

Acute Angles How are these different from a right angle?

Acute Angles Slide 60 / 102

Obtuse Angles How are these angles different from a right angle?

Obtuse Angles Slide 61 / 102

Acute Right Obtuse Sort the angles into the correct category.

Sorting Angles Slide 62 / 102

27 This is an obtuse angle.

True False

Slide 62 (Answer) / 102

27 This is an obtuse angle.

True False

[This object is a pull tab]

Answer

False

Slide 63 / 102

28 What type of angle is this?

A

right

B

left

C

• btuse

D

acute

Slide 63 (Answer) / 102

28 What type of angle is this?

A

right

B

left

C

• btuse

D

acute

[This object is a pull tab]

Answer

C

Slide 64 / 102

29 Is this an acute angle?

Yes No

Slide 64 (Answer) / 102

29 Is this an acute angle?

Yes No

[This object is a pull tab]

Answer

Yes

Slide 65 / 102

30 What do these two angles have in common?

A They are both angles. B They are both right angles. C They are both acute angles D Both A and B

Slide 65 (Answer) / 102

30 What do these two angles have in common?

A They are both angles. B They are both right angles. C They are both acute angles D Both A and B

[This object is a pull tab]

Answer

B

Slide 66 / 102

31 Are these two angles the same type of angle?

Yes No

Slide 66 (Answer) / 102

31 Are these two angles the same type of angle?

Yes No

[This object is a pull tab]

Answer

Yes

Slide 67 / 102

Parallel and Intersecting Lines

Return to Table of Contents

Slide 68 / 102

Parallel lines are a set of two lines that do not intersect (touch). Can you think of any examples of parallel lines?

Parallel Lines Slide 69 / 102

Intersecting lines do intersect or could cross. Can you think of any examples of intersecting lines?

Intersecting Lines Slide 70 / 102

Find the "matching" parallel lines. Then move them again to make intersecting lines.

Parallel and Intersecting Lines Slide 71 / 102

Slide 72 / 102

32 This is a pair of intersecting lines.

True False

Slide 72 (Answer) / 102

32 This is a pair of intersecting lines.

True False

[This object is a pull tab]

Answer

True

Slide 73 / 102

33 Which line would be parallel to the one below?

A B C D

Slide 73 (Answer) / 102

33 Which line would be parallel to the one below?

A B C D

[This object is a pull tab]

Answer

C

Slide 74 / 102

34 Are these lines parallel?

Yes No

Slide 74 (Answer) / 102

34 Are these lines parallel?

Yes No

[This object is a pull tab]

Answer

Yes

Slide 75 / 102

35 What is this picture an example of?

A

Parallel lines

B

Intersecting lines

C

Both A and B

D

Neither

Slide 75 (Answer) / 102

35 What is this picture an example of?

A

Parallel lines

B

Intersecting lines

C

Both A and B

D

Neither

[This object is a pull tab]

Answer

C

Slide 76 / 102

36 Do these lines intersect?

Yes No

Slide 76 (Answer) / 102

36 Do these lines intersect?

Yes No

[This object is a pull tab]

Answer

No

Slide 77 / 102

Polygons

Return to Table of Contents

Slide 78 / 102

A polygon is a 2-Dimensional (2D) shape that is made of 3 or more sides. The sides must be connected at the vertices and no sides may cross. Using this definition, can you place the shapes where they belong? Polygons Not Polygons

Polygons

Slide 79 / 102

The smallest amount of sides a polygon may have is 3. This polygon is called a triangle. What does tri- mean? A polygon with four sides is called a quadrangle or quadrilateral. What does quad- mean?

Types of Polygons Slide 80 / 102

Now that we know that tri- means 3 and quad- means 4, what do we call the other polygons? Use the chart to help name the shapes below. Prefix Number of Sides Penta- 5 Hexa- 6 Hepta- 7 Octa- 8 Pentagon Hexagon Heptagon Octagon

Types of Polygons Slide 81 / 102

37 This is a polygon.

True False

Slide 81 (Answer) / 102

37 This is a polygon.

True False

[This object is a pull tab]

Answer

False

Slide 82 / 102

38 Why is this not a polygon?

A

It has 3 sides.

B

The sides are not connected at the vertices.

C

The sides are straight.

D

Its a 2D shape.

Slide 82 (Answer) / 102

38 Why is this not a polygon?

A

It has 3 sides.

B

The sides are not connected at the vertices.

C

The sides are straight.

D

Its a 2D shape.

[This object is a pull tab]

Answer

B

Slide 83 / 102

39 Is this a pentagon?

Yes No

Slide 83 (Answer) / 102

39 Is this a pentagon?

Yes No

[This object is a pull tab]

Answer

Yes

Slide 84 / 102

40 How many sides does an octagon have?

Slide 84 (Answer) / 102

40 How many sides does an octagon have?

[This object is a pull tab]

Answer

8 sides

Slide 85 / 102

41 What makes this shape a polygon?

A

It has more than 3 sides.

B

All sides are straight lines.

C

It is a 3D shape.

D

Both A & B.

Slide 85 (Answer) / 102

41 What makes this shape a polygon?

A

It has more than 3 sides.

B

All sides are straight lines.

C

It is a 3D shape.

D

Both A & B.

[This object is a pull tab]

Answer

D

Slide 86 / 102

Quadrilaterals

Return to Table of Contents

Slide 87 / 102

A quadrilateral is a polygon that has 4 sides.

Quadrilaterals Slide 88 / 102

A quadrilateral that has 4 right angles and the

• pposite sides of equal length.

This is a rectangle. What do you think is the definition of a rectangle? Tap the rectangle to find out.

Rectangles Slide 89 / 102

A quadrilateral that has 4 right angles and the all sides are

• f equal length.

This is a square. What do you think is the definition of a square? Tap the square to find out.

Squares Slide 90 / 102

A quadrilateral that has opposite sides that are parallel and equal in length. This is a parallelogram. What do you think is the definition of a parallelogram? Tap the parallelogram to find out.

Parallelograms Slide 91 / 102

A quadrilateral that has opposite sides that are parallel and all sides are equal in length. This is a rhombus. What do you think is the definition of a rhombus? Tap the rhombus to find out.

Rhombus

Slide 92 / 102

A quadrilateral that has only one set of parallel sides. This is a trapezoid. What do you think is the definition of a trapezoid? Tap the trapezoid to find out.

Trapezoids Slide 93 / 102

Complete the venn diagram.

Square Rhombus Can a square be a rhombus?

Slide 94 / 102

Complete the venn diagram.

Square Rectangle Can a square be a rectangle?

Slide 95 / 102

42 How many sides does a quadrilateral have?

Slide 95 (Answer) / 102

42 How many sides does a quadrilateral have?

[This object is a pull tab]

Answer

4

Slide 96 / 102

43 The shape below is a parallelogram.

True False

Slide 96 (Answer) / 102

43 The shape below is a parallelogram.

True False

[This object is a pull tab]

Answer

False

Slide 97 / 102

44 Is this shape a trapezoid?

Yes No

Slide 97 (Answer) / 102

44 Is this shape a trapezoid?

Yes No

[This object is a pull tab]

Answer

No

Slide 98 / 102

45 What is the shape below? A square B rectangle C quadrilateral D A, B, & C

Slide 98 (Answer) / 102

45 What is the shape below? A square B rectangle C quadrilateral D A, B, & C

[This object is a pull tab]

Answer

D

Slide 99 / 102

46 What is true about the shape below? A Opposite sides are parallel. B All sides are equal in length. C Both A and B D None of the above

Slide 99 (Answer) / 102

46 What is true about the shape below? A Opposite sides are parallel. B All sides are equal in length. C Both A and B D None of the above

[This object is a pull tab]

Answer

C

Slide 100 / 102

47 Which three shapes are quadrilaterals? A B C D E F

From PARCC EOY sample test non-calculator #7

Slide 100 (Answer) / 102

47 Which three shapes are quadrilaterals? A B C D E F

From PARCC EOY sample test non-calculator #7

[This object is a pull tab]

Answer

C,D,E

Slide 101 / 102

48 Select the two statements that are true. A Rectangles and squares always have 4 equal sides. B Rhombuses and squares always have 4 equal sides. C Rectangles and squares always have 4 right angles. D Rhombuses and squares always have 4 right angles. E Rectangles and rhombuses always have 4 right angles.

From PARCC EOY sample test non-calculator #29

Slide 101 (Answer) / 102

48 Select the two statements that are true. A Rectangles and squares always have 4 equal sides. B Rhombuses and squares always have 4 equal sides. C Rectangles and squares always have 4 right angles. D Rhombuses and squares always have 4 right angles. E Rectangles and rhombuses always have 4 right angles.

From PARCC EOY sample test non-calculator #29

[This object is a pull tab]

Answer

B and C

Slide 102 / 102

With your group: Draw a picture of a quadrilateral and a rhombus. How are they alike? How are they different? Is a quadrilateral a rhombus? Is a rhombus a quadrilateral?

Comparing a Quadrilateral and Rhombus
