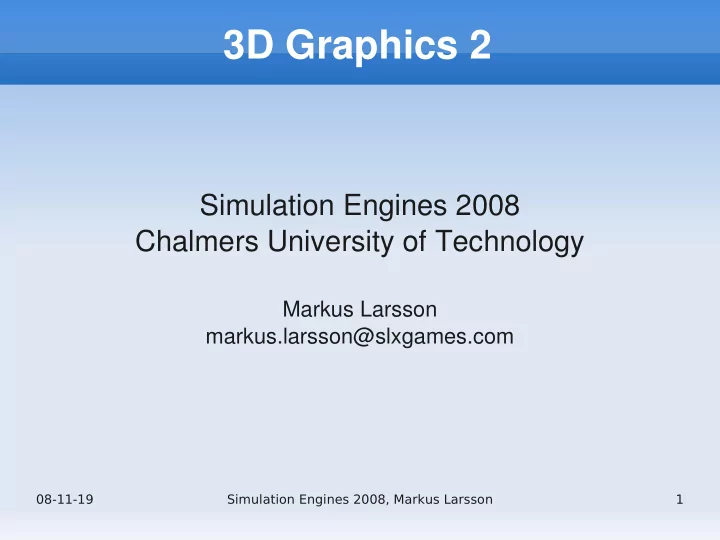

08-11-19 Simulation Engines 2008, Markus Larsson 1

3D Graphics 2

Simulation Engines 2008 Chalmers University of Technology

Markus Larsson markus.larsson@slxgames.com

slide-2
SLIDE 2

08-11-19 Simulation Engines 2008, Markus Larsson 2

Camera management

 Three basic kinds of cameras in games

 First-person

 Camera attached to the player and inherits the exact

motion of the player

 Examples: Farcry, Doom, Quake, etc

 Scripted

 Camera moves along pre-defined paths  Examples: Alone in the dark, Resident Evil

 Third person

 The camera is located outside the body of the player and

shows both the avatar and the environment

 Examples: Super Mario 64, Gears of War

slide-3
SLIDE 3

08-11-19 Simulation Engines 2008, Markus Larsson 3

Third-person camera: Constraints

The camera should never be closer to a wall than the near plane

It should never go outside a level

It should translate and rotate smoothly to always try to stay at a specific point in relation to the player character

It should smooth out discontinuities in the character's movement

It should be tested for collision detection

It should be able to enter the character when needed

slide-4
SLIDE 4

08-11-19 Simulation Engines 2008, Markus Larsson 4

Third-person camera: Algorithm

Calculate the destination point for the camera from the character's position

The destination point is calculated by applying a displacement and rotation from the position of the player character. Different camera views can have different displacements, and it may be possible to switch between them.

Check the validity of the destination point (it could be on the wrong side of a wall)

Perform a ray intersect between character and destination point (there should be no intersection with the world geometry)

If the point is invalid, move the camera back towards the character so that it is positioned on the correct side of the wall

Calculate approximate translation and rotation motion and animate it over a series of frames (animation speed is a tweakable constant)

Check for collision using the bounding box of the camera during the motion

slide-5
SLIDE 5

08-11-19 Simulation Engines 2008, Markus Larsson 5

Shaders and shader languages

 1990s

 Development of hardware for rendering of textured

3D primitives

 Hardware T&L introduced  Dynamic lighting done using Gouraud shading

 2000s

 Per-pixel shading  Real-time procedural textures  Advanced texture mapping techniques

slide-6
SLIDE 6

08-11-19 Simulation Engines 2008, Markus Larsson 6

In pursuit of realism

 Traditionally, research on realistic computer

graphics has focused on global illumination methods such as ray tracing and radiosity

 Do not work in real time

 Pixar introduced the concept of shaders in

RenderMan and showed that GI is not strictly necessary for realistic images

 Instead, shader-based methods based on local

reflections can be used

slide-7
SLIDE 7

08-11-19 Simulation Engines 2008, Markus Larsson 7

What is a shader?

 Three different interpretations from Watt & Policarpo, 2003  C-style module in the RenderMan API used for high-

level control of rendering components (surface, volume and light shaders)

 A combination of render states and texture maps for a

multi-pass or multi-texture render of an object on fixed- pipeline GPUs

 New hardware functionality for controlling the rendering

  • f primitives on a per-pixel or per-vertex level on

programmable-pipeline GPUs; these are called pixel shaders and vertex shaders, respectively

 The last one is important one

slide-8
SLIDE 8

08-11-19 Simulation Engines 2008, Markus Larsson 8

Shader types

Vertex shader

Called for every vertex in a 3D primitive

Allows for effects such as hardware skinning, perturbation of water surface, etc

Pixel (fragment) shader

Called once for every fragment in a 3D primitive (not pixel, because a fragment in a 3D primitive could correspond to one or several pixels depending on filtering settings, etc)

Can be used for procedural texture, normal maps, etc

Geometry shader

Can add to and remove vertices from a mesh and be used for adding geometry too costly to process on the CPU

Allows displacement mapping, etc

Unified Shader Model in DirectX 10 (Shader Model 4.0)

slide-9
SLIDE 9

08-11-19 Simulation Engines 2008, Markus Larsson 9

Shader languages

 OpenGL Shading Language (GLSL)

 Part of the OpenGL specification since OpenGL 1.4  High-level language similar to C/C++

 Cg (C for Graphics)

 Nvidia's proprietary shader language  Extremely similar to HLSL, but works on both

OpenGL and DirectX

 Microsoft HLSL

 Works on DirectX 9 and 10  Nvidia and Microsoft collaborated on its

development

slide-10
SLIDE 10

08-11-19 Simulation Engines 2008, Markus Larsson 10

Reflective surfaces: Environment maps

 Commonly used for reflections  Precomputed textures

 Standard environment maps

 Single texture representing the

scene in one texture as if reflected from a steel ball

 Cubic environment maps

 Cube map consisting of six textures unfolded on to a

cube

 The most used format on modern hardware

 Can also be used for advanced lighting

slide-11
SLIDE 11

08-11-19 Simulation Engines 2008, Markus Larsson 11

Particle systems

 One of the most useful tools available

 Smoke, water, fire, etc

 Each individual particle has a small or zero

geometrical extent, but together form cloud-like

  • bjects

 Each particle system can

contain thousands or even tens of thousands of particles

 Be extremely cautious of

multiple render states

slide-12
SLIDE 12

08-11-19 Simulation Engines 2008, Markus Larsson 12

Particle systems

Consists of one or several emitters and a number of particles

Each emitter is responsible for spawning new particles every time update according to some distribution

Each particle contains information about its current position, size, velocity, shape and lifetime

Each update

 Emitters generate new particles  New particles are assigned initial attributes  All new particles are injected into the particle system  Any particles that have exceeded their lifetime are

extinguished (and usually recycled)

 The current particles are updated according to their scripts  The current particles are rendered

slide-13
SLIDE 13

08-11-19 Simulation Engines 2008, Markus Larsson 13

Water

Ideally based on fluid simulations

 Way to costly for real-time use 

Mostly represented by a simple plane/quad

 In more advanced scenarios

represented by a displaced grid

Reflections are either entirely faked or by using a planar mirror

 The scene is inverted and the reflection is rendered to a

texture which is then rendered using projective texturing

  • nto the water mesh
slide-14
SLIDE 14

08-11-19 Simulation Engines 2008, Markus Larsson 14

Explosions

There is no universal method

Usually a combination of effects are used in combination until it “looks good”

Often animated billboards of prerecorded explosions are combined with debris that is either actual geometry or particles

Nowadays, often actual models are used which is moved by the physics engine

slide-15
SLIDE 15

08-11-19 Simulation Engines 2008, Markus Larsson 15

Lightmaps

 Precomputed lighting and shadows on static geometry in

the scene

 Advantages  Allows for baking advanced lighting such as radiosity  Extremely fast  Disadvantages  Only works on static

geometry

 Requires a lot of pre-

computing for good quality

 May require a lot of

memory

slide-16
SLIDE 16

08-11-19 Simulation Engines 2008, Markus Larsson 16

Stencil shadows

Used with dynamic shadows

Uses the stencil buffer

Advantages

 Creates crisp shadows without

aliasing artifacts

 Stable and potentially very fast algorithm 

Disadvantages

 Difficult to get soft shadows (but possible)  Extruding the shadow volumes on hardware is cumbersome

and requires modifications to the meshes

 Requires multiple render passes  Patent problems with Carmack's reverse

slide-17
SLIDE 17

08-11-19 Simulation Engines 2008, Markus Larsson 17

Stencil shadows

Empty the stencil buffer

Draw the whole scene with ambient lighting

 The z-buffer is filled and the color buffer is filled with the

color of surfaces in shadow

Turn off updates to the z-buffer and color buffer and draw the front-facing polygons of the shadow volumes

 Increments the stencil buffer; all pixels in or behind shadow

volumes receive a positive value

Repeat for back-facing polygons

 Decrement the stencil buffer; the values in the stencil buffer

will decrease where we leave the shadow volumes

Draw the diffuse and specular materials in the scene where the value of the stencil buffer is zero

slide-18
SLIDE 18

08-11-19 Simulation Engines 2008, Markus Larsson 18

Shadow maps

Texture based shadows

Renders the scene from the light's point of view

For each fragment, checks if it is the the closest

  • ne to the light

Advantages

Can be done almost entirely on the GPU

Works very similar to drawing the scene regularly and allows reuse of frustum check code, etc

Good candidate for soft shadow algorithms

Disadvantages

Precision problems and aliasing artifacts

Good for directional and spot lights but omni lights may require up to six individual textures per light

slide-19
SLIDE 19

08-11-19 Simulation Engines 2008, Markus Larsson 19

Soft shadows

 There are lots of techniques, but usually

shadow maps with multiple samples per texel are used

 Often extremely expensive to compute  “Free” in lightmaps

slide-20
SLIDE 20

08-11-19 Simulation Engines 2008, Markus Larsson 20

Textures

 Texture coordinates (U,V)

 Unfolds the model

 Paint directly on the

model with software such as BodyPaint, Zbrush, etc

 Texturespace/

Tangentspace can be interesting for advanced effects such as Normal mapping

slide-21
SLIDE 21

08-11-19 Simulation Engines 2008, Markus Larsson 21

Displacement mapping

Commonly used technique in raytracers

Not possible on DirectX 9 hardware

 Can not move vertexes that do

not exist

 Can be hacked for certain uses

by doing texture lookups in the vertex shader

Possible for real on DirectX 10 hardware

 Geometry shaders allow

tessellation of objects without CPU intervention

slide-22
SLIDE 22

08-11-19 Simulation Engines 2008, Markus Larsson 22

Normal maps

 High-poly surfaces are transferred to

models by storing normals in textures

 Normals are normally stored in

tangent space

 Can produce extremely good results

with fairly low computational costs

 Works well on most types of objects lit

with dynamic lights

 Often, tools like Zbrush are used to

create high-poly objects, but normal maps can also be created from heightmaps

slide-23
SLIDE 23

08-11-19 Simulation Engines 2008, Markus Larsson 23

Tangent space

slide-24
SLIDE 24

08-11-19 Simulation Engines 2008, Markus Larsson 24

Parallax mapping

 Also know as offset mapping as it offsets the texture

coordinates

 Very cheap and fairly convincing on flat surfaces  High quality versions require an iterative process, which is

more expensive, but produce extremely good results (where applicable)

slide-25
SLIDE 25

08-11-19 Simulation Engines 2008, Markus Larsson 25

Cel shading

 Non photo-realistic technique  Can be done either by drawing multiple passes

  • r in a shader by examining the scalar product
  • f the normal and view direction

 Check the sample in the Ogre SDK

slide-26
SLIDE 26

08-11-19 Simulation Engines 2008, Markus Larsson 26

High Dynamic Range rendering

 Often done by cheating  Can be done for real on Shader Model 3.0 hardware  Render to a target with higher precision than can be

drawn

 Then scale the values in a second pass to simulate

different levels of exposure

slide-27
SLIDE 27

08-11-19 Simulation Engines 2008, Markus Larsson 27

PRT

Precomputed radiance transfer can be used to simulate soft shadows, interreflections and subsurface scattering

Uses spherical harmonics to encode and approximate the light transfer function

 Decoded in a programmable shader  Only works on low frequency effects

with a reasonable number of parameters

Lights can move, but objects can not move relative to each other

Check the DirectX SDK

slide-28
SLIDE 28

08-11-19 Simulation Engines 2008, Markus Larsson 28

Post processing

 Generally done by first rendering the scene to a

texture and then applying that texture to a full- screen quad which is drawn with a pixel shader applied to it

 Multiple post-processing effects can be

combined either in sequence or by blending between them

slide-29
SLIDE 29

08-11-19 Simulation Engines 2008, Markus Larsson 29

Bloom

 Can be done best when combined with HDR rendering  In essence: apply gaussian blur on areas with intense light  A cheap substitute for actual blur is to downsample the

image a few times and then combining the original image with the downsampled versions

slide-30
SLIDE 30

08-11-19 Simulation Engines 2008, Markus Larsson 30

Depth of Field

DOF is extremely important in real world photography and film

The modern approach (Thorsten Sheuermann, 2004)

 Downsample and pre-blur

the image

 Use variable size filter

kernel to approximate circle of confusion

 Blend between original

and pre-blurred image for better image quality

 Take measures to prevent

“leaking” sharp foreground into blurry background

slide-31
SLIDE 31

08-11-19 Simulation Engines 2008, Markus Larsson 31

Motion blur

The lack of motion blur is mostly why 25-30fps in a game seems stuttering but works with film

The simplest form of motion blur is done by using the accumulation buffer and combining previous frames with the current

 Does not work well without very

high framerates

When used on meshes directly, a vertex shader stretches some vertices along the direction of motion and fades their transparency

Can be done in post processing by first drawing the scene to a velocity buffer which determines how much to blur the scene in the post processing pass

slide-32
SLIDE 32

08-11-19 Simulation Engines 2008, Markus Larsson 32

Materials in Ogre

material Material/SOLID/TEX/sandstone.jpg { technique { pass { diffuse 0.8 0.8 0.8 specular 0.5 0.5 0.5 12.5 texture_unit { texture sandstone.jpg } } } }

slide-33
SLIDE 33

08-11-19 Simulation Engines 2008, Markus Larsson 33

Post processing in Ogre

 There are plenty of pre-defined post processing

effects

 Compositor allows for easy access to the

effects

 Use compositor scripts to add effects or

combine multiple effects

 Check the Ogre SDK for demos

slide-34
SLIDE 34

08-11-19 Simulation Engines 2008, Markus Larsson 34

Shadows in Ogre

 Extremely easy

mSceneMgr->setShadowTechnique(“techniquename”);

 Stencil shadows

 SHADOWTYPE_STENCIL_MODULATIVE  SHADOWTYPE_STENCIL_ADDITIVE

 Shadow maps

 SHADOWTYPE_TEXTURE_MODULATIVE  SHADOWTYPE_TEXTURE_ADDITIVE

 There are also more advanced methods

 Check the example in the SDK

slide-35
SLIDE 35

08-11-19 Simulation Engines 2008, Markus Larsson 35

Next lecture

 Monday, 24 November  Artificial Intelligence
