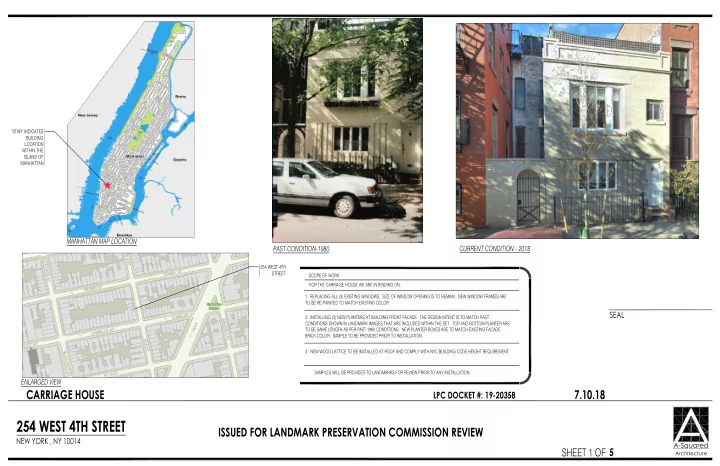

254 WEST 4TH STREET

NEW YORK , NY 10014

CARRIAGE HOUSE ISSUED FOR LANDMARK PRESERVATION COMMISSION REVIEW

A-Squared

Architecture

7.10.18

5

LPC DOCKET #: 19-20358

SEAL

SHEET 1 OF

"STAR" INDICATES BUILDING LOCATION WITHIN THE ISLAND OF MANHATTAN

ENLARGED VIEW MANHATTAN MAP LOCATION CURRENT CONDITION - 2018

254 WEST 4TH STREET

PAST CONDITION-1980

SCOPE OF WORK: FOR THE CARRIAGE HOUSE WE ARE INTENDING ON:

• 1. REPLACING ALL (3) EXISTING WINDOWS. SIZE OF WINDOW OPENING IS TO REMAIN. NEW WINDOW FRAMES ARE

TO BE RE-PAINTED TO MATCH EXISTING COLOR.

• 2. INSTALLING (2) NEW PLANTERS AT BUILDING FRONT FACADE. THE DESIGN INTENT IS TO MATCH PAST

CONDITIONS SHOWN IN LANDMARK IMAGES THAT ARE INCLUDED WITHIN THE SET. TOP AND BOTTOM PLANTER ARE TO BE SAME LENGTH AS PER PAST 1980 CONDITIONS. NEW PLANTER BOXES ARE TO MATCH EXISTING FACADE BRICK COLOR. SAMPLE TO BE PROVIDED PRIOR TO INSTALLATION.

• 3. NEW WOOD LATTICE TO BE INSTALLED AT ROOF AND COMPLY WITH NYC BUILDING CODE HEIGHT REQUIREMENT.

SAMPLES WILL BE PROVIDED TO LANDMARKS FOR REVIEW PRIOR TO ANY INSTALLATION.

EXISTING BUILDING 51 CHARLES STREET EXISTING BUILDING 256 WEST 4TH STREET EXISTING BUILDING 51 CHARLES STREET EXISTING BUILDING 256 WEST 4TH STREET

254 WEST 4TH STREET

NEW YORK , NY 10014

CARRIAGE HOUSE ISSUED FOR LANDMARK PRESERVATION COMMISSION REVIEW

A-Squared

Architecture

7.10.18

5

LPC DOCKET #: 19-20358

SEAL

SHEET 2 OF

SECOND FLOOR WINDOWS TO BE REPLACED FOR NEW. SIZE OF OPENING TO REMAIN EXISTING. NEW WINDOW BY LEPAGE MILLWORK. SPECIFICATION LISTED ON PAGE 4

EXISTING ELEVATION VIEW PROPOSED ELEVATION VIEW

FIRST FLOOR WINDOW TO BE LEGALIZED AS IS RESTORATION OF SECOND FLOOR WINDOWS PRIOR TO REMOVAL WITHOUT LPC PERMITS NEW ARCH WINDOW BOX CAGE PLANTER (SQUARE DESIGN) BY WINDOW BOX.COM COLOR TO MATCH EXISTING FACADE BRICK SEE SPECIFICATION ON PAGE 4 EXISTING SILL TO REMAIN NEW ARCH WINDOW BOX CAGE PLANTER (SQUARE DESIGN) BY WINDOW BOX.COM COLOR TO MATCH EXISTING FACADE BRICK SEE SPECIFICATION ON SHEET 4. PLANTER TO BE MOUNTED TO EXISTING

• WALL. SEE DETAIL ON SHEET 5. NEW

PLANTER TO SIT BEHIND FENCE AS SHOWN IN 1980 LANDMARK IMAGE

EXISTING BUILDING 51 CHARLES STREET EXISTING BUILDING 256 WEST 4TH STREET

254 WEST 4TH STREET

NEW YORK , NY 10014

CARRIAGE HOUSE ISSUED FOR LANDMARK PRESERVATION COMMISSION REVIEW

A-Squared

Architecture

7.10.18

5

LPC DOCKET #: 19-20358

SEAL

SHEET 3 OF

LEGALIZE LATTICE AT ROOF AND REPAIR IN-KIND TO COMPLY WITH NYC BUILDING CODE HEIGHT REQUIREMENT (BACK OF BUILT IN BENCHING).

LANDMARK IMAGES

PAST CONDITION PAST CONDITION

EXISTING BUILDING 256 WEST 4TH STREET

254 WEST 4TH STREET

NEW YORK , NY 10014

CARRIAGE HOUSE ISSUED FOR LANDMARK PRESERVATION COMMISSION REVIEW

A-Squared

Architecture

7.10.18

5

LPC DOCKET #: 19-20358

SEAL

SHEET 4 OF

EXISTING LATTICE AT ROOF CONDITION (BACK OF BUILT IN BENCHING) GROUND FLOOR WINDOW PLANTER EXISTING CONDITIONS PROPOSED LATTICE AT ROOF

NEW RAISED PRIVACY SCREEN TO COMPLY WITH NYC HEIGHT REQUIREMENTS

EXISTING BOARD EXISTING DOUBLE GLASS WINDOW EXISTING BATTEN NEW 2-3/8" X 3/4" BLOCKING NEW DYKES MOLDING: 224 EXISTING BRICK NEW DYKES: 252 EXISTING BATTEN END PIECE NEW 2-1/4" X 5/8" BLOCKING EXISTING BOARD EXISTING BOARD EXISTING BATTEN NEW 2-3/8" X 3/4" BLOCKING NEW DYKES MOLDING: 224 EXISTING BRICK NEW DYKES: 252 EXISTING BATTEN END PIECE NEW 2-1/4" X 5/8" BLOCKING EXISTING BOARD EXISTING DOUBLE GLASS WINDOW

NEW DYKES: 251B EXISTING BOARD EXISTING BATTEN NEW DYKES 405A EXISTING BRICK EXISTING HEADER FOR INFILL OPENING NEW 2-1/2" X 5/8" BLOCKING EXISTING WINDOW HEADER EXISTING WINDOW EXISTING WINDOW FRAME EXISTING STASH TRIM NEW MOLDING FOR WATER RUNOFF

NEW FLOOR MOUNTED PLANTER WOOD BLOCKING TO SECURE TO EXTERIOR WALL EXISTING EXTERIOR WALL NEW 2 1

2' WOOD

BASE INFILL

2'-8" 2'

254 WEST 4TH STREET

NEW YORK , NY 10014

CARRIAGE HOUSE ISSUED FOR LANDMARK PRESERVATION COMMISSION REVIEW

A-Squared

Architecture

7.10.18

5

LPC DOCKET #: 19-20358

SEAL

SHEET 5 OF

PROPOSED FIRST FLOOR ELEVATION VIEW

A B E C D

DETAIL A: WINDOW STOOL BY 'DYKES LUMBER' #405A 1 1

8 X 2 1 4

DETAIL B: CASINGS BY 'DYKES LUMBER' #224 11

16 X 2 1 2

DETAIL C: CASINGS BY 'DYKES LUMBER' #251B 1 1

16 X 4 1 16

DETAIL D: ORNAMENTAL MOULDING BY 'DYKES LUMBER' #740 7

8 X 4 1 2

DETAIL E: PANEL MOULDING BY 'DYKES LUMBER' #252 9

16 X 1 1 8 1 2

SECTION 1 SECTION 2 PROPOSED FLOOR MOUNTED PLANTER- PROFILE

EXISTING RAILING

NOTE: NEW RAISED GROUND FLOOR PLANTER IS NOT TO BE HIGHER THAN EXISTING FRONT RAILING
