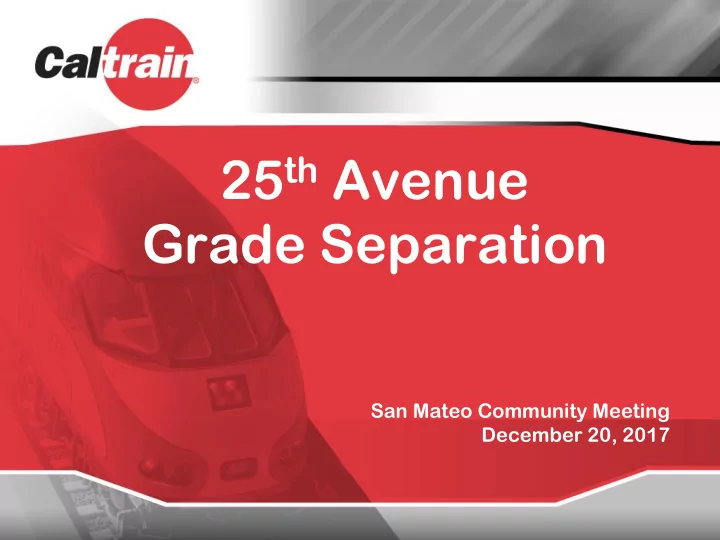

25 th Avenue Grade Separation San Mateo Community Meeting December 20, 2017 Agenda I. Overview II. Project Description III. Project Benefits IV. Project Construction V. Next Steps VI. Questions 2 Overview Project Location 4 E. 25

slide-1
SLIDE 1

25th Avenue Grade Separation

San Mateo Community Meeting December 20, 2017

slide-2
SLIDE 2

Agenda

I. Overview II. Project Description III. Project Benefits IV. Project Construction V. Next Steps VI. Questions

2

slide-3
SLIDE 3

Overview

slide-4
SLIDE 4

Project Location

4

slide-5
SLIDE 5
  • E. 25th Ave Railroad Crossing
  • 92 Caltrain trains each weekday use this

crossing, in addition to freight

  • Lack of grade separation increases delays

along corridor

5

slide-6
SLIDE 6

Project Description

slide-7
SLIDE 7

Project Elements

Construct Grade Separation (elevated rails, lowered roads) between Hillsdale Blvd and Highway 92

  • Concrete bridge 25th & 28th Ave
  • Steel bridge at 31st Ave
  • Concrete retaining walls
  • MSE walls

7

slide-8
SLIDE 8

Elevated Track

8

slide-9
SLIDE 9

Grade Separation (25th Ave)

9

slide-10
SLIDE 10

East-West Connection (28th Ave)

10

slide-11
SLIDE 11

East-West Connection (31st Ave)

11

Ramp Access to Ped Viaduct

slide-12
SLIDE 12

Relocated Hillsdale Station

12

slide-13
SLIDE 13

Station Improvements

13

slide-14
SLIDE 14

Station Improvements – Mosaic Wall

14

Station Signage

slide-15
SLIDE 15

Station Improvements

15

Stairway Entrance to Platform

slide-16
SLIDE 16

Station Improvements - Platform

16

New Station Platform, Shelters, Lights

slide-17
SLIDE 17

Station Improvements - Furnishings

17

slide-18
SLIDE 18

New Hillsdale Station Access

18

slide-19
SLIDE 19

Project Funding, in Millions

$74 $12 $10 $84

Measure A City of San Mateo State Section 190 State HSR Prop 1A

19

slide-20
SLIDE 20

Project Benefits

slide-21
SLIDE 21

Project Benefits

  • Safe rail operations
  • Fewer system-wide delays
  • Improved traffic flow
  • Improved pedestrian and motorist safety
  • Facilitate Caltrain electrification which will

reduce noise and vibration

21

slide-22
SLIDE 22

Project Construction

slide-23
SLIDE 23

Schedule: Overview

23

Activity Date Mobilization Sept 2017 - Oct 2017 Begin Construction Oct 2017 Hillsdale Station Temp Parking (available for public use) Oct 2017 – Dec 2018 Bridges and MSE Walls Nov 2017 – Mar 2019

  • E. 25th Ave. (lane closures)

Nov 2017 – Oct 2019 Bridge at E. 25th Ave (14FT clearance) May 2018 – Oct 2019

slide-24
SLIDE 24

24

Activity Date Station Closed Dec 2018 – May 2019 Road Completed – 28th Ave May 2019

  • E. 25th Ave. Closure (full)

Oct 2019 – Dec 2019 Roads Completed Oct 2019 – 31st Ave Dec 2019 – 25th Ave Project Completed Jan 2020

Schedule: Overview cont.

slide-25
SLIDE 25

25

Activity Date Temporary Sheet Pile Shoring Nov 2017 – Dec 2017 Cast-in-drilled-hole pile construction Nov 2017 – Feb 2018 MSE walls Feb 2018 – July 2018 Bridge March 2018 – July 2018 Final Track Cutover Nov 2018

Schedule: Night Work Overview

slide-26
SLIDE 26

Existing Hillsdale Station Temporary Parking Lot

26

Temporary Parking Lots Construction Activities

slide-27
SLIDE 27

Hillsdale Station Closure

  • Enhanced train service provided at Belmont

Station

  • Enhanced Samtrans bus and shuttle service

provided between Hillsdale and Belmont Stations

27

slide-28
SLIDE 28

Hillsdale Station Closure

  • Passengers who drive, get dropped off or

use transit  use Belmont Station

  • Passengers who walk to Hillsdale  take

Samtrans bus (ECR Line) or shuttle to Belmont Station

  • Shuttle schedule will match enhanced

train schedule

  • Shuttle pick-up location at east triangular

lot

28

slide-29
SLIDE 29

Example Lane Closure: 25th Ave

29

slide-30
SLIDE 30

Work Hours

  • Majority of construction activities will take

place Mon-Fri during the day

  • Certain construction activities require work to

be completed at night or on weekends when there is reduced or no revenue train service

  • JPB will notify community in advance of

nighttime and weekend work

slide-31
SLIDE 31

Potential Impacts during Construction

Noise and Vibration Impacts:

  • Temporary: Only during

construction

  • Construction equipment and

procedures selected to monitor noise and vibration impacts

  • Noise monitoring station at

Peninsula Station (2901 ECR)

(Not to Scale)

slide-32
SLIDE 32

Construction Impacts / Mitigation

  • Single tracking trains
  • Shoring Work
  • Pre-drilling (will also occur during day)
  • Different equipment obtained
  • Pile Work: Additional crew/equipment
slide-33
SLIDE 33

Next Steps

slide-34
SLIDE 34

Construction Notices

34

Example of mailed notice

slide-35
SLIDE 35

Public Outreach & Community Engagement

  • Project website:

www.caltrain.com/25thGS

  • Construction Outreach Hotline: 650.508.7726
  • Email: SMGradeSep@Caltrain.com
  • Regular Updates and Public Meetings
  • Prior to Station Closure
  • Prior to Street Closure
slide-36
SLIDE 36

36

slide-37
SLIDE 37

Contact

Construction Information Service Information

Office of Public Affairs Phone: 650.508.7726 Customer Service Department Phone: 800.660.4287 1250 San Carlos Avenue PO Box 3006 San Carlos, CA 94040-1306 www.caltrain.com/25thGS

slide-38
SLIDE 38

Questions
