SLIDE 1
2007 SCE Business Briefing
2
2007 SCE Business Briefing
Outline
- Context: Energy Needs vs. Water Supply
- Overview of Steam Generator Needs
- Mountainview Power Plant (MPP) as a case
study
- Waste Disposal Issues
- Project Benefits
2007 SCE Business Briefing Challenges Integrating Electric - - PowerPoint PPT Presentation
2007 SCE Business Briefing Challenges Integrating Electric - - PowerPoint PPT Presentation

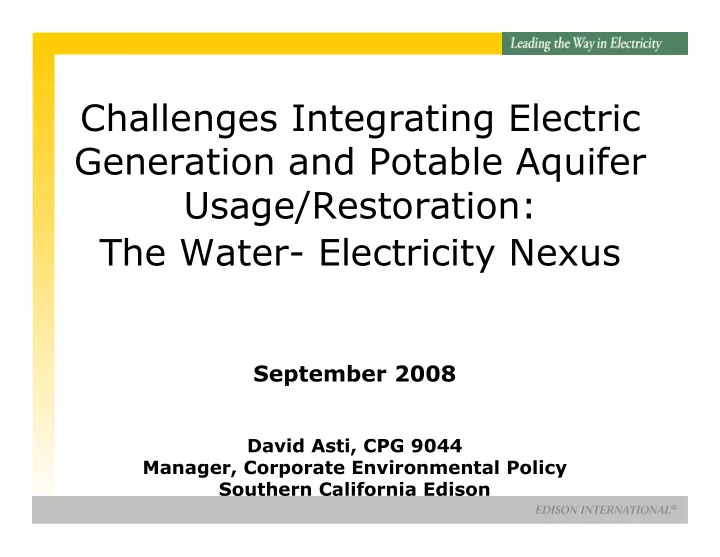

2007 SCE Business Briefing Challenges Integrating Electric Generation and Potable Aquifer Usage/Restoration: The Water- Electricity Nexus September 2008 David Asti, CPG 9044 Manager, Corporate Environmental Policy Southern California Edison
SLIDE 2
SLIDE 3
3
2007 SCE Business Briefing
California’s Electricity Issues
- Barely adequate supply (45,000+ MW needed for
hottest summer days)
- Conservation techniques help, but...
- Transmission & Distribution infrastructure needs
to be upgraded (not just a CA issue)
- Availability of imported power declining
- Existing base load plants aging and inefficient
- Increasing demands
– Population increase of 12 million by 2020 – Most growth in hotter inland areas
SLIDE 4
4
2007 SCE Business Briefing
Typical “Cooler” Summer Day Load Forecast
Today's Outlook
SLIDE 5
5
2007 SCE Business Briefing
So Cal Water Resource Limitations
- Climate is predominantly semi-arid to arid
- State water policy
– strongly discourages use of fresh water for power plant cooling – promotes water conservation
- Federal and state limits on wastewater
discharge
SLIDE 6
6
2007 SCE Business Briefing
Typical Power Plant Water Challenges
- Gas-fired steam power plants require
~4-6,000 acre-ft/year per 1000 MW for wet cooling (MPP ~6,000 gpm at full load)
- High ambient temperatures during peak
demand
- Alternatives?
– Dry cooling technologies inefficient during high temperatures – Once-Through Cooling volumes unavailable in inland areas (§316(b) of CWA)
SLIDE 7
7
2007 SCE Business Briefing
Generalized Combined Cycle Power Plant
SLIDE 8
8
2007 SCE Business Briefing
Mountainview Power Plant
SLIDE 9
9
2007 SCE Business Briefing
Mountainview Power Plant
SLIDE 10
10
2007 SCE Business Briefing
Mountainview Power Plant
- New base load power plant
- Water supply:
– 50% groundwater (Located in Bunker Hill Basin) – 50% Title 22 reclaimed wastewater
- Wastewater treatment
– Two-pass reverse osmosis – Precipitation
- Wastewater disposal
– Industrial brine line – Landfill of water treatment filtercake
SLIDE 11
11
2007 SCE Business Briefing
Where is this place?
SLIDE 12
12
2007 SCE Business Briefing
The Bunker Hill Basin
SLIDE 13
2007 SCE Business Briefing
Bunker Hill Basin Info
- Sub-basin of the Upper Santa Ana Valley
- Surface Area of 89,600 acres (120 mi2)
- Holocene & Pleistocene alluvial deposits
- Largely sand, gravel, & boulders; some silt
- 3 aquifers (lower, middle, upper)
- Well yields up to 5,000 gpm (1,245 avg.)
- About 24,000 AF natural recharge +
15,800 AF of artificial recharge
SLIDE 14
14
2007 SCE Business Briefing
Waste Management—Two Streams
- Wastewater (300 gpm) discharged to
industrial brine line that drains the Inland Empire
- Water Treatment filtercake
– Landfilled – Class II designated waste – SCE/City of Redlands cooperative project to double-line landfill
SLIDE 15
15
2007 SCE Business Briefing
Filtercake Disposal Evaluation
- Risk management
- Long-term availability
- Costs
- Political/regulatory feasibility
– ClO4 Contamination Protection Act of 2003
- Proximity to MPP
- Implementation schedule
SLIDE 16
16
2007 SCE Business Briefing
Hauling and Disposal Estimates
Disposal Facility Mileage R/T Costs/Year Costs/30 yr. Lifetime Disposal Approval
Buttonwillow, CA (Hazardous) 370 $948,000 $28.44M Yes Buttonwillow, CA (non Hazardous) 370 $880,000 $26.40M Yes Beatty, NV 550 $921,000 $27.63M Yes San Diego, CA 210 $595,000 $17.85M No, but may be possible w/ negotiation Irvine, CA 98 $455,000 $13.65M No, but may be possible w/ negotiation Redlands Landfill (new facility dedicated to MPP) 4 Yes, after long negotiation
SLIDE 17
17
2007 SCE Business Briefing
Perspective--MPP to Landfill
SLIDE 18
18
2007 SCE Business Briefing
Project Benefits
- Efficiently provide power to Californians
– Efficient use of fuel – limits greenhouse gases – Efficient use of water
- Expedite remediation of aquifer
– Removing perchlorate
- Protection of aquifer
– Use of reclaimed wastewater – Double-lined landfill
SLIDE 19
19
2007 SCE Business Briefing
