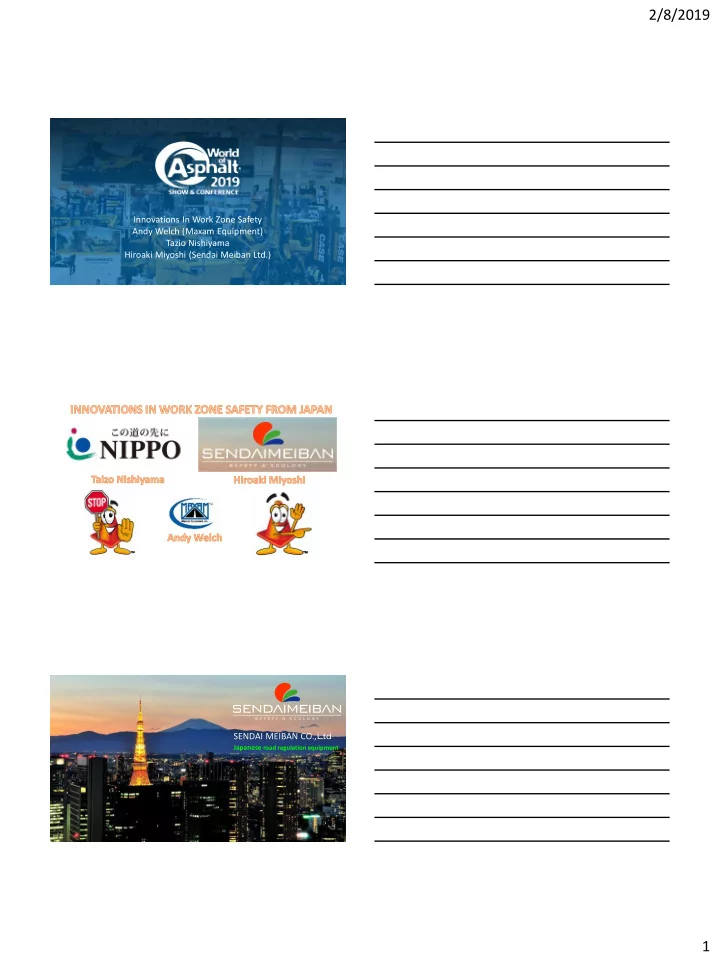

Innovations In Work Zone Safety Andy Welch (Maxam Equipment) Tazio Nishiyama Hiroaki Miyoshi (Sendai Meiban Ltd.) SENDAI MEIBAN CO.,Ｌｔｄ

Japanese road regulation equipment

2/8/2019 2

COMPANY PROFILE

Ｔｈｉｎｋ ｇｌｏｂａｌ ,ａｃｔ ｌｏｃａｌ

Sendai Meiban is a leading company in the security industry with 56 locations throughout Japan. OUR HOPE FOR THE FUTURE: To realize a “friendly” society while keeping humans “safe” and maintaining an “eco-friendly” environment MESSAGE As safety professionals we at Sendai Meiban Co., Ltd. will strive to develop, sell, and rent items to prevent accidents from occurring at construction sites. Sendai Meiban proposes the following: 1) “safety” at construction sites that are fraught with danger, 2) “beauty” that is in harmony with the surrounding environment, and 3) eco-friendly practices that are “kind to our planet.” Other than construction sites, we support various events with our skills, such as at marathon races and festivals, and respond to requests for assistance from government offices. We will strive to offer high grade safety products with high visibility as well as eco-friendly products, and recycled goods, through excellence in service, and become a company that is wanted and needed by society. Koji Atsumi Representative Director and President/CEO Sendai Meiban Co., Ltd.

COMPANY PROFILE

 Who We Are

・The industry leader in safety products in Japan ・Our Mission & Vision – to provide people and society with safety environment ・Our Core Values – 1) provide “Safety” at construction sites that are fraught with danger 2) beauty” that is in harmony with the surrounding environment 3) eco-friendly practices that are “kind to our planet.”

 What We Do

・Develop, Sell and Rent safety items to mainly contractors ・Items are used at the construction site, festivities and various events such as Marathon races etc. ・US$2.76 mil. sales as at March 2018 ・56 branches throughout the nation ・30,000+ product lineup

Our Business Model

General Contractors Contractors Sub Contractors Sub Contractors Sub Contractors Contractors

Sendai Meiban

Bid Order Order Bid

Safety Items

2/8/2019 3

The NEW NEO SOLAR Ⅱ

・ The safety light mounted on top of tube pipes ・ Synchronous flashing by catching the local standard time signal ・ Good visibility, easy setup ・ Easy to recognize the traffic line from distance

The Barricades used for traffic regulation

• Various colors, Shape, Size
• Cartoon characters and animals for design

2/8/2019 4

A Highway

Donating a part of our business profit to the local govt.

• ex. Shizuoka pref. and Yamanashi Pref. where
• Mt. Fuji are located

The Social Contribution Safety measure at road works 1

2/8/2019 5

Safety measure at road works 2

Slide Title

• Make Effective Presentations
• Using Awesome Backgrounds
• Engage your Audience
• Capture Audience Attention

A Road Regulation in Tokyo (Shibuya)

TICS (Traffic Information Control System)

• Product A
• Product B
• Feature 1
• Feature 2
• Feature 3
• New Product Development 1

2/8/2019 6

The TT Cones（テロ対策用）

For security measure, it allows people to check for any object placed under the cone without lifting. ・ Provided with cut-outs for wind to pass through ・ Difficult to be moved or toppled over by the wind

• New Product Development 2

International Orange

・ Our corporate color ・ Highly visible that stand out well against the surroundings ・ Well known for the aerospace industry (e.g. astronaut clothing), Golden Gate Bridge, Tokyo Tower ・ For the safety wise, we applied the orange color to some of our main products

International Marathon Race

2/8/2019 7

The Virtual Reality for Safety Training

・ Solving the problems of safety training on the construction site with sate-of-the-art virtual reality technology!

• New Product Development 3

・ The head-mounted display allows trainees to virtually experience on-the-job accidents in various situations at construction sites. ・ There are currently 10 case studies available for viewing:

• 1. Falling from scaffolding 2. Flying/Falling objects 3. Landslides 4. Heavy Machinery Crashes
• 5. Entanglement in heavy machinery 6. Tugboat rope-breaking 7. Power tool 8. Fall from portable

platforms 9. Fall from bridges 10. Tunnel Collapse ・ The trainees can learn the cause of accidents and what they needed to do to prevent accidents from happening

2/8/2019 8

23

Road Construction Safety Innovation in JAPAN

NIPPO CORPORATION Tokyo, JAPAN

NIPPO Philosophy

24

We devotes ourselves to the realization of a prosperous society through reliable craftsmanship.

President Yoshikazu Yoshikawa

2/8/2019 9

NIPPO Activities

25

USD 4 Billion

in NET Revenue (Consolidated)

USD 400 Million

in NET Profit (Consolidated)

7.7 Million tons (Consolidated)

in Asphalt Mix Production

February 2, 1934

establishment

USD 145 Million

capital

1,800

employees

100

Subsidiaries of construction companies

150

Asphalt mixtures plants (included subsidiaries)

NIPPO Business area in Japan

26

NIPPO Main Office

27

Tokyo, JAPAN

2/8/2019 10

NIPPO General Technical Center

28

Saitama, JAPAN

NIPPO Worldwide business area

29

NIPPO Business sector

30

2/8/2019 11

NIPPO Revenue by business sector

31

NIPPO VINI FANTINI

32

1/4/2017 Volta Limburg Classic, Netherlands

Percentage of newly constructed and repaired pavement in Japan

33 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014

repaired newly constructed

Year Percentage

2/8/2019 12

Maintenance of asphalt pavement

34

Milling and Overlay

Trend of labor fatal accidents

35

3 5

2009 2010 2011 2012 2013 2014 2015 2016 The number of deaths All 928 Construction 294

Others 284 Land cargo 99 Forestry 41 Mining 7 Manufacturing 177 Transportation 16 Marine cargo 10 All Construction Others Manufacturing Land cargo Forestry Marine cargo Transportation Mining

NIPPO 5 Safety Rules

36

(When the machine is working)

Machine should not approach worker

(When the machine is backing)

Operator should confirm the signal of guidance for machine

(When excavating the ground)

Retaining wall should be needed

(When working at high place)

Safety belt should be used

(When it is not stationary work)

The device should be stopped

1 2 3 4 5

2/8/2019 13

NIPPO 4 Safety Educations

37

１. Safety meeting

• 2. Tire stopper

Attach a tire stopper to all cars and machines Every morning meeting Special meeting for safety risk prediction

NIPPO 4 Safety Educations

38

• 3. Experience for finding

the blind spot of machine

※ Using mannequins

• 4. Experience of being

perpetrators

39

Worker Safety System

for Road Construction Safety Innovation Our motivation

• 1. Perfectly reducing serious accidents.
• 2. Do not make our fellow a victim
• r perpetrator.

2/8/2019 14

WSS

Worker Safety System (WSS)

40

＞Be visible e ＞Give e notice ce ①WSS-TR TR ②WSS-WL WL ③WSS-AP AP Asphalt Mixing Plant ＷＬ ＴＲ ＡＰ Wheel Loader Tire Roller STOP Safety measures for workers （since 2014） WSS-TR

41

＞Be visible＞Give notice ce ①WSS-TR TR ②WSS-WL WL ③WSS-AP AP STOP Safety measures for workers （since 2014）

WSS

Asphalt Mixing Plant ＷＬ ＴＲ ＡＰ Wheel Loader Tire Roller

WSS-TR TR

42

Accid idents by roller

Tire Roller 53%

Combined roller 13% Macadam roller 7% Others 27%

Compacting 60％

leaving 27% traveling 13%

・50% by Tire Roller ・60% when compacting ・70% operators could not find victims ・80% when rollers are backing

2/8/2019 15

WSS-TR

43

1) Measuring temperature of pavement 2) Shaping edge・Compacting edge 3) Removing foreign substances 4) Controlling traffic etc.

When accident occurred by roller ;

Separation worker and machine （Separation for keeping safety） ・spatially ・temporally

WSS-TR

44

Automatically stop system when detecting workers during roller backing

① System for detecting

・Semi active IC tag of RFID method ・IC tag set helmets or pockets of workers

② Automatically stopping system

・Negative braking system ・Receiving radio wave by IC Tag → Turning engine key for emergency stop IC Tag

Magnetic field

2 4 6

Engine Stop Parking Blake Neutral Gear Stop length(m)

WSS-TR

45

STOP OK

Prevention of detecting at side of roller

STOP

Magnetic field

STOP

０ ｍ １ ｍ ２ ｍ ３ ｍ ０ ｍ １ ｍ １ ｍ ２ ｍ ２ ｍ

Magnetic field A Magnetic field B

Effective Magnetic field

2/8/2019 16

WSS-TR

46

WSS-WL

47

＞Be visible＞Give notice ce ①WSS-TR TR ②WSS-WL WL ③WSS-AP AP STOP Safety measures for workers （since 2014）

WSS

Asphalt Mixing Plant ＷＬ ＴＲ ＡＰ Wheel Loader Tire Roller

WSS-WL

48

Asphalt mixing plant

• Production and sales of asphalt mixture
• Recycling (RAP)
• Recycling

(Recycled base course material)

2/8/2019 17

WSS-WL

49

Safety measure at asphalt mixing plant

Gate for restricting traffic Setting routes for different materials Setting ng permit itting ing routes

WSS-WL

50

WSS-WL

Stereo camera Brake Pedal Power cylinder

① System for detecting

・Stereo camera system with people / obstacles distinction software

② Automatically stopping system

・Controlling Foot brake by power cylinder

Automatically stop system when detecting workers and obstacles during wheel Loader backing

2/8/2019 18

WSS-WL

52

WSS-AP

53

＞Be visible＞Give notice ce ①WSS-TR TR ②WSS-WL WL ③WSS-AP AP STOP Safety measures for workers （since 2014）

WSS

Asphalt Mixing Plant ＷＬ ＴＲ ＡＰ Wheel Loader Tire Roller

WSS-AP

54

5 4

・1140 plants in Japan ・150 NIPPO plants

Production of road construction materials Asphalt mixing plant

2/8/2019 19

WSS-AP

55

Plant operator using; The operators need devices that can always find the location of workers in plant. ⇒ Many blind area of camera ⇒ Not easy to hear sound by noise Many camera / monitors ＋ Transceiver To provide safety and security Subject for keeping safety in asphalt mixing plant but

WSS-AP

56

System concepts and its detecting method

Hybrid IC tag combining beacon positioning and GPS positioning

BLE Beacon GPS

• 1. A system that can detect the worker’s position in real time

wherever the worker is located indoors and outdoors

• 2. The detection result can be checked by operator on the

monitor of the operation room.

• 3. Workers wear as little as possible, and those with small

load.

WSS-AP

57

Functions of Hybrid IC Tag

• 1. Built-in accelerometer and barometer

Atmospheric pressure Acceleration Detect falling Notify the administrator

• 2. SOS Button

Notify the administrator

2/8/2019 20

WSS-AP

58

Small load devices for workers

• Hybrid IC Tag
• Smart phone for gateway

Detecting location, acceleration and atmospheric pressure Data collection Server transfer

• Smart case

Hybrid IC Tag and Smart phone

WSS-AP

59

Approximately 100 pieces are installed at intervals of 5 to 10 m

Setting Beacon

WSS-AP

60

Real position

Average error Indoor (beacon detection)

About 3m

Outdoor (GPS detection)

About 5m

Detected position

About 2m

Accuracy of position detection

2/8/2019 21

WSS-AP

Notified to the administrator just after worker falling down

Accuracy of fall detection

Case Study (From Fujitsu HP)

62
