99'-11 1/4" LOT 11 5 STORIES

CROSBY ST. BROADWAY PRINCE ST.

199'-11" 35'-1"

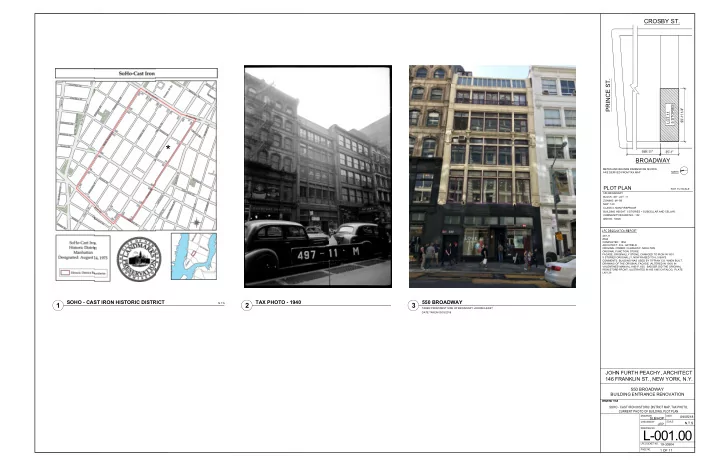

SOHO - CAST IRON HISTORIC DISTRICT MAP, TAX PHOTO, CURRENT PHOTO OF BUILDING, PLOT PLAN 09/05/18

550 BROADWAY BUILDING ENTRANCE RENOVATION

DRAWING TITLE

L-001.00

JOHN FURTH PEACHY, ARCHITECT 146 FRANKLIN ST., NEW YORK, N.Y.

DRAWING NO. DRAWING TITLE

JFP

CHECKED BY DRAWN BY

SLB/HDP

DATE

N.T.S

SCALE

1 OF 11

PAGE NO.

19-30904

LPC DOCKET NO.

SOHO - CAST IRON HISTORIC DISTRICT N.T.S

1

550 BROADWAY

3

PLOT PLAN NOT TO SCALE

550 BROADWAY BLOCK: 497 LOT: 11 ZONING: M1-5B MAP: 12C CLASS 3, NON-FIREPROOF BUILDING HEIGHT: 5 STORIES + SUBCELLAR AND CELLAR. COMMUNITY BOARD NO.: 102 IMD NO. 10628 METES AND BOUNDS DIMENSIONS SHOWN ARE DERIVED FROM TAX MAP 497-11 #550 COMPLETED : 1854 ARCHITECT: R.G. HATFIELD ORIGINAL OWNER: CHARLES F. MOULTON ORIGINAL FUNCTION: STORE FACADE: ORIGINALLY STONE, CHANGED TO IRON IN 1901 5 STORIES ORIGINALLY, NOW RAISED TO 6; 5 BAYS COMMENTS: BUILDING WAS USED BY TIFFANY CO. WHEN BUILT. DRAWING OF THE ORIGINAL FACADE, (ALTERED IN 1901) IN VALENTINES' MANUAL,1865 P. 605. BADGER DID THE ORIGINAL IRON STORE-FRONT, ILUSTRATED IN HIS 1865 CATALOG, PLATE LXIV 26 . NORTH

TAX PHOTO - 1940

2

TAKEN FROM WEST SIDE OF BROADWAY LOOKING EAST DATE TAKEN 05/03/2018

*

HISTORIC PHOTOS 09/05/18

550 BROADWAY BUILDING ENTRANCE RENOVATION

DRAWING TITLE

L-002.00

JOHN FURTH PEACHY, ARCHITECT 146 FRANKLIN ST., NEW YORK, N.Y.

DRAWING NO. DRAWING TITLE

JFP

CHECKED BY DRAWN BY

SLB/HDP

DATE

N.T.S

SCALE PAGE NO.

LPC DESIGNATION PHOTOS - 1993

2

LPC DESIGNATION PHOTOS - STOREFRONT CLOSEUP - 1993

3

552 BROADWAY - TAX PHOTO -1940

1

2 OF 11 19-30904

LPC DOCKET NO.

EXISTING STOREFRONT PHOTOGRAPH, PROPOSED STOREFRONT PHOTOMONTAGE 09/05/18

550 BROADWAY BUILDING ENTRANCE RENOVATION

DRAWING TITLE

L-003.00

JOHN FURTH PEACHY, ARCHITECT 146 FRANKLIN ST., NEW YORK, N.Y.

DRAWING NO. DRAWING TITLE

JFP

CHECKED BY DRAWN BY

SLB/HDP

DATE

N.T.S

SCALE PAGE NO.

1

PROPOSED STOREFRONT PHOTOMONTAGE

2

EXISTING STOREFRONT PHOTOGRAPH

DATE TAKEN 05/03/2018

3 OF 11 19-30904

LPC DOCKET NO.

EXISTING NORTH DOOR BAY & PROPOSED NORTH DOOR BAY PHOTOMONTAGE 09/05/18

550 BROADWAY BUILDING ENTRANCE RENOVATION

DRAWING TITLE

L-004.00

JOHN FURTH PEACHY, ARCHITECT 146 FRANKLIN ST., NEW YORK, N.Y.

DRAWING NO. DRAWING TITLE

JFP

CHECKED BY DRAWN BY

SLB/HDP

DATE

N.T.S

SCALE PAGE NO.

EXISTING NORTH DOOR BAY

1

PROPOSED NORTH DOOR BAY PHOTOMONTAGE

2

DATE TAKEN 05/03/2018

4 OF 11 19-30904

LPC DOCKET NO.

EXISTING STOREFRONT PHOTOS, CLOSE UP OF PROPOSED AWNING LOCATION 09/05/18

550 BROADWAY BUILDING ENTRANCE RENOVATION

DRAWING TITLE

L-005.00

JOHN FURTH PEACHY, ARCHITECT 146 FRANKLIN ST., NEW YORK, N.Y.

DRAWING NO. DRAWING TITLE

JFP

CHECKED BY DRAWN BY

SLB/HDP

DATE

N.T.S

SCALE PAGE NO.

EXISTING AWNING OVER BANANA REPUBLIC STOREFRONT

1

BOTTOM AWNING CONNECTION AT EXISTING TRANSOM BAR

3 2

EXISTING TRANSOM BAR, PROPOSED AWNING LOCATION

DATE TAKEN 05/03/2018 DATE TAKEN 10/17/2018 DATE TAKEN 05/03/2018

TOP AWNING CONNECTION

4

DATE TAKEN 10/17/2018

5 OF 11 19-30904

LPC DOCKET NO.

EXISTING CONDITION PHOTOS 09/05/18

550 BROADWAY BUILDING ENTRANCE RENOVATION

DRAWING TITLE

L-006.00

JOHN FURTH PEACHY, ARCHITECT 146 FRANKLIN ST., NEW YORK, N.Y.

DRAWING NO. DRAWING TITLE

JFP

CHECKED BY DRAWN BY

SLB/HDP

DATE

N.T.S

SCALE PAGE NO.

8

EXISTING BANANA REPUBLIC AND HSBC ENTRY DOORS NORTH SIDE OF BUILDING ENTRY

7

DATE TAKEN 10/17/2018 DATE TAKEN 05/03/2018

6 OF 11 19-30904

LPC DOCKET NO.

ADJACENT BUILDING ENTRY, 552 BROADWAY

6

DATE TAKEN 04/17/2018

2

EXISTING ELECTRICAL WIRES AND DEBRIS AT BOTTOM PORTION

INTERIOR SPACE BEHIND WOODEN PANEL

1

BUILDING INTERCOM TRANSFORMER TO BE RELOCATED

INTERIOR SPACE BEHIND WOODEN PANEL

3

LOOKING UP TOWARDS TRANSOM BAR AND TRANSLUCENT TRANSOM WINDOW

INTERIOR SPACE BEHIND WOODEN PANEL

4

NORTH SIDE OF INTERIOR SPACE

5

SOUTH SIDE OF INTERIOR SPACE

DATE TAKEN 11/05/2018 DATE TAKEN 11/08/2018

550

HSBC

EXISTING METAL ENTRY DOORS EXISTING COLUMNS TO REMAIN (TYP) EXISTING STREET NUMBER, MOUNTED ON WOOD PANEL EXISTING SPRINKLER SIGNAGE EXISTING TRANSOM WINDOW TO REMAIN 2'-3" 6'-2" 9" 23'-7 3/4" 2'-3" 7'-10 1/2" 3 1/2" 2'-6" 4" 3'-5 1/4" EXISTING WOOD BRICK MOLDINGS EXISTING AWNINGS AT ADJACENT STOREFRONT TO REMAIN WOOD PANEL ENCLOSING AMPLIFIER FOR INTERCOM SYSTEM 2 L-009 2 L-009 EXISTING COMMERCIAL STOREFRONT, NO CHANGE

HSBC

2'-3" 6'-2" 9" 23'-7 3/4" 2'-3" 9'-7" 1" 1'-0" 4" 3'-5 1/4" PROPOSED GLASS AND METAL ENTRY DOORS, TO MATCH CONFIGURATION OF DOORS AT 552-556 BROADWAY BUILDING ENTRY PROPOSED STEEL AND GLASS AWNING TO MATCH EXISTING AWNINGS AT COMMERCIAL STOREFRONT EXTEND EXISTING BRICK MOLDING UP TO NEW HEIGHT, PAINT AND MATCH EXISTING 2 L-010 2 L-010 AREA OF WORK, SEE DRAWING L-010 EXISTING, NO CHANGE UNDER THIS APPLICATION

550

EXISTING STOREFRONT ELEVATION, PROPOSED STOREFRONT ELEVATION 09/05/18

550 BROADWAY BUILDING ENTRANCE RENOVATION

DRAWING TITLE

L-007.00

JOHN FURTH PEACHY, ARCHITECT 146 FRANKLIN ST., NEW YORK, N.Y.

DRAWING NO. DRAWING TITLE

JFP

CHECKED BY DRAWN BY

SLB/HDP

DATE

AS NOTED

SCALE PAGE NO.

EXISTING STOREFRONT SCALE: 1/2" = 1'-0"

1

PROPOSED STOREFRONT SCALE: 1/2" = 1'-0"

2

7 OF 11 19-30904

LPC DOCKET NO.

EXIST. LOBBY EXIST. RETAIL STORE EXIST. BANK

5'-1 3/4" 5'-7"

• EXIST. METAL DOOR

2'-9"x7'-4"

• EXIST. METAL DOOR

2'-4"x7'-4" BROADWAY

• EXIST. FDNY

CONNECTION TO REMAIN

• EXIST. SIDEWALK

HATCH TO REMAIN

• EXIST. DOOR
• EXIST. DOOR

6'-2" 2'-3" 9" 25'-10 3/4"

• EXIST. COMMERCIAL STOREFRONT, NO CHANGE

2 L-009 1 L-009 LINE OF EXISTING AWNING ABOVE EXIST. LOBBY EXIST. RETAIL STORE EXIST. BANK NEW METAL AND GLASS DOOR 3'-0"X10'-0" NEW METAL AND GLASS DOOR 2'-0"X10'-0"

• EXIST. DOOR
• EXIST. DOOR

6'-2" 2'-3" 9" 25'-10 3/4" BROADWAY AREA OF WORK

• EXIST. COMMERCIAL STOREFRONT, NO CHANGE

5'-0" 5'-7"

2 L-010 1 L-010 LINE OF AWNING ABOVE LINE OF EXISTING AWNING ABOVE

09/05/18

550 BROADWAY BUILDING ENTRANCE RENOVATION

DRAWING TITLE

L-008.00

JOHN FURTH PEACHY, ARCHITECT 146 FRANKLIN ST., NEW YORK, N.Y.

DRAWING NO. DRAWING TITLE

JFP

CHECKED BY DRAWN BY

SLB/HDP

DATE

AS NOTED

SCALE PAGE NO.

EXISTING STOREFRONT PLAN SCALE: 1/2" = 1'-0"

1

EXISTING STOREFRONT PLAN & PROPOSED STOREFRONT PLAN

PROPOSED STOREFRONT PLAN SCALE: 1/2" = 1'-0"

2

NORTH NORTH

8 OF 11 19-30904

LPC DOCKET NO.

550

FIRE/SPRINKLER ALARM MAIN PANEL LOCATED AT 552-556 BROADWAY

EXISTING METAL ENTRY DOORS EXISTING COLUMNS TO REMAIN (TYP) EXISTING STREET NUMBER, MOUNTED ON WOOD PANEL EXISTING SPRINKLER SIGNAGE EXISTING FROSTED TRANSOM WINDOW TO REMAIN EXISTING WOOD BRICK MOLDINGS WOOD PANEL ENCLOSING EXISTING AMPLIFIER FOR INTERCOM SYSTEM

2 L

• 9

2 L

• 9

6'-2" 2'-3" 9" 7'-10 1/2" 3 1/2" 2'-6" 4" 3'-5 1/4" 7'-4" 5'-1 3/4" 2'-8 3/4" 1" 2'-3 1/4" 2 1/2" 1 3/4" 3 1/2" 1 1/4" EXISTING TRANSOM BAR TO REMAIN LOCATION OF EXISTING INTERCOM AMPLIFIER TO BE RELOCATED EXISTING METAL DOORS EXISTING INTERCOM 8'-0 1/4" 7'-4" 10'-8" (DOOR) EXISTING FROSTED GLASS TRANSOM WINDOW TO REMAIN EXISTING TRANSOM BAR TO REMAIN 13'-6 1/2" (INTERIOR CEILING HEIGHT) EXISTING COLUMNS, NO CHANGE EXISTING CROWN MOLDING AT INTERIOR 6'-2" 2'-3" 9" 5'-1 3/4" 5'-7"

• EXIST. METAL DOOR

2'-9"x7'-4" 11" 1'-4 3/4"

• EXIST. INTERCOM
• EXIST. METAL DOOR

2'-4"x7'-4"

• EXIST. CAST IRON

PANEL WITH CHECKER PLATE TO REMAIN

• EXIST. WOOD

BRICK MOLDS

• EXIST. AUTOMATIC

METER READER

• EXIST. WOOD

BRICK MOLDS

EXISTING BUILDING ENTRY ELEVATION, SECTION AND PLAN 09/05/18

550 BROADWAY BUILDING ENTRANCE RENOVATION

DRAWING TITLE

L-009.00

JOHN FURTH PEACHY, ARCHITECT 146 FRANKLIN ST., NEW YORK, N.Y.

DRAWING NO. DRAWING TITLE

JFP

CHECKED BY DRAWN BY

SLB/HDP

DATE

3/4" = 1'=0"

SCALE PAGE NO.

EXISTING BUILDING ENTRY ELEVATION SCALE: 3/4" = 1'-0"

1

EXISTING BUILDING ENTRY PLAN SCALE: 3/4" = 1'-0"

3

EXISTING BUILDING ENTRY SECTION SCALE: 3/4" = 1'-0"

2

9 OF 11 19-30904

LPC DOCKET NO.

FIRE/SPRINKLER ALARM MAIN PANEL LOCATED AT 552-556 BROADWAY

PROPOSED GLASS AND METAL ENTRY DOORS PAINT - BENJAMIN MOORE JET BLACK, No. 2210-10 REPLACE AND RELOCATE EXISTING SPRINKLER SIGNAGE PROPOSED STEEL AND GLASS AWNING TO MATCH EXISTING AWNINGS AT ADJACENT STOREFRONT EXTEND EXISTING BRICK MOLDING UP TO NEW HEIGHT, PAINT AND MATCH EXISTING

2 L

• 1

2 L

• 1

9'-0 1/2" 2" 1'-5 1/2" 4" 3'-5 1/4" 6'-2" 2'-3" 9" 10'-0" 3'-0" 1/2" 2'-0" 5" 3/4" 3/4" 1'-11 3/4" 1/2" 7'-6" 5" 5" 1 1/4" 1 1/4" 11 3/4" 5" 8" HIGH STAINLESS STEEL KICK PLATE (BOTH SIDES) 8" 6" VINYL LETTERING APPLIED TO INTERIOR GLASS PANEL

550

1" 2 1/4" 1 3/4" EXISTING FRESH AIR INTAKE TO REMAIN EXISTING COMMERCIAL STOREFRONT, NO CHANGE 2" 2" PROPOSED ASTRAGAL, PAINTED TO MATCH DOOR. 5 3/4" EXISTING FROSTED GLASS TRANSOM WINDOW TO REMAIN EXISTING TRANSOM BAR TO REMAIN, RESTORE / REPAINT TO MATCH EXISTING AS NEC. 1'-2 1/4" 2" HOLD OPEN BUMPER, BOTH SIDES HOLD OPEN DOOR HARDWARE, BOTH SIDES

L

• 1

1 1

CLEAN AND PAINT FACADE AS NECESSARY PAINT - BENJAMIN MOORE JET BLACK, No. 2210-10 EXISTING FROSTED TRANSOM WINDOW TO REMAIN RELOCATE EXISTING INTERCOM AMPLIFIER NEW METAL AND GLASS DOORS REPLACE EXISTING INTERCOM, PROVIDE KEY FOB 10'-0" 10'-8" (DOOR) 3'-7 1/4" 15° NEW STEEL AND WIRE GLASS AWNING TO MATCH ADJACENT STOREFRONT 2'-6" 2" 2'-5 3/4" 13'-6 1/2" (INTERIOR CEILING HEIGHT) 8" STAINLESS STEEL KICKPLATE ON EXTERIOR AND INTERIOR EXTEND BRICK MOLDS AND PAINT TO MATCH EXISTING RECESSED LED LIGHTING HEAVING DUTY DROP SEAL AND WEATHER STRIPPING 6" ALUM. SADDLE WITH ADJUSTABLE STOP AND CAULKING BOARD

• EXIST. SIDEWALK,

NO CHANGE 1/4" LAMINATED GLASS EXISTING TRANSOM BAR TO REMAIN, RESTORE AND REPAINT AS NEEDED STEEL CHANNELS MAGNET PIVOT HARDWARE WITH CLOSER HARDWARE TO MATCH BUILDING ENTRY DOOR AT 552 BROADWAY

L

• 1

1 3

NEW METAL AND GLASS DOORS, ONE (1) 2'-0"X10'-0" AND (1) 3'-0"X10'-0", PAINT TO MATCH EXISTING 6'-2" 9" 2'-3" 1'-4 3/4" 11" EXTEND EXISTING WOOD BRICK MOLDS TO HEIGHT OF NEW OPENING, RESTORE AND REPAINT AS NECESSARY (TYPICAL FOR ALL) HOLD OPEN BUMPER (BOTH SIDES) RECESSED LED LIGHTS ABOVE, INSTALL AT CENTER LINE OF EACH DOOR

• EXIST. AUTOMATIC METER READER

RESTORE/REPLACE EXIST. KEY KEEPER 5'-0" 5'-7"

• EXIST. EXTERIOR OPENING, NO CHANGE

DOOR OPENING DOOR RELEASE LINE OF AWNING ABOVE STEEL CHANNELS, SECURELY MOUNT TO WOOD FRAMING AND/OR SUBSTRUCTURE, PROVIDE WOOD BLOCKING AS NECESSARY

PROPOSED BUILDING ENTRY ELEVATION, SECTION AND PLANS 09/05/18

550 BROADWAY BUILDING ENTRANCE RENOVATION

DRAWING TITLE

L-010.00

JOHN FURTH PEACHY, ARCHITECT 146 FRANKLIN ST., NEW YORK, N.Y.

DRAWING NO. DRAWING TITLE

JFP

CHECKED BY DRAWN BY

SLB/HDP

DATE

3/4" = 1'=0"

SCALE PAGE NO.

PROPOSED BUILDING ENTRY ELEVATION SCALE: 3/4" = 1'-0"

1

PROPOSED BUILDING ENTRY PLAN SCALE: 3/4" = 1'-0"

3

PROPOSED BUILDING ENTRY SECTION SCALE: 3/4" = 1'-0"

2

STEEL PLAN SCALE: 3/4" = 1'-0"

4

10 OF 11 19-30904

LPC DOCKET NO.

15° 2 '

• 4

1 / 2 " 2 " 2'-5 3/4" 1/2" WIRED AND SEEDED GLASS EXISTING TRANSOM BAR TO REMAIN, RESTORE AND REPAINT AS NEEDED 1/2" SS BOLTS AT 5" O.C. THRU-BOLTED W/ SS ACORN NUTS ON AWNING SIDE OF PLATE 2X STEEL TUBE, PAINTED BLACK STEEL C CHANNEL, WELDED PAINTED BLACK STEEL ROD W/ CLEVIS SUPPORT BRUSHED SS ANGLE BRUSHED SS PLATE WELD TOP AND BOTTOM TO TUBE STEEL EXISTING TRANSOM BAR TO REMAIN, RESTORE / REPAINT TO MATCH EXISTING AS NEC. 3" 3" 1/2" 1/2" BRUSHED SS PLATE WELD TOP AND BOTTOM TO TUBE STEEL 1/2" SS BOLTS (NON STRUCTURAL) CABLE WITH CLEVIS SUPPORT EXISTING FROSTED GLASS TRANSOM WINDOW TO REMAIN 1/2" SS BOLTS (NON STRUCTURAL) 1/2" WIRED AND SEEDED GLASS 7" 4" 3 1/2" 3" 3" PROPOSED STEEL AND GLASS AWNING TO MATCH EXISTING AWNINGS AT ADJACENT STOREFRONT EXISTING FROSTED GLASS TRANSOM WINDOW TO REMAIN EXISTING TRANSOM BAR TO REMAIN, RESTORE / REPAINT TO MATCH EXISTING AS NEC. 4'-9 1/2" 6" 4'-4" 6" 7" 3" 3" 4'-7" 3" L

• 1

1 2 15° 2 '

• 6

" 2 " 2'-5 3/4" RECESSED LED LIGHTING STEEL CHANNELS NEW STEEL AND WIRE GLASS AWNING TO MATCH ADJACENT STOREFRONT EXISTING TRANSOM BAR TO REMAIN, RESTORE AND REPAINT AS NEEDED L

• 1

1 4 PROPOSED AWNING ELEVATION, SECTION & DETAILS 09/05/18

550 BROADWAY BUILDING ENTRANCE RENOVATION

DRAWING TITLE

L-011.00

JOHN FURTH PEACHY, ARCHITECT 146 FRANKLIN ST., NEW YORK, N.Y.

DRAWING NO. DRAWING TITLE

JFP

CHECKED BY DRAWN BY

SLB/HDP

DATE

3/4" = 1'=0"

SCALE PAGE NO.

PROPOSED AWNING ELEVATION SCALE: 1 1/2" = 1'-0"

1

PROPOSED AWNING DETAIL SCALE: 3" = 1'-0"

2

PROPOSED AWNING SECTION SCALE: 1 1/2" = 1'-0"

3

PROPOSED AWNING DETAIL SCALE: 3" = 1'-0"

4

11 OF 11 19-30904

LPC DOCKET NO.
