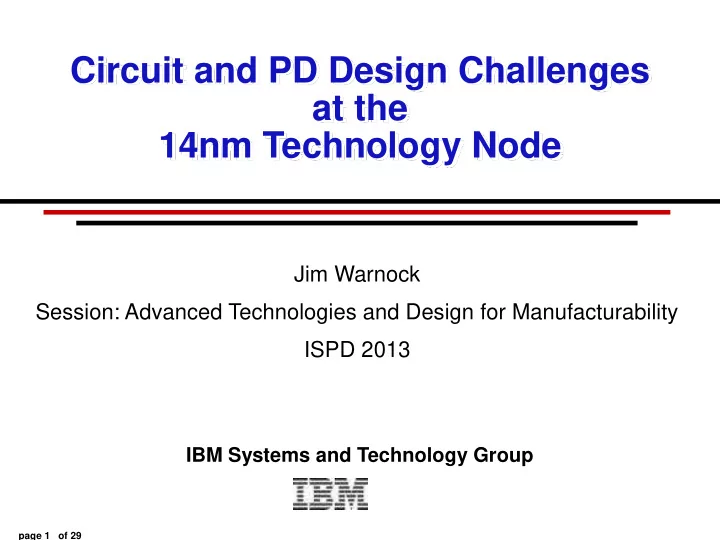

Circuit and PD Design Challenges at the 14nm Technology Node

Jim Warnock Session: Advanced Technologies and Design for Manufacturability ISPD 2013

page 2

• f 29

Outline

 Introduction  Classical CMOS Scaling: The End of the Road  New Device Structures

 What do these structures mean for circuit designers?

 Wire Interconnects  Reliability  Conclusions

page 3

• f 29

Introduction

 14nm technology will pose many challenges, for many types

• f designs…

 This talk will focus on:

 High-frequency digital CMOS design, ie for high-performance

microprocessors

 New PD issues  Circuits, wires, reliability, variability…

 Issues related to manufacturing, yield, etc: not covered here  Why is 14nm so difficult?  What will designers be facing at the 14nm technology node?

page 4

• f 29

Outline

 Introduction  Classical CMOS Scaling: The End of the Road  New Device Structures

 What do these structures mean for circuit designers?

 Wire Interconnects  Reliability  Conclusions

page 5

• f 29

0.1 1 0.01 0.1 1

Feature pitch (microns) Voltage (V)

CMOS Supply Voltage Scaling Difficulties

Classical Dennard Scaling Regime 14nm Regime Scaled voltage High-performance voltage Voltage “gap”

page 6

• f 29

Voltage Scaling Difficulties

 “The End is Near”…ish

 Maybe not the end, but things are sure getting tough…

 Voltage scaling for high-performance designs is limited

 Limited by leakage issues: can’t reduce threshold voltages

 Need steeper sub-threshold slopes…

 Limited by variability, esp VT variability

 Need to minimize random dopant fluctuations (RDF)…

 Limited by gate oxide thickness

 Some relief from high-K materials (postpones the problem for a

couple of generations)

 Limited voltage scaling + decreasing feature sizes => Increasing electric fields

 New device structures needed (short channel control)  Reliability challenges (devices and wires)

page 7

• f 29

10 100 0.01 0.1 1 10 Feature pitch (microns) Relative Performance Metric (Const power density)

CMOS Power-performance Scaling

Where this curve is flat, can only improve chip freq by: a) pushing core/chip to higher power density (tough these days…) b) design power efficiency improvements (low-hanging fruit all gone) 14nm Regime When scaling was good…

page 8

• f 29

From IEEE ISSCC 2013 Supplement:

page 9

• f 29

Lithography Scaling

0.1 1 0.01 0.1 1

Feature pitch (microns) Rayleigh Factor (k1)

Conventional lithography Double patterning 14nm Regime k1 = (resolution)*NA

l

OPC, OAI, Computational Lithography

page 10

• f 29

Outline

 Introduction  Classical CMOS Scaling: The End of the Road  New Device Structures

 What do these structures mean for circuit designers?

 Wire Interconnects  Reliability  Conclusions

page 11

• f 29

Multigate/FinFET Devices

G S D

FinFET dual-gate cross section Gate Electrode FinFET dual-gate cross section Gate Electrode Gate Electrode FinFET tri-gate cross section Gate Electrode FinFET tri-gate cross section Gate Electrode Gate Electrode

page 12

• f 29

Trigate/FinFET Devices

 The good news:

 Expect improved subthreshold slope  Expect improved RDF-induced variability  Above could help to enable lower voltage operation

 What designers have to worry about:

 New sources of variability

 Fin width will have a significant impact on VT: Expect global, local

and random effects/correlations

 Fin height -> width variability: can’t amortize over wider fingers…

 Some of the same old variability issues (continuing to worsen…)

 Gate line-edge roughening (LER), channel length variability  May be exacerbated by 3D effects

 “Quantization” of device widths

 Can only have integer numbers of fins

 Changes in device parasitic R, C compared to usual expectations

 G-S cap (Miller cap), S, D contact resistance

page 13

• f 29

50 100

s[VTsat], mV

1/√ (number of fins) nFET pFET 1 fin 20,10,5 fins 2 fins

Trigate/FinFET Devices: Variability

Reduced RDF-related VT variability for FINFETs (~25-50% depending on design)

• eg. M. Jurczak et al,
• Proc. 2009 IEEE Int, SOI Conf.

LER-related VT variability for FINFETs

• eg. E. Baravelli et al,

IEEE T. Nanotechnol. 7,

• p. 291 (2008).

Warning: considerable spread in reported literature: your mileage may vary

10 20 30 40 5 10

Planar Bulk FinFET SOI FinFET

s[VT], mV

5 10 1/√ (WL) (mm-1)

page 14

• f 29

0.2 0.4 0.6 0.8 1 1 2 3 4 5 6 7 8 9

Device Width (Units of Min width device)

finFET Devices Conventional Devices

Trigate/FinFET Devices: Quantization

Example: min size finFET INV Can have p:n ratio = 1, 0.5, 2 (nothing in between) Also, even a “wide” device will always be just a collection

• f very narrow devices…

Plus, expect difficulty to create multiple VT offerings in a fully depleted device scenario Device Strength (arb Units) Higher VT (less leakage) Lower VT (more perf.) Device Width (ratio to min width device)

• Likely to create most difficulty for SRAM, register file designs
• Also small feedback devices, keepers, etc.
• Issue for any device tuner, other tools expecting continuous width ranges

page 15

• f 29
• Resistance in contacts to fins might be tricky: assume it can be handled

by device engineers! What about G-S cap?

Trigate/FinFET Devices: Parasitics

G S D D S G

• Expect increase in Cgs compared

to planar structures

• Details will depend on fin vs trigate,

fin pitch, height, thickness, etc.

• Might have to watch out for certain

types of noise issues

• Might decrease static timing

accuracy

page 16

• f 29
• Sea-of-fins technology is attractive: offers tightest fin pitch
• Additional constraint on PD cell image
• Vertical: Fin, metal pitches 

Horizontal: gate, metal pitches

Trigate/FinFET Devices: PD Issues

Metal Pitch Fin Pitch Metal Pitch Gate Pitch

Example: 12:16

page 17

• f 29

FinFET PD Implications

 Higher fins -> more current drive per unit area

 But technology minimum device width grows  Quantization issues tougher to deal with

 Finer fin pitch -> more current drive per unit area

 Can trade off shorter fin height with finer fin pitch  Sea-of-fins constraints, other litho-related constraints

 Net: stronger technology <-> PD interaction

 Library cell definition likely to be dependent on technology fin pitch  Will need to find gear ratios (metal pitch vs fin pitch) that work well

together

page 18

• f 29

Outline

 Introduction  Classical CMOS Scaling: The End of the Road  New Device Structures

 What do these structures mean for circuit designers?

 Wire Interconnects  Reliability  Conclusions

page 19

• f 29

Wire Interconnect Scaling (or lack thereof…)

 Assume all logic scales with litho shrink factor

 Wire lengths then also would scale  Best case scenario: RC stays constant (“perfect scaling”)

 This is already painful, chip area generally hasn’t been shrinking!

 Data below shows expectations that wire delays will grow significantly, even in scaled designs.

1 1.2 1.4 1.6 1.8 2 50 100 150 M1 Metal Pitch (nm) Relative RC, scaled

14nm Regime ITRS data ITRS data, but assuming non-improving dielectric constants

page 20

• f 29

Wire Scaling Implications

 High-performance designs will not be able to tolerate such large RC increases

 Will need coarser-pitch, faster wires (ie non-scaled wires)

 But also need fine-pitched wires to leverage technology density  Result: push for more wiring interconnect layers (coarse-pitch)

 Will still need some number of fine-pitch layers as well for short-

run local connections

 Improved DA tools (routers) needed

 Optimize wire plane usage to limit technology complexity  Negotiate through special design rules for the finest levels  Via optimization, especially at driver end  Tricky performance vs wireability tradeoffs  Many wires will need “special” treatment

 Increase width, push higher, add buffers, etc.

page 21

• f 29

14nm Wires: PD Implications

 Complications from double-patterning lithography!  High-performance fat wires lead to local disruption…  Need to understand coloring for proper analysis…

X

Stitch

Cap increases Cap decreases Cap constant Misalignment

page 22

• f 29

14nm Wires: DPL

 How to make sure designs can be colored properly?

 Rules to guarantee colorability complicated, non-local  Coloring solution may be subject to external factors…

 Need color-aware analysis for highest accuracy

 Correlated capacitance shifts

 Solution: color-aware toolset & design methodology

 Build in coloring info as design is constructed  Correct, DPL-aware solutions, by construction

page 23

• f 29

Outline

 Introduction  Classical CMOS Scaling: The End of the Road  New Device Structures

 What do these structures mean for circuit designers?

 Wire Interconnects  Reliability  Conclusions

page 24

• f 29

0.01 0.1 1 50 100 150 M1 Metal Pitch (nm) Relative Lifetime 1 1.5 2 2.5 3

Relative current density

Interconnect Reliability

 Reliability will become a significant focus item for designers in 14nm technology  Parameters below taken from ITRS, plotted WRT 2009 data

 Assume constant voltage, const frequency for simplicity

14nm Regime M1 Metal Pitch (nm) Relative Current Density Relative Lifetime Lifetime with expected current density scaling Lifetime at constant current density

page 25

• f 29

 New materials likely needed for the finest-pitch planes

 Resistance increases likely  More impetus to push signal wires higher in the stack

 TDDB concerns likely to push technology to higher K materials

 Higher dielectric constant materials tend to have better reliability  Wire cap increase drives higher power, increased RC  Concern again for finest-pitch planes…

 LER, defect-narrowing likely to exacerbate EM concerns

Interconnect Reliability

TTF (Arb Units E (MV/cm) TEOS

1E-01 1E+01 1E+03 1E+05 1E+07 1E+09 2 4 6 8 10 12

Ogawa et al, 2003 IRPS 2.2 3.6 2.9 Dielectric Constant 4.2

page 26

• f 29

Interconnect Reliability: Implications

 Will need efficient design tool solutions for robust reliability

 Likely many elements with current pushing close to reliability limits  May need detailed understanding of local switching factors

 Local thermal effects likely significant for high-frequency logic

 IR heating by currents in fine wires  EM effects very sensitively dependent on temperature  What happens when hot wires are placed in close proximity?

 Answer: they get even hotter (and they heat up the surroundings)

 Need design tools to help avoid bad thermal situations  Need thermal analysis tools to detect problematic local situations

 Increased overhead from error checking & recovery expected

 For high-reliability systems, checking alone is not enough!  Need to be able to recover from hard errors  Ability to take processor cores offline gracefully

 Replace with spare core?

page 27

• f 29

Outline

 Introduction  Classical CMOS Scaling: The End of the Road  New Device Structures

 What do these structures mean for circuit designers?

 Wire Interconnects  Reliability  Conclusions

page 28

• f 29

Conclusions

 Breakdown in scaling is pushing technology in new directions

 Limited voltage scaling for high-performance chips

 Power/power-density limited performance

 More constraints from lithography (DPL)

 FinFET device structures => new circuit/PD design challenges

 VT variability still likely to be a challenge…  Constraints from fin pitch, width quantization

 Biggest challenges for high-performance designs: wires

 Non-scaling RC  Reliability  DPL makes everything tougher…

 Circuit/system-level check/recovery features will need extra emphasis for high-reliability systems

page 29

• f 29

Acknowledgements

 Thanks to L. Sigal, L. Liebmann for reviewing and commenting

• n material for this presentation
