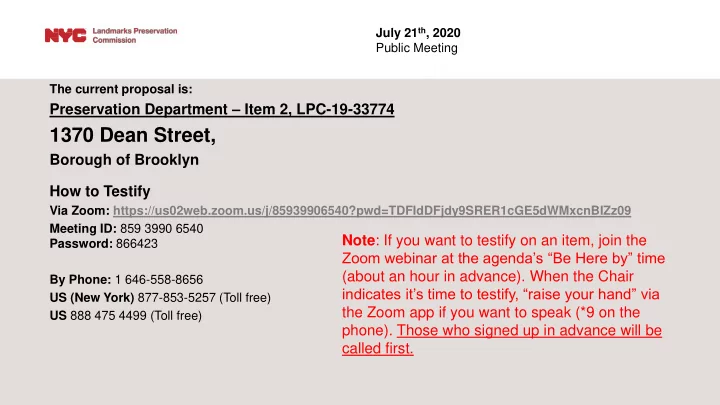

July 21 th , 2020 Name of Landmark Building Type of Presentation Month xx, year Public Meeting The current proposal is: Preservation Department Item 2, LPC-19-33774 1370 Dean Street, Borough of Brooklyn How to Testify Via Zoom:

SLIDE 1

Name of Landmark Building Type of Presentation Month xx, year

July 21th, 2020 Public Meeting The current proposal is:

Preservation Department – Item 2, LPC-19-33774

1370 Dean Street,

Borough of Brooklyn How to Testify

Via Zoom: https://us02web.zoom.us/j/85939906540?pwd=TDFIdDFjdy9SRER1cGE5dWMxcnBIZz09 Meeting ID: 859 3990 6540 Password: 866423 By Phone: 1 646-558-8656 US (New York) 877-853-5257 (Toll free) US 888 475 4499 (Toll free)

Note: If you want to testify on an item, join the Zoom webinar at the agenda’s “Be Here by” time (about an hour in advance). When the Chair indicates it’s time to testify, “raise your hand” via the Zoom app if you want to speak (*9 on the phone). Those who signed up in advance will be called first.

SLIDE 2

1370 DEAN STREET BROOKLYN, NY 11216

PROJECT:

GREYBAR ARCHITECTURE PLLC

LPC SHEET NO: 7/21/2020 ARCHITECT:

URBAN STANDARD DEVELOPMENT

OWNER: SCALE:

7/16/2020 2:12:13 PM G:\My Drive\161212_1370 Dean Street\02_Revit\20200324_Dean Street LPC Lift_V11.rvt

LPC-1 1370 DEAN STREET BROOKLYN, NY 11216

2020 1940

1370 DEAN STREET

SLIDE 3

26' - 8" 97 1364 DEAN 1370 1372 1374 1376 1378 1378A 1380 1382 1384 1386 1388 1390 1392 1394 1400 1404 1406 1408 BROOKLYN KINGSTON BERGEN 115 118 116 112 110 108 106 104 102 100 98 96 1347 1349 1351 1353 1355 1357 1359 1261 1263 1265 1267 1269 1271 1273 1275 1277 1279 1281 1283 1285 1287 1289 1291 1293 1295 1297 114' - 5" N PROJECT LOCATION 1370 DEAN STREET

1370 DEAN STREET BROOKLYN, NY 11216

PROJECT:

GREYBAR ARCHITECTURE PLLC

LPC SHEET NO: 7/21/2020 ARCHITECT:

URBAN STANDARD DEVELOPMENT

OWNER: SCALE: 1" = 60'-0"

7/16/2020 2:12:13 PM G:\My Drive\161212_1370 Dean Street\02_Revit\20200324_Dean Street LPC Lift_V11.rvt

LPC-2 LOCATION PLAN

SLIDE 4

1370 DEAN STREET BROOKLYN, NY 11216

PROJECT:

GREYBAR ARCHITECTURE PLLC

LPC SHEET NO: 7/21/2020 ARCHITECT:

URBAN STANDARD DEVELOPMENT

OWNER: SCALE:

7/16/2020 2:12:14 PM G:\My Drive\161212_1370 Dean Street\02_Revit\20200324_Dean Street LPC Lift_V11.rvt

LPC-3 BUILDING CONTEXT PHOTOS

ADJACENT PROPERTIES EAST OF 1370 DEAN STREET ADJACENT PROPERTIES WEST OF 1370 DEAN STREET

1370 DEAN STREET

SLIDE 5

1370 DEAN STREET BROOKLYN, NY 11216

PROJECT:

GREYBAR ARCHITECTURE PLLC

LPC SHEET NO: 7/21/2020 ARCHITECT:

URBAN STANDARD DEVELOPMENT

OWNER: SCALE:

7/16/2020 2:12:14 PM G:\My Drive\161212_1370 Dean Street\02_Revit\20200324_Dean Street LPC Lift_V11.rvt

LPC-4 EXISTING FRONT YARD PHOTOS

SIDE PHOTO LOOKING EAST FRONT PHOTO DETAIL PHOTO

1370 DEAN STREET 1370 DEAN STREET 1370 DEAN STREET

SIDE PHOTO LOOKING WEST

SLIDE 6

P.L. P.L. P.L. DEAN STREET SIDEWALK

FRONT YARD

EXISTING FRONT ENTRY STEPS EXISTING PAVED WALKWAY 10" 4' - 11 1/2" 10" 1' - 5 3/4" 1' - 1 3/4" 1' - 1 3/4" 3' - 2 1/2" EXISTING WROUGHT IRON FENCE AND GATES EXISTING STONE CURB EXISTING CHAIN LINK FENCE AT PROPERTY LINE 11' - 5 3/4" 11 3/4" 6' - 7 1/2" 26' - 8" 17' - 1 1/2" 7' - 1 1/4" EXISTING BUILDING ENTRY

P.L.

7' - 1 3/4" 7 EQUAL TREADS 6' - 5" 5' - 0"

P.L.

NEW INCLINED PLATFORM LIFT NEW STONE WALKWAY LOWERED TO MEET SIDEWALK GRADE EXISTING WROUGHT IRON GATE AND FENCE TO REMAIN LIFT CALL STATION NEW INCLINED PLATFORM LIFT RAIL ON TOWER POSTS NEW LIFT POSTS BOLTED TO TREADS NEW STUCCO STEPS TO MATCH EXISTING PROFILE NEW STUCCO CHEEK WALL TO MATCH EXISTING PROFILE 3' - 8" SAW CUT EXISTING STONE CURB AND LOWER WALKWAY TO MATCH EXISTING SIDEWALK GRADE EXISTING CHAIN LINK FENCE AT PROPERTY LINE TO REMAIN 3' - 0" 10" NEW METAL GUARDRAIL STAIR LANDING TO MATCH 1ST FLOOR ELEVATION

LIFT CALL STATION

DEAN STREET SIDEWALK

1370 DEAN STREET BROOKLYN, NY 11216

PROJECT:

GREYBAR ARCHITECTURE PLLC

LPC SHEET NO: 7/21/2020 ARCHITECT:

URBAN STANDARD DEVELOPMENT

OWNER: SCALE: 3/16" = 1'-0"

7/16/2020 2:12:14 PM G:\My Drive\161212_1370 Dean Street\02_Revit\20200324_Dean Street LPC Lift_V11.rvt

LPC-5 EXISTING AND PROPOSED PLAN

EXISTING FRONT ENTRY PLAN PROPOSED FRONT ENTRY PLAN

SLIDE 7

+67.23'

P.L.

EXISTING ENTRY STAIRS TO BE REMOVED EXISTING WROUGHT IRON FENCE AND GATE EXISTING STONE CURB EXISTING PAVED WALKWAY TO BE REMOVED. YARD TO BE LOWERED TO MEET LEVEL OF SIDEWALK

+68.53' +66.95'

FRONT YARD DEAN STREET

+71.86'

SIDEWALK

01 FLOOR TOJ

1 1/2"

6 3/4" 11"

+71.86' +71.78' +67.36' +67.23'

8 EQUAL RISERS 4' - 5" EXISTING WROUGHT IRON FENCE

SIDEWALK FRONT YARD P.L.

EXISTING STONE CURB BEYOND EXISTING STONE CURB REMOVED @ GATE NEW INCLINED PLATFORM LIFT (GRAPHICALLY SHOWN TRANSPARENT FOR CLARITY) NEW STUCCO STEPS TO MATCH EXISTING PROFILE NEW STUCCO CHEEK WALL TO MATCH EXISTING PROFILE 2" X 1/4" FLAT PAINTED METAL GUARDRAIL ATTACHED TO SIDE OF STAIRS LIFT CALL STATION 3' - 6"

1370 DEAN STREET BROOKLYN, NY 11216

PROJECT:

GREYBAR ARCHITECTURE PLLC

LPC SHEET NO: 7/21/2020 ARCHITECT:

URBAN STANDARD DEVELOPMENT

OWNER: SCALE: 3/8" = 1'-0"

7/16/2020 2:12:15 PM G:\My Drive\161212_1370 Dean Street\02_Revit\20200324_Dean Street LPC Lift_V11.rvt

LPC-6 EXISTING AND PROPOSED SECTION

EXISTING FRONT ENTRY SECTION PROPOSED FRONT ENTRY SECTION

SLIDE 8

NEW INCLINED PLATFORM LIFT BEYOND NOT SHOWN FOR CLARITY 2" X 1/4" FLAT PAINTED METAL GUARDRAIL ATTACHED TO SIDE OF STAIRS 1-1/2" O.D. PAINTED METAL PIPE RAILING AND BRACKET ATTACHED TO GUARDRAIL

+66.95'

SIDEWALK FRONT YARD DEAN STREET P.L.

3' - 6" 3' - 0" 2 1/2" 1' - 0" 4" MAX NEW STUCCO CHEEK WALL TO MATCH EXISTING PROFILES 4' - 2 3/4" LIFT CALL STATION

+67.23'

P.L.

EXISTING ENTRY STAIRS TO BE REMOVED EXISTING WROUGHT IRON FENCE AND GATE EXISTING STONE CURB EXISTING PAVED WALKWAY TO BE REMOVED. YARD TO BE LOWERED TO MEET LEVEL OF SIDEWALK

+68.53' +66.95'

FRONT YARD DEAN STREET

+71.86'

SIDEWALK

1370 DEAN STREET BROOKLYN, NY 11216

PROJECT:

GREYBAR ARCHITECTURE PLLC

LPC SHEET NO: 7/21/2020 ARCHITECT:

URBAN STANDARD DEVELOPMENT

OWNER: SCALE: 3/8" = 1'-0"

7/16/2020 2:12:15 PM G:\My Drive\161212_1370 Dean Street\02_Revit\20200324_Dean Street LPC Lift_V11.rvt

LPC-7 EXISTING AND PROPOSED ELEVATION

EXISTING FRONT ENTRY SECTION PROPOSED FRONT ENTRY SECTION

SLIDE 9

P.L. P.L.

1370

PROPOSED ENTRY STEPS AND INCLINED PLATFORM LIFT

P.L. P.L.

1370

EXISTING ENTRY STAIRS

1370 DEAN STREET BROOKLYN, NY 11216

PROJECT:

GREYBAR ARCHITECTURE PLLC

LPC SHEET NO: 7/21/2020 ARCHITECT:

URBAN STANDARD DEVELOPMENT

OWNER: SCALE: 3/16" = 1'-0"

7/16/2020 2:12:16 PM G:\My Drive\161212_1370 Dean Street\02_Revit\20200324_Dean Street LPC Lift_V11.rvt

LPC-8 EXISTING AND PROPOSED ELEVATION

EXISTING FRONT ENTRY PLAN PROPOSED FRONT ENTRY PLAN

SLIDE 10

1370 DEAN STREET BROOKLYN, NY 11216

PROJECT:

GREYBAR ARCHITECTURE PLLC

LPC SHEET NO: 7/21/2020 ARCHITECT:

URBAN STANDARD DEVELOPMENT

OWNER: SCALE:

7/16/2020 2:12:16 PM G:\My Drive\161212_1370 Dean Street\02_Revit\20200324_Dean Street LPC Lift_V11.rvt

LPC-9 EXISTING & PROPOSED COMPARISON OF ENTRY AND LIFT

EXISTING FRONT YARD PHOTO PROPOSED FRONT YARD PHOTO

SLIDE 11

1370 DEAN STREET BROOKLYN, NY 11216

PROJECT:

GREYBAR ARCHITECTURE PLLC

LPC SHEET NO: 7/21/2020 ARCHITECT:

URBAN STANDARD DEVELOPMENT

OWNER: SCALE:

7/16/2020 2:12:16 PM G:\My Drive\161212_1370 Dean Street\02_Revit\20200324_Dean Street LPC Lift_V11.rvt

LPC-10 EXISTING & PROPOSED COMPARISON OF ENTRY AND LIFT

EXISTING FRONT YARD PHOTO PROPOSED FRONT YARD PHOTO

SLIDE 12

1370 DEAN STREET BROOKLYN, NY 11216

PROJECT:

GREYBAR ARCHITECTURE PLLC

LPC SHEET NO: 7/21/2020 ARCHITECT:

URBAN STANDARD DEVELOPMENT

OWNER: SCALE:

7/16/2020 2:12:17 PM G:\My Drive\161212_1370 Dean Street\02_Revit\20200324_Dean Street LPC Lift_V11.rvt

LPC-11 EXISTING & PROPOSED COMPARISON OF ENTRY AND LIFT

EXISTING FRONT YARD PHOTO PROPOSED FRONT YARD PHOTO

SLIDE 13

1370 DEAN STREET BROOKLYN, NY 11216

PROJECT:

GREYBAR ARCHITECTURE PLLC

LPC SHEET NO: 7/21/2020 ARCHITECT:

URBAN STANDARD DEVELOPMENT

OWNER: SCALE:

7/16/2020 2:12:17 PM G:\My Drive\161212_1370 Dean Street\02_Revit\20200324_Dean Street LPC Lift_V11.rvt

LPC-12 LIFT IMAGES

INCLINED PLATFORM LIFT IMAGE A INCLINED PLATFORM LIFT IMAGE B

SLIDE 14

1370 DEAN STREET BROOKLYN, NY 11216

PROJECT:

GREYBAR ARCHITECTURE PLLC

LPC SHEET NO: 7/21/2020 ARCHITECT:

URBAN STANDARD DEVELOPMENT

OWNER: SCALE:

7/16/2020 2:12:17 PM G:\My Drive\161212_1370 Dean Street\02_Revit\20200324_Dean Street LPC Lift_V11.rvt

LPC-13 PREVIOUS STUDIES

RAMP STUDY VERTICAL LIFT STUDY

SLIDE 15

1370 DEAN STREET BROOKLYN, NY 11216

PROJECT:

GREYBAR ARCHITECTURE PLLC

LPC SHEET NO: 7/21/2020 ARCHITECT:

URBAN STANDARD DEVELOPMENT

OWNER: SCALE:

7/16/2020 2:12:17 PM G:\My Drive\161212_1370 Dean Street\02_Revit\20200324_Dean Street LPC Lift_V11.rvt

LPC-14 PREVIOUS STUDIES

STUCCO GUARDRAIL FULL HEIGHT (3'-6") STUDY STUCCO GUARDRAIL PARTIAL HEIGHT (2'-6") STUDY

SLIDE 16

P.L. SIDEWALK

7' - 0" 26' - 8"

BEDROOM BEDROOM KITCHEN/ LIVING BLDG. ENTRY

1370 DEAN STREET BROOKLYN, NY 11216

PROJECT:

GREYBAR ARCHITECTURE PLLC

LPC SHEET NO: 7/21/2020 ARCHITECT:

URBAN STANDARD DEVELOPMENT

OWNER: SCALE: 3/32" = 1'-0"

7/16/2020 2:12:17 PM G:\My Drive\161212_1370 Dean Street\02_Revit\20200324_Dean Street LPC Lift_V11.rvt

LPC-15 PROPOSED 1ST FLOOR PLAN

N

SLIDE 17
