GW-1 & GW-2 and related aspects of Statewide Rules 13, 14, 9, 46, 99 & 100 Rick Behal, P.G. August 2020 1 Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide) Table Of Contents Who is the GAU What

slide-1
SLIDE 1

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

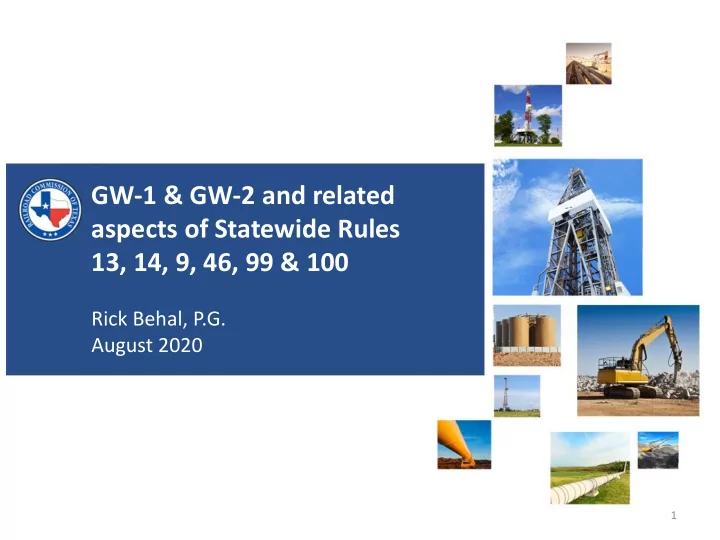

GW-1 & GW-2 and related aspects of Statewide Rules 13, 14, 9, 46, 99 & 100

Rick Behal, P.G. August 2020

1

slide-2
SLIDE 2

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Table Of Contents

  • Who is the GAU
  • What does the GAU do
  • Water classification
  • The Application (Form GW-1)
  • Attachments
  • Capitan Reef
  • Surface Casing Estimator

2

slide-3
SLIDE 3

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Who We Are

  • Oil & Gas Division

– Technical Permitting

  • Groundwater Advisory Unit (GAU)
  • Injection Permitting and Support
  • Environmental Permits and Support
  • Engineering Unit

3

slide-4
SLIDE 4

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

What We Do (1 of 2)

  • Groundwater Determinations:

– SWR 13: Set and cement sufficient surface casing to protect all usable quality water strata (BUQW) – New Drills, Injection, Re-entry, Recompletion, P&A, H-15, O&G Water Supply (W-1 if deeper than BUQW)

  • Geologic Isolation (H-1, W-14)

– No injection is allowed in Underground Source of Drinking Water (USDW)* – Depth of confining clay or shale below BUQW/USDW

4

slide-5
SLIDE 5

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

What We Do (2 of 2)

  • Cathodic Protection and Microseismic wells

– CP (SWR 99) and MS (SWR 100) – Required if depth is >30 feet – W-1 required if CP/MS well exceeds protection depth – Submit well schematic of CP/MS well with W-1 – GW-1 for CP/MS wells cannot be used for other purposes

  • Special Projects

– Capitan Reef (BEG) – BRACS/ASR – Texas Water Development Board (TWDB)

5

slide-6
SLIDE 6

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Water Classification

  • Superior Quality Water (SQW) < 1,000 ppm

– Good tasting drinking water

  • The Base of Usable Quality Water (BUQW) < 3,000 ppm

– Protection depth as define by SWR 13

  • Underground Source of Drinking Water (USDW) <

10,000 ppm

– No injection allowed in the USDW* * Aquifer Exemption or EPA concurrence

6

slide-7
SLIDE 7

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Water Board Letters

  • Why do we call them Water Board Letters?
  • Texas Board of Water Engineers established 1913
  • 1950 Order required operators to obtain a TBWE letter

7

slide-8
SLIDE 8

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

GAU Tools and Techniques (1 of 2)

The GAU uses Geographical Information System (GIS) – Operator Provided Information – Other Government and NGO Web Resources – Legacy Cloth Maps and Well Files

8

slide-9
SLIDE 9

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

GAU Tools and Techniques (2 of 2)

  • Texas Water Development Board – Water Data Interactive

9

slide-10
SLIDE 10

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

How do we Protect?

  • Provide Depths for Surface Casing, Cementing, and Plugging
  • Locate Geologic Isolation For Injection Wells (H-1, W-14)

– Depth of confining clay or shale below USDW is required 250’ Below BUQW with 100’ contiguous confinement

10

slide-11
SLIDE 11

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Casing and Cement (1 of 2)

  • SWR 13 requires that surface casing protect

groundwater as stated in Groundwater Advisory Unit (GAU) letter (Form GW-2)

– Surface Casing

  • Protects usable-quality water from

drilling/completion process

  • Extra protection against leaks during production

– Cement

  • Prevents annular migration of fluids
  • Prevents corrosion of casing
  • Isolates formation

11

slide-12
SLIDE 12

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Casing and Cement (2 of 2)

  • Three layers of protection: surface casing, production

casing and tubing

12

slide-13
SLIDE 13

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Application (Form GW-1)

  • Requests for Groundwater Determinations can

be made one of two ways

– Use the RRC On-Line System – Download a PDF form on the GAU Website

  • Email the completed GW-1 form to gau@rrc.texas.gov
  • Send the completed GW-1 form through regular mail

13

slide-14
SLIDE 14

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Menu and User Guide

  • My Applications (Status)

– Check application status – “Draft” means not submitted

  • Search for previous filings
  • New Application
  • User Guide

14

slide-15
SLIDE 15

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Reason for Filing

  • Important for H-1 and W-14 because determination will

include the USDW necessary for UIC permit application

15

slide-16
SLIDE 16

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Areal Extent

  • Areal Extent

– May request Radius, Section, Abstract, Lease… – Provide additional information in “Remarks” (ex: specify well API numbers to be included) – Extent depends on hydrogeology & topography

16

slide-17
SLIDE 17

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Location Information

  • GPS coordinates for surface location
  • GIS tools for identifying wells and plotting coordinates
  • Coordinates and survey calls consistent with other RRC filings

(RRC GIS, W-1, H-1, W-14, etc.)

17

slide-18
SLIDE 18

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

RRC GIS Public Viewer

  • GAU webpage links - Using the RRC Public GIS

18

slide-19
SLIDE 19

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Creating a Scaled Map

  • GAU webpage links – Creating a Scaled Map
  • A map is required with all application

19

slide-20
SLIDE 20

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Attachments for H-1 and W-14

  • Additional info is required for H-1 & W-14

– H-1: Include the Form H-1A – W-14: Include Form W-14 and a representative well log

  • GAU issues “no harm” letter for W-14 in

addition to the GW-2 Determination

20

slide-21
SLIDE 21

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Log Submission

  • Four ways to submit well logs

– Attach to application (Form GW-1) – Digital Well Log Submission* – Refer to log already available via RRC GIS* – email or USPS mail in the hardcopy* (* Note in GW-1 Remarks)

21

slide-22
SLIDE 22

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Payment (1 of 2)

  • Hit the “Next” button at the bottom of the page to

accept the terms and pay.

  • If “Save” – Return via Menu/My Applications/Draft

22

slide-23
SLIDE 23

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Payment (2 of 2)

  • Check the “Accept” box then the “Payment” button.
  • Remember to return to the application after

payment confirmation to submit. Otherwise GW-1 remains in “Draft” status (not submitted)

23

slide-24
SLIDE 24

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Payment Confirmation

  • “Print Confirmation” here (now or never!)
  • Click on “Return” to go back and finalize submitting

the GW-1

24

slide-25
SLIDE 25

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Application Status

  • If an application is returned, “Edit and Resubmit” to

make changes to the application and resubmit.

25

slide-26
SLIDE 26

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Summary

  • Filing online helps expedite
  • No Special Characters (!@#$%^&*) or Spaces
  • Chrome Browser recommended
  • Map/plat – Info consistent with GW-1/W-1
  • More data favors the desired outcome
  • Shout out for more data (shallow log data)
  • Confidentiality
  • Rig on Location!!! Call Us…

26

slide-27
SLIDE 27

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Special Projects

Capitan Reef

27

slide-28
SLIDE 28

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Capitan Reef (1 of 3)

  • Located in West Texas Permian Basin and South East

New Mexico

  • Present in Brewster, Culberson, Jeff Davis, Pecos,

Ward, and Winkler Counties

28

slide-29
SLIDE 29

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Capitan Reef (2 of 3)

  • The Reef contains fresh water but no oil

– Important Hydrogeologic formation of the Permian Basin – Classified by the TWDB as a Minor Aquifer of Texas

29

slide-30
SLIDE 30

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Capitan Reef (3 of 3)

  • Request logs (shallow)

data only) to help locate reef

  • Capitan Reef added to

SWR 13 Geologic Formation List to be reported on Completions Reports (Forms G-1/W-2)

30

slide-31
SLIDE 31

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Surface Casing Estimator (1 of 4)

  • SCE provides operator with an estimate of casing depths
  • Prepared in cooperation with the RRC and BEG

31

slide-32
SLIDE 32

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Surface Casing Estimator (2 of 4)

32

slide-33
SLIDE 33

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Surface Casing Estimator (3 of 4)

33

slide-34
SLIDE 34

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Surface Casing Estimator (4 of 4)

34

slide-35
SLIDE 35

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

GAU Contact Info

Groundwater Advisory Unit 512-463-2741 James Harcourt, PG, Manager 463-2980 Heather Hesskew 463-3184 LaShonda Hicks 463-3052 Valerie Atkins 463-7137 Cristian Astorga, PG, 463-3013 Rick Behal, PG, 463-6473 Norman Gearhart, PG 463-2937 Ed LaCour, PG 463-2358 Toni Eilerts, PG 463-7280 Karen Cassidy, PG 463-6209 Hank Zhao, PhD, PG 463-3313 Royce Massey, GIT 462-7017 Bryce McKee, PG 463-2259

35

slide-36
SLIDE 36

Railroad Commission of Texas | June 27, 2016 (Change Date In First Master Slide)

Questions ?

Questions?

36
