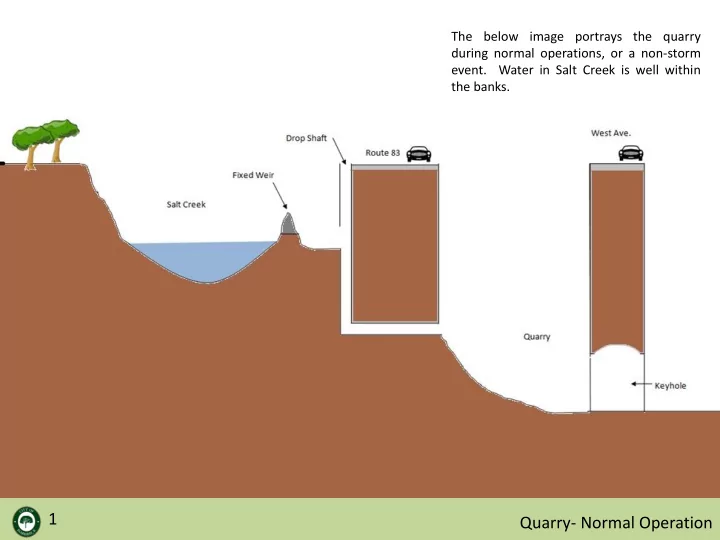

The below image portrays the quarry during normal operations, or a non-storm event. Water in Salt Creek is well within the banks. 1 Quarry- Normal Operation The below illustrates how the water raises above the fixed weir and automatically

SLIDE 1

Quarry- Normal Operation 1

The below image portrays the quarry during normal operations, or a non-storm

event. Water in Salt Creek is well within

the banks.

SLIDE 2

Quarry- During Storm Event 2

The below illustrates how the water raises above the fixed weir and automatically flows down the drop shaft and into the quarry during a storm event.

SLIDE 3

Quarry- Normal Operation 1

The below image portrays the quarry during normal operations, or a non-storm

the banks.

Quarry- During Storm Event 2

The below illustrates how the water raises above the fixed weir and automatically flows down the drop shaft and into the quarry during a storm event.

Fixed Weir at Quarry 3
