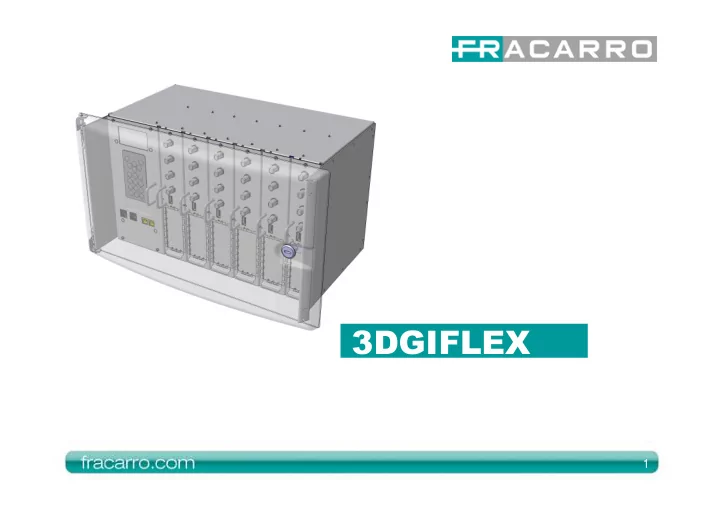

�������� 1
3DGiflex: the evolution MAIN FEATURES : ► New “Smart cabinet” ► Very Flexible platform (multiple input – multiple output) ► Dual independent Input (up to 4 soon); ► Dual independent COFDM Output Multiplex (up to 4 in next development); ► COFDM full band modulator, MER >36dB complete setting via software; ► 100dBµV per channel 15dB adjustable via sw; ► 2 slot CI per module to unscramble satellite or terrestrial pay-tv channels. 2
3DGiflex: the design evolution SMART CABINET CONCEPT The product is composed of a “smart cabinet” with: ► a back panel inside to carry on feeds and transport streams to all modules; ► a control unit with keyboard and LED display in order to set the entire headend from a unique point; ► 6 slot for the processing modules; ► an RF combiner and a launch amplifier in order to mix together all the processed contents on an unique cable. Design Plastic front cover with a lock guarantees: ► - protection against external unauthorized accesses ► - periodical maintenance inside the box without service interrupting (no need to remove the connection from the modules to open the cover). ► - a very clean installation and an up to date image Wall mounting, floor mounting and 19” rack mounting are possible thanks to the included clamps. 3
3DGiflex: fully flex input • COFDM Terrestrial • QAM Terrestrial • QPSK Satellite • A/V Analogue • A/V Digital Product roadmap will follow 4
3DGiflex: fully flex out • COFDM Digital coax distribution • QAM Digital coaxial distribution • IP CAT5 distribution 5
3DGiflex: Mux-ad hoc OUT COAX or CAT5 INPUT 1 MUX 1 + SAT MUX 2 INPUT 2 SAT Back Panel Back Panel (DTT, SAT, AV) The product allows to chose different input programs and create an ad-hoc Mux merging the desired contents. 6
3DGiflex: web interface 3Dgiflex is provided with a web server that allows to fully control, monitor and set up the headend using a simple browser. The system can be reached using an existing LAN, a Wi-Fi network (using a provided USB dongle) via a pc or a mobile device (tablet or smart phone). Sample pictures 7
3DGiflex: Integrated host controller The integrated host controller allows the installer to fully manage the headend remotely to give many services: ► constant monitoring of many parameters; ► remote assistance; ► remote set up; ► easy customizing (i.e. different channels for different customers for hotels); ► allows to change the program list adding new contents without re-scanning the tv sets. 8
