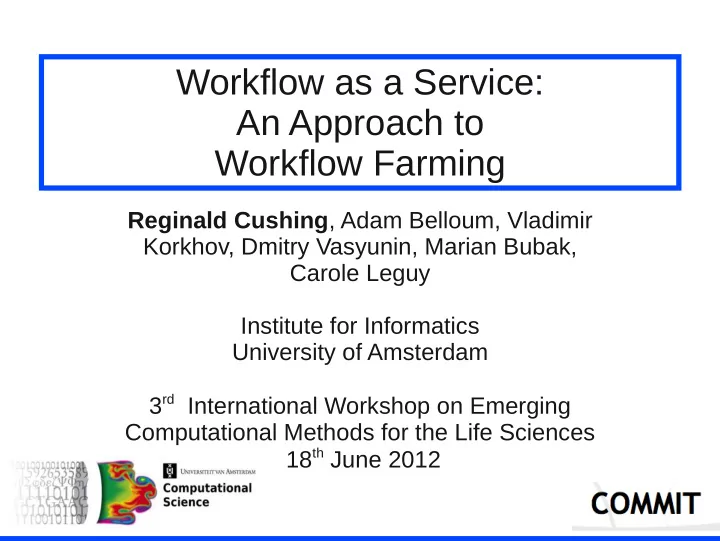

Reginald Cushing, Adam Belloum, Vladimir Korkhov, Dmitry Vasyunin, Marian Bubak, Carole Leguy Institute for Informatics University of Amsterdam 3rd International Workshop on Emerging Computational Methods for the Life Sciences 18th June 2012

Workflow as a Service: An Approach to Workflow Farming

Outline

• Scientific Workflows
• Farming Concepts
• Workflow as a Service (WfaaS)
• System overview

– Task Harnessing – Messaging

• Application Use Case
• Results
• Conclusions

Scientific Workflows

• Composing experiments from reusable modules
• Vertexes represent computation
• Edges represent data dependency and data communication
• Modules/Tasks communicate through channels represented by ports
• Workflow engines distribute workload onto resources such as grids

and clouds

• Modules run in parallel thus achieving better throughput

Farming Concepts

• Many scientific applications require a parameter space study a.k.a

parameter sweep

• In workflows parameter sweeps can be achieved by running multiple

identical workflows with different parameter inputs

• Cons: Every instance of a workflow has to be submitted to distributed

resources where queue waiting times play significant role on throughput

Farming Concepts

Task

Parameters

• rganized on

message queues

Farming Concepts

Task

Parameters

• rganized on

message queues Task processes data sequentially

Farming Concepts

Task

Parameters

• rganized on

message queues Task processes data sequentially

Farming Concepts

Task

Parameters

• rganized on

message queues Task processes data sequentially

Farming Concepts

Task

Parameters

• rganized on

message queues Task processes data sequentially Adding more tasks increases message consumption rate Challenge: How many tasks to create?

Task Task

Too many - tasks get stuck on queues. Too few - optimal performance not achieved

Workflow as a Service

• Workflow execution is persistent i.e. it runs, process data and does

NOT terminate but wait for more data

• An active workflow instance can process multiple parameters
• Make better usage of computing resources
• A parameter space can be partitioned amongst a pool of active

workflow instances (a farm of workflows)

• A workflow acts as a service by accepting requests to process data

with given parameters

– Request 1: data A, parameters {p1,p2,...} – Request 2: data A, parameters {k1,k2,...}

• Multiple WfaaS processing requests form a farm of workflows

System Overview

Loosely coupled modules revolving around a message Queues

Enactment Engine

Dataflow engine (top-level scheduler) based on Freefluo§ engine Models workflows as dataflow graphs Vertices are tasks while edges are dependencies(data Tasks have ports to simulate data channels Dataflow model dictates that only tasks which have input are scheduled for execution.

§http://freefluo.sourceforge.net

Message Broker

Message broker plays a pivotal role in the system Message queues act as a data buffer Communicating tasks are time decoupled Through queue sharing we can achieve scaling Tasks communicate through messaging where messages contain references to actual data

Submission System

Pluggable schedulers (bottom- level) for task match-making Submitters (drivers) abstract actual resources such as cluster, grid, cloud Scheduler matches a task to a submitter Submitter does actual task/job submission

Task Harnessing

Task harness is a late binding, pilot- job mechanism A pilot-job (harness) is submitted which will pull the actual job The harness separates data transport from scientific logic Better control of tasks

Task Auto-Scaling

Messages between tasks are monitored Size of queued data and mean data processing time are used to calculate task load Auto-scaling replicates a particular task to ameliorate the task load Replicated tasks (clones) partition data by sharing same input message queues

Parameter Mapping

• One to one mapping: each parameter is mapped to one

workflow instance

• Generates many workflow instances which end up

stuck on queues waiting execution

• High scheduling overhead, high concurrency
• Many to one mapping: all parameters are mapped to

the same workflow instance

• Only one workflow to schedule, takes long to process

all the parameter space

• Low scheduling overhead, Low concurrency
• Many to many: parameter space is partitioned amongst a farm
• f workflows
• A number of workflows scheduled which accelerates

processing

• Low scheduling overhead, high concurrency

Task harnessing

• WfaaS is enabled through

task harnessing

• A harness is a caretaker

code that runs alongside the module on the resource/worker node

• It implements a plugin

architecture

• Modules are dynamically

loaded at runtime

• Data communication to and from the module is taken care of by the

harness

• The harness invokes the module with new requests of data processing
• The harness is akin to a container while the module is akin to a service
• The harness enables asynchronous module execution as

communication is done through messaging

Messaging

• In WfaaS modules communicate

through messaging

• Message queues allow multiple

instances of modules to share the same input space

• Through message queues, data is

partitioned amongst modules

• Messaging circumvents the need to

co-allocate resources

• A pull model implies that each module can process data at its own

pace

• Once a module has finished processing data it asks for more (pull)

Application Use Case

• Arterial tree model geometry

and representation of model parameters constrained to uncertainties

• Parameters: flow velocity,

brachial, radial, ulnar radii. Length of brachial, radial, ulnar. etc

• Biomedical study for which 3000

runs were required to perform global sensitivity analysis

• Patient-specific simulation

includes many parameters based

• n data measured in-vivo

Results

• Left: WfaaS 100 simulations takes around 3h:15min
• Right: Non WfaaS 100 simulations take 5h:15min
• The WfaaS approach, each workflow instance performs multiple simulations which

drastically reduces queue waiting times

• The non-WFaaS approach generates 100 workflow instances with most of them getting

stuck on job queues

• In both cases worklows were competing for 28 worker nodes

Conclusions

• WfaaS is an ideal approach to large parametric

studies

• WfaaS reduces common scheduling overhead

associated with queue waiting times

• WfaaS is achieved through task harnessing

whereby caretaker routines can invoke the task multiple times

• A farm of wokflows can progress at its own

pace through a parameter pulling mechanisim

Further Information

• WSVLAM workflow management system

– http://staff.science.uva.nl/~gvlam/wsvlam/

• Computational Sciences at University of

Amsterdam

– http://uva.computationalscience.nl

• COMMIT

– http://www.commit-nl.nl/new
