Interwell Tracer Tests: Understanding Inter-Well Connectivity Within Your Reservoir March 22, 2018 Stephen Whitaker Enhanced Oil Recovery Institute 1 Agenda 1. Know Your Reservoir 2. General Properties of Interwell Tracers 3. Tracer

slide-1
SLIDE 1

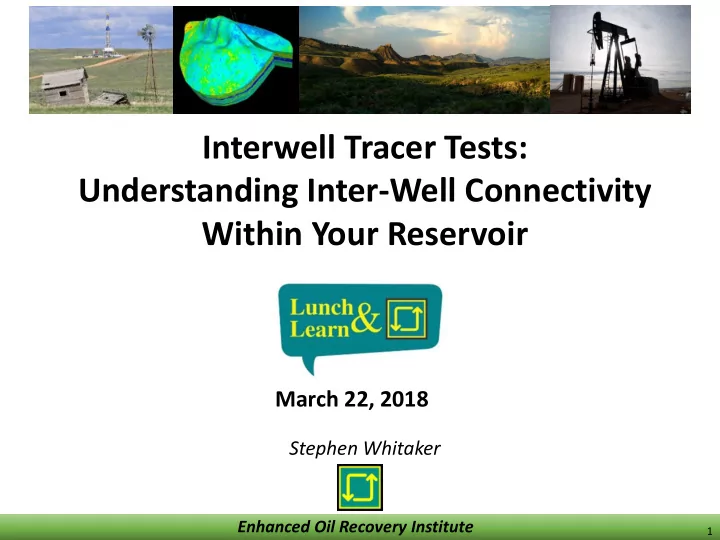

Enhanced Oil Recovery Institute

1

Interwell Tracer Tests: Understanding Inter-Well Connectivity Within Your Reservoir

March 22, 2018

Stephen Whitaker

slide-2
SLIDE 2

2

EORI

Agenda

  • 1. Know Your Reservoir
  • 2. General Properties of Interwell Tracers
  • 3. Tracer Project Design
  • 4. Injection and Sampling
  • 5. Data Analysis and Interpretation
  • 6. Examples of Interwell Tracer Surveys
  • 7. Remaining Oil Saturation Calculations
  • 8. Summary
slide-3
SLIDE 3

3

EORI

Two Rules for Being a Successful Oil & Gas Professional

  • 1 - You must excel at working with incomplete data sets
  • 2 -
slide-4
SLIDE 4

Know Your Reservoir

  • A key to maximizing recovery efficiency from any reservoir is

proper reservoir characterization (know your reservoir)

  • Data from logs and cores within a field do not provide the

necessary information to map the internal plumbing of the reservoir

  • Interwell tracer tests can greatly increase the understanding
  • f the reservoir architecture, which is needed to maximize

production

  • reservoir flow paths
  • heterogeneities
  • unswept areas of the reservoir

4

EORI

slide-5
SLIDE 5

Know Your Reservoir

5

EORI

Example of Tracer Response with Uniform Sweep

  • Most operators assume that this is the case with each injection well
  • Very rare
slide-6
SLIDE 6

Know Your Reservoir

6

EORI

An isopach of a traditional oil field with injector wells

slide-7
SLIDE 7

Know Your Reservoir

7

EORI

An isopach of a traditional oil field with injector wells and producing wells

slide-8
SLIDE 8

Know Your Reservoir

8

EORI

Inter-well tracers can determine the flow paths within the reservoir:

  • Measure breakthrough times
  • Identify thief zones
  • Identify existence of faults
  • Indicate extent of formation layering
slide-9
SLIDE 9

Know Your Reservoir

9

EORI

and help indicate the locations of barriers to fluid flow

slide-10
SLIDE 10

Know Your Reservoir

11

EORI

By measuring the amount of tracer recovered it is possible to quantify:

  • Swept Pore Volume
  • Sweep Efficiency
  • Approximate Remaining Oil
  • Conformance Gel treatment

volume estimations

slide-11
SLIDE 11

Such as identifying flow behavior prior to full-field planning and project scale-up

  • At the pilot stage of new flood projects
  • To evaluate specific injector-to-producer

flow connections

Breakthrough times allow the sources of high water-cuts or spurious gas:oil ratios to be determined

  • EOR studies

When evaluating various recovery mechanisms & different conformance treatments (e.g. polymer or chemical floods)

12

EORI

When to use Interwell Tracers

slide-12
SLIDE 12
  • Inert chemicals that will follow

and behave as the water flowing through the reservoir:

  • Non-reactive and stable
  • No absorption or retardation with

the formation

  • Do not interact with hydrocarbons
  • Have very low detection limits

(parts per trillion)

  • Show minimal environmental

consequences

  • Cost-effective
  • Nearly 50 unique water tracers available

depending on reservoir conditions

13

EORI

Properties of Waterflood Tracers

slide-13
SLIDE 13
  • Inert chemicals that will follow and behave as the

injected gas mixture flowing through the reservoir:

  • Non reactive chemical gas tracers used
  • Stable at reservoir conditions
  • No absorption onto reservoir rock
  • Should have vapor / liquid hydrocarbon

solubility properties as close to the injected gas as possible

  • Have very low detection limits (parts per trillion)
  • Show minimal environmental consequences
  • Cost-effective
  • About 20 unique gas tracers available

depending upon reservoir conditions

14

EORI

Properties of Gasflood Tracers

slide-14
SLIDE 14

Tracer Project Design

15

EORI

slide-15
SLIDE 15

16

EORI

1. Project objectives 2. Tracer selection & compatibility testing 3. Tracer quantity calculation 4. Initial sampling regimen 5. Tracer injection and sampling 6. Analytical results 7. Data interpretation 8. Revise sampling regimen (if needed) 9. Evaluation of tracer data

  • 10. Historic match to fit tracer data
  • 11. Repeat tracer application if desired

Pre-Deployment Tracer Deployment Post-Deployment

Tracer Project Design

slide-16
SLIDE 16

Injection & Sampling

19

EORI

slide-17
SLIDE 17

Tracer analysis is able to measure very low detection levels (parts per trillion)

This means:

20

EORI

Injection

  • Low tracer quantity
  • Portable equipment
  • No disruption to normal operations
  • No requirement to shut-in wells
slide-18
SLIDE 18

21

EORI

  • 1. Complete

paperwork

  • 2. Fill water

sample

  • 3. Or gas

sample

  • 4. Label sample
  • 5. Place sample

Into box

  • 6. Seal box
  • 7. Send box to

Tracerco

  • 3. Or gas

sample

  • 7. Send box to

tracer company

Sample Collection

Collecting samples and sending to the tracer company for analysis is simple, fast, and convenient

slide-19
SLIDE 19
  • Samples taken from producing wells at

regular intervals to measure tracer content

  • Samples taken more frequently

immediately after injection to catch matrix bypass events

  • Frequency dependent upon injection rates

& formation volume / quality, as well as the distance between injectors and producers

  • Special care is required to prevent sample

contamination during collection

  • For gas, CATS tubes (Capillary Adsorption

Tube Samplers) or onsite lab set-up an

  • ption if required to ship using constraints
  • Not necessary to analyze every sample

collected

22

EORI

Sample Collection

slide-20
SLIDE 20

23

EORI

Sample Collection

slide-21
SLIDE 21

Data Analysis & Interpretation

24

EORI

slide-22
SLIDE 22

25

EORI

Data Analysis & Interpretation

Common response at producer to tracer injection

Tracer Concentration ppt Days Post Injection

slide-23
SLIDE 23

26

EORI

Data Analysis & Interpretation

Tracer Concentration ppt Days Post Injection

slide-24
SLIDE 24

27

EORI

Data Analysis & Interpretation

Tracer Concentration ppt Days Post Injection

slide-25
SLIDE 25

28

EORI

Data Analysis & Interpretation

Tracer Concentration ppt Days Post Injection

slide-26
SLIDE 26

29

EORI

Data Analysis & Interpretation

MRT is used to evaluate sweep efficiencies, heterogeneity, permeability, etc. Tracer Concentration ppt Days Post Injection

slide-27
SLIDE 27

30

EORI

Data Analysis & Interpretation

slide-28
SLIDE 28

31

EORI

Data Analysis & Interpretation

slide-29
SLIDE 29

32

EORI

Data Analysis & Interpretation

slide-30
SLIDE 30

33

EORI

Data Analysis & Interpretation: Commingled Zones

slide-31
SLIDE 31

34

EORI

Data Analysis & Interpretation: Commingled Zones

slide-32
SLIDE 32

35

EORI

Data Analysis & Interpretation: Commingled Zones

slide-33
SLIDE 33

36

EORI

Data Analysis & Interpretation: Commingled Zones

slide-34
SLIDE 34

37

EORI

Data Analysis & Interpretation: Commingled Zones

slide-35
SLIDE 35

38

EORI

Data Analysis & Interpretation: Commingled Zones

slide-36
SLIDE 36

39

EORI

Data Analysis & Interpretation: Commingled Zones

slide-37
SLIDE 37

Application Examples

40

EORI

slide-38
SLIDE 38

41

EORI

Case Studies: Waterflood Application

The Project:

An oil field operator wished to better understand communication pathways within an inverted nine-spot waterflood operation. This study was to establish:

  • Sweep efficiency of the field
  • Determine if there was preferential

flow direction

  • Resolve the problem of excessive

water production in several wells

slide-39
SLIDE 39

42

EORI

Case Studies: Waterflood Application

The Project:

An oil field operator wished to better understand communication pathways within an inverted nine-spot waterflood operation. This study was to establish:

  • Sweep efficiency of the field
  • Determine if there was preferential

flow direction

  • Resolve the problem of excessive

water production in several wells Tracers proved that there was preferential flow to the west-southwest

slide-40
SLIDE 40

43

EORI

Case Studies: Waterflood Application

Interpretation of Results

  • There is preferential flow to the west

and southwest

  • Several areas of the field have not

been swept

  • Flood can be improved by changing

pattern through recompletions or in- fill drilling

slide-41
SLIDE 41

44

EORI

Wyoming Case Study: Gas Flood

slide-42
SLIDE 42

45

EORI

Wyoming Case Study: Gas Flood

  • ~19 Injection wells
  • Unique gas tracer in each well
  • ~18 Producing wells
  • Breakthrough expected in hours or

days

  • Problems
  • Breakthrough of gas in several wells
  • Suspected poor sweep (fractures,

faults, varying reservoir quality)

  • Thinking of trying polymer
  • Objectives
  • Track preferential flow
  • Identify fractures/faults and other

factors that affect sweep

  • Identify wells for polymer

applications

slide-43
SLIDE 43

46

EORI

Depth: 7500’ Porosity: 15% Permeability: 50md

  • Sample collection started

within hours of injection due to expected breakthrough (BT) timing

  • Initial sample frequency on

an hourly basis and reduced

  • ver time
  • One or more tracers

produced in most wells

  • High connectivity identified

in 3 areas (circled)

Wyoming Case Study: Gas Flood

slide-44
SLIDE 44

47

EORI

Depth: 7500’ Porosity: 15% Permeability: 50md

  • Sample collection started

within 2 hours of injection due to expected breakthrough (BT) timing

  • Initial sample frequency on

an hourly basis and reduced

  • ver time
  • One or more tracers

produced in most wells

  • High connectivity identified

in 3 areas (circled)

  • Injectors 5, 7, 8, 11 and 18 identified as potential candidates for polymer trial.

Wyoming Case Study: Gas Flood

slide-45
SLIDE 45

48

EORI

Injectors 5 and 7.

  • Both show high connectivity with
  • p6. Poor sweep with BT in day 1.
  • 37% of inj 7 tracer produced in p6
  • 25% of inj 5 tracer produced in p6

Inj 5 -Inj 7

6 5 7 4

Tracer Pulse Well #6

Wyoming Case Study: Gas Flood

slide-46
SLIDE 46

49

EORI

Injector 8

  • Connectivity to p10; 9% of tracer produced Day 1.
  • High tracer concentration early and brief pulse

indicating channeling through fracture or fault. Tracer not present in other nearby producers. Injector 11

  • 37% tracer produced in p10. BT Day 1.
  • Channeling and relatively poor sweep.

Injector 13

  • Communication with p10 detected. Effective sweep.

Wyoming Case Study: Gas Flood

Inj 8 Inj 11 Inj 13

Tracer Pulse Well #10

slide-47
SLIDE 47

50

EORI

Injector 18

  • Channeling and ineffective

sweep to p15

  • 35% tracer recovery in 6

days with BT day 1.

15 18

Inj 18

Tracer Pulse Well #15

Wyoming Case Study: Gas Flood

slide-48
SLIDE 48

51

Case Studies: CDG Pilot Flood

< 1,000 BO 1,000 – 5,000 BO 5,000 - 10,000 BO 10,000 - 20,000 BO 20,000-30,000 BO 30,000-40,000 BO 40,000-50,000 BO > 50,000 BO

Incremental Oil Production From Waterflood

slide-49
SLIDE 49

52

Case Studies: CDG Pilot Flood

Failed ASP Pilot

Reservoir had been under continuous waterflood for 65 years

52

EORI

slide-50
SLIDE 50

53

Four Injectors, 7 producers

Case Studies: CDG Pilot Flood

53

EORI

ASP Pilot Wells

slide-51
SLIDE 51

54

Top of “D” zone Rate 700 BPD WHP 220 PSI Rate 225 BPD WHP 120 PSI Rate 228 – 741 BPD WHP 200 – 230 PSI

Griggs #131

0 100 200 300 400

Case Studies: CDG Pilot Flood

54

EORI

RA Tracer survey shows injection fluids all going into one zone within perf’d interval

slide-52
SLIDE 52

55

 Reservoir had been continuously flooded since 1954  ASP Pilot project failed immediately to the east of the CDG Project area  CDG injection contemplated to improve sweep efficiency due to reservoir

heterogeneity (work on CDG pilot flood started early 2009)

 RA tracers indicated injectivity profiles must be modified to improve water-flood

  • r chemical-flood performance

 Interwell tracer survey was needed to help determine flow paths and degree of

heterogeneity

▪ Unique chemical tracers used in each of 4 injectors ▪ Potassium, Iodide, Thiocyanate, and Bromide  A rigid (MARCIT) gel treatment was designed and implemented to plug off thief

zones, based on results of interwell tracer survey, prior to injection of any CDG

55

EORI

Case Studies: CDG Pilot Flood

slide-53
SLIDE 53

10 days 20 days 8 days 56

0 250 ft 56

EORI

Case Studies: CDG Pilot Flood (Tracer Survey)

Sandstone Isopach > 18% Porosity

GH-6

Potassium tracer

slide-54
SLIDE 54

8 days 20 days

GH-6

0 250 ft 57

EORI

Case Studies: CDG Pilot Flood (Tracer Survey)

Sandstone Isopach > 18% Porosity

3 days

Iodide tracer

slide-55
SLIDE 55

1 day 13 days 58

HH-6A

0 250 ft 58

EORI

Case Studies: CDG Pilot Flood (Tracer Survey)

Sandstone Isopach > 18% Porosity

15 days

GH-6

Thiocyanate tracer

slide-56
SLIDE 56

10 days 27 days 16 days 30 days 17 days 27 days ❖ Response @ # 52 (17 days) cannot be confirmed as the well had 2 SI days ❖ Response @ # 50 (30 days) cannot be confirmed—well had been SI for 2 days 59

II-6

13 days

0 250 ft

❖ Response @ # 52 (17 days) cannot be confirmed - well had been SI for 2 days ❖ Response @ # 50 (30 days) cannot be confirmed - well had been SI for 2 days

59

EORI

Case Studies: CDG Pilot Flood (Tracer Survey)

Sandstone Isopach > 18% Porosity

GH-6 HH-6A

Bromide tracer

slide-57
SLIDE 57

61

“Thief” zone is no longer taking much fluid

61

EORI

Case Studies: CDG Pilot Flood (Gel Treatment)

slide-58
SLIDE 58

Sandstone Isopach > 18% Porosity

62

EORI

Case Studies: CDG Application

Inter-well Tracer Response 17 weeks after CDG Injection started

slide-59
SLIDE 59

63

EORI

Case Studies: CDG Application

10 20 30 40 50 60 70 200 400 600 800 1000 1200

9/3/09 9/10/09 9/17/09 9/24/09 10/1/09 10/8/09 10/15/09 10/22/09 10/29/09 11/5/09 11/12/09 11/19/09 11/26/09 12/3/09 12/10/09 12/17/09 12/24/09 12/31/09 1/7/10 1/14/10 1/21/10 1/28/10 2/4/10 2/11/10 2/18/10 2/25/10 3/4/10 3/11/10 3/18/10 3/25/10 4/1/10 4/8/10 4/15/10 4/22/10 4/29/10 5/6/10 5/13/10 5/20/10 5/27/10 6/3/10 6/10/10 6/17/10 6/24/10

Barrels Oil Produced & Oil Cut Total Fluid Bbls

W Griggs Lease CDG Flood Weekly Averages

Fluid Injected Total Fluid Produced Oil Oil Cut %

Pre-CDG Flood Weekly Average from 8 producers was 18.2 BO / 1008 BW (1.8% oil-cut)

slide-60
SLIDE 60

Remaining Oil Saturation Calculations

64

EORI

slide-61
SLIDE 61

65

EORI

  • Use partitioning and

non-partitioning tracers

  • Both tracers added to injection at same

time

  • During transit between wells,
  • Partitioning (passive) tracer moves only

with the water

  • Non-partitioning tracer interacts with

residual oil, thus altering its progress

Remaining Oil Saturation Calculations

slide-62
SLIDE 62

Benefits:

  • Non-intrusive
  • Provides measurement of oil

saturation in the region between injectors and producers instead of only near the well bore

  • Tests can be run during normal
  • peration
  • No loss in production
  • Assumes that tracers contact

immobile oil along flow-paths

  • f watered-out zones between

wells

66

EORI

Partitioning Tracers

slide-63
SLIDE 63

Ideal candidates have the following properties:

  • Relatively mature flooded reservoir
  • Injector to producer spacing is relatively close to

enable results in a reasonable time period

  • Need to know that well pairs are communicating
  • Sweep efficiency should be reasonable
  • Only Sorw (residual oil saturation to water) will

be measured and NOT unswept zones

  • Production well must be able to lift fluids to surface
  • Formation should be reasonably homogeneous –

allows for relatively easy interpretation of key positions along the tracer graphs

67

EORI

Partitioning Tracers

slide-64
SLIDE 64

Prior to using passive and partitioning tracers the following measurements should be carried out:

  • Laboratory based crushed core retention and retardation tests

using clean and residual-oil-saturated core

  • Partition coefficient testing at reservoir conditions
  • Analytical compatibility
  • Required data
  • Core sample or access to similar rock
  • Produced oil from field
  • Gas sample from the field or gas composition
  • Formation / produced water close to study area
  • Injection water from injector close to study area (if water is re-injected)

68

EORI

Partitioning Tracers

slide-65
SLIDE 65

71

EORI

0 30 60 90 120 150 180 250 200 150 100 50 0.0 Tracer Response Days after injection So = Tp – Tw Tp + (K-1)Tw = 34% = 34 - 22 34 + (1.06-1)22

Partitioning Tracers: Sampling & Analysis

slide-66
SLIDE 66

Discussion & Conclusion

73

EORI

slide-67
SLIDE 67

74

EORI

  • Interwell tracer surveys are a powerful tool in determining ways of maximizing

recovery efficiencies in IOR and EOR projects

  • One of best direct tools to understand fluid movement within a reservoir
  • Provide information on:
  • Breakthrough times
  • Communication pathways
  • Thief zones, natural fractures, faults
  • Formation layers
  • Identify sources of excess water
  • Problem injectors
  • Quantification of
  • Injected fluid distribution
  • Swept pore volume
  • Sweep efficiency
  • Reservoir geometry (including flow capacity and storage capacity)

Summary

slide-68
SLIDE 68

75

Companies: Interwell Tracer Surveys

  • Chemical Flooding Technologies, LLC: www.chemicalfloodingtechnologies.com

24431 E. 61st Street, Suite 850, Tulsa, OK 74136 (918) 743-7575

  • Chemical Tracers, Inc: http://www.chemtracers.com

Headquarters: 1814 Steele, Laramie, WY 82070 (307) 742-0418

  • Core Lab (Spectraflood): www.corelab.com

Headquarters: 6510 W. Sam Houston Pkwy. N., Houston, TX 77041 Contact: David Chastain, Manager Interwell Tracer Services David.Chastain@corelab.com (713) 328-2393 office; (281) 352-4697 mobile

  • Tracerco: www.tracerco.com

Headquarters: 4106 New West Dr., Pasadena, TX 77507 Utah: 2698 S. Redwood Rd, Ste. T., West Valley City, UT 84119 KC Oren; KC@GeoStarSolutions.com (303) 249-9965

  • Tracer Technologies International (subsidiary of Chemical Flooding Technologies):

sales@tracer-tech.com

26800 Fargo Ave # B, Cleveland, OH 44146 (216) 464-9300

slide-69
SLIDE 69

76

Thank You

Questions and Comments:

Stephen Whitaker, Senior Geologist

swhitak2@uwyo.edu Office 307-315-6446

Lon Whitman, Petroleum Engineer & Outreach Manager

eoribiz@uwyo.edu Office 307-315-6450

www.eoriwyoming.org

Enhanced Oil Recovery Institute
