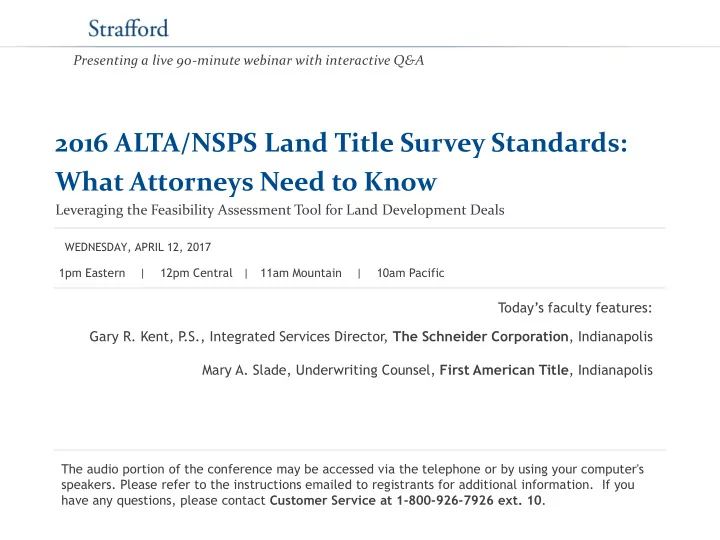

Presenting a live 90-minute webinar with interactive Q&A

2016 ALTA/NSPS Land Title Survey Standards: What Attorneys Need to Know

Leveraging the Feasibility Assessment Tool for Land Development Deals Today’s faculty features:

1pm Eastern | 12pm Central | 11am Mountain | 10am Pacific WEDNESDAY, APRIL 12, 2017

Gary R. Kent, P .S., Integrated Services Director, The Schneider Corporation, Indianapolis Mary A. Slade, Underwriting Counsel, First American Title, Indianapolis

Tips for Optimal Quality

Sound Quality If you are listening via your computer speakers, please note that the quality

• f your sound will vary depending on the speed and quality of your internet

connection. If the sound quality is not satisfactory, you may listen via the phone: dial 1-866-755-4350 and enter your PIN when prompted. Otherwise, please send us a chat or e-mail sound@straffordpub.com immediately so we can address the problem. If you dialed in and have any difficulties during the call, press *0 for assistance. Viewing Quality To maximize your screen, press the F11 key on your keyboard. To exit full screen, press the F11 key again.

FOR LIVE EVENT ONLY

Continuing Education Credits

In order for us to process your continuing education credit, you must confirm your participation in this webinar by completing and submitting the Attendance Affirmation/Evaluation after the webinar. A link to the Attendance Affirmation/Evaluation will be in the thank you email that you will receive immediately following the program. For additional information about continuing education, call us at 1-800-926-7926

• ext. 35.

FOR LIVE EVENT ONLY

Program Materials

If you have not printed the conference materials for this program, please complete the following steps:

• Click on the ^ symbol next to “Conference Materials” in the middle of the left-

hand column on your screen.

• Click on the tab labeled “Handouts” that appears, and there you will see a

PDF of the slides for today's program.

• Double click on the PDF and a separate page will open.
• Print the slides by clicking on the printer icon.

FOR LIVE EVENT ONLY

Strafford Publications

Webinar

April 12, 2017 Presented by Gary R. Kent, PS and Mary Slade, Esq.

The New ALTA/NSPS Land Title Survey Standards

~ What Attorneys need to Know ~

1962 1986 1988 1992 1997 1999 2005 2011 2016 – February 23, 2016

The ALTA/ACSM (NSPS) Standards

6

• 2 year process
• Multiple meetings of ALTA and NSPS

committees separately

• Final joint meeting of both committees
• ALTA – 10 members
• NSPS – typically 15 surveyors at committee

meeting (300+ indirect participants)

The ALTA/ACSM (NSPS) Standards

7

• Section 1- Purpose
• Section 2- Request for Survey
• Section 3 – Survey Standards & Standards of

Care

• Section 4 – Records Research
• Section 5- Fieldwork
• Section 6 – Plat or Map
• Section 7 – Certification
• Section 8 – Deliverables
• Table A

The 2016 ALTA/NSPS Standards

8

• NSPS is the legal successor organization to

ACSM

• The 2016 Standards are the next version of the

former ALTA/ACSM standards

Preamble

9

…For a survey of real property, and the plat, map or record of such survey, to be acceptable to a title insurance company for the purpose of insuring title to said real property free and clear

• f survey matters … certain specific and

pertinent information must be presented for the distinct and clear understanding between the insured, the client …, the title insurance company …, the lender, and the surveyor professionally responsible for the survey.

Section 1 - Purpose

10

…In order to meet such needs, clients, insurers, insureds, and lenders are entitled to rely on surveyors to conduct surveys and prepare associated plats or maps that are of a professional quality and appropriately uniform, complete, and accurate.

[Emphasis added.]

Section 1 - Purpose

11

Of course this begs the question: What is a complete and accurate survey of real property?

What is Complete and Accurate?

12

…To that end, and in the interests of the general public, the surveying profession, title insurers, and abstracters, the ALTA and the NSPS jointly promulgate the within details and criteria setting forth a minimum standard of performance for ALTA/NSPS Land Title Surveys. A complete 2016 ALTA/NSPS Land Title Survey includes:

[Emphasis added, and a list of criteria follows.]

Section 1 - Purpose

13

An ALTA/NSPS Land Title Survey must include: i.Section 5 fieldwork ii.Section 6 plat or map (including relationship to record documents) iii.Table A items selected by client iv.Certification in Section 7

Section 1 - Purpose

14

• Written authorization
• Dealing with atypical properties

– e.g., trailer parks, marinas, campgrounds – Non-fee interests

• Easements
• Leases
• Discuss scope with affected parties

Section 2 – Request for Survey

15

• A. Effective Date 2/23/16
• B. Compliance with jurisdictional

requirements

– Conflicts with other standards

• C. There is a normal standard of care

Section 3 – Survey Standards, etc.

16

Accuracy is addressed by Section 3.D.

• The boundary lines and corners of any

property being surveyed as part of an ALTA/NSPS Land Title Survey shall be established and/or retraced in accordance with appropriate boundary law principles governed by the set of facts and evidence found in the course of performing the research and fieldwork. [Emphasis added.]

Section 3.D. Boundary Resolution

17

What are the “appropriate boundary law principles?”

• Order of Conflicting Title Evidence
• Junior/Senior relationships
• Unwritten title doctrines
• Control within subdivisions
• Follow in the Footsteps of the original surveyor

Boundary Law Principles

18

The Standards also address the difference between precise measurements and accurate results.

Section 3 – Accuracy and Precision

19

E. Measurement Standards

ii. Uncertainties in location

– Due to reference monumentation – Due to record documents – Due to occupation/possession that differs from the record lines – Relative positional precision

Section 3 – Survey Standards, etc.

20

Accuracy and Precision

21

• High accuracy + high precision = valid results.
• i.e. Results that are “well-grounded on

principles or evidence; able to withstand criticism or objection, as an argument; sound.” Webster’s

Accuracy and Precision

22

Request to set forth:

• Record description of property to be

surveyed

• Record description of parent tract if
• riginal survey

Section 4 – Records Research

23

Surveyor must be provided with:

i.Most recent title commitment (or other acceptable title evidence) ii.Certain record documents

– Adjoiners – Easements benefitting surveyed property (Schedule A appurtenant easements) – Easements burdening the property (Schedule B2 easements)

iii.Unrecorded documents if desired by client

Section 4 – Records Research

24

If documents are not provided, or if non- public or quasi-public documents are required to complete the survey, the surveyor shall conduct only that research:

• required pursuant to the statutory or

administrative requirements of the jurisdiction where the property is located

• negotiated in the contract

Section 4 – Records Research

25

• A. Monuments
• B. Rights of way and access
• C. Lines of possession and improvements

along the boundaries

• D. Buildings
• E. Easements and servitudes
• F. Cemeteries
• G. Water features

Section 5 – Fieldwork

26

B. Rights of way and access

ii. Name of ways abutting the property, and location of edges of traveled way except when no access

Section 5 – Fieldwork

27

E. Easements and Servitudes

• iv. Evidence observed on and above the

property of utilities on, over and beneath the property (with examples)

[formerly optional Table A item 11(a)]

Section 5 – Fieldwork

28

• A. Evidence and locations gathered

pursuant to the Section 5 Fieldwork

• B. Boundary, Descriptions, Dimensions

and Closure

• C. Easements, Servitudes, Rights of Way,

Access and Documents

• D. Presentation

Section 6 – Plat or Map

29

B. Boundary, Description, Dimensions, Closures

ii. New Descriptions

• Why was a new description prepared?
• Avoid new descriptions unless deemed

necessary and appropriate

• How the new description relates to the

record

• Same as?
• How does it differ?

Section 6 – Plat or Map

30

C. Easements, Servitudes, Rights of Way, Access and Documents

ii. Summary of all rights of way, easements & servitudes

• Burdening surveyed property
• If evidence of same was provided to the

surveyor

• Record information, whether shown or

not and a note if:

Section 6 – Plat or Map

31

(a) Location cannot be determined from record

(b) No observed evidence (c) blanket easement (d) Not on or touching surveyed property (e) Limits access (f) Documents are illegible (g) Surveyor has info that it has been released

• r terminated

Section 6 – Plat or Map

32

Only the unaltered certificate contained in Section 7

• Except as required pursuant to Section

3.B. (local or state requirements)

• Date of fieldwork
• Date of plat/map

Section 7 – Certification

33

• Copies to client and title company
• Other copies as negotiated
• Durable, dimensionally stable material
• Digital image in addition to, or in lieu of, hard

copies pursuant to terms of the contract

• If recordation or filing required, produced in

recordable form and recorded or filed

Section 8 – Deliverables

34

• Twenty (20) items
• Number additional items 21(a), 21(b),

etc.

• Additional items explained (see Section

6.D.ii.(g))

• An ALTA/NSPS Land Title Survey is not

an engineering design survey

Table A

35

6. Zoning

a) If set forth in zoning report/letter provided to the surveyor by client List:

• Zoning classification
• Setback requirements
• Height and floor space area restrictions
• Parking requirements

Identify date and source of report/letter

Table A

36

6. Zoning

b) If set forth in zoning report/letter provided to the surveyor by client and if no interpretation is required by the surveyor Graphically depict:

• Setback requirements

Identify date and source of report/letter

Table A

37

11. Utilities

Location of utilities on or serving the property as determined by: a)Observed evidence (see Section 5.E.iv.) b)Plans requested by surveyor and obtained from utility companies or provided by client (reference source) c)Markings requested by surveyor pursuant to 811 or similar utility locate request

Table A

38

11. Utilities

• Representative examples
• See “Note to client, insurer and lender”
• Without excavation, info may be

incomplete, inaccurate and unreliable

• Utility locate requests may be ignored or

result in incomplete markings

Table A

39

18. Wetlands

• If there has been a field delineation of

wetlands conducted by a qualified wetlands specialist hired by the client, surveyor will locate observed delineation markers

Table A

40

19. Offsite (appurtenant) easements

• If plottable, include as part of the

survey pursuant to Sections 5 and 6 and applicable Table A items.

• i.e. Treat the appurtenant easement as

if it were a fee parcel

• Client to obtain necessary permissions

Table A

41

20. Professional Liability Insurance

• Nothing in regarding this item shall

appear on the face of the plat/map

Table A

42
