CII WELDING CONFERENCE 2016 16 TH NOVEMBER 2016, MUMBAI Welding Sector in India : Advancements and Challenges Y S Trivedi SVP & Member of Boards - HE IC, HE LLC Oman, LTSSHF Larsen & Toubro Limited 1/38 Industrial Growth Kaldors

slide-1
SLIDE 1

1/38

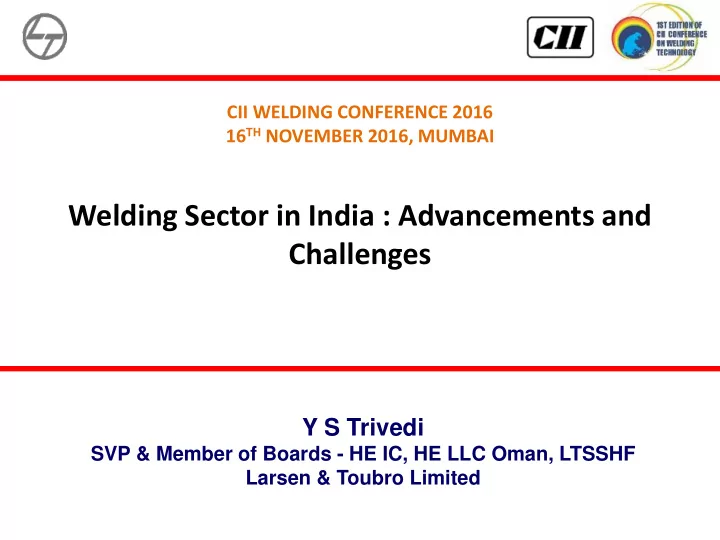

CII WELDING CONFERENCE 2016 16TH NOVEMBER 2016, MUMBAI

Welding Sector in India : Advancements and Challenges

Y S Trivedi

SVP & Member of Boards - HE IC, HE LLC Oman, LTSSHF Larsen & Toubro Limited

slide-2
SLIDE 2

2/38

Kaldor’s growth laws (1970);

1st Law

“The growth of the GDP is positively related to the growth of the manufacturing sector”

2nd Law

“The productivity of the manufacturing sector is positively related to the growth of the manufacturing sector”

3rd Law “The productivity of the non-manufacturing sector is

positively related to the growth of the manufacturing sector”

World class Cambridge economist

Industrial Growth

slide-3
SLIDE 3

3/38

Make In India  Growth from 16% to 25% of GDP by 2025  Transform India into a global manufacturing hub  Build best-in-class manufacturing infrastructure  Foster innovation  Employment generation & skill development

Welding is an Integral part of Manufacturing Manufacturing in India

slide-4
SLIDE 4

4/38

Not ONLY the Integral part ALSO the most Critical part of manufacturing

Welding

slide-5
SLIDE 5

5/38

Domestic LPG Cylinder Hydrocracker Reactor

Pressure : 6.4 bar Temp : 25°C Size : 0.6m L X 0.3m  Weight : 16 Kg One Cylinder Burst !!! : 150 bar : 450°C : 45m L X 5.5m  : > 1000 MT : 5 Lakh cylinders ????

Mounting Risks with Technology Growth

slide-6
SLIDE 6

6/38

The Refinery Before Fire The Refinery After Fire

A defective, high pressure, steam boiler ruptured. Skikda, Algiers - Jan. 20, 2004

slide-7
SLIDE 7

7/38

23 Killed, 74 Injured Damage: $800 Mn Skikda, Algiers - Jan. 20, 2004

slide-8
SLIDE 8

8/38

Radiation from Fukushima Disaster Still Affects 32 Million Japanese, HUMINIA Affairs: Energy, Asia, Health, Human Security, Risk, Carol Smith, 2015

>30 Km Radius area evacuated >1700 people died 32 Million people affected from Radiation

Fukushima Atomic Power Station, Mar. 11, 2011

slide-9
SLIDE 9

9/38

A Rupture in the coolant System of one of the nuclear reactors Kakrapar Atomic Power Station, Mar. 11, 2016

slide-10
SLIDE 10

10/38

  • Union of Discipline's - The “Science”

– Material Science & Steel making – Physics & Physical Metallurgy – Mechanics – Electronics & Controls – Non Destructive Testing – Virtual & Physical Simulations

Science Art

Last 30 yrs moving closer to Science

  • Human Element –

The “Art”

Welding : Art or Science ?

slide-11
SLIDE 11

11/38

Key sectors:

  • Process Plant (Refineries, Petrochemicals, Fertilizers..)
  • Nuclear Power Plant
  • Defence
  • Aerospace

Welding Technology has Vital role in Nation’s Growth Welding in Manufacturing

slide-12
SLIDE 12

12/38

E.O. Reactor - 1500 MT World’s Largest

Present Competencies … Process plant equipments

FCC Regenerator – 1200 MT World’s Largest Cryogenic Column - 121 m World’s Longest

slide-13
SLIDE 13

13/38

Macro section of 400 mm thick weld

Welding Technology in Process Plant

~25 mm

Reduction in deposition by 64%

1° Included angle

Narrow Gap SAW

Thickness – 400 mm Diameter – 10 m

slide-14
SLIDE 14

14/38

Narrow Gap SAW - Parallel Circ. Seams (5 No)

Station 1 Station 2 Station 3 Station 4 Station 5

Welding Technology in Process Plant

slide-15
SLIDE 15

15/38

120 x 0.5 mm - 2400 Amp - 42 kg/hr 90 x 0.5 mm - 1800 Amp - 33 kg/hr 60 x 0.5 mm - 1200 Amp - 22 kg/hr

India World

Double layer - 120x0.5mm 60-90x0.5mm Single layer - 150x0.4mm 60-90x0.5mm

Weld Overlay with ESSC Welding Technology in Process Plant

slide-16
SLIDE 16

16/38

FCAW/ GMAW buttering by robot

Clad restoration in horizontal position Buttering on Dish end cutout 3D profile Plant

Welding Technology in Process Plant

slide-17
SLIDE 17

17/38

700 MWe PHWR Steam Generator

Present Competencies… Nuclear Power

FBR Steam Generator

slide-18
SLIDE 18

18/38

WEC AP1000 US-India Agree To Construct 6 Nuclear Reactors In India Updated: June 07, 2016 23:03 IST NPCIL and AREVA France entered into an agreement on April 10, 2015 for setting up of two EPR. Areva EPR

Present Competencies… Nuclear Power

slide-19
SLIDE 19

19/38

MOC - SS 304/304L Thickness - 50 mm to 200 mm Stringent dimensional tolerance at module level –

  • Distortion Control during welding
  • Profile measurement with laser

instrument

ITER Cryostat

Present Competencies… Nuclear Power

slide-20
SLIDE 20

20/38

In-situ Ultra narrow groove Hot wire TIG

P91 – 90 mm thk (FBR-SG) SS – 200 mm thk ITER- Cryostat

13-14 mm

  • pening

45% reduction in weld deposition from NG-SAW

Welding Technology in Nuclear

slide-21
SLIDE 21

21/38

Internal Bore Welding – PHWR End shield

Highlights :

  • Process - Auto GTAW
  • Joint thickness 13 mm

Automatic Ultrasonic Examination

Welding Technology in Nuclear

slide-22
SLIDE 22

22/38

Present Competencies …..Defence

First Indigenous Nuclear Submarine

"India set to complete N-triad with Arihant commissioning - Times of India". The Times of India. Retrieved 2016-10-18

slide-23
SLIDE 23

23/38

Nuclear Submarine - Ti Sonar Dome

  • Large scale Ti fabrication, Dust free environment required
  • Maintaining Shape – Extremely Critical & Skilled Manpower

Welding Technology in Defence

slide-24
SLIDE 24

24/38

Nuclear Submarine

  • Automatic Twin-pulsed GMAW for T-Frame

Welding

  • Laser based automatic bead sequencing and

control

MOC - AB2 Steel

Welding Technology in Defence

slide-25
SLIDE 25

25/38

GSLV Launch - Indigenous cryogenic upper stage (CUS) engine

Present Competencies …Aerospace

GSLV-F05 lobs advanced weather satellite INSAT-3DR into orbit- 8 Sep 2016, The Hindu

slide-26
SLIDE 26

26/38

MOC – Maraging Steel

Proof Pressure Testing of segments

  • Massive fixturing to achieve fabrication

tolerances

  • Mechanized GTAW welding with stringent

x-ray quality weld

PSLV/ GSLV Motor Casings Welding Technology in Aerospace

slide-27
SLIDE 27

27/38

Welding Market

India China USA World 2014 1.4 6.1 2.42 18.25 2020 1.94 8.17 3 23.78

5 10 15 20 25

In Bn USD

India Share ~8% of the Global market

  • Data from Local Market &Transparency Market Research Report
slide-28
SLIDE 28

28/38

Indian Welding Market

Arc welding consumables 83% Welding Machines 11% Other processes + Accessories 6%

Total Market Size of India is 1400 Mn USD

20 40 60 80 100 120 140 Mkt Val Mln USD Imp-Others Imp-Eqpt Imp-Cons

Import is more than 10%

  • From Keith Hartley Memorial Lecture 2014
slide-29
SLIDE 29

29/38

Arc Welding Consumables

Major in-house production

SMAW Electrodes & Wires for: Structural steels, few grades of alloy steels & SS

Import of critical consumables

 Ni alloys  Al & Ti alloys  Fluxes for SAW/ ESSC  ESSC strips Limited indigenization & 90% imports of critical consumables

slide-30
SLIDE 30

30/38

Equipment & Control

BRABO - First Made in India Robot, Launched in 2016 Inverter

 Limited indigenization/ technology tie-ups  Robots – Very few OEMs (system integrators - available)

Diesel Generator

slide-31
SLIDE 31

31/38

Global vs India

5 8 6 7 4 4 6 9 8 8 6 5

2 4 6 8 10 Welding consumable Technology Arc welding Processes and Technique Advance Technique & Processes Automation Equipment & control R&D on new materials

2014 2020

slide-32
SLIDE 32

32/38

Future Challenges & Way Ahead …  Advanced Processes  Advancements in Materials  Education and R&D  Human resources and skill development

slide-33
SLIDE 33

33/38

Laser hybrid welding Automobile

FSW-Aerospace & Shipbuilding

 Limited applications of Non arc welding processes  Additive manufacturing in nascent stage

Advanced Processes

Laser Engineering Net Shaping (LENS)

slide-34
SLIDE 34

34/38

Increase in plant efficiency by AUSC Technology

  • P92, Alloy 617 - Superior creep & oxidation resistance

Enhancement of nuclear plant life

  • Improve resistance to degradation due to irradiation
  • Reduced Activation Ferritic Martensitic Steel (RAFM)

Increase in Aerospace Launch Vehicles Payload

  • Al-Li alloy - 1% Li density by 3% and stiffness by 5%

Advancements in Materials Need for technology up-gradation for emerging materials

slide-35
SLIDE 35

35/38

Investment in R&D

  • Sr. No

Country GDP PPP (Bn int$) GERD* PPP (Bn int$) R&D as % GDP PPP 1 United States 17,460 485.39 2.78 % 2 China 17,630 343.78 1.95 % 3 India 7,277 61.85 0.85 % 4 World avg. 105,757 1803.10 1.70 %

Significantly lower than World average

*GERD = Gross Expenditure on R&D

Source: R&D Magazine; 2014

Focus & Incentivize R&D

slide-36
SLIDE 36

36/38

– Poor conversion from graduation to specialized education – Lack of quality Industry projects – Acute shortage of skilled workmen – Inadequate training facilities

Human Resource & Skill Development

India USA Undergraduate Engineering Students 16,34,596 99,173 Postgraduate Engineering Students 63,430 Full Time – 51,690 Part Time – 71,009

More Industry-Academy Collaboration Standardized training & Up-gradation of ITIs

*Source: AICTE Report 2014

slide-37
SLIDE 37

37/38

slide-38
SLIDE 38
