METRONIDAZOLE IN A UV-TIO 2 PHOTOCATALYTIC SYSTEM: FATE, REMOVAL AND MINERALIZATION Authored by Neghi. N & Mathava Kumar * *Associate Professor Department of Civil Engineering, Indian Institute of Technology Madras, Chennai, Tamilnadu

slide-1
SLIDE 1

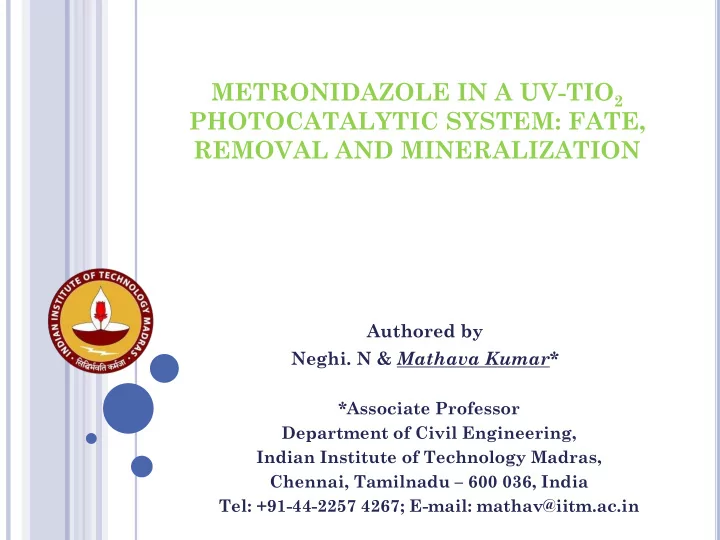

METRONIDAZOLE IN A UV-TIO2 PHOTOCATALYTIC SYSTEM: FATE, REMOVAL AND MINERALIZATION

*Associate Professor Department of Civil Engineering, Indian Institute of Technology Madras, Chennai, Tamilnadu – 600 036, India Tel: +91-44-2257 4267; E-mail: mathav@iitm.ac.in

Authored by

  • Neghi. N & Mathava Kumar*
slide-2
SLIDE 2

INTRODUCTION - ANTIBIOTICS

 Antibiotics - treat/prevent bacterial infections  Increasing trend in the consumption of antibiotics 2000-

2010:- Brazil - 68%, Russia -19%, India - 66%,China - 37%, South Africa - 219%(CDDEP,2015)

US 10% of the world’s antibiotic consumption

 Global antibiotic use by class  Broad spectrum penicillins  Cephalosporins  Macrolides  Trimethoprim and combinations  Quinolones  Aminoglycosides  Nitroimidazoles (Metronidazole falls under this class)

2

slide-3
SLIDE 3

ANTIBIOTICS IN THE ENVIRONMENT

3

Consumers Excretion &

  • ther activities

PPCP along with Wastewater Wastewater treatment units Centralized De-Centralized DOC removal by biological process

Removal by biological process PPCP in effluent PPCP into Soil PPCP into SW

PPCP in sludge PPCP into Ecosystem

PPCP into GW

slide-4
SLIDE 4

ANTIBIOTICS IN THE ENVIRONMENT

4

Reference: www.saveantibiotics.org

slide-5
SLIDE 5

ANTIBIOTICS IN THE ENVIRONMENT

5

 Industrial wastewaters (Formulation)  Hospital Wastewaters  Aqua culture wastewaters  Meat processing units  Live-stock units  Feed manufacturing/growth supplement producing

units

slide-6
SLIDE 6

6

 Vanishing Vulture’s  Poisoned animal carcass

feeding with Diclofenac ANTIBIOTICS IN THE ENVIRONMENT

slide-7
SLIDE 7

ANTIBIOTICS IN THE ENVIRONMENT

 Develop antibiotic resistance in aquatic environments  Affect building blocks of the ecosystem processes  WHO report - different antibacterial resistant strains -

FS 194 -Updated April 2015 http://www.who.int/mediacentre/factsheets/fs194/en/

 Detection range observed to be more in pharmaceutical

production plant effluents

7

slide-8
SLIDE 8

ANTIBIOTICS IN WATER AND WASTEWATER

8

Source/Point of Origin Collection System Wastewater treatment units Point of Disposal Away from disposal points Sampling Sampling Increase in antibiotics concentration

slide-9
SLIDE 9

WHY TO REMOVE ANTIBIOTICS..????

9

Close the Loop in water use pattern

Water withdrawl Water Supply Wastewater Collection Wastewater Treatment Water Recharge into Ground

slide-10
SLIDE 10
  • 2-(2-methyl-5-nitroimidazol-1-yl)ethanol, (C6H9N3O3)
  • Water Solubility  10 mg/mL
  • Log Kow  0.1 (hydrophilic)
  • Vapor pressure  3.1 x 10-7 mm Hg at 25oC
  • 18% of drug excreted unchanged from human body

METRONIDAZOLE(MNZ)

10

slide-11
SLIDE 11

INTRODUCTION - PHOTOCATALYSIS

 Photocatalysis  One of the AOP’s

 h + + H2O → H+ + OH−  h + + OH− → HO•

 O2 + e− →.O2

−

 H2O2 + e − → HO• + OH-

11

slide-12
SLIDE 12

ATTRIBUTES OF PHOTOCATALYTIC SYSTEM

 Ideal photocatalyst -TiO2  HO· generated in the system - non-selective- high

  • xidation potential (E0 = 2.8V/SHE)

 UV-C band of light - ability to handle the antibiotic

resistant genes in real time wastewater

 Difficulties

 Post separation of the catalyst  Operation under continuous-mode  Support catalyst - overcome the difficulties  Support medium - Activated charcoal, Stainless steel

plate, Alumina.

12

slide-13
SLIDE 13

BACKGROUND

13

slide-14
SLIDE 14

OBJECTIVES

 Feasibility of MNZ removal by photocatalytic system

with TiO2 and GAC

 Quantify the roles of catalysts and UV power on MNZ

removal

 Correlate MNZ removal with economic analysis to

identify best suitable experimental condition

 Long term goal  Create a system for continuous-

mode photocatalysis for antibiotics removal

14

slide-15
SLIDE 15

BATCH PHOTOCATALYTIC REACTOR

15

UV POWER SUPPLY PROBES CONNECTED TO pH/ORP/Temp METER ELECTRONIC STIRRER DOUBLE WALLED CYLINDRICAL GLASS REACTOR WITH WORKING VOLUME OF 1.9 L METRONIDAZOLE AND TiO2 IN SUSPENSION

slide-16
SLIDE 16

PHOTOGRAPHIC VIEW OF THE REACTOR

16

slide-17
SLIDE 17

EXPERIMENTAL CONDITION

17

Initial MNZ concentration (mg/L) UV Power (W) Catalyst dosage (g/L) Type of catalyst Comments 15

  • Blank

16 Photolytic studies 32 15

  • 2.5

TiO2 Photocatalytic studies 16 32 15

  • 2.5

GAC Adsorption studies 32

slide-18
SLIDE 18

ANALYTICAL TECHNIQUES

I.

MNZ and its metabolites - HPLC/ LC-MS

II.

Organic carbon constituents of samples - TOC

III.

Surface morphology of the catalyst and the support chosen – SEM

IV.

Elemental composition of the catalyst/ adsorbent – EDS

V.

pH/Temperature/Oxidation-Reduction Potential of the system - Benchtop multi-parameter analyzer

VI.

COD analysis - Standard Methods (APHA, 2002)

18

slide-19
SLIDE 19

19

slide-20
SLIDE 20

MNZ REMOVAL BY CHOSEN PROCESSES

20

0,0 0,2 0,4 0,6 0,8 1,0 1,2 20 40 60 80 100 120 C/C0 Time(min)

16W 32W TiO2 adsorption TiO2+16W TiO2+32W GAC adsorption GAC+32W

slide-21
SLIDE 21

ORP TREND

21

100 200 300 400 20 40 60 80 100 120 ORP (mV)) Time (min) 16W 32W TiO2+16W TiO2+32W GAC+32W

slide-22
SLIDE 22

22

23,6 33,8 61,1 62,4 52,9 21,7 15,6 23,9 42,4 94,1 96,4 77,5 32,5 18,7 20 40 60 80 100 16W 32W TiO2+ 16W TiO2 + 32W GAC + 32W GAC adsorption TiO2 adsorption

At 60 min At 120 min

COMPARISON OF MNZ REMOVAL

slide-23
SLIDE 23

ENERGY CONSUMPTION ANALYSIS

23

Rate of Reaction: Energy Consumption:

slide-24
SLIDE 24

ENERGY CONSUMPTION OF THE SYSTEM

FOR DIFFERENT PROCESS

24 0,1 0,2 0,3 0,4 0,5 0,6 0,7 0,8 0,9 1 16W 32 W TiO2+16W TiO2+32W GAC+32W GAC adsorption TiO2 adsorption

Energy Consumed* (KWh) EEO (KWh m-3 order-1)

slide-25
SLIDE 25

RESULTS OF BATCH ANALYSIS

25 Comments Removal (%) after 60 min Removal (%) after 120 min Rate constant ‘k1’ (min-1) Energy Consumed* (KWh) EEO (KWh m-3

  • rder-1)

MNZ COD MNZ COD Blank 1.4 4.0 1.4 4.0 0.000 0.000 0.000 16W 23.6 15.3 23.9 17.5 0.002 0.032 0.144 32W 33.8 16.9 42.4 31.1 0.004 0.064 0.141 TiO2+16W 61.1 56.3 94.1 72.2 0.022 0.172 0.077 TiO2+32W 62.4 60.0 96.4 80.7 0.026 0.204 0.080 GAC+ 32W 52.9

  • 77.5
  • 0.012

0.214 0.129 GAC adsorption 21.7

  • 32.5
  • 0.002

0.096 0.296 TiO2 adsorption 15.6 48.8 18.7 61.2 0.001 0.150 0.877

Energy consumed by (a) electronic overhead stirrer - 70/42 W (I/O), (b) UV Lamps - 16 W each, and (c) orbital shaker for adsorption studies - 48 W were included for energy consumption analysis.

slide-26
SLIDE 26

DEGRADATION OF 15 PPM OF MNZ IN PHOTOCATALYTIC SYSTEM

26

MNZ removal COD reduction TOC removal Series1 96,4 80,7 66,5 96,4 80,7 66,5 Removal in percent

slide-27
SLIDE 27

SEM ANALYSIS OF ADSORPTION OF MNZ ONTO TIO2 & GAC

27

(a) TiO2 before

treatment

(b) TiO2 after

treatment

(c)

GAC before treatment

(d) GAC after

treatment

slide-28
SLIDE 28

LC-MS ANALYSIS

28

slide-29
SLIDE 29

29

LC-MS ANALYSIS

slide-30
SLIDE 30

CONCLUSIONS

 Highest MNZ removal

 with 32 W UV power and 2.5 g L-1 TiO2 in 120 min.

 Removal of MNZ using GAC as a photocatalyst

was remarkably higher than that of GAC used as an adsorbent.

 The concept of electrical energy consumed per

  • rder, i.e. EEO - ideal parameter for the economic

analysis.

30

slide-31
SLIDE 31

31

Upgraded-Setup for PPCP Removal Research

slide-32
SLIDE 32

32

slide-33
SLIDE 33

REFERENCES

Asha, C.R., Kumar, M. 2015 Sulfamethoxazole in poultry wastewater: Identification, treatability and degradation pathway determination in a membrane-photocatalytic slurry reactor. Journal of Environmental Science and Health Part-A 50, 1011-9.

Andreozzi, R., Caprio, V., Insola, A., Marotta, R. 1999 Advanced oxidation processes for water purification and recovery. Catalysis Today 53(1), 51-9.

APHA, Standard Methods for the Examination of Water and Wastewater, 22nd ed., American Public Health Association, Washington, DC, 2005

Friedmann, D., Mendive, C., Bahnemann, D. 2010 TiO2 for water treatment; parameters affecting the kinetics and mechanism

  • f

photocatalysis. Applied Catalysis B- Environmental 99(3-4), 398-406.

Gao, Y.Q., Gao, N.Y., Deng Y., Yang, Y.Q., Ma, Y. 2012 Ultraviolet (UV) light- activated persulfate oxidation of sulfamethazine in water. Chemical Engineering Journal 195(1), 248-53.

Giri, R.R., Ozaki, H., Ota, S., Takanami, R., Taniguchi.S. 2010 Degradation of common pharmaceuticals and personal care products in mixed solution by advanced

  • xidation

techniques. International Journal

  • f

Environmental Science and Technology 7(2), 251-60.

Gros, M., Petrovic, M., Ginebreda, A., Barcelo, D. 2010 Removal of pharmaceuticals during wastewater treatment and environmental risk assessment using hazard

  • indices. Environment International 36, 15-26.

33

slide-34
SLIDE 34

Hapeshi, E., Achilleos, A., Vasquez, M.I., Michael, C., Xekoukoulotakis, N.P., Mantzavinos, D., Kassinos, D. 2010 Drugs degrading photocatalytically: Kinetics and mechanisms of ofloxacin and atenolol removal on titania suspensions. Water Research 44, 1737-46.

Hu.L.H., Flanders, P.M., Miller, P.L., Strathman, T.J. 2007 Oxidation

  • f

sulfamethoxazole and related antimicrobial agents by TiO2 photocatalysis. Water Research 41(12), 2612-6.

Jallouli, N., Elghniji, K., Trabelsi, H., Ksibi, M. 2014 Photocatalytic degradation of paracetamol on TiO2 nanoparticles and TiO2/cellulosic fiber under UV and sunlight

  • irradiation. Arabian Journal of Chemistry (Article in press).

Kanakaraju, D., Glass, D.B., Oelgemoller, M. 2014 Titanium dioxide photocatalysis for pharmaceutical wastewater treatment. Environmental Chemistry Letters 12, 27- 47.

Kim, I., Yamashita, N., Tanaka, H. 2009 Performance of UV and UV/H2O2 processes for the removal of pharmaceuticals detected in the secondary effluent of a sewage treatment plant in Japan. Journal of Hazardous Materials 166(2), 1134-40.

Kummerer, K. 2009 The presence of pharmaceuticals in the environment due to human use - present knowledge and future challenges. Journal for Environmental Management 90(8), 2354-66. 34

slide-35
SLIDE 35

Martinez, F., LopezMunoz, M.J., Aguado, M., Melero, J.A., Arsuaga, J., Sotto, A., Molina, R., Segura, Y., Parinete, M.I., Revilla, A, Cerro, L., Carenas, G. 2013 Coupling membrane separation and photocatalytic oxidation processes for the degradation of pharmaceutical pollutants. Water Research 47, 5647-58.

Lindberg, R., Jarnheimer,P., Olsen, B., Johansson, M., Tysklind, M. 2004 Determination of antibiotic substances in hospital sewage water using solid phase extraction and liquid chromatography/mass spectrometry and group analogue internal standards. Chemosphere 57, 1479-88.

Mompelat, S., Le Bot, B., Thomas, O. 2009 Occurrence and fate of pharmaceutical products and by-products from resource to drinking water. Environment International 35(5), 803-14.

Safari, G.H., Hoseini, M., Seyedsalehi, M., Kamani, H., Jaafari, J., Mahvi, A.H. 2015 Photocatalytic degradation of tetracycline using nanoized titanium dioxide in aqueous solution. International Journal of Environmental Science and Technology 12, 603-16.

Suarez, S., Carballa, M., Omil, F., Lema, J.M. 2008 How are pharmaceuticals and personal care products removed from urban wastewaters? Reviews in Environmental Science and Biotechnology 7, 125-38.

Velasco, F.L., Fonseco, M.I., Parra, B.J., Lima, C.J., Ania, O.C. 2012 Photochemical behaviour of activated carbons under UV irradiation. Carbon 50(1), 249-58.

Vishnuganth, M.A., Remya, N., Kumar, M., Selvaraju, N. 2016 Photocatalytic degradation of Carbofuran by TiO2-coated activated carbon: Model for kinetic, energy per order and economic analysis. Journal of Environmental Management 181, 201-207. 35

slide-36
SLIDE 36

INTRODUCTION - METRONIDAZOLE

 Antibacterial (Gram –ve anaerobic bacteria) and antiprotozoal

drug

 Clinical application- principal treatment for H.pylori infections,

giardiasis, trichomoniasis - Additive in poultry and fish feeds to eliminate parasites

 Activation of the compound - formation of cytotoxic intermediates

  • DNA, protein damage - carcinogenicity

 Highly soluble in water and poorly biodegradable - entry into

surface and groundwater resources

36

slide-37
SLIDE 37

MATERIALS

  • MNZ(99.9%)

Sigma Aldrich

  • Anatase form TiO2

Sigma Aldrich Average size range ~25 nm Surface area = 45-55 m2/g Density = 3.9 g mL-1 at 25°C

  • Granular activated carbon

SDFCL, India SBET = 1010 m2 g-1 VT ~ 0.532 cm3 g-1

37
