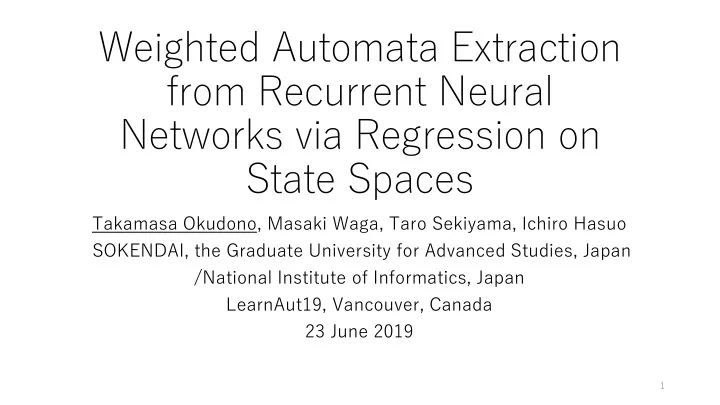

Weighted Automata Extraction from Recurrent Neural Networks via - - PowerPoint PPT Presentation

Weighted Automata Extraction from Recurrent Neural Networks via Regression on State Spaces

Takamasa Okudono, Masaki Waga, Taro Sekiyama, Ichiro Hasuo SOKENDAI, the Graduate University for Advanced Studies, Japan /National Institute of Informatics, Japan LearnAut19, Vancouver, Canada 23 June 2019

1

RNN

RNN is a neural network equipped with a internal state

Drawing by François Deloche (CC BY-SA 4.0)

2

Goal

Input: RNN 𝑆 whose output is in ℝ (defines 𝑔

𝑆: Σ∗ → ℝ)

Output: WFA 𝐵(𝑆) (defines 𝑔

𝐵(𝑆): Σ∗ → ℝ) s.t. 𝑔 𝐵(𝑆) ≃ 𝑔 𝑆

RNN WFA Initial state Final func. Transition func. Transition matrix Initial vector Final vector

3

Motivation

• Getting lighter (faster to infer) model of an RNN
• Because the inference of RNNs are sometimes heavy
• Investigate the behavior of RNN 𝑆 via the extracted WFA 𝐵 𝑆
• WFA equips many operations and leads to model checking?
• In research line of RNN⇔DFA conversion as an acceptor
• Ours is a quantitative extension

4

Contribution

• Proposed a method to apply Balle and Mohri’s algorithm for

the extraction

• The key is checking if 𝑆 ≃ 𝐵 by using regression
• Our method extracts +7% more accurate models than the

baseline

• The extracted WFAs are about 1,000 times faster to infer

than the target RNNs

5

• Def. of RNN (Mathematically, in this work)

RNN 𝑆 (of alphabet Σ and dimension 𝑒) consists of

• 𝛽 ∈ ℝ𝑒: Initial state
• 𝛾: ℝ𝑒 → ℝ: Final function
• 𝑕𝑆: ℝ𝑒 × Σ → ℝ𝑒: Transition function
• 𝑕𝑆: ℝ𝑒 × Σ∗ → ℝ𝑒 is induced recursively■

𝑔

𝑆: Σ∗ → ℝ is induced by 𝑔 𝑆 𝑥1 … 𝑥𝑂 = 𝛾 ∘ 𝑕𝑆(𝛽, 𝑥1 … 𝑥𝑂)

The configuration for 𝑥1 … 𝑥𝑂 is defined by 𝜀𝑆 𝑥1 … 𝑥𝑂 = 𝑕𝑆 𝛽, 𝑥1 … 𝑥𝑂

Need not to be linear “internal state”

6

• Def. of Weighted Finite Automaton (WFA)

WFA 𝐵 (of size 𝑜 and alphabet Σ) consists of

• 𝛽 ∈ ℝ𝑜: Initial vector
• 𝛾 ∈ ℝ𝑜: Final vector
• 𝐵𝜏 ∈ ℝ𝑜×𝑜: Transition matrix (𝜏 ∈ Σ) ■

WFA 𝐵 is a formalism to define 𝑔

𝐵: Σ∗ → ℝ (c.f.) A DFA is a formalism to define 𝑔: Σ∗ → 2 WFA is an extension of DFA via the matrix representation.

7

• Def. of WFA
• WFA 𝐵 induces the function 𝑔

𝐵: Σ∗ → ℝ as

𝑔

𝐵 𝑥1 … 𝑥𝑂 = 𝛽𝐵𝑥1 … 𝐵𝑥𝑂𝛾

• The configuration (“internal state”) of WFA 𝐵 is

𝜀𝐵 𝑥1 … 𝑥𝑂 = 𝛽𝐵𝑥1 … 𝐵𝑥𝑂 ∈ ℝ𝑜 For example:

• Σ = 0, 1 , 𝛽 = 0.8

0.2 , 𝛾 = 0.9 0.7 , 𝐵0 = 0 1 1 0 , 𝐵1 = 0.9 0.1 0.5 0.5

• 𝑔

𝐵 10 = 0.8

0.2 0.9 0.1 0.5 0.5 1 1 0.9 0.7 = 0.736

• 𝜀𝐵 10 = 0.8

0.2 0.9 0.1 0.5 0.5 1 1 0 = 0.18 0.82

8

RNN and WFA

RNN 𝑆 (of alphabet Σ and dimension 𝑒) consists of

• 𝛽 ∈ ℝ𝑒: Initial state
• 𝛾: ℝ𝑒 → ℝ: Final function
• 𝑕𝑆: ℝ𝑒 × Σ → ℝ𝑒: Transition function■

WFA 𝐵 (of alphabet Σ and size 𝑜) consists of

• 𝛽 ∈ ℝ𝑜: Initial vector
• 𝛾 ∈ ℝ𝑜: Final vector
• 𝐵𝜏 ∈ ℝ𝑜×𝑜: Transition matrix (𝜏 ∈ Σ) ■

Similar formalism! Can we approximate RNN by WFA?

9

Goal Input: RNN 𝑆 whose output is in ℝ (defines 𝑔

𝑆: Σ∗ → ℝ)

Output: WFA 𝐵(𝑆) (defines 𝑔

𝐵(𝑆): Σ∗ → ℝ) s.t. 𝑔 𝐵(𝑆) ≃ 𝑔 𝑆

Approach: Use Balle and Mohri’s algorithm

• The challenge is to give the procedure to check if 𝑔

𝐵 ≃ 𝑔 𝑆 for

a candidate WFA 𝐵

Goal and Our Approach

10

Balle and Mohri’s Algorithm

An extension of Angluin’s L* Algorithm for WFA

• Input:
• Membership query procedure m: Σ∗ → ℝ
• Equivalence query procedure e: WFAs → Equivalent ⊔ Σ∗
• Output:
• Minimal WFA 𝐵′
• Property: Given WFA 𝐵, if 𝑛 = 𝑔

𝐵 and

𝑓 ሚ 𝐵 = ቊEquivalent ; 𝑔

𝐵 = 𝑔 ෨ 𝐵

𝑥 ; 𝑔

𝐵 𝑥 ≠ 𝑔 ෨ 𝐵(𝑥)

then, it terminates by calling 𝑛, 𝑓 polynomial times and 𝑔

𝐵 = 𝑔 𝐵′

Called “Counterexample”

11

Idea of Overall Architecture (Detailed)

Implement

• Membership query 𝑛 to be the RNN’s induced function 𝑔

𝑆

• Equivalence query 𝑓 to be

𝑓 ሚ 𝐵 = ቊEquivalent ; 𝑔

𝑆 ≃ 𝑔 ෨ 𝐵

𝑥 ; 𝑔

𝑆 𝑥 ≠ 𝑔 ෨ 𝐵(𝑥)

Then we would be able to get a WFA ሚ 𝐵 s.t. 𝑔

𝑆 ≃ 𝑔 ෨ 𝐵 !

Generally it cannot be “=“

But how can we implement such an equivalence query 𝑓?

12

How do we know 𝑔

𝑆 ≃ 𝑔 𝐵?

𝑔

𝑆 𝑥 ≃ 𝑔 𝐵(𝑥)

⇔ 𝛾𝑆 ∘ 𝜀𝑆 𝛽𝑆, 𝑥1 … 𝑥𝑜 ≃ 𝜀𝐵(𝑥1 … 𝑥𝑜)𝛾𝐵 Both calculate their configurations (“internal states”) If there is a “good” relation between 𝜀𝑆 and 𝜀𝐵, 𝐵 and 𝑆 would behave similarly

13

“Good” relation between 𝜀𝑆 and 𝜀𝐵

• This work views 𝑞: ℝ𝑒 → ℝ𝑜 satisfying the following property

as a good relation:

∀𝑥 ∈ Σ∗. p 𝜀𝑆 w ≃ 𝜀𝐵(𝑥)

14

Equivalence Query by approximating 𝑞

Let’s approximate configuration translator 𝑞: ℝ𝑒 → ℝ𝑜 such that ∀𝑥 ∈ Σ∗. p 𝜀𝑆 w ≃ 𝜀𝐵(𝑥) by applying regression on sampled data. The data is sampled by observing Σ∗ in Breadth-First Search.

15

Relation 𝑞 between 𝑆 and 𝐵

• config. space of 𝑆 (ℝ𝑒)
• config. space of 𝐵 (ℝ𝑜)

・𝛽𝑆 ・𝛽𝐵

16

Relation 𝑞 between 𝑆 and 𝐵

• config. space of 𝑆 (ℝ𝑒)
• config. space of 𝐵 (ℝ𝑜)

・𝛽𝑆 ・𝛽𝐵

17

Relation 𝑞 between 𝑆 and 𝐵

• config. space of 𝑆 (ℝ𝑒)
• config. space of 𝐵 (ℝ𝑜)

・𝛽𝑆 ・𝛽𝐵 ・𝜀𝑆(0) ・𝜀𝐵(0)

18

Relation 𝑞 between 𝑆 and 𝐵

• config. space of 𝑆 (ℝ𝑒)
• config. space of 𝐵 (ℝ𝑜)

・𝛽𝑆 ・𝛽𝐵 ・𝜀𝑆(0) ・𝜀𝐵(0)

19

Relation 𝑞 between 𝑆 and 𝐵

• config. space of 𝑆 (ℝ𝑒)
• config. space of 𝐵 (ℝ𝑜)

・𝛽𝑆 ・𝛽𝐵 ・𝜀𝑆(0) ・𝜀𝐵(0) ・𝜀𝑆(1) ・𝜀𝐵(1)

20

Relation 𝑞 between 𝑆 and 𝐵

• config. space of 𝑆 (ℝ𝑒)
• config. space of 𝐵 (ℝ𝑜)

・𝛽𝑆 ・𝛽𝐵 ・𝜀𝑆(0) ・𝜀𝐵(0) ・𝜀𝑆(1) ・𝜀𝐵(1)

21

Relation 𝑞 between 𝑆 and 𝐵

• config. space of 𝑆 (ℝ𝑒)
• config. space of 𝐵 (ℝ𝑜)

・𝛽𝑆 ・𝛽𝐵 ・𝜀𝑆(0) ・𝜀𝐵(0) ・𝜀𝑆(1) ・𝜀𝐵(1) ・𝜀𝑆(00) ・𝜀𝐵(00)

22

Relation 𝑞 between 𝑆 and 𝐵

• config. space of 𝑆 (ℝ𝑒)
• config. space of 𝐵 (ℝ𝑜)

・𝛽𝑆 ・𝛽𝐵 ・𝜀𝑆(0) ・𝜀𝐵(0) ・𝜀𝑆(1) ・𝜀𝐵(1) ・𝜀𝑆(00) ・𝜀𝐵(00)

23

Relation 𝑞 between 𝑆 and 𝐵

• config. space of 𝑆 (ℝ𝑒)
• config. space of 𝐵 (ℝ𝑜)

・𝛽𝑆 ・𝛽𝐵 ・𝜀𝑆(0) ・𝜀𝐵 0 ≃ 𝜀𝐵(01) ・𝜀𝑆(1) ・𝜀𝐵(1) ・𝜀𝑆(00) ・𝜀𝐵(00) ・𝜀𝑆(01)

24

Relation 𝑞 between 𝑆 and 𝐵

• config. space of 𝑆 (ℝ𝑒)
• config. space of 𝐵 (ℝ𝑜)

・𝛽𝑆 ・𝛽𝐵 ・𝜀𝑆(0) ・𝜀𝐵 0 ≃ 𝜀𝐵(01) ・𝜀𝑆(1) ・𝜀𝐵(1) ・𝜀𝑆(00) ・𝜀𝐵(00) ・𝜀𝑆(01)

25

BFS-based Equivalence Query

Pop w from queue Add w’s next words to queue

Equivalence query proceeds based on Breadth-First Search

26

Maintaining 𝑞

Pop w from queue Add w’s next words to queue Check if 𝑞 should be refined Refine 𝑞 NO YES We want it to satisfy ∀𝑥 ∈ 𝑋. p 𝜀𝑆 w ≃ 𝜀𝐵(𝑥)

27

Check if 𝑞 should be refined

• config. space of 𝑆 (ℝ𝑒)
• config. space of 𝐵 (ℝ𝑜)

・𝜀𝑆 𝑥′ ・𝜀𝐵 𝑥′ = 𝑞(𝜀𝐵 𝑥′ ) 𝑞 𝑥′: a word already visited in the BFS loop 𝑥: a word just popped

28

Check if 𝑞 should be refined

• config. space of 𝑆 (ℝ𝑒)
• config. space of 𝐵 (ℝ𝑜)

・𝜀𝑆 𝑥′ ・𝜀𝐵 𝑥′ = 𝑞 𝜀𝐵 𝑥′ = 𝜀𝐵(𝑥) ・𝜀𝑆(𝑥) 𝑞 𝑥′: a word already visited in the BFS loop 𝑥: a word just popped

29

Check if 𝑞 should be refined

• config. space of 𝑆 (ℝ𝑒)
• config. space of 𝐵 (ℝ𝑜)

・𝜀𝑆 𝑥′ ・𝜀𝐵 𝑥′ = 𝑞 𝜀𝐵 𝑥′ = 𝜀𝐵 𝑥 = 𝑞(𝜀𝑆 𝑥 ) ・𝜀𝑆(𝑥)

• config. space of 𝑆 (ℝ𝑒)
• config. space of 𝐵 (ℝ𝑜)

・𝜀𝑆 𝑥′ ・𝜀𝐵 𝑥′ = 𝑞 𝜀𝐵 𝑥′ = 𝜀𝐵(𝑥) ・𝜀𝑆(𝑥) 𝑞 𝑞 𝑞 ・𝑞(𝜀𝑆 𝑥 ) 𝑞 𝑥′: a word already visited in the BFS loop 𝑥: a word just popped

30

Check if 𝑞 should be refined

• config. space of 𝑆 (ℝ𝑒)
• config. space of 𝐵 (ℝ𝑜)

・𝜀𝑆 𝑥′ ・𝜀𝐵 𝑥′ = 𝑞 𝜀𝐵 𝑥′ = 𝜀𝐵 𝑥 = 𝑞(𝜀𝑆 𝑥 ) ・𝜀𝑆(𝑥)

• config. space of 𝑆 (ℝ𝑒)
• config. space of 𝐵 (ℝ𝑜)

・𝜀𝑆 𝑥′ ・𝜀𝐵 𝑥′ = 𝑞 𝜀𝐵 𝑥′ = 𝜀𝐵(𝑥) ・𝜀𝑆(𝑥) 𝑞 𝑞 𝑞 ・𝑞(𝜀𝑆 𝑥 ) 𝑞

↓This Violates 𝑞 𝜀𝑆 𝑥 = 𝜀𝐵(𝑥)

𝑥′: a word already visited in the BFS loop 𝑥: a word just popped

31

Maintaining 𝑞

Pop w from queue Add w’s next words to queue Check if 𝑞 should be refined Refine 𝑞 NO YES We want it to satisfy ∀𝑥 ∈ 𝑋. p 𝜀𝑆 w ≃ 𝜀𝐵(𝑥)

32

Check if 𝑞 should be refined Refine 𝑞

Finding Counterexample

Pop w from queue Add w’s next words to queue NO YES Check if 𝑔

𝑆 𝑥

= 𝑔

𝐵(𝑥)

If 𝑔

𝑆 𝑥 ≠ 𝑔 𝐵(𝑥), returns 𝑥 as a counterexample of the

equivalence query. 𝑓 𝐵 = ቊ Equivalent ; 𝑔

𝑆 ≃ 𝑔 𝐵

𝑥′′ ; 𝑔

𝑆 𝑥′′ ≠ 𝑔 𝐵(𝑥′′)

33

Check if 𝑞 should be refined Refine 𝑞

Returning “Equivalent”

Pop w from queue Add w’s next words to queue NO YES Check if 𝑔

𝑆 𝑥

= 𝑔

𝐵(𝑥)

If there are many (𝑁 = 5 times) visited words 𝑥′ ∈ {Visited words} 𝑞 ∘ 𝜀𝑆 𝑥 = 𝑞 ∘ 𝜀𝑆 𝑥′ }, the next words of 𝑥 is not added (Pruning the subtree under 𝑥 in BFS)

34

Check if 𝑞 should be refined Refine 𝑞 Add w’s next words to queue NO YES

Returning “Equivalent”

Pop w from queue Check if 𝑔

𝑆 𝑥

= 𝑔

𝐵(𝑥)

When the queue is empty, all the trees are pruned and it returns “Equivalent”. 𝑓 𝐵 = ቊ Equivalent ; 𝑔

𝑆 ≃ 𝑔 𝐵

𝑥′′ ; 𝑔

𝑆 𝑥′′ ≠ 𝑔 𝐵(𝑥′′)

35

Experiments (Target RNNs)

90 target RNNs to evaluate our algorithm are made by

• 1. Generate a random WFA 𝐵 of size 𝑜 ∈ {10, 20, 30} and alphabet

Σ of size a ∈ {10,15,20,30,40,50}

• 2. Learn RNN 𝑆(𝐵) from 𝐵
• 3. Repeat Step 1-2 for each (𝑜, 𝑡) 5 times.

RNNs consist of two-stacked LSTM with 50 cells.

36

Experiments (Settings)

Methods

• Our algorithm with 𝑁 = 5
• Baseline algorithm (comes later)

Evaluation

• Time to extract (timeout=10,000 sec.)
• Accuracy
• If 𝑔

𝑆 𝑥 − 𝑔 𝐵 𝑆 (𝑥) < 0.05 then it is “correct”

• Calculated by randomly generating 1000 words
• Time to infer the words in 𝑆 𝐵 , 𝐵(𝑆 𝐵 )

37

Experiments (Baseline algorithm)

Pop w from queue Add w’s next words to queue Check if 𝑔

𝑆 𝑥

= 𝑔

𝐵(𝑥)

If 𝑔

𝑆 𝑥 ≠ 𝑔 𝐵(𝑥), returns 𝑥 as a counterexample of the

equivalence query. 𝑓 𝐵 = ቊ Equivalent ; 𝑔

𝑆 ≃ 𝑔 𝐵

𝑥′′ ; 𝑔

𝑆 𝑥′′ ≠ 𝑔 𝐵(𝑥′′)

38

Experiments (Baseline algorithm)

Pop w from queue Add w’s next words to queue Check if 𝑔

𝑆 𝑥

= 𝑔

𝐵(𝑥)

If 𝑔

𝑆 𝑥 = 𝑔 𝐵(𝑥) in a row (1000 times), returns ℎ as a counterexample of the

equivalence query. 𝑓 𝐵 = ቊ Equivalent ; 𝑔

𝑆 ≃ 𝑔 𝐵

𝑥′′ ; 𝑔

𝑆 𝑥′′ ≠ 𝑔 𝐵(𝑥′′)

(If this happens, queue is preserved for the next invoke of eq-query)

39

Result (Overall)

Difference of accuracy and extracting time between ours and baseline

40

Result (Overall)

Average (and Std) Ours(M=5) Baseline Accuracy[%] 81.9% (std=18.8%) 74.1% (std=22.9%) Time [s] 8805 (std=2220) 6277 (std=2966)

• The accuracy of “Ours (M=5)” exceeded those of “Baseline”

in 59 tasks.

• The extracting time of “Ours (M=5)” longer than those of

“Baseline” in 80 tasks.

• (90 tasks in total)

41

Result (WFA size 𝑜 = 10)

Difference of accuracy and extracting time between ours and baseline

42

Result (alphabet size 𝑏 = 10)

Difference of accuracy and extracting time between ours and baseline

43

Time to Infer a Value from a Word

• To test our motivation “Getting lighter (faster to infer) model
• f an RNN” is feasible.
• We compared the time to compute 𝑔

𝑆(𝑥) and 𝑔 𝐵 𝑆 (𝑥) for

1,000 words whose lengths are ≤ 20. Average Time on RNN 𝑆 [s] 32.0 (std=2.0) Time on WFA 𝐵(𝑆) [s] 0.028 (std=0.007)

44

Conclusion

• Proposed a method to extract the WFA 𝐵(𝑆) from a given

RNN 𝑆 so that 𝑔

𝐵(𝑆) ≃ 𝑔 𝑆.

• Compared our method to the baseline algorithm in the

accuracy and time

• Our algorithm achieved higher accuracy and took more time than the

baseline.

• The extracted WFA 𝐵 𝑆 took less time to infer values than

the original RNN 𝑆

45

Future Work

• Adding experiment
• To reveal the overall tendency clearly
• To reveal what is happening when the accuracy is quite low
• Adding the idea of bisimulation to 𝑞
• Think of questionable parts in the loop?
• Refining 𝑞 at the different timing could be better?
• Modifying Balle and Mohri’s algorithm to generate

probabilistic WFA

• Finding good hyper parameter 𝑁 experimentally or

theoretically

46

“Checking if 𝑞 is OK” could be like this?

• config. space of 𝑆 (ℝ𝑒)
• config. space of 𝐵 (ℝ𝑜)

・𝜀𝑆 ℎ′ ・𝜀𝐵 ℎ′ = 𝑞(𝜀𝐵 ℎ′ ) ・𝜀𝑆(ℎ) ・𝜀𝐵 ℎ = 𝜀𝑆 ℎ

• config. space of 𝑆 (ℝ𝑒)
• config. space of 𝐵 (ℝ𝑜)

・𝜀𝑆 ℎ′ ・𝜀𝐵 ℎ′ = 𝑞(𝜀𝐵 ℎ′ ) ・𝜀𝑆(ℎ) ・𝜀𝐵(ℎ) 𝑞 𝑞 𝑞 ・𝑞(𝜀𝑆(ℎ))

↓This Violates 𝑞 𝜀𝑆 ℎ = 𝜀𝐵(ℎ)

𝑞

47

• Def. of WFA
• WFA 𝐵 is probabilistic if
• 𝛽 ⋅ 𝟐 = 1
• For all 𝜏 ∈ Σ, the sums of rows are 1
• 0 ≤ 𝛾 ≤ 1 ■

For example:

• Σ = 0, 1 , 𝛽 = 0.8

0.2 , 𝛾 = 0.9 0.7 , 𝐵0 = 0 1 1 0 , 𝐵1 = 0.9 0.1 0.5 0.5
