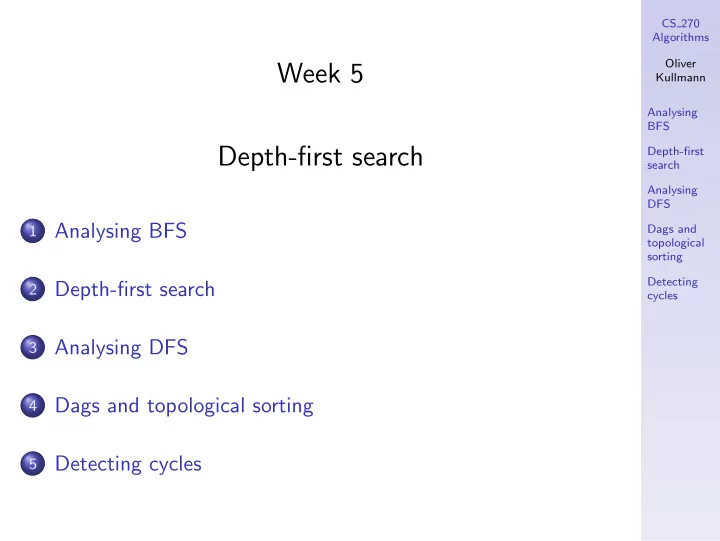

Week 5 Kullmann Analysing BFS Depth-first search Depth-first - - PowerPoint PPT Presentation

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

Week 5 Depth-first search

1

Analysing BFS

2

Depth-first search

3

Analysing DFS

4

Dags and topological sorting

5

Detecting cycles

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

General remarks

We finish BFS, by analysing it. Then we consider the second main graph-search algorithm, depth-first search (DFS). And we consider one application of DFS, topological sorting of graphs.

Reading from CLRS for week 5

Chapter 22, Sections 22.2, 22.3, 22.4.

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

Recall: BFS

BFS(G, s) 1 for each u ∈ V (G) 2 d[u] = ∞ 3 π[s] = nil 4 d[s] = 0 5 Q = (s) 6 while Q = () 7 u = Dequeue[Q] 8 for each v ∈ Adj[u] 9 if d[v] = ∞ 10 d[v] = d[u] + 1 11 π[v] = u 12 Enqueue(Q, v)

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

Analysis of BFS

Correctness Analysis: At termination of BFS(G, s), for every vertex v reachable from s: v has been encountered; d[v] holds the length of the shortest path from s to v; π[v] represents an edge on a shortest path from v to s. Time Analysis: The initialisation takes time Θ(V ). Each vertex is Enqueued once and Dequeued once; these queueing operations each take constant time, so the queue manipulation takes time Θ(V ) (altogether). The Adjacency list of each vertex is scanned only when the vertex is Dequeued, so scanning adjacency lists takes time Θ(E) (altogether). The overall time of BFS is thus Θ(V + E).

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

Why do we get shortest paths?

Is it really true that we get always shortest paths (that is, using the minimum number of edges)? Let’s assume that to some vertex v there exists a shorter path P in G from s to v than found by BFS. Let this length be d′ < d[v].

1 v = s, since the distance from s to s is zero (using the path

without an edge), and this is correctly computed by BFS.

2 Consider the predecessor u on that shorter path P. 3 If also d[u] would be wrong (that is, too big), than we

could use u instead of v. Thus w.l.o.g. d[u] is correct.

4 Now when exploring the neighbours of u, in case v is still

unexplored, it would get the correct distance d′ = d[u] + 1.

5 So v must have been explored already earlier (than u). 6 So at the time of determining the distance d[u] ≤ d[v] − 2,

the distance d[v] must have been already set.

7 However the distances d[w] set by BFS are non-decreasing!

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

The role of the queue

A crucial property of BFS is that the distances set in step 10 of the algorithm are non-decreasing, that is, if we imagine a watch-point set at step 10, and monitor the stream of values d[v], then we will see 0, 1, . . . , 1, 2, . . . , 2, 3, . . . , 3, . . . . Why is this the case? This must be due to the queue used — whose special properties we haven’t yet exploited! Since in step 12, directly after setting the distance, we put the vertex into the queue, the above assertion is equivalent to the statement, that the distances of the vertices put into the queue are non-decreasing (in the order they enter the queue). Now why is this the case?

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

The role of the queue (cont.)

First we need to notice that once a distance d[v] is set, it is never changed again. The vertices are taken off the queue (“dequeued”) from the left, and are added (“enqueued”) to the right (“first in, first

• ut”).

What is added has a distance one more than what was taken away. We start with 0, and add some 1’s. Then we take those 1’s, and add 2’s. Once the 1’s are finished, we take the 2’s, and add 3’s. And so on — that why the sequence of distances is non-decreasing.

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

Running BFS on directed graphs

We can run BFS also on a digraph G, with start-vertex s:

1 For digraphs we have directed spanning trees/forests. 2 Only the vertices reachable from s following the directions

• f the edges are in that directed tree (directed from s

towards the leaves).

3 Still the paths in the directed tree, from s to any other

vertex, are shortest possible (given that we obey the given directions of the edges). For a graph (i.e., undirected graph), we need to restart BFS (to

• btain a spanning forest, not just a spanning tree) only if the

graph is disconnected. However for a digraph there is a much higher chance, that we need to restart in order to cover all vertices. We thus more often need a directed spanning forest, not just a directed spanning tree.

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

Restart typically needed for digraphs to cover all vertices

Consider the simple digraph 1 2

• 3
• In order to cover all vertices, one needs to run BFS at least two

times (and if the first time you start it with s = 1, then you need to run it three times). So even for the above apparently very simple graph we need a directed spanning forest. Note that the obtained directed trees (given by π) overlap. So in such a directed forest there is typically a certain

• verlap between the directed trees in it.

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

Arcs of different lengths

The edges of (di-)graphs have (implicitly) a length of one unit. If arbitrary non-negative lengths are allowed, then we have to generalise BFS to Dijkstra’s algorithm. This generalisation must keep the essential properties, that the distances encountered are the final ones and are non-decreasing. But now not all edges have unit-length, and thus instead of a simple queue we need to employ a priority queue. A priority queue returns the vertex in it with the smallest value (distance).

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

Depth-first search

Depth-first search (DFS) is another simple but very important technique for searching a graph. Such a search constructs a spanning forest for the graph, called the depth-first forest, composed of several depth-first trees, which are rooted spanning trees of the connected components. DFS recursively visits the next unvisited vertex, thus extending the current path as far as possible; when the search gets stuck in a “corner” it backtracks up along the path until a new avenue presents itself. DFS computes the parent π[u] of each vertex u in the depth-first tree (with the parent of initial vertices being nil), as well as its discovery time d[u] (when the vertex is first encountered, initialised to ∞) and its finishing time f [u] (when the search has finished visiting its adjacent vertices).

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

The algorithm

DFS(G) 1 for each u ∈ V (G) 2 d[u] = ∞ 3 time = 0 4 for each u ∈ V (G) 5 if d[u] = ∞ 6 π[u] = nil 7 DFS-Visit(u) DFS-Visit(u) 1 time = time + 1 2 d[u] = time 3 for each v ∈ Adj[u] 4 if d[v] = ∞ 5 π[v] = u 6 DFS-Visit(v) 7 time = time + 1 8 f [u] = time Analysis: DFS-Visit(u) is invoked exactly once for each vertex, during which we scan its adjacency list once. Hence DFS, like BFS, runs in time Θ(V + E).

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

DFS illustrated

Stack = () u = 1 1 2 4 6 3 5 7

1 − /nil ∞ − /− ∞ − /− ∞ − /− ∞ − /− ∞ − /− ∞ − /−

u

d[u] f [u] /π[u]

(labelling) Stack = (1) u = 2 1 2 4 6 3 5 7

1 − /nil 2 − /1 ∞ − /− ∞ − /− ∞ − /− ∞ − /− ∞ − /−

Stack = (2, 1) u = 3 1 2 4 6 3 5 7

1 − /nil 2 − /1 ∞ − /− ∞ − /− 3 − /2 ∞ − /− ∞ − /−

Stack = (3, 2, 1) u = 4 1 2 4 6 3 5 7

1 − /nil 2 − /1 4 − /3 ∞ − /− 3 − /2 ∞ − /− ∞ − /−

Stack = (4, 3, 2, 1) u = 5 1 2 4 6 3 5 7

1 − /nil 2 − /1 4 − /3 ∞ − /− 3 − /2 5 − /4 ∞ − /−

Stack =(5, 4, 3, 2, 1) u = 7 1 2 4 6 3 5 7

1 − /nil 2 − /1 4 − /3 ∞ − /− 3 − /2 5 − /4 6 − /5

Stack = (4, 3, 2, 1) u = 6 1 2 4 6 3 5 7

1 − /nil 2 − /1 4 − /3 9 − /4 3 − /2 5 8 /4 6 7 /5

Stack = () 1 2 4 6 3 5 7

1 14 /nil 2 13 /1 4 11 /3 9 10 /4 3 12 /2 5 8 /4 6 7 /5

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

Running DFS on directed graphs

Again (as with BFS), we can run DFS on a digraph G. Again, no longer do we obtain spanning trees of the connected components of the start vertex. But we obtain a directed spanning tree with exactly all vertices reachable from the root (when following the directions of the edges). Different from BFS, the root (or start vertex) normally does not play a prominent role for DFS:

1 Thus we did not provide the form of DFS with a start

vertex as input.

2 But we provided the forest-version, which tries all vertices

(in the given order) as start vertices.

3 This will always cover all vertices, via a directed spanning

forest.

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

What are the times good for?

(Directed) DFS trees do not contain shortest paths — to that end their way of exploring a graph is too “adventuresomely” (while BFS is very “cautious”). Nevertheless, the information gained through the computation

• f discovery and finish times is very valuable for many tasks. We

consider the example of “scheduling” later. In order to understand this example, we have first to gain a better understanding of the meaning of discovery and finishing time.

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

Existence of a path versus finishing times

Lemma 1

Consider a digraph G and nodes u, v ∈ V (G) with d[u] < d[v]. Then there is a path from u to v in G if and only if f [u] > f [v] holds. In words: If node u is discovered earlier than node v, then we can reach v from u iff v finishes earlier than u.

Proof.

If there is a path from u to v, then, since v was discovered later than u, the recursive call of DFS-Visit(v) must happen inside the recursive call of DFS-Visit(u) (by construction of the discovery-loop), and thus v must finish before u finishes. In the other direction, if v finishes earlier than u, then the recursive call of DFS-Visit(v) must happen inside the recursive call of DFS-Visit(u) (since the recursion for u must still be running). Thus, when discovering v, we must be on a path from u to v.

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

Directed acyclic graphs

An important applications of digraphs G is with scheduling: The vertices are the jobs (actions) to be scheduled. A directed edge from vertex u to vertex v means a dependency, that is, action u must be performed before action v. Now consider the situation where we have three jobs a, b, c and the following dependency digraph: G = a

b ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧

c

❃ ❃ ❃ ❃ ❃ ❃ ❃ ❃

Clearly this can not be scheduled! In general we require G to by acyclic, that is, G must not contain a directed cycle. A directed acyclic graph is also called a dag.

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

Topological sorting

Given a dag G modelling a scheduling task, a basic task is to find a linear ordering of the vertices (“actions”) such that all dependencies are respected. This is modelled by the notion of “topological sorting”. A topological sort of a dag is an ordering of its vertices such that for every edge (u, v), u appears before v in the

• rdering.

For example consider G = a

b

c

• ⑧

⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧

The two possible topological sortings of G are a, c, b and c, a, b.

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

Finishing times in DAGs

Lemma 2

After calling DFS on a dag, for every edge (u, v) we have f [u] > f [v].

Proof.

There are two cases regarding the discovery times of u and v:

1 If d[u] < d[v], then by Lemma 1 we have f [u] > f [v] (since

there is a path from u to v (of length 1)).

2 Now assume d[u] > d[v]. If f [u] > f [v], then we are done,

and so assume that f [u] < f [v]. But then by Lemma 1 there is a path from v to u in G, and this together with the edge from u to v establishes a cycle in G, contradicting that G is a dag.

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

Topological sorting via DFS

Corollary 3

To topologically sort a dag G, we run DFS on G and print the vertices in reverse order of finishing times. (We can put each vertex on the front of a list as they are finished.)

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

Topological sorting illustrated

Consider the result of running the DFS algorithm on the following dag. m n

• p

q r s t u v w x y z

1/20 21/26 22/25 27/28 2/5 6/19 23/24 3/4 7/8 10/17 13/16 11/12 9/18 14/15

(labelling: d[u]/f [u])

Listing the vertices in reverse order of finishing time gives the following topological sorting of the vertices: u : p n

• s

m r y v w z x u q t

f [u]: 28 26 25 24 20 19 18 17 16 15 12 8 5 4

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

Deciding acyclicity

For a graph G (i.e., undirected) detecting the existence of a cycle is simple, via BFS or DFS: G has a cycle (i.e., is not a forest) if and only if BFS resp. DFS will discover a vertex twice. One has to be a bit more careful here, since the parent vertex will always be discovered twice, and thus has to be excluded, but that’s it. However for digraphs it is not that simple — do you see why?

CS 270 Algorithms Oliver Kullmann Analysing BFS Depth-first search Analysing DFS Dags and topological sorting Detecting cycles

Revisiting the lemma for topological sorting

In Lemma 2 we said: If G has no cycles, then along every edge the finishing times strictly decrease. So if we discover in digraph G an edge (u, v) with f [u] < f [v], then we know there is a cycle in G. Is this criterion also sufficient? YES: just consider a cycle, and what must happen with the finishing times on it.

Lemma 4

Consider a digraph G. Then G has a cycle if and only if every run of DFS on G yields some edge (u, v) ∈ E(G) with f [u] < f [v].
