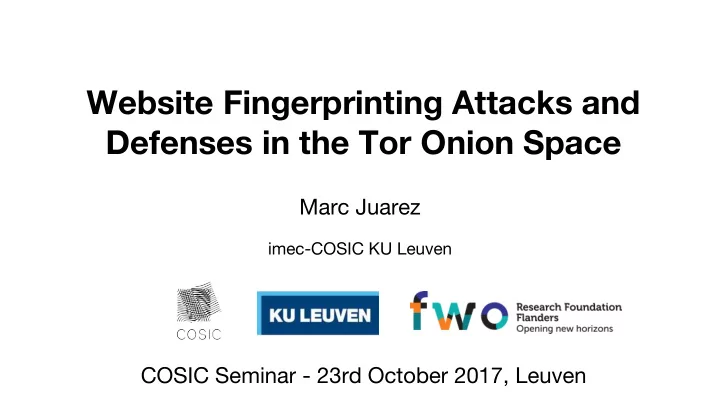

Website Fingerprinting Attacks and Defenses in the Tor Onion Space

Marc Juarez

imec-COSIC KU Leuven

COSIC Seminar - 23rd October 2017, Leuven

Introduction

2

• Contents of this presentation:
• PETS’17: “Website Fingerprinting Defenses at the Application Layer”
• CCS’17: “How Unique is Your Onion?”

What is Website Fingerprinting (WF)?

3

Adversary Tor network User WWW Entry Middle Exit

Website Fingerprinting: deployment

4

Training Testing

Why Do We Care?

• Tor is the most popular anonymity network and aims to

protect against such adversaries.

• Series of successful attacks with accuracies greater than 90%
• … how concerned should we be in practice?

– Critical review of WF attacks (Juarez et al, 2014)

Closed vs Open World

6

Closed world Open world

Tor Hidden Services (HS)

7

xyz.onion User

• HS: user visits xyz.onion without resolving it to an IP
• Examples: Wikileaks, GlobaLeaks, Facebook, ...

Website Fingerprinting on Hidden Services (HSes)

• WF adversary can distinguish HSes from regular sites
• Website Fingerprinting in HSes is more threatening:
• Fewer sites makes HSes more identifiable (~ closed world)
• HS users vulnerable because content is sensitive

8

The SecureDrop case

• Freedom of the Press Foundation
• Whistleblowing platform
• Vulnerable to website fingerprinting (?)

9

Website Fingerprinting Defenses at the Application Layer

Giovanni Cherubin1 Jamie Hayes2 Marc Juarez3

1Royal Holloway University of London 2University College London 3imec-COSIC KU Leuven

Presented in PETS 2017, Minneapolis, MN, USA

Website Fingerprinting defenses

11

Tor network Entry Middle Dummy Real User These are TCP packets or Tor messages

WF Defenses BuFLO Tamaraw CS-BuFLO WTF-PAD …

• Existing defenses are designed at the network layer

Key observation: identifying info originates at app layer!

Application-layer Defenses

HTTP(S) Tor TCP ... TLS

Adversary

Web content

‘Latent‘ features: F1, …, Fn Observed features: O1, ..., On

Identifying info Last layer of encryption

T(·)

12

The main advantage is that they are easier to implement:

• do not depend on Tor to be implemented

Cons:

• padding runs end-to-end
• may require server collaboration… but HSes have incentives!

13

Pros and Cons of app-layer Defenses

14

LLaMA ALPaCA

• Server-side (first one)
• Applied on hosted content
• More bandwidth overhead
• Client-side (FF add-on)
• Applied on website requests
• More latency overhead

(two different solutions, not a client-server solution)

ALPaCA

• Abstract web pages as num objects and object sizes:

pad them to match a target page

• Does not impact user experience:

e.g., comments in HTML/JS, images’ metadata, “display: none” styles

15

Original Morphed Target

ALPaCA strategies (1)

securedrop.png index.html fake.css index.html facebook.png style.css

Example: protect a SecureDrop page

• Strategy 1: target page is Facebook

securedrop facebook

16 Padding

ALPaCA strategies (2)

• Strategy 2: pad to an “anonymity set” target page

target

securedrop.png index.html fake.css index.html facebook.png style.css

securedrop facebook

Defines num objects and object sizes by:

• Deterministic: next multiple of λ, δ
• Probabilistic: sampled from empirical distribution

17 Padding

• Collect with and without defense: 100 HSes (cached)

○ Security: accuracy of attacks kNN, k-Fingerprinting (kFP), CUMUL ○ Performance: overheads

• latency (extra delay)
• bandwidth (extra padding/time)

18

Evaluation: methodology

ALPaCA: results

19

• From 40% to 60% decrease in accuracy
• 50% latency and 85% bandwidth overheads

20

How Unique is Your Onion? An Analysis of the Fingerprintability of Tor Onion Services

Rebekah Overdorf1 Marc Juarez2 Gunes Acar2 Rachel Greenstadt1 Claudia Diaz2

1Drexel University 2imec-COSIC KU Leuven

To be presented in CCS 2017, Dallas, TX, USA

Disparate impact

• WF normally attacks report average success
• But…

– Are certain websites more susceptible to website fingerprinting attacks than others? – What makes some sites more vulnerable to the attack than others?

Credit: Claudia Diaz

State-of-the-Art Attacks

• k-NN (Wang et al., 2015)
• CUMUL (Panchenko et al., 2016)
• k-Fingerprinting (Hayes and Danezis, 2016)

23

k-NN (Wang et al. 2015)

• Features

– number of outgoing packets in spans of 30 packets – the lengths of the first 20 packets – traffic bursts (sequences of packets in the same direction)

• Classification

– k-NN – Tune weights of the distance metric that minimizes the distance among instances that belong to the same site.

• Results

– From 90% to 95% accuracy on a closed-world of 100 non-hidden service websites.

Credit: Bekah Overdorf

CUMUL (Panchenko et al. 2016)

• Features

– 100 interpolation points of the cumulative sum of packet lengths (with direction)

• Classification

– Radial Basis Function kernel (RBF) SVM

• Results

– From 90% to 93% for 100 Non HS sites.

Credit: Bekah Overdorf

k-Fingerprinting (Hayes and Danezis 2016)

• Features

– Timing and size features in the literature

• Classification

– Random Forest (RF) + k-NN

• Results

– 90% accuracy on 30 hidden services

Credit: Bekah Overdorf

Data

• Crawled 790 sites over Tor (homepages)
• Removed

– Offline sites – Failed visits – Duplicates

• 482 sites fit our criteria with 70 visits each

Credit: Bekah Overdorf

Credit: Bekah Overdorf

SecureDrop sites

• There was a SecureDrop site in our dataset:

– Project On Gov’t Oversight’ (POGO)

• CUMUL achieved 99%!!!

– As compared to 80% in average

Misclassifications of Hidden Services

Credit: Bekah Overdorf

Misclassifications of Hidden Services

Credit: Bekah Overdorf

Median of total incoming packet size for misclassified instances

Credit: Bekah Overdorf

Low-level Feature Analysis

• Intra-class variance: similarity between instances of the same site.

– Lower intra-class variances improves identification.

• Inter-class variance: similarity between instances of different sites.

– Higher inter-class variances improves identification. Top features:

1. Total Size of all Outgoing Packets 2. Total Size of Incoming Packets 3. Number of Incoming Packets 4. Number of Outgoing Packets

Site-level Feature Analysis

• Can we determine what characteristics of a website affect its

fingerprintability?

• Site-Level Features:

– Number of embedded resources – Number of fonts – Screenshot size – Use of a CMS? – …

Can we predict if a site will be fingerprintable?

“Meta-classifier”

Random forest regressor

Results: importance of site-level features

Take aways

• WF threatens Tor, especially its Hidden services.
• Disparate impact: some pages are more fingerprintable than
• thers (there is a bias in reporting average results).
• WF defenses that alter the website design (app layer) are easier

to implement and as effective as network-layer defenses.

• Changes of the paget that protect against WF:

– Small (e.g., fewer resources) and dynamic.

Take aways

• WF threatens Tor, especially its Hidden services.
• Disparate impact: some pages are more fingerprintable than
• thers (there is a bias in reporting average results).
• WF defenses that alter the website design (app layer) are easier

to implement and as effective as network-layer defenses.

• Changes of the paget that protect against WF:

– Small (e.g., fewer resources) and dynamic.

Future work Re-design ALPaCA to follow these guidelines.

• HSes have incentives to support server-side defenses:

SecureDrop has implemented a prototype of ALPaCA

• ALPaCA is running on a HS: 3tmaadslguc72xc2.onion
• Source code defenses: github.com/camelids
• Source code and data for fingerprintability analysis:

cosic.esat.kuleuven.be/fingerprintability

40

Software and Data

• Exploratory crawl: 5,000 HSes (from Ahmia.fi)
• Stats for the HS world (from intercepted HTTP headers)
• Distribution of types, sizes and number of resources
• Most HSes are small compared to an average website
• Few HSes have any JS or 3rd-party content
• JS: less than 13% Assumption: no JS
• 3rd party content: less than 20% Assumption: no 3rd parties

41

The HS world

• ALPaCA can only make sites bigger, but not smaller
• What’s the optimal padding at the app layer? Lack of a

thorough feature analysis.

• How do the distributions change over time? How do we

update our defenses accordingly?

• How does the strategy need be adapted as HSes adopt our

defense(s)?

42

Limitations and Future Work

LLaMA

• Inspired by Randomized Pipelining

Goal: randomize HTTP requests

• Same goal from a FF add-on:
• Random delays (δ)
• Repeat previous requests (C1)

43

C1 Client Server C2 C1’ C2 δ

LLaMA: results

44

• Accuracy drops between 20% and 30%
• Less than 10% latency and bandwidth overheads
