Walk on Water Project EDSGN 100 SEC 019 October 20, 2017 Team 6: Jared Clabaugh Emily Robinson Brendan Knouse Luke Daniello Table of Contents 1 2 3 4 5 6 Our Stakeholder Concept Engineering Prototype Cost Requirements, Mission

slide-1
SLIDE 1

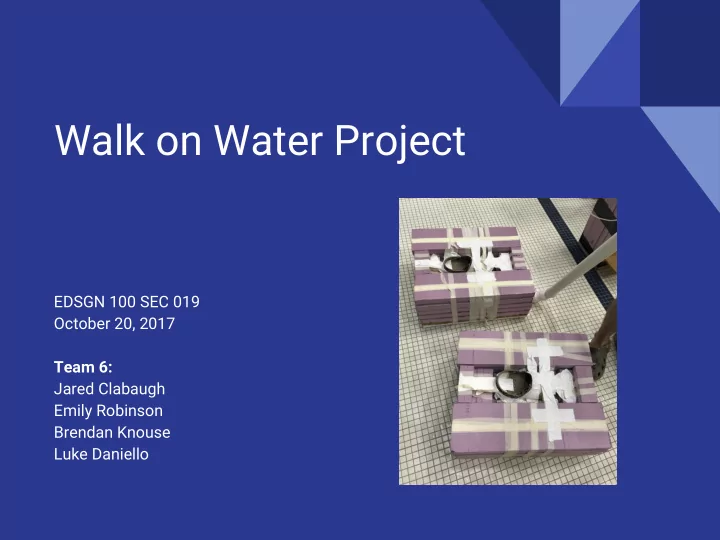

Walk on Water Project

EDSGN 100 SEC 019 October 20, 2017 Team 6: Jared Clabaugh Emily Robinson Brendan Knouse Luke Daniello

slide-2
SLIDE 2

Table of Contents

Our Mission Statement 1

Stakeholder Requirements, Constraints, Specifications

2 Concept Generation and Selection 3 Engineering Analysis with Calculations 4 Prototype and Videos 5 Cost Analysis and Summary 6

slide-3
SLIDE 3

Mission Statement: To design and build a device that can effectively walk across a body of water and is able to be sold to consumers.

slide-4
SLIDE 4

The stakeholders of this project are the buyers, the users, the natatorium, our group,

  • Dr. Colledge, the Consumer Product Safety Commision, and the waste company
slide-5
SLIDE 5

After surveying our potential buyers, we were able to identify and rank our 4 design specifications

Safety Durability Ease of Operation Portability

Row Totals Row Total Total

Safety

1 2 5 7 15.00 0.474

Durability

1/2 1 4 5 10.50 0.332

Easily Operable

1/5 1/4 1 3 4.45 0.141

Portability

1/7 1/5 1/3 1 1.676 0.053

Table 1. Customer Assessment Chart Total: 31.626

slide-6
SLIDE 6

From our stakeholder requirements we created a list of design specifications for our product.

Cost Weight Safety Project Requirements

  • Total Cost < $80
  • Seling Price < $100
  • Must be able to hold

a maximum of 200 lbs

  • Must meet the

requirements of the Consumer Product Safety Commission

  • No liquid propellent,

toxic materials, or waste left in pool

  • Must be able to

mount the device from inside body of water

  • Ideally, product

should have speed to race across body

  • f water
  • Must be able to

walk the distance of an Olympic pool Table 2. Design Constraints and Specifications

slide-7
SLIDE 7

We brainstormed to come up with many ideas that fit our specifications.

Figure A. Lifeguard floaties into shoes

slide-8
SLIDE 8

We brainstormed to come up with many ideas that fit our specifications.

Figure B. Styrofoam Shoes

slide-9
SLIDE 9

We brainstormed to come up with many ideas that fit our specifications.

Figure C. Hamster Ball

slide-10
SLIDE 10

We brainstormed to come up with many ideas that fit our specifications

Figure D. Octagonal Wheel with PVC

slide-11
SLIDE 11

Concept Selection

Concepts A- Lifeguard floaties into shoes D- Octagonal PVC Wheel Selection Criteria Weight Rating Weighted Score Rating Weighted Score Cost .1 3 .3 2 .2 Ease of manufacturing .2 4 .8 3 .6 Meets regulations .05 5 .1 5 .25 Load Handling .1 4 .4 4 .4 Meets testing requirements .35 3 1.05 5 1.75 Sustainability .05 1 .05 1 .05 Portability .05 3 .15 1 .05 Ease of

  • peration

.1 3 .3 5 .5 Totals 100%

  • 3.15
  • 3.8

Rank 2 1 Continue? No

Yes Table 3. Concept Selection

slide-12
SLIDE 12

We established a certain number of subsystems to make the design process more efficient

Group 6 Market research Digital Design Fabrication Survey Stakeholder requirements CAD Analysis Buy materials Manufacturing

slide-13
SLIDE 13

We did the calculations for our original design to ensure that it would float and hold our maximum weight

slide-14
SLIDE 14
slide-15
SLIDE 15

After our first design was unsuccessful, we redesigned and redid our calculations for our new prototype

slide-16
SLIDE 16

Prototype

slide-17
SLIDE 17

Our product cost $67 for us to produce

Name Item Cost Number Cost Duct Tape $5 2 $10 PVC Pipe 10 Ft. $11 1 $11 Elbows $2 4 $8 Plywood 48x96 $20 1 $20 Styrofoam 48x96 $18 1 $18 $67

Prototype

slide-18
SLIDE 18

When selling our product for $80 we made a substantial profit

Prototype $67 $67 Bulk discount

  • 10%

$60 Labour / Production +20% $72 Units x1,000 $72,000 Price $80 $80 Units 1,000 $80,000 Revenue $80,000 $80,000 Expenses

  • $72,000
  • $72,000

Profit $8,000

slide-19
SLIDE 19
slide-20
SLIDE 20
slide-21
SLIDE 21

Gantt Chart

slide-22
SLIDE 22

Summary and Conclusions

slide-23
SLIDE 23

References

https://www.bing.com/images/search?view=detailV2&ccid=Uq0H4u3O&id=9BA7BDF00D1556385563A19CF2E56ECC0B092CFA&thid=OIP.Uq0H4u 3OlqW337dMT6AkjgEsDG&q=penn+state+natatorium&simid=608044208459024367&selectedIndex=2&ajaxhist=0 https://www.bing.com/images/search?view=detailV2&ccid=dZzb0JmE&id=AA945E1C0FE70DEC2AE2C1BFAEF889DBB98C64DA&thid=OIP.dZzb0J mEyHuw09HgIrh-fwEsEs&q=comsumer+product+safety+comission&simid=607998514302158732&selectedIndex=0&ajaxhist=0 https://www.bing.com/images/search?view=detailV2&ccid=Zvx7gbNl&id=EADD4DB3E75E7DA741D71EB5596B8D2CE150F983&thid=OIP.Zvx7g bNle9M6KfsJjXGevwEsDk&q=hamster+ball+walk+on+water&simid=608018241059161410&selectedIndex=1 https://www.bing.com/images/search?view=detailV2&ccid=Zw58wdWH&id=A6F8C162F5F23ED0D8E4B5AB40BE90275466CF93&thid=OIP.Zw5 8wdWHpkvRPnB3YSzmZgDiEU&q=money+sign&simid=608046858425337389&selectedIndex=0&ajaxhist=0 https://www.bing.com/images/search?view=detailV2&ccid=jnQ6vBoI&id=02BFBDF950285018383F6C766A7DB9C3EEF0025F&thid=OIP.jnQ6vBoId ZNdl0jZ_v53mQDYEg&q=walk+on+water&simid=608015835888094198&selectedIndex=13&ajaxhist=0 https://www.bing.com/images/search?view=detailV2&ccid=6S%2fu36A4&id=8A81C76D9D2A39C902E75E357C08D5B5AB47126A&thid=OIP.6S_u 36A4pUXG-FIguCijIQEeEs&q=engineering+design+process&simid=608014697767373694&selectedIndex=0&ajaxhist=0

slide-24
SLIDE 24

Questions?
