VRE AT WORK PREPARING VIRGINIA RAILROADING FOR ITS NEXT QUARTER CENTURY T. R. (Tom) Hickey Chief Development Officer VIRGINIA RAILWAY EXPRESS April 4, 2017 VIRGINIA RAILWAY EXPRESS 1 1 TONIGHTS PRESENTATION Introduction

slide-1
SLIDE 1

1

VIRGINIA RAILWAY EXPRESS

1

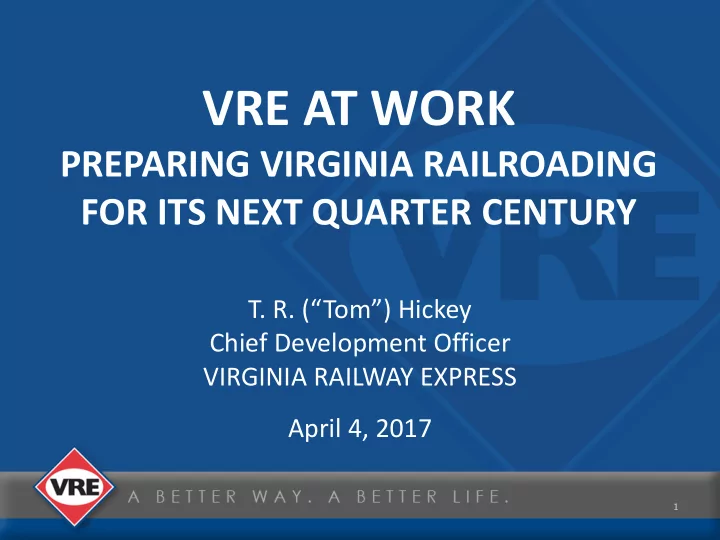

VRE AT WORK

PREPARING VIRGINIA RAILROADING FOR ITS NEXT QUARTER CENTURY

  • T. R. (“Tom”) Hickey

Chief Development Officer VIRGINIA RAILWAY EXPRESS April 4, 2017

slide-2
SLIDE 2

2

VIRGINIA RAILWAY EXPRESS

  • Introduction

‒ Safety Briefing ‒ VRE Overview

  • VRE at Work

‒ System Plan 2040 ‒ Regional Rail ‒ Potomac Crossing (the “8-Mile Bridge”) ‒ Other Corridor Improvements

TONIGHT’S PRESENTATION

slide-3
SLIDE 3

3

VIRGINIA RAILWAY EXPRESS

WHO WE ARE

A commuter rail system

Running on CSXT, NS & Amtrak tracks

Serving Washington DC and Northern Virginia

Carrying long-distance commuters to DC, Arlington & Alexandria

Two lines, 90 miles

Adding peak capacity to I-95, I-395 & I-66 corridors

19,000 daily trips

Commuters that would

  • therwise drive alone in cars
slide-4
SLIDE 4

4

VIRGINIA RAILWAY EXPRESS

  • Virginia Railway Express

is a “joint project” of:

‒ Northern Virginia Transportation Commission ‒ Potomac & Rappahannock Transportation Commission

WHAT WE ARE

slide-5
SLIDE 5

5

VIRGINIA RAILWAY EXPRESS

WHAT WE ARE KNOWN FOR

Safe Operations High Customer Satisfaction Quality Service Reliable Service Strong Partnerships with Host Railroads

slide-6
SLIDE 6

6

VIRGINIA RAILWAY EXPRESS

Origin Ridership Destination Ridership

WHAT WE DO

  • L’Enfant busiest station

– Primary destination – Nearby offices – Metro connections

  • Crystal City, Union Station

& Alexandria – Next three busiest destinations

  • Busiest origin stations are

at the end of lines – Big park-ride lots

  • Most VRE passengers

have a car available!

VIRGINIA RAILWAY EXPRESS

slide-7
SLIDE 7

7

VIRGINIA RAILWAY EXPRESS

VIRGINIA RAILWAY EXPRESS

On a typical weekday VRE draws ridership from 39 Virginia Jurisdictions

Richmond Alexandria Fredericksburg Manassas Charlottesville Winchester

Washington DC

* Source: 2015 Master Agreement Survey

*

slide-8
SLIDE 8

8

VIRGINIA RAILWAY EXPRESS

58% 17% 13% 11% 1% 58%

VRE BUS METRORAIL AUTOMOBILE

OTHER

Peak Hour Trips from Virginia to DC across the 14th Street Bridges

(6:30 to 7:30 AM)

Source: Transportation Planning Board 2013 Central Employment Core Cordon Count

21,934 TOTAL TRIPS

slide-9
SLIDE 9

9

VIRGINIA RAILWAY EXPRESS

HOW WE OPERATE

  • VRE operates on tracks owned

and controlled by our three host railroads: – CSX Transportation – Norfolk Southern Railway – National Railroad Passenger Corporation (Amtrak)

slide-10
SLIDE 10

10

VIRGINIA RAILWAY EXPRESS

VRE OPERATIONS

  • VRE communications center

in Old Town Alexandria – Coordinate station, train, and crew activities – Control customer service announcements and variable message signs – Monitor station safety and security

VIRGINIA RAILWAY EXPRESS

slide-11
SLIDE 11

11

VIRGINIA RAILWAY EXPRESS

VRE ROLLING STOCK

  • 20 MP36PH-3C locomotives

– 3600 hp prime mover – Head-end power equipped – 90 mph top speed – Purchase in 2010-2011

  • 91 gallery-style bi-level

push-pull railcars

– 21 cab cars – 70 trailer cars – 9 more trailer cars on order

  • 2 maintenance & storage yards

– Crossroads (Spotsylvania) – Broad Run (Manassas)

  • Midday storage in DC

VIRGINIA RAILWAY EXPRESS

slide-12
SLIDE 12

12

VIRGINIA RAILWAY EXPRESS

WMATA Metrorail

Used by about 17% of VRE riders Transfers extend the reach of rail

Amtrak Virginia Trains

Step-up fares available Faster ride for longer commutes

MTA/MARC Train Service

Fare Integration Exploring Opportunities for Through Running

REGIONAL COLLABORATION

slide-13
SLIDE 13

13

VIRGINIA RAILWAY EXPRESS

VRE SYSTEM PLAN 2040

A 25-year plan to double VRE ridership

  • A phased approach to growth

– Identifies short-term and long-term priorities – Identifies projects, initiatives, funding, partners – Transition from commuter rail to regional express rail

slide-14
SLIDE 14

14

VIRGINIA RAILWAY EXPRESS

VRE SYSTEM PLAN 2040

Adding rail capacity to grow to 50,000+ daily riders PHASE 1: Run Longer Trains

  • More railcars
  • More station parking
  • More train storage tracks
  • Second & longer platforms

PHASE 2 & 3: Run More Trains Earn additional train slots through capacity improvements

  • Third/fourth tracks on CSXT
  • Long Bridge Corridor

Expansion (“8-mile Bridge)

  • More parking, railcars
  • Manassas Line Capacity

Expansion

‒ Was Gainesville-Haymarket

slide-15
SLIDE 15

15

VIRGINIA RAILWAY EXPRESS

LONGER TRAINS =

LONGER PLATFORMS, MORE AUTO PARKING …AND MORE ‘PARKING’ FOR LONGER TRAINS, TOO

slide-16
SLIDE 16

16

VIRGINIA RAILWAY EXPRESS

  • Service concept based on

Paris’ Réseau Express Régional

– "Regional Express Network"

  • r "RER"

– Integration of rapid transit

  • perating principles into a

commuter rail environment

  • Bi-directional, all day service
  • Less frequent but faster than

journeys than by Metro

– Five Parisian commuter rail lines converted since 1977

REGIONAL RAIL VS. COMMUTER RAIL

slide-17
SLIDE 17

17

VIRGINIA RAILWAY EXPRESS

REGIONAL RAIL VS. COMMUTER RAIL

  • A shift in VRE’s operating model

to more frequent, two-way, all-day service

– A mix of non-stop express and local peak train services – Reverse-peak train service

  • Linking DC residents with

Northern Virginia job markets

– Midday & evening train service

  • North American examples

– SEPTA (Philadelphia) – GO Transit (Toronto) – NJ Transit (New York City) – MTA (New York City) – MBTA (Boston) – Caltrain (San Francisco)

slide-18
SLIDE 18

18

VIRGINIA RAILWAY EXPRESS

VRE CAPITAL IMPROVEMENT PLAN

Six-Year Roadmap for Investment (FY2018- FY2023)

  • Asset Management/SOGR

8 projects – $73 million

  • Passenger Stations

19 projects – $317 million

  • Station Parking

5 projects – $108 million

  • Track & Signal Infrastructure

2 projects – $28 million

  • Maintenance/Storage Facilities

7 projects – $194 million

  • Other Projects

2 projects – $1.1 billion

  • Long Bridge & WPW Co. Extension

Total Six-Year Program: $1.7 billion

including capital reserve, rolling stock, asset management & state-of-good-repair projects

slide-19
SLIDE 19

19

VIRGINIA RAILWAY EXPRESS

OUR PROJECT APPROACH

VRE improves the RF&P corridor through strategic partnerships

  • Pursue a collaborative approach

to corridor/project management

‒ Corridor Improvement Task Force

  • VRE, CSXT & VaDRPT
  • A “VRE” improvement project

may be led by:

‒ VRE ‒ VaDRPT ‒ CSX Transportation ‒ DC Department of Transportation ‒ A jurisdiction or private developer …or any combination thereof

slide-20
SLIDE 20

20

VIRGINIA RAILWAY EXPRESS

OUR FUNDING APPROACH

VRE is a grant funded agency

  • VRE capital projects presently

funded in whole or in part by:

‒ Federal agencies

  • Federal Transit Administration (FTA)
  • Federal Highway Administration (FHwA)

‒ State agencies

  • Virginia Department of Rail & Public

Transportation

  • Virginia Department of Transportation

‒ Regional agencies

  • Northern Virginia Transportation

Authority (NVTA)

‒ VRE Capital Reserve

  • For “last dollar” matches
  • Limited to planning or “system” projects
slide-21
SLIDE 21

21

VIRGINIA RAILWAY EXPRESS

21

RF&P CORRIDOR RECONFIGURATION

Platform-track configuration are key to operational fluidity

Diverging moves rob a corridor of velocity and capacity. Trains must slow for crossing moves. Crossing moves block multiple tracks.

All RF&P Corridor stations south of AF are being reconfigured into side/island combinations

All tracks have access to a station platform. Dispatchers have the flexibility to use any track in the corridor. Fluidity is not lost in diverging moves between tracks.

slide-22
SLIDE 22

22

VIRGINIA RAILWAY EXPRESS

22

Franconia-Springfield ● Lorton ● Rippon ● Quantico ● Brooke ● Leeland Road

RF&P CORRIDOR RECONFIGURATION

Six RF&P stations being converted to side-island configuration.

…plus Potomac Shores

slide-23
SLIDE 23

23

VIRGINIA RAILWAY EXPRESS

23

LONG BRIDGE EXPANSION PROJECT

slide-24
SLIDE 24

24

VIRGINIA RAILWAY EXPRESS

24

Strategic transportation asset for the Eastern Seaboard

Links the North and the South Next crossing 75 miles away in WV

Owned by CSX Transportation Shared by passenger & freight

Typical Weekday Traffic 18 CSXT Freight trains 34 VRE Commuter trains 24 Amtrak trains

CSXT

Freight

24% VRE

Commuter Passenger

45% Amtrak

Intercity Passenger

32%

LONG BRIDGE EXPANSION PROJECT

slide-25
SLIDE 25

25

VIRGINIA RAILWAY EXPRESS

25

LE RO VA

L’Enfant CSX Transportation Amtrak Passenger Station Interlockings Long Bridge Other Bridges

LONG BRIDGE EXPANSION PROJECT

slide-26
SLIDE 26

26

VIRGINIA RAILWAY EXPRESS

26

CSXT RF&P SUBDIVISION Virginia (VA) to AF TOTAL LENGTH: 7.9 miles

Passenger Stations Controlled Points RAILROAD OWNERSHIP CSX Transportation AMTRAK (WTC) Norfolk Southern

The “Eight-Mile Bridge”

POTOMAC CROSSING CORE CAPACITY PROGRAM

slide-27
SLIDE 27

27

VIRGINIA RAILWAY EXPRESS

27

  • Optimize the physical plant to minimize

freight-passenger train conflicts (“fluidity”)

  • Provide redundancy to maintain reliability

during maintenance or disrupted conditions

  • Provide for an equitably balance between

public-private investment in improvements

  • Protect all party’s interests regarding access,
  • perability, and continuing control

C O R R I D O R G O A L S

POTOMAC CROSSING CORE CAPACITY PROGRAM

slide-28
SLIDE 28

28

VIRGINIA RAILWAY EXPRESS

28

Operational fluidity over the “Eight-Mile Bridge” is attained by minimizing diverging or conflicting moves between VA and AF

Freight trains would primarily use Tracks 0 and 1. Train spacing set by movements through the Virginia Avenue Tunnel. Passenger trains would primarily use Tracks 2 and 3. Trains spacing set by movements through the First Street Tunnel.

Track 0 or 1 available if needed for non-stop Amtrak Intercity trains. Extra platform (Track 1) available at Alexandria to absorb delays.

POTOMAC CROSSING CORE CAPACITY PROGRAM

ALEXANDRIA

T O V I R G I N I A A V T U N N E L 3 2 1

CRYSTAL CITY L’ENFANT

L O N G B R I D G E

slide-29
SLIDE 29

29

VIRGINIA RAILWAY EXPRESS

29

L’ENFANT — TEMPORARY STORAGE TRACKS

LE LE VA VA

slide-30
SLIDE 30

30

VIRGINIA RAILWAY EXPRESS

30

Seventh St SW Sixth St SW D St SW Eliminate Ramp New VRE Elevator New VRE Elevator

L’ENFANT STATION — CONCEPT DESIGN

WMATA Main Entrance New WMATA Elevators (2)

  • Key design issues to be resolved in PE:

‒ Encroachment on Hancock Park (Reservation #113) ‒ Highway clearances for new bridges over 6th & 7th Sts SW

slide-31
SLIDE 31

31

VIRGINIA RAILWAY EXPRESS

31

❶ ❷

CRYSTAL CITY STATION — CONCEPT DESIGN

❸

  • Key design issues to be resolved in PE:

‒ Relocate platform between Tracks 2 & 3 ‒ Lengthen platform to 700 feet

slide-32
SLIDE 32

32

VIRGINIA RAILWAY EXPRESS

32

The south end of Option 2 aligns well with pedestrian bridge at Reagan-National Airport

  • 700-foot linear distance
  • Potential impacts on NPS property
  • Bridge or tunnel (by others)

Example of a 850-foot tunnel with moving sidewalks, music and dynamic neon art under the runways at Chicago’s O’Hare Airport

CRYSTAL CITY STATION — CONCEPT DESIGN

slide-33
SLIDE 33

33

VIRGINIA RAILWAY EXPRESS

33

SLATERS LANE / ALEXANDRIA TRACK 1 ACCESS

VIRGINIA RAILWAY EXPRESS

  • New crossover at Slaters Lane

and east platform expansion

  • Provides a third platform track for

VRE & Amtrak trains at Alexandria

‒ 50% increase in passenger train capacity/throughout ‒ NVTA regionally funded project ‒ CSXT completed track and signal design; ordering material

  • Anticipate construction in 2017

‒ Platform design 60% complete

  • Anticipate construction in 2018

AF

slide-34
SLIDE 34

34

VIRGINIA RAILWAY EXPRESS

34

INSERT CONCEPT PLAN HERE

Pedestrian Tunnel Cross-Section

EAST PLATFORM WEST PLATFORM METRO T U N N E L STATION

ALEXANDRIA STATION — CONCEPT DESIGN

Track 1 Track 2 Track 3

slide-35
SLIDE 35

35

VIRGINIA RAILWAY EXPRESS

35

MIDDAY STORAGE REPLACEMENT PROJECT

  • VRE has “temporarily” used

Ivy City Coach Yard since 1992 – Insufficient today

  • Restricts further growth

– Will diminish to zero

  • Agreement allows reduction in

VRE storage starting July 2018

  • WTY Master Plan

– Amtrak & VRE collaboration – VRE storage area needed for new Amtrak HSR trainsets – Amtrak proposed former Hecht Yard site for VRE

  • 5200 feet x 60 feet
  • Replaces storage for 13 trains
slide-36
SLIDE 36

36

VIRGINIA RAILWAY EXPRESS

36

  • 1500-foot connector with underpass

between C-Interlocking and NYASF

  • Adds capacity to Amtrak NE Corridor

‒ Removes 24 peak crossings of the NEC under New York Avenue bottleneck to a new dedicated track for commuter rail

UNION MARKET TRACK

MIDDAY STORAGE REPLACEMENT PROJECT

slide-37
SLIDE 37

37

VIRGINIA RAILWAY EXPRESS

37

D R A F T

Concept Design

INSERT CONCEPT PLAN HERE

LIFECYCLE OVERHAUL & UPGRADE FACILITY

  • Integrated into Crossroad Yard

‒ Replacement storage tracks provide for longer trains

  • 33,500 square-foot maintenance building

‒ Extend lifecycle rolling stock maintenance

slide-38
SLIDE 38

38

VIRGINIA RAILWAY EXPRESS

38

  • T. R. (“Tom”) Hickey

Chief Development Officer 703-838-5428

THICKEY@VRE.ORG
