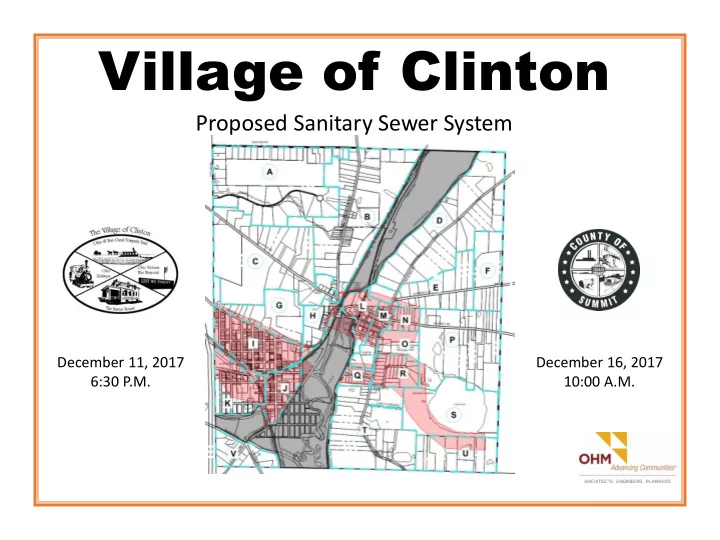

Village of Clinton

Proposed Sanitary Sewer System

December 11, 2017 6:30 P.M. December 16, 2017 10:00 A.M.

WHY ?

• “Hot Spot” Areas
• Health Concerns
• EPA Involvement
• EPA Findings &

Orders ($$)

• Keep Local

Control

• Village / County
• Alternative: EPA

Public Meetings to Date

• Meeting 1 – March 9th, 2016
• Introduction and Background
• Meeting 2 – April 19th, 2016
• Information Investigation and Preliminary Analysis
• Meeting 3 – May 17th, 2016
• Sewer Type Comparison and Preliminary Cost Estimate
• Meeting 4 – September 6th, 2016
• Narrowed System Types and Assessment Method Comparisons
• Meeting 5 – November 15th, 2016
• Provided Engineer’s recommendation for System Type, Assessment Method and Project

Cost Estimate

Village of Clinton

Sanitary Sewer Collection Study Sewer Meeting #1 - March 9th, 2016

Introduction and Background

Project History

• 2010-2011
• Summit County Department of Sanitary Sewer Services:
• Southwest Summit County Wastewater Study (Nov. 2010)
• Southwest Summit County Sanitary Sewer Master Plan (Dec. 2010)
• Southwest Summit County Wastewater Action Plan (Oct. 2011)
• “Hot Spot” Areas Delineated
• Analyzed Gravity Sewer vs. Vacuum Sewers
• Vacuum Sewers - $3.95 Million Assessment Cost
• 2014
• Design for Vacuum sewer is mostly completed
• Public meeting presents the Construction Estimate at $8.06 Million
• 2015
• Village Interviews firms and hires OHM
• Attended SCEIG to review funding options
• Decision made to work cooperatively with the County to find

a fair & equitable solution

• 2016
• Began re-engagement with 5 public meetings

throughout the year

• Reviewed alternative sanitary sewer designs
• Reviewed alternate assessment methods
• Discussed findings with the Village, DSSS, and citizens
• 2017
• Negotiated with Summit County DSSS to finalize

assessment method and discuss DSSS participation

• NOW
• Village & County Councils: Legislation to Proceed

Village of Clinton

Sanitary Sewer Collection Study Sewer Meeting #2 – April 19th, 2016

Information Investigation and Preliminary Analysis

Service Areas Selection

• Service Areas were

divided based on many factors:

• Geography (Land

features, Hills and Valleys, etc.)

• Land Use (i.e. future

development)

• Natural Divides (e.g.

River, Railroad, etc.)

• Project Priority Areas

(i.e. phases)

• Settled on 22

Sections

SERVICE AREA TOTAL AREA (AC) EXISTING PARCELS FUTURE PARCELS TOTAL FUTURE PARCELS EXISTING ZONING ELEVATION (FT.) POSSIBLE SEWER DESIGN LOW HIGH A 217 35 54 89 R1/CON 1000 1185 P,G B 219 45 66 111 R1/CON 955 1005 G,P,V C 213 26 123 149 CON 955 1170 G (P,V) D 200 11 27 38 R1 1000 1085 P E 79 16 6 22 R1/R2 995 1101 G (P,V) F 57 6 30 36 R1 1065 1101 P G 68 16 26 42 CON/R3 990 1017 G (P,V) H 33 19 12 31 R3 955 990 G (P,V) I 83 76 128 204 R3 960 1012 G (P,V) J 35 30 42 72 R3 950 960 G (P,V) K 60 23 4 27 I 948 958 P,V L 31 29 19 48 C1/C2/R3 949 959 P,V M 32 43 5 48 CR/R3 1001 962 G,P,V N 17 18 18 R2 973 999 G (P,V) O 27 2 14 16 R2 960 961 G (P,V) P 157 24 83 107 CON/R1 980 1031 P,V Q 14 22 1 23 R3 946 960 P,V R 35 18 1 19 R2 957 962 G,P,V S 122 69 10 79 CON 945 957 P,V T 161 26 26 52 R2/CON 950 960 P,V (G) U 73 5 40 45 CON 954 1005 P V 38 15 11 26 CON 950 999 G,P,V TOTAL 1971 574 728 1302 POPULATION 1219 1546 2765

Village of Clinton

Sanitary Sewer Collection Study Sewer Meeting #3 – May 17th, 2016

Sewer Type Comparison and Preliminary Cost Estimate

PUBLIC AGENCY COSTS

• Sewer System Costs
• Underground collection system
• Piping, valves, vaults, manholes, pumps, etc.
• Restoration Costs
• Surface repairs and infrastructure repairs
• Yards, driveways, sidewalks, streets, utilities, etc.
• General Contract Costs
• Mobilization, bonding, traffic control, contingencies, etc.
• Long-Term Operation and Maintenance
• Cleaning, jetting, repairs, replacements, power, permitting, etc.

Private Property Owner Costs

• Private Sewer Connection Costs
• Demo and Abandon Existing System
• Connect House System to Public System (at the right-of-way)
• Long-Term Operation and Maintenance costs
• Cleaning, jetting, repairs, replacements, power, etc.

SYSTEM COMPARISONS

VACUUM GRAVITY STEP LOW PRESS. DEPTH OF MAIN VARIES VARIES 5’ 5’ SIZE OF MAIN (Approximate Size) VARIES (4”-10”) VARIES (8”-24”) VARIES (2”-10”) VARIES (3”-10”) VAULT REQUIRED YES NO YES YES OWNER OF VAULT PUBLIC N/A PUBLIC PUBLIC VALVE/PUMP REQUIRED YES NO YES YES OWNER OF VALVE/PUMP PUBLIC N/A PRIVATE PRIVATE POWER REQUIRED NO NO YES YES OWNER OF POWER N/A N/A PRIVATE PRIVATE

Service Areas Public Costs

PRIMARY SECONDARY FUTURE NOT FEASIBLE

Note: Service Area H is included in the primary subtotal for Vac Sewers. Service Areas H and T are included in the primary subtotal for Pressure Sewer.

TOTAL CONNECTION TOTAL CONNECTION TOTAL CONNECTION TOTAL CONNECTION A 40 $ 730,427.20 $ 18,260.68 $ 723,747.20 $ 18,093.68 $ 730,427.20 $ 18,260.68 B 36 $ 564,708.80 $ 15,686.36 $ 587,302.00 $ 16,313.94 $ 591,152.00 $ 16,420.89 $ 587,302.00 $ 16,313.94 C 24 $ 663,752.00 $ 27,656.33 $ 639,168.80 $ 26,632.03 $ 490,068.80 $ 20,419.53 $ 502,488.80 $ 20,937.03 D 12 $ 537,820.00 $ 44,818.33 $ 438,520.00 $ 36,543.33 $ 537,820.00 $ 44,818.33 E 18 $ 339,224.00 $ 18,845.78 $ 353,124.00 $ 19,618.00 $ 305,024.00 $ 16,945.78 $ 304,024.00 $ 16,890.22 F 7 $ 114,400.00 $ 16,342.86 $ 115,400.00 $ 16,485.71 $ 114,400.00 $ 16,342.86 G 21 $ 579,195.80 $ 27,580.75 $ 469,103.80 $ 22,338.28 $ 364,740.80 $ 17,368.61 $ 362,760.80 $ 17,274.32 H 15 $ 579,195.80 $ 38,613.05 $ 248,436.00 $ 16,562.40 $ 270,924.00 $ 18,061.60 $ 267,524.00 $ 17,834.93 I 78 $ 1,178,872.40 $ 15,113.75 $ 1,473,209.20 $ 18,887.30 $ 1,247,568.00 $ 15,994.46 $ 1,230,068.00 $ 15,770.10 J 26 $ 442,737.80 $ 17,028.38 $ 559,802.00 $ 21,530.85 $ 397,694.40 $ 15,295.94 $ 390,604.40 $ 15,023.25 K 19 $ 408,768.40 $ 21,514.13 $ 409,985.60 $ 21,578.19 $ 289,385.60 $ 15,230.82 $ 280,525.60 $ 14,764.51 L 23 $ 529,476.20 $ 23,020.70 $ 629,127.40 $ 27,353.37 $ 495,414.20 $ 21,539.75 $ 487,724.20 $ 21,205.40 M 45 $ 563,179.00 $ 12,515.09 $ 554,170.80 $ 12,314.91 $ 666,724.80 $ 14,816.11 $ 641,994.80 $ 14,266.55 N 19 $ 153,864.00 $ 8,098.11 $ 157,840.80 $ 8,307.41 $ 204,664.00 $ 10,771.79 $ 185,564.00 $ 9,766.53 O N/A N/A N/A N/A N/A N/A N/A N/A P 20 $ 303,931.60 $ 15,196.58 $ 311,041.60 $ 15,552.08 $ 303,931.60 $ 15,196.58 Q 16 $ 117,868.00 $ 7,366.75 $ 200,668.00 $ 12,541.75 $ 166,168.00 $ 10,385.50 $ 148,968.00 $ 9,310.50 R 16 $ 242,181.60 $ 15,136.35 $ 211,302.40 $ 13,206.40 $ 196,662.40 $ 12,291.40 $ 185,022.40 $ 11,563.90 S 68 $ 684,762.40 $ 10,070.04 $ 808,596.00 $ 11,891.12 $ 859,196.00 $ 12,635.24 $ 808,596.00 $ 11,891.12 T 17 $ 470,431.00 $ 27,672.41 $ 515,744.60 $ 30,337.92 $ 416,929.20 $ 24,525.25 $ 389,729.20 $ 22,925.25 U 7 $ 18,000.00 $ 2,571.43 $ 227,038.40 $ 32,434.06 $ 244,698.40 $ 34,956.91 V $ 8,240,926.40 $ 23,817.71 $ 7,752,131.00 $ 23,420.34 $ 6,158,137.40 $ 16,964.57 $ 5,961,147.40 $ 16,421.89 $ 1,567,684.80 $ 20,098.52 $ 2,637,620.80 $ 19,394.27 $ 1,322,617.60 $ 16,328.61 $ 1,309,657.60 $ 16,168.61 $ 470,431.00 $ 27,672.41 $ 1,710,733.40 $ 28,512.22 $ 1,879,374.40 $ 22,643.07 $ 2,015,434.40 $ 24,282.34 $ 9,808,611.20 $ 23,133.52 $ 10,389,751.80 $ 22,247.86 $ 7,480,755.00 $ 16,848.55 $ 7,270,805.00 $ 16,375.69 $ 10,279,042.20 $ 23,308.49 $ 12,100,485.20 $ 22,961.07 $ 9,360,129.40 $ 17,761.16 $ 9,286,239.40 $ 17,620.95 PRIMARY SUBTOTAL SECONDARY SUBTOTAL FUTURE SUBTOTAL P.S. & F.M. PRIMARY + SECONDARY VILLAGE TOTAL Service Area Connections

GRAVITY SEWER STEP SEWER LOW PRESSURE SEWER

N/A N/A N/A N/A N/A N/A

VACUUM SEWER

PROPOSED SERVICE AREAS

$ 2,760,825.00 $ 2,578,325.00 $ 582,066.00 $ 582,066.00 N/A N/A N/A

CAUTION:

• Preliminary cost estimate prior to detailed design
• These costs are subject to change
• Based upon engineering assumptions
• Prices could go down:
• Commercial/Industrial Connections
• Sharing Connections
• Trench relocations/Installation method
• Prices could go up:
• Upsizing pipes for future flows
• Material & Labor Costs/Inflation
• Unforeseen Conditions/Underground Issues

Village of Clinton

Sanitary Sewer Collection Study Sewer Meeting #4 – September 6th, 2016

Narrowed System Types and Assessment Method Comparisons

Narrowing the System Types

VACUUM GRAVITY STEP LOW PRESS. DEPTH OF MAIN VARIES VARIES 5’ 5’ SIZE OF MAIN (Approximate Size) VARIES (4”-10”) VARIES (8”-24”) VARIES (2”-10”) VARIES (3”-10”) VAULT REQUIRED YES NO YES YES OWNER OF VAULT PUBLIC N/A PUBLIC PUBLIC VALVE/PUMP REQUIRED YES NO YES YES OWNER OF VALVE/PUMP PUBLIC N/A PRIVATE PRIVATE POWER REQUIRED NO NO YES YES OWNER OF POWER N/A N/A PRIVATE PRIVATE WHY REMOVE STEP AND GRAVITY?

Gravity

• Expensive
• Topography Issues
• Deep Pipe (increased

disturbance)

• Need for lift stations
• Still need Low Pressure in

some areas

• Future Development
• Upsizing now might not

meet existing requirements (i.e. pipe velocity)

• Extra cost for upsizing that

may not be needed

STEP

• County does not want to

maintain the system

• Filter Cleaning
• Septic Tank Pumping
• Pump Replacement
• Cleaning filter is not

environmentally friendly

• Some people may require

additional pumping from the house to the R/W.

• Extra storage capacity is

not as important on well water systems

Vacuum Sewers

Pros

• Already Designed
• Completely maintained

by the County

• Continues working

during power outage

• Don’t pay for electrical
• Vacuum station can be

split and moved away from downtown

Cons

• Higher Construction

Cost

• Must be installed at

right-of-way

• May require pumping

from house

• Higher Sewer Rates

Low Pressure Sewer

Pros

• Can be located

anywhere on the Property

• Cheaper Construction

Cost

• Lower Sewer Rates
• No need for utility

stations in town

Cons

• Will need to pay for

redesign

• Existing Design

Modification

• All equipment

maintained by the homeowner

• Pump (5-10 yrs)
• Tank (30+ yrs)
• Electrical Panel
• Will not work without

power

Service Areas Public Costs

TOTAL CONNECTION TOTAL CONNECTION G 15 $ 223,344.80 $ 14,889.65 $ 331,160.80 $ 22,077.39 H 21 $ 603,595.80 $ 28,742.66 $ 299,124.00 $ 14,244.00 I 75 $ 1,216,172.40 $ 16,215.63 $ 1,214,268.00 $ 16,190.24 J 32 $ 473,787.80 $ 14,805.87 $ 423,004.40 $ 13,218.89 K 24 $ 402,518.40 $ 16,771.60 $ 307,325.60 $ 12,805.23 L 27 $ 541,576.20 $ 20,058.38 $ 508,924.20 $ 18,849.04 M 44 $ 551,079.00 $ 12,524.52 $ 637,194.80 $ 14,481.70 N 19 $ 153,864.00 $ 8,098.11 $ 185,564.00 $ 9,766.53 Q 17 $ 124,118.00 $ 7,301.06 $ 154,368.00 $ 9,080.47 R 23 $ 229,481.60 $ 9,977.46 $ 221,422.40 $ 9,627.06 S 68 $ 684,762.40 $ 10,070.04 $ 808,596.00 $ 11,891.12 T 29 $ 463,981.00 $ 15,999.34 $ 453,129.20 $ 15,625.14 $ 8,429,106.40 $ 21,393.67 $ 6,126,147.40 $ 15,548.60 PRIMARY SUBTOTAL (389 Services) P.S. & F.M.

VACUUM SEWER

PROPOSED SERVICE AREAS

$ 2,760,825.00 $ 582,066.00 Service Area Connections

LOW PRESSURE SEWER

Gravity Lateral to Vacuum Grinder Lat to Vacuum Low Pressure Private Assessment $21,394 $21,394 $15,549 Lateral $3,5002,3 $3,0002 $2,000 Electrical Installation $0 $1,000 $1,000 Electricity (.5hr/day)1 $0 $544 $544 Pump REPLACEMENT $0 $1,0004 $7504 TOTAL $24,894 $26,938 $19,843

ESTIMATED 20 YEAR COST

• 1. All pumps run 1/2 hour per day @ $0.10 per kWh
• 2. Vacuum laterals cost more due to added length needed to run lateral to the intersection of the property line and R/W.
• 3. Gravity Laterals cost more due to increased lateral diameter.
• 4. Grinder Pumps are 2 HP, $250, and 5 yr lifespan (first pump included in assessment).

CHOOSING THE RIGHT ASSESSMENT FOR CLINTON

• What makes a good assessment?
• Is it fair?
• Ensure that everyone being assessed is pay the proper share of

their project.

• Is it defendable?
• The method should be able to stand up in court.
• Does it account for unusual circumstances?
• People with unique properties (e.g. flag lots, shared parcels,

HOA ownership, etc.) should pay a fair portion of the assessment.

• Does it account for future development?
• People building after sewer construction should still pay for

their portion of the project.

THE CHALLENGES…

• Clinton has VERY unique and diverse property
• wnership.
• Flag Lots
• Lots of area, very little frontage
• Shallow Lots
• Lots of frontage, very little area
• Paper Streets
• Very small parcels (many are shared by one home)
• Many parcels are unlikely to develop
• Luna Lake
• One Parcel, many houses, very little frontage

The Original Assessment

• Based and weighted on 5 criteria
• Frontage (5%)
• Area (5%)
• Land Value (25%)
• Parcel Connection (60%)
• Zoning (5%)
• Vacant lots were assessed as if they were

developed

Method Analysis

• Chose a small representative group of properties
• Ran multiple scenarios to see change across

properties

• Fair distribution was more significant than actual cost
• 4 Scenarios were run and modified
• Modified Summit County Assessment (land value and

zoning) removed

• Stark County Codified Ordinance
• Stark County modified for acreage instead of frontage
• Land Value Appreciation with connection

Summary of Assessment Methods

No. Parcel Original Summit County Modified Summit County Stark County Modified Stark County Land Value Only 1 2701096 $25,194 $23,012 $47,377 $23,905 $22,237 2 2701084 $14,538 $20,102 $14,993 $21,344 $20,422 3 2701665 $42,497 $8,381 $2,699 $35,004 $6,780 4 2700107 $17,615 $20,572 $22,189 $21,344 $21,157 5 2700348 $15,956 $20,599 $14,993 $34,150 $20,698 6 2700349 7 2700350 8 2700351 9 2700129 $18,580 $21,616 $38,382 $21,344 $21,202 10 2701425 $23,515 $8,924 $18,441 $22,198 $2,418 11 2700175 $20,267 $24,486 $97,753 $21,344 $21,067 12 2701832 $15,732 $20,599 $23,988 $21,344 $20,632 13 2700563 $1,025,790 $1,364,791 $1,019,510 $1,316,489 $1,385,362 ($13,862) ($20,070) ($14,993) ($17,790) ($20,373) 14 2701550 $29,413 $32,720 $261,474 $21,344 $23,702 15 2701537 $20,154 $21,578 $16,792 $23,905 $21,037

Recommendations

• A land value based approach appears to work best
• Does not single out unique properties
• Frontage/acreage doesn’t matter
• Vacant land is still accounted for (through value

appreciation) but not charged extra for a connection they may never get

• Future development can be incorporated into Connection Cost

(i.e. tap-in fees)

• Majority of cost is in the connection

Challenges

• Estimating property appreciation
• May need to hire appraiser (defendable)
• County must assume a portion of upfront cost in
• rder to make future tap-in fees balance over time
• A good compromise (residents can get a discount and

the county can return on investment)

• Clinton must estimate future growth over the next 20

years to a confident degree of accuracy

• Actual numbers have yet to be negotiated with the

county

Village of Clinton

Sanitary Sewer Collection Study Meeting #5 – November 15th, 2016

Provided Engineer’s recommendation for System Type, Assessment Method and Project Cost Estimate

Engineer’s Recommendation: Low Pressure Sewer

Project Cost Estimate

Low Pressure Sewer Vacuum Sewer Construction Cost $6,330,664 $8,671,000 Estimated Design Cost 7% 7% Inspection & Testing 5% 5% Bidding/Legal/Interest 3% 3% AVERAGE OWNER COST $15,500 $18,500

What is included in construction? What is the property owner responsibility?

TOTAL PROJECT COST PER PROPERTY

• GOAL:
• Affordable
• Fair & Equitable
• Two Part Assessment

Criteria

• 1. Land Value
• 10% of Land Value (Vacant
• r Occupied)
• 2. Connection Cost
• Connecting to the Public

Sewer

Engineer’s Recommendation:

Assessment

Assessment Cost

A Construction Cost $6,330,664 B Design Cost (7%) $443,147 C County Share (-2%) $135,476 D Assessment Cost A+B-C $6,638,335

Land Value Cost (LVC)

E LVC Rate 10.00% F Total LVC Cost $864,272 G Remaining Cost D - F $5,774,063

Connection Cost

H Total Connection Cost G $5,774,063 I Present Non-exempt Connections 393 J Future Growth Rate (± 3 Homes per Yr) 15% K Future Non-exempt Connections I + J 452 L Unit Connection Cost G ÷ K $12,774 M Present Total Connection cost I * L $5,020,369 N Cost to Present Owners M + F $5,884,641 P Outstanding Balance (County?) D - N $753,694

What’s Changed?

Primary Area Assessment Cost 475 Future Connections

A Construction Cost (2017 Cost) $6,377,235 B Design Cost $446,406 C Construction Administration (6%) $382,634 D Legal (2%) $127,545 E Assessment Cost $7,333,820

Outside Funding

F Summit County DSSS Contribution $922,869

Land Value Charge (LVC)

G LVC Rate 10.00% H Total LVC Charge $887,306 I Remaining Cost E-F-H $5,523,645

Tap Charge

J Total Tap Charge I $5,523,645 K Present Non-exempt Taps 407 L Future Growth Rate (20Yr) 17% M Future Non-exempt Taps K + L 475 N Unit Tap-in Charge J ÷ M $11,628.73

PROJECT COSTS

2017 DOLLARS SHOWN ADD +/- 3%/YEAR FOR INFLATION. $7,333,820 TOTAL COSTS $ (922,869) COUNTY FUNDING $6,410,951 TOTAL ASSESSED $6,410,951 TOTAL ASSESSED $ (887,306) 10% LAND VALUE $5,523,645 TOTAL TAP CHARGE @ 475 CONNECTIONS (TAPS) $ 11,629 PER CONNECTION $ LAND VALUE CHARGE (10%) $ SEE MAP TOTAL TAP CHARGE INTERACTIVE GIS MAP http://arcg.is/0my8ay

FACT SHEET

PROJECT SCHEDULE

2017 PUBLIC MEETINGS @ VILLAGE 2018 VILLAGE & COUNTY LEGISLATION 2018 ENGINEERING DESIGN 2019 CONSTRUCTION 2020 CONSTRUCTION 2021 ASSESSMENT TO TAXES (20 YRS)

CONNECTION SCHEDULE

2020 - 2022 VOLUNTARY CONNECTIONS 2023 HEALTH DEPT INSPECTIONS 2025 MANDATORY CONNECTIONS VOLUNTARY CONNECTIONS WILL BE ABLE TO ASSESS PRIVATE CONNECTION COSTS TO THEIR TAXES – PAYABLE OVER 10 YEARS. HEALTH DEPT INSPECTIONS WILL ALLOW GOOD WORKING HSTS TO REMAIN.
