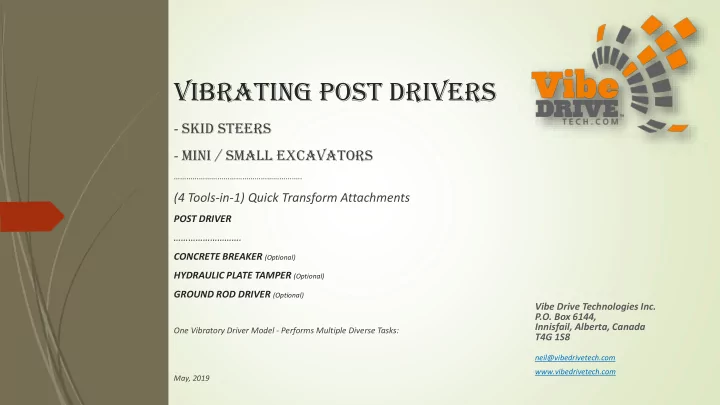

VIBRATING POST DRIVERS

• SKID STEERS
• MINI / SMALL EXCAVATORS

……………………………………………………..

(4 Tools-in-1) Quick Transform Attachments

POST DRIVER ………………………. CONCRETE BREAKER (Optional) HYDRAULIC PLATE TAMPER (Optional) GROUND ROD DRIVER (Optional)

One Vibratory Driver Model - Performs Multiple Diverse Tasks:

May, 2019

Vibe Drive Technologies Inc. P.O. Box 6144, Innisfail, Alberta, Canada T4G 1S8

neil@vibedrivetech.com www.vibedrivetech.com

Model l 120-SS SS

Vibrating Post Driver / Skid Steers

 “Safe” – Easy to Operate, Uses “Non-Violent” Vibration  No Dangerous Cycling Hammer  Vibration does not Transfer to Machine  1 - Post Driver - Wood / Steel Posts (Sched 40) / I Beams / T Posts etc - 2” to 6” (+)

 ……………………………..

 2 – Concrete Breaker … Quick Attach (Optional)  3 - Hydraulic Plate Tamper … Quick Attach (Optional)  4 - Ground Rod Driver … Quick Attach (Optional) > see page 4  We Custom Build for Hydraulic Flow Rates from 11 gpm up to 35 gpm  Post Lengths up to 11 ½ ‘ (ish)  Low Maintenance – 2 Grease Points – Grease 5 Shots / 1 x Week Only  Light Weight – only 500lbs  On Multi-Unit Orders: Will Powder Coat to your Colors when possible  * Please Note – The Concrete Breaker and Hydraulic Plate Tamper are not intended to replace much more expensive purpose built tools, these units are designed for lighter duty smaller jobs ie; breaking up and/or tamping garage pads, sidewalk sections etc.

Model el 120-LS LS (Left Shift)

Vibrating Post Driver / Skid Steers

Vibrator is Mounted to the Extreme Left Side ………… Some Clients prefer this Design

 “Safe” – Easy to Operate, Uses “Non-Violent” Vibration  No Dangerous Cycling Hammer  Vibration does not Transfer to Machine  Wood / Steel Posts (Sched 40) / I Beams / T Posts etc - 2” to 6” (+)  We Custom Build for Hydraulic Flow Rates from 11 gpm up to 35 gpm  Post Lengths up to 11 ½ ‘ (ish)  Low Maintenance – 2 Grease Points – Grease 5 Shots / 1 x Week Only  Weight – only 700lbs  On Multi-Unit Orders: Will Powder Coat to your Colors when possible

Model l 120-MX MX

Vibrating Post Driver / Small Excavators

 “Safe” – Easy to Operate, Uses “Non-Violent” Vibration  No Dangerous Cycling Hammer  Vibration does not Transfer to Machine  1 – Post Driver - Wood / Steel Posts (Sched 40) / I Beams / T Posts etc - 2” to 6” (+)

 ……………………………

 2 - Concrete Breaker … Quick Attach (Optional)  3 - Hydraulic Plate Tamper … Quick Attach (Optional)  4 - Ground Rod Driver … Quick Attach (Optional) > see page 4  We Custom Build for Hydraulic Flow Rates from 11 gpm and up to 35 gpm  Low Maintenance – 2 Grease Points – Grease 5 Shots / 1 x Week Only  Light Weight – only 500lbs – Can be Reduced to 350 lbs. for “Mini” Excavators”  On Multi-Unit Orders: Will Powder Coat to your Colors when possible  Will Adapt to any type of Mini / Small Excavator “Adapter Bracket / Ears”

 * Please Note – The Concrete Breaker and Hydraulic Plate Tamper are not intended to replace much more expensive purpose-built tools, these units are designed for lighter duty smaller jobs ie; breaking up and/or tamping garage pads, sidewalk sections etc.

Low-Profile Ground Rod Drivers

…. Designed for the Utilities Industry Clients

Enhanced view of Attachments

 Post Driver / (Post Caps come in Several Sizes)  ………………………………………..  Concrete Breaker (Optional)  Hydraulic Plate Tamper (Optional)  Ground Rod Driver (Optional)  ………………………………….  Durable – High Quality  Takes Approximately 5 Minutes to Change from 1 Tool Attachment to Another  All units are “Powder Coated”

 * Please Note – The Concrete Breaker and Hydraulic Plate Tamper are not intended to replace much more expensive purpose-built tools, these units are designed for lighter duty smaller jobs ie; breaking up and/or tamping garage pads, sidewalk sections etc.

240 SerieS PoSt DriverS ……..

 “Safe” – Easy to Operate, Uses “Non-Violent” Vibration  No Dangerous Cycling Hammer  Vibration does not Transfer to Machine  Perfect for Steel Posts / I Beams / T Posts etc - 2” to 6” (+)  Works great for Smaller Diameter Wood - 2” to 5” (+)  Post Lengths to 18 feet (+)  Requires Hydraulics and Electrical Connects  Low Maintenance – 2 Grease Points – Grease 5 Shots / 1 x Week Only  Weight – 1400lbs  3 Models - “Forward” / “Center Left” / “Full Left Shift”  On Multi-Unit Orders: Will Powder Coat to your Colors when possible

Vibe Drive Units Hard at Work

BreiF SUMMArY …….

Vibe Drive Technologies Inc. has always strived to build “Quality” Vibratory Post Drivers. We are now focusing our energies on designing some of our models to be “Multi-Functional”. As a part of our product offering; We now offer our clients rugged and durable “niche” (4 tools-in-1) that may fit nicely into your business model thus increasing your potential return on investment moving forward. Purchase 1 Vibratory Post Driver Model ………. Have the Ability to Perform Multiple and Diverse Jobs !! ✓ Post Driver – Steel or Wood, I Beams / T Posts etc

✓ …………………….

✓ Concrete Breaker .. Quick Attach (Optional) ✓ Hydraulic Plate Tamper .. Quick Attach (Optional) ✓ Ground Rod Driver .. Quick Attach (Optional) Our Units are; ✓ Safe to Operate (uses Vibration only) ✓ Easy for the General Public to understand and use ✓ Low Maintenance / Built Intentionally Rugged ✓ Versatile

*Please Note – The Concrete Breaker and Hydraulic Plate Tamper are not designed or even intended to replace much more expensive purpose-built tools. These units are designed (and priced) for lighter duty smaller jobs ie; breaking up and/or tamping garage pads, sidewalk sections etc.

For More Information, Please Contact Me at Your Convenience …………. Neil Montgomery, President, Vibe Drive Technologies Inc., Alberta, Canada neil@vibedrivetech.com
