VERITAS Discovery of VHE Gamma Rays from the Starburst Galaxy M82 Niklas Karlsson for the VERITAS collaboration Astronomy Dep., Adler Planetarium (Chicago) The 2009 Fermi Symposium - Washington, D.C. - 2-5 Nov 2009 VERITAS Very Energetic

slide-1

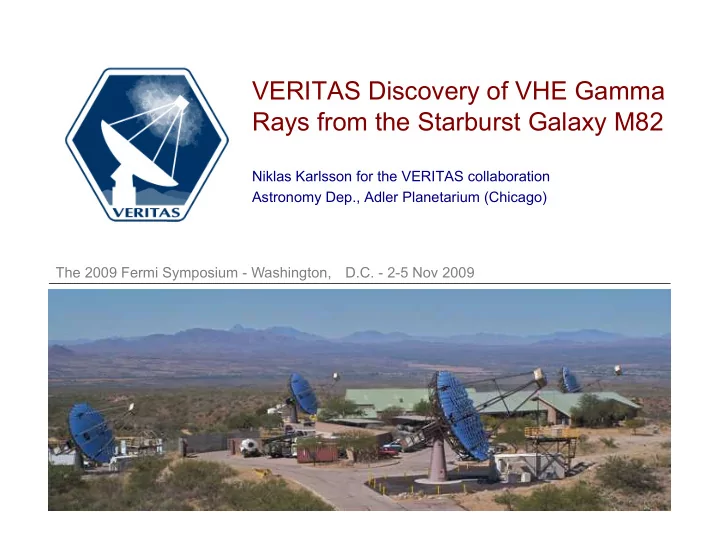

SLIDE 1

The 2009 Fermi Symposium - Washington, D.C. - 2-5 Nov 2009

VERITAS Discovery of VHE Gamma Rays from the Starburst Galaxy M82

Niklas Karlsson for the VERITAS collaboration Astronomy Dep., Adler Planetarium (Chicago)

slide-2
SLIDE 2

Niklas Karlsson - The 2009 Fermi Symposium (4 Nov 2009) 2

VERITAS

Very Energetic Radiation Imaging Telescope Array System

  • Mt. Hopkins, AZ
  • 1268 m a.s.l.
  • Four 12m telescopes
  • f/D~1.0
  • 350 mirrors; ~110m2
  • 499 pixel cameras
  • 3.5° FOV
  • 3-level trigger system
  • ~250 Hz rate

T2 T1 T3 T4 Moved T1 in summer 2009

  • Energy threshold ~150 GeV
  • Sensitivity 1% Crab (5σ) in < 50h
  • Angular resolution <0.1° (r68%)
  • Energy resolution ~15%

Currently the most sensitive array 30% improvement in integral flux sensitivity above 300 GeV

See Perkins et al. poster “VERITAS Telescope 1 Relocation”

slide-3
SLIDE 3

Niklas Karlsson - The 2009 Fermi Symposium (4 Nov 2009) 3

Origin of Cosmic Rays

  • Existence well established near Earth
  • First evidence in 1912 (Hess)
  • But the origin has eluded us for 100+ years!
  • Diffuse γ-rays from the Milky Way
  • Interpreted as mainly coming from CRs

interacting with interstellar gas

  • CRs + ISM → π0 → γ-rays
  • electrons + ambient photons → γ-rays
  • Where are these CRs accelerated?
  • Supernova remnants
  • Massive star winds
  • Can we look elsewhere for more

evidence?

  • LMC - nearby, observed with EGRET and

Fermi-LAT

  • Other galaxies

H.E.S.S. RX J1713

slide-4
SLIDE 4

Niklas Karlsson - The 2009 Fermi Symposium (4 Nov 2009) 4

Why Starburst Galaxies?

  • Starbursts activity induced by galaxy interactions/mergers
  • Strong tidal forces
  • Active star-forming regions
  • Leads to high gas densities & star formation rates
  • High supernova rate
  • Shocks from massive star winds and supernovas
  • Enhanced cosmic-ray flux ⇒ enhanced gamma-ray flux
  • Requirements for good candidates
  • Distance - nearby
  • High CR density
  • Measure via synchrotron emission in radio frequencies
  • High mean gas densities
  • Form far infrared (FIR) emission
  • Modeling
  • M82 (Persic et al. 2008)
  • NGC 253 (Domingo-Santamaria et al. 2005)
slide-5
SLIDE 5

Niklas Karlsson - The 2009 Fermi Symposium (4 Nov 2009) 5

M82 - prototypical starburst

  • Among the closest starbursts
  • Core starburst region
  • SF rate ~10x Milky Way
  • SN rate ~0.1/yr
  • CR density ~100x Milky Way
  • Inferred from synchrotron emission
  • Gas density ~150 cm-3
  • Weak upper limits from previous

generation observatories

  • EGRET (HE)
  • HEGRA & Whipple (VHE)
  • flux <10% Crab

NASA, ESA, The Hubble Heritage Team, (STScI / AURA) Chandra

slide-6
SLIDE 6

Niklas Karlsson - The 2009 Fermi Symposium (4 Nov 2009) 6

VERITAS Discovery

  • M82 observed 2007-2009
  • Quality selection (weather etc.)
  • ~137 h live time (deepest VERITAS

exposure to date)

  • Standard VERITAS analysis
  • Std. practice to use 3 sets of cuts
  • Theoretical prediction of a hard spectrum
  • Expect a hard cut to be the best
  • Cuts a priori optimized using Crab data at

θ ≈ 40°

  • Eth ≈ 700 GeV (lower sensitivity at

θ ≈ 40°)

  • Point-like excess of 91 γ ⇒ 5.0σ
  • 4.8σ post-trials significance
  • The results are now published in Nature
  • nline.

θ2 [deg] Events

slide-7
SLIDE 7

Niklas Karlsson - The 2009 Fermi Symposium (4 Nov 2009) 7

M82: Steady VHE γ-ray Source

  • One of the weakest VHE γ-ray

sources ever detected

  • 0.9% of the Crab Nebula

(E>700 GeV)

  • 0.6 γ/hour
  • Cumulative excess consistent

with a steady flux

  • Lightcurve is consistent with no

monthly variation

  • χ2=11.5 with 9 d.o.f.
  • P(χ2)=0.24
slide-8
SLIDE 8

Niklas Karlsson - The 2009 Fermi Symposium (4 Nov 2009) 8

VHE γ-ray Spectrum of M82

  • Energy range 875 GeV to 5 TeV
  • Power-law fit
  • dN/dE∝(E/TeV)-Γ
  • Γ = 2.6±0.6
  • Close to model predictions
  • Pohl (1994)
  • Völk et al. (1996)
  • Persic et al. (2008)
  • de Cea del Pozo et al.(2009)

VERITAS spectrum Model of Persic et al. (2008)

slide-9
SLIDE 9

Niklas Karlsson - The 2009 Fermi Symposium (4 Nov 2009) 9

Interpretation

Hadronic channel

  • CR ions + matter → π
  • π → γ and sec. electrons
  • Secondary electron emit

synchrotron radiation

  • Radio frequency 32 GHz
  • Constrain γ-ray flux from CRs at 20

GeV

  • Extrapolated VERITAS spectrum

gives ~2x too high flux

  • Γ = 2.3 ok though
  • Spectrum is harder at Fermi-LAT

energies OR VHE flux not predominantly from CR ions

Leptonic channel

  • Inverse Compton scattering
  • CR electrons + photons → X-rays

and γ rays

  • Use non-thermal X-ray emission to

constrain the electron population

  • Lower limit on magnetic field (8 nT)
  • Upper limit on absolute number of

electrons at about 1 GeV

  • But 10 TeV electrons required for

VHE gamma rays

  • Theory predicts Γ = 2.0 in the 100

keV to 100 GeV energy band

  • Steepening of IC spectrum and a

cut off at some energy due to cooling

slide-10
SLIDE 10

Niklas Karlsson - The 2009 Fermi Symposium (4 Nov 2009) 10

Summary

  • VERITAS has discovered VHE γ-ray emission from M82
  • 91 γ’s in 137 h of quality-selected live time
  • Post-trial significance is 4.8σ
  • Steady flux F(E>700 GeV)=(3.7±0.8stat±0.7syst) ×10-13 cm-2s-1
  • Luminosity is ~2 ×1032 W; approx. 0.03% of the optical luminosity
  • Weakest VERITAS source to date
  • First clear detection of VHE gamma rays from an

extragalactic object of non-AGN type

  • Hard spectrum source
  • Γ = 2.6±0.6
slide-11
SLIDE 11

Niklas Karlsson - The 2009 Fermi Symposium (4 Nov 2009) 11

Systematics Checks

  • All hardware operating normally, no moonlight data & dark NSB region
  • “Hard cuts”: Enormous images (>200 PE); bright star effects mitigated; very low

background (S/N ~ 1/3)

  • Result verified (5.2σ) by independent analysis/calibration/simulation package(s)
  • Alternate background estimation: Ring method => 5.1σ on-source
  • Also ~5σ using a binned maximum-likelihood method
  • Reflected-region BG method always has 11 off-source regions
  • Significance distribution is Gaussian (mean 0, σ = 1)
  • No bias in long data set: Stack extragalactic non-blazar data
  • With the same analysis: Combined excess of -4 events (-0.2σ) in ~121 h of live-time (no

moonlight data)

  • Not due to brightness of M 82 (V=9.3) when integrated over its extent => V ~ 8.2
  • Two V < 9 stars in FOV: Excesses of 1.1σ & 0.8σ at their locations (>0.7º from M 82)
  • Not due to dodgy behavior in a telescope: Signal still present when each telescope is

individually excluded

slide-12
SLIDE 12

Niklas Karlsson - The 2009 Fermi Symposium (4 Nov 2009) 12

Backup slides

slide-13
SLIDE 13

Niklas Karlsson - The 2009 Fermi Symposium (4 Nov 2009) 13

VERITAS After the move

T2 T1 T3 T4

slide-14
SLIDE 14

Niklas Karlsson - The 2009 Fermi Symposium (4 Nov 2009) 14

Improved Sensitivity
