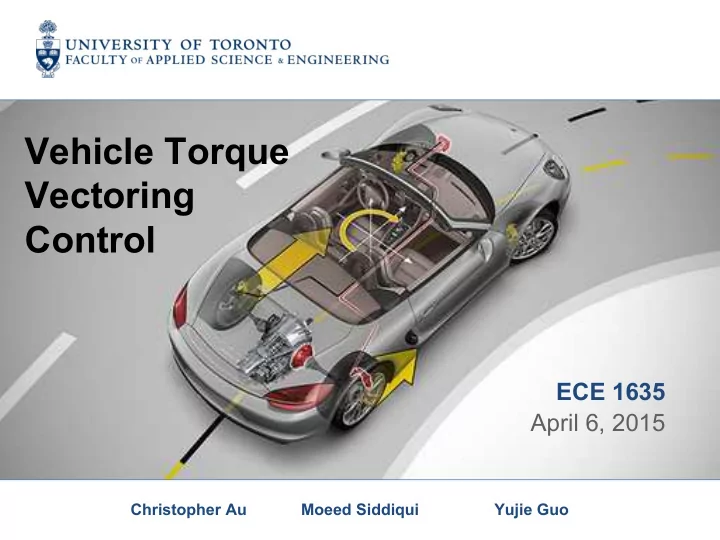

SLIDE 1
Vehicle Torque Vectoring Control
ECE 1635 April 6, 2015
Christopher Au Moeed Siddiqui Yujie Guo
Agenda
Background Plant Controller Simulation Results
April 2015 Modern Control - Vehicle Torque Vectoring 2
Vehicle Torque Vectoring Control ECE 1635 April 6, 2015 - - PowerPoint PPT Presentation
Vehicle Torque Vectoring Control ECE 1635 April 6, 2015 - - PowerPoint PPT Presentation
Vehicle Torque Vectoring Control ECE 1635 April 6, 2015 Christopher Au Moeed Siddiqui Yujie Guo Agenda Background Plant Controller Simulation Results April 2015 Modern Control - Vehicle Torque Vectoring 2 Background Two types
SLIDE 2
SLIDE 3
Background
- Two types of undesirable vehicle steering dynamics
○ Understeer ○ Oversteer
3 Modern Control - Vehicle Torque Vectoring April 2015
- TV Advantages:
○ Improved handling ○ Traction when turning ○ Better overall performance in poor road conditions
SLIDE 4
Plant Model
4 Modern Control - Vehicle Torque Vectoring April 2015
SLIDE 5
Plant: Mathematical Models
5 Modern Control - Vehicle Torque Vectoring April 2015
Vehicle Motion Model： Reference Model：
SLIDE 6
Plant: Simulation Parameters
6 Modern Control - Vehicle Torque Vectoring April 2015
SLIDE 7
Controller - State Feedback
Full State Feedback Controller With Integral Action:
- Controllable system
- Pole placement using Matlab
Controllability Matrix: Control Law: Closed Loop System:
7 Modern Control - Vehicle Torque Vectoring April 2015
Block Diagram for Full State Feedback Controller /with Integral Action
SLIDE 8
Controller - State Feedback
Tuning Full State Feedback Controller With Integral Action: Tuning Parameters: Step Response: Close Loop Bode Diagram:
8 Modern Control - Vehicle Torque Vectoring April 2015
SLIDE 9
Controller - Sliding Mode
Sliding Mode Controller
- Discontinuous control signal
- Adds robustness to the closed-loop system
9 Modern Control - Vehicle Torque Vectoring April 2015
Smoothed Error: Control Law:
SLIDE 10
Controller - Sliding Mode
Consider the Lyapunov candidate function:
10 Modern Control - Vehicle Torque Vectoring April 2015
Choose design parameter:
SLIDE 11
Simulation - HIL Setup
- HIL DEMO
11 Modern Control - Vehicle Torque Vectoring April 2015
Steering Input Vehicle Yaw Rate
SLIDE 12
Simulation - HIL Problems
- To resolve controller instability when using HIL:
○ Increased sampling period in Labview ○ Eliminated dead zone when motor changes direction ○ Added scaling to PD controller to replicate gearing ○ More aggressive LPF
12 Modern Control - Vehicle Torque Vectoring April 2015
Motor speed PD controller
SLIDE 13
Simulation Results - State Feedback
- State Feedback Controller Performance
○ approximate 0 steady state error ○ 1 sec delay during transients ○ maximum torque range -400N/m to +400N/m
13 Modern Control - Vehicle Torque Vectoring April 2015
Steering Input Yaw Rate Torque Transfer
SLIDE 14
Simulation Results - Sliding Mode Control
- 0% ss error
- 0.5 second delay
14 Modern Control - Vehicle Torque Vectoring April 2015
SLIDE 15
Controller Comparison
15 Modern Control - Vehicle Torque Vectoring April 2015
SLIDE 16
Controller Simulation Video
16 Modern Control - Vehicle Torque Vectoring April 2015
SLIDE 17
3DOF Bicycle Model
17 Modern Control - Vehicle Torque Vectoring April 2015
Distance and Angle Matrix: Velocity Matrix:
SLIDE 18
Conclusion
- Two controllers were design to implement torque
vectoring ○ State feedback based on an augmented plant ○ Nonlinear sliding mode controller
- HIL simulation in Labview
○ Results show that sliding mode performs better
- Recommendations
○ Kalman Filter ○ Feedforward controller ○ Adaptive controller
18 Modern Control - Vehicle Torque Vectoring April 2015
SLIDE 19
Thank You
Questions?
19 Modern Control - Vehicle Torque Vectoring April 2015
SLIDE 20
References
[1] DSC CONTROL. (2012). Retrieved March 30, 2015, from http://madstyle1972.com/MAZDA6_2014/servicehighlights/books/n6w04/html/id041500103900.html [2] Burgess, M. Torque vectoring. Retrieved March 17, 2015, from http://www.vehicledynamicsinternational.com/downloads/VDI_Lotus_Vector.pdf [3] NAGAI, M., HIRANO, Y., & YAMANAKA, S. (2007). Integrated Control of Active Rear Wheel Steering and Direct Yaw Moment
