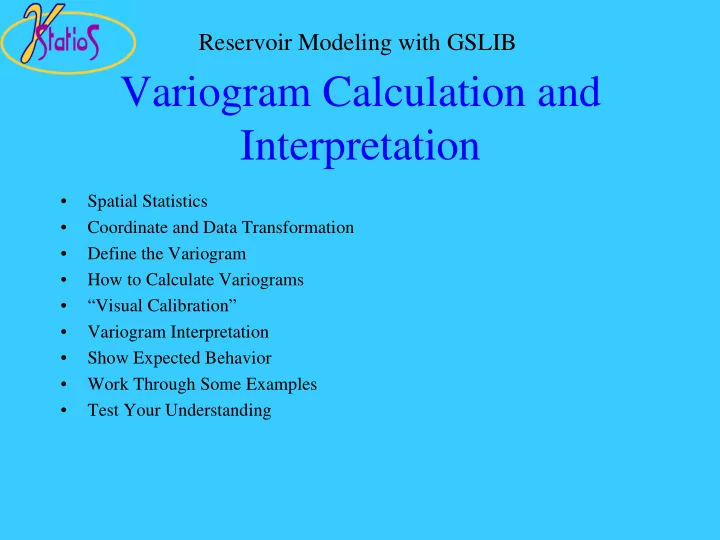

Variogram Calculation and Interpretation

• Spatial Statistics
• Coordinate and Data Transformation
• Define the Variogram
• How to Calculate Variograms
• “Visual Calibration”
• Variogram Interpretation
• Show Expected Behavior
• Work Through Some Examples
• Test Your Understanding

Reservoir Modeling with GSLIB
