Vara Isvilanonda Specific Aim 4: Introduction Objective To develop and validate two subject-specific FE foot models (normal and diabetic), to explore the plantar pressure and internal soft tissue stress during quiet stance and the stance phase

slide-1
SLIDE 1

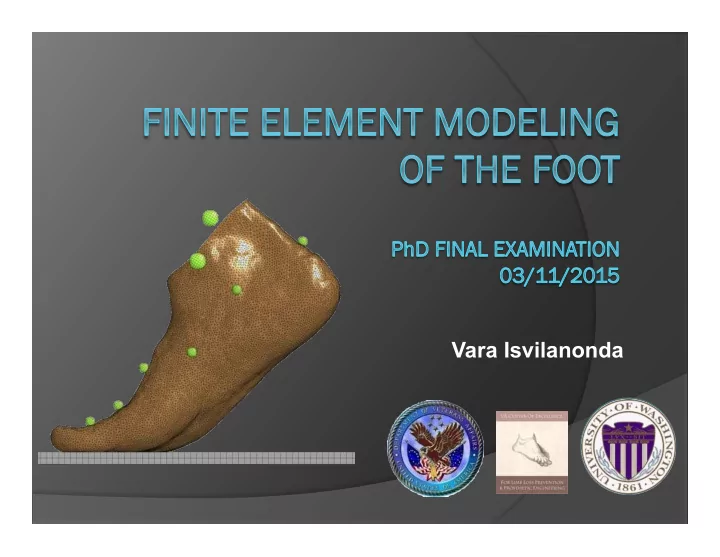

Vara Isvilanonda

slide-2
SLIDE 2

Objective

To develop and validate two subject-specific FE foot models (normal and diabetic), to explore the plantar pressure and internal soft tissue stress during quiet stance and the stance phase of gait, and to investigate the effect of soft tissue assumptions.

Specific Aim 4: Introduction

slide-3
SLIDE 3

Normal and diabetic subjects

! Normal subject

" Age

43 year-old (male)

" Body weight

945 N

! Diabetic subject

" Age

31 year-old (male)

" Body weight

688 N

" Duration of diabetes

> 25 years

Specific Aim 4: Introduction

slide-4
SLIDE 4

FE foot model development

Obtain imaging data

CT (10% BW per foot) MRI (unloaded)

Bone anatomy Skin, fat and muscle anatomy

Specific Aim 4: Method

slide-5
SLIDE 5

Segmentation

L A P L M A P S I S I

Specific Aim 4: Method

slide-6
SLIDE 6

Boolean operations

Generate joint cavities Generate skin thickness Smoothen surfaces Eliminate gaps/overlaps

Specific Aim 4: Method

slide-7
SLIDE 7

FE model pre-processing

! Mesh with tetrahedral elements ! Element size (2.5mm), type

(ELFORM13) determined from mesh convergence analysis

! Bone-soft tissue share nodes Specific Aim 4: Method

slide-8
SLIDE 8

Material properties

! Materials: rigid bone, Ogden hyperelastic soft tissue

" (µs, αs), (µF, αF) and (µM, αM) are subject-specific skin, fat and

muscle material properties determined in vivo (Specific Aim 2)

" Dorsal soft tissue modeled with subject-specific generic soft tissue

(µG, αG)

( )

( )

( )

2 3 2 1 3 2 1

1 2 1 3 ~ ~ ~ , , − + − + + = J K W

α α α

λ λ λ α µ λ λ λ

3 1

~ J

i i

λ λ =

Specific Aim 4: Method

slide-9
SLIDE 9

Ligament

! 102 non-linear, tension only ligaments Specific Aim 4: Method

slide-10
SLIDE 10

Tendon

! 9 extrinsic muscle tendons (seatbelts – slip rings) Specific Aim 4: Method

9Tendons are:

  • Achilles
  • Tibialis anterior
  • Tibialis posterior
  • Peroneus longus
  • Peroneus brevis
  • Extensor hallucis longus
  • Externso digitorum longus
  • Flexor hallucis longus
  • Flexor digitorum longus
slide-11
SLIDE 11

Tendon

! 9 extrinsic muscle tendons (seatbelts – slip rings) Specific Aim 4: Method

slide-12
SLIDE 12

Plantar fascia

! Material properties in 4 regions from

cadaveric tests from 3rd Specific Aim

Medial Middle distal Lateral Middle proximal Specific Aim 4: Method

slide-13
SLIDE 13

Foot model of the normal subject Foot model of the diabetic subject

Specific Aim 4: Method

slide-14
SLIDE 14

Experimental Validation

3 validation conditions

! Quasi static: Passive 10% BW foot compression ! Quasi static: Quiet stance ! Dynamic: Stance phase of gait Specific Aim 4: Method

slide-15
SLIDE 15

Validation 1: passive compression

! Bony alignments from 10% BW CT data are compared to

simulation

Specific Aim 4: Method – Validation1

slide-16
SLIDE 16

Validation 1: passive compression

! Bony alignments from 10% BW CT data are compared to

simulation

Cavanagh et al., 1997

Specific Aim 4: Method – Validation1

slide-17
SLIDE 17

Passive compression FE simulation

Fixed ground

Specific Aim 4: Method – Validation1

slide-18
SLIDE 18

Passive compression FE simulation

In vivo CT data FE simulated data

Specific Aim 4: Method – Validation1

slide-19
SLIDE 19

Passive compression validation results

10 20 30 40 50 60 70 80 Angle (deg)

Normal foot model

Experimental data Simulated data (zero Achilles force) Simulated data (20% bw Achilles force [near heel lift]) Specific Aim 4: Results – Validation1

slide-20
SLIDE 20

Passive compression validation results

10 20 30 40 50 60 70 80 Angle (deg)

Diabetic foot model

Experimental data Simulated data (zero Achilles force) Simulated data (20% BW Achilles force [near heel lift]) Specific Aim 4: Results – Validation1

slide-21
SLIDE 21

Validation 2: Quiet stance

! Recorded 14 foot retro-reflective markers 1

using 12-camera Vicon system

! Recorded plantar pressure on an emed-x

pressure platform

1 [Leardini et al., Gati & Posture, 25: 453-462

Specific Aim 4: Method – Validation2

slide-22
SLIDE 22

Quiet stance FE simulation

! Prescribed tibia orientation from motion capture data ! Tibial force + Achilles tendon force + gravitational force = 50% BW ! Tune Achilles tendon force to match in vivo COP location

9.81 m/s2 9.81 m/s2 Sagittal view Posterior view

Specific Aim 4: Method – Validation2

slide-23
SLIDE 23

Normal Diabetic

Experimental data Simulated data Experimental data Simulated data Specific Aim 4: Results – Validation2

slide-24
SLIDE 24

Validation 3: Dynamic gait

! Self-selected speed ! Right foot strike ! 7 force plate trials ! 7 pressure platform trials Specific Aim 4: Method – Validation3

slide-25
SLIDE 25

Gait FE simulation

! Different simulation for force plate and pressure platform trials ! Prescribe tibial kinematics-time history (series of 4x4 transformation

matrices)

! Prescribe tendon force-time history from literature 1

1 [Aubin et al., 2012, IEEE T. Robot, 28: 246-255

Specific Aim 4: Method – Validation3

slide-26
SLIDE 26

Gait FE simulation

! Different simulation for force plate and pressure platform trials ! Prescribe tibial kinematics-time history (series of 4x4 transformation

matrices)

! Prescribe tendon force-time history from literature 1 Specific Aim 4: Method – Validation3

slide-27
SLIDE 27

Gait FE simulation: protocol

! Initialize tendon forces, dorsiflex ankle before heel strike (0.0s to 0.2s) ! At 0.2s, switched to prescribed tibial kinematics ! Stance phase of gait ~0.215s to push off

Model tuning to achieve target vertical GRF

! Floor position (1-7mm) ! Achilles tendon force 0.2 0.4 0.6 0.8 1 1.2 50 100 Vertical GRF (BW) Percent stance phase (%) Specific Aim 4: Method – Validation3

slide-28
SLIDE 28

Gait: simulation results

slide-29
SLIDE 29

Gait: simulation results

slide-30
SLIDE 30

0.0 0.2 0.4 0.6 0.8 1.0 1.2 20 40 60 80 100 Vertical GRF (BW) Percent stance phase (%) Normal subject (gait force plate) Experimental data Simulated data

Gait: Vertical ground reaction force

+

Specific Aim 4: Results – Validation3

slide-31
SLIDE 31

0.2 0.4 0.6 0.8 1 1.2 1.4 20 40 60 80 100 Vertical GRF (BW) Percent stance phase (%) Diabetic subject (gait force plate) Experimental data Simulated data

Gait: Vertical ground reaction force

+

Specific Aim 4: Results – Validation3

slide-32
SLIDE 32

Gait: AP shear ground reaction force

+

  • 0.4
  • 0.3
  • 0.2
  • 0.1

0.1 0.2 0.3 0.4 20 40 60 80 100 Anteroposterior shear GRF (BW) Percent stance phase (%)

Normal subject

Experimental data Simulated data

Specific Aim 4: Results – Validation3

slide-33
SLIDE 33
  • 0.3
  • 0.2
  • 0.1

0.1 0.2 0.3 0.4 20 40 60 80 100 Anteroposterior shear GRF (BW) Percent stance phase (%) Diabetic subject Experimental data Simulated data

Gait: AP shear ground reaction force

+

Specific Aim 4: Results – Validation3

slide-34
SLIDE 34

Gait: Center of pressure

Plantar pressure (kPa)

Experimental plantar pressure and COP progression from emed pressure platform (normal subject data)

Normal Diabetic

Specific Aim 4: Results – Validation3

slide-35
SLIDE 35

Gait: Bone kinematics

! Measurements are based on foot model described by Leardini et al.,

2007

! 10 bone angle validations showed small RMS error relative to peak

Normal Diabetic

Specific Aim 4: Results – Validation3

slide-36
SLIDE 36

Gait: Bone-to-ground angles

Specific Aim 4: Results – Validation3

Normal Diabetic

slide-37
SLIDE 37

Gait: Plantar fascia force

! Cadaveric experimental results vs FE model Specific Aim 4: Results – Validation3

slide-38
SLIDE 38

Gait: Ankle joint force

! In vivo inverse dynamic results vs FE model Specific Aim 4: Results – Validation3

slide-39
SLIDE 39

Model prediction

! Internal stress ! Parametric analysis on the effect of soft tissue assumptions

  • n plantar pressure and internal stress

Specific Aim 4: Method – Model prediction

slide-40
SLIDE 40

Model prediction: Internal stress

! 8 locations in the plantar fat (ulcer risk locations) ! Calculated stress in terms of mean Von Mises stress1 ! 1000 elements/region (3000 at the subcalcaneus)

1 [Gefen et al., 2003, Med. Eng. Phys., 6: 491-499

Specific Aim 4: Method – Internal stress

slide-41
SLIDE 41

Model prediction: Internal stress

Specific Aim 4: Results – Internal stress

slide-42
SLIDE 42

Model prediction: Internal stress

Specific Aim 4: Results – Internal stress

slide-43
SLIDE 43

Model prediction: Internal stress

Specific Aim 4: Results – Internal stress

slide-44
SLIDE 44

Model prediction: Internal stress

Specific Aim 4: Results – Internal stress

slide-45
SLIDE 45

Model prediction: Parametric study

! The effect of soft tissue material properties on plantar

pressure and internal stress in quiet stance

" 2X increased plantar fat stiffness " Generic soft tissue assumption " Non-subject-specific soft tissue assumption

Specific Aim 4: Method – Parametric analysis

slide-46
SLIDE 46

Baseline

Baseline Increased plantar fat stiffness Subject-specific generic soft tissue Non-subject- specific material

Quiet stance plantar pressure

slide-47
SLIDE 47

Conclusion

! Subject-specific FE foot models

" Subject-specific anatomy, soft tissue material properties

and tibial kinematics

" Improved plantar fascia component " Improved ligament, tendon structures and joint cavity " Extensive static and dynamic model validations

Specific Aim 4: Conclusion
