Update on Total Ankle Replacements (and other cool foot & ankle stuff) Carter Kiesau, MD Foot & Ankle Specialist PeaceHealth Orthopedics & Sports Medicine March 6, 2015 Objectives What does an orthopedic foot & ankle

slide-1
SLIDE 1

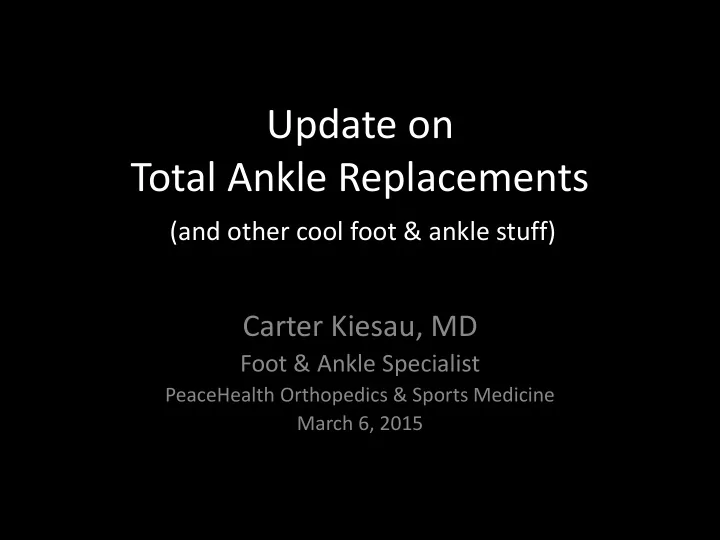

Update on Total Ankle Replacements

Carter Kiesau, MD

Foot & Ankle Specialist

PeaceHealth Orthopedics & Sports Medicine March 6, 2015

(and other cool foot & ankle stuff)

slide-2
SLIDE 2

Objectives

  • What does an orthopedic foot & ankle specialist do?
  • Review ankle arthritis
  • Cover treatment options

– Nonoperative (meds, pt, brace, injection, etc) – Surgical (joint-sparing, replacement, fusion)

  • Learn about total ankle replacement

– Preop optimization – Surgery – Postop care – Long-term maintenance – Interesting cases

slide-3
SLIDE 3

My Background

slide-4
SLIDE 4

Audience Response Question

slide-5
SLIDE 5

Audience Response Question

slide-6
SLIDE 6

My Practice

  • Foot & Ankle

– Ankle Arthritis: replacement, fusions, arthroscopy, osteotomies – Sports: ligament/tendon repairs, Achilles repair, cartilage lesions – Trauma: Lisfranc midfoot, fractures (ankle, pilon, calcaneus, talus, metatarsal) – Deformity: flatfoot, cavus foot, varus, valgus, bunions, hammertoes – Diabetes: Charcot arthritis, ulcers, osteomyelitis, amputations – Rheumatoid: fusions, deformity corrections – Nerves: Morton’s neuroma, Tarsal tunnel syndrome

  • General Orthopedic Trauma

– Adult: fractures (hip, wrist, elbow, shoulder, ankle, knee, etc), infections – Pediatric: fractures (wrist/forearm, ankle, elbow, femur, tibia), infections

  • Knee

– Meniscal Tears: arthroscopic partial meniscectomy

slide-7
SLIDE 7

Metatarsal Collapse (Freibergs)

slide-8
SLIDE 8

Bunions

slide-9
SLIDE 9

Supersized Bunions

Would you like hammertoes with that?

(Rhuematoid Forefoot)

slide-10
SLIDE 10

Rhuematoid Forefoot

slide-11
SLIDE 11

Rhuematoid Forefoot

slide-12
SLIDE 12

A night on call…

(or a weekend)

slide-13
SLIDE 13

Gifts from Galbraith Mountain

slide-14
SLIDE 14

Open, Comminuted, Segmental (with a prior ACL screw)

slide-15
SLIDE 15

Day Care “Oopsie Daisy”

slide-16
SLIDE 16

Type III Pediatric Elbow Fracture

slide-17
SLIDE 17

Mossy rooftops are slippery…

slide-18
SLIDE 18

Comminuted, Intra-articular Calcaneus Fracture

slide-19
SLIDE 19

“This year I’m going to put Christmas lights on the big tree…”

slide-20
SLIDE 20

Open Comminuted Pilon Fracture

slide-21
SLIDE 21
slide-22
SLIDE 22

Ankle Arthritis

slide-23
SLIDE 23

Ankle Arthritis

  • Less common than hip/knee arthritis
  • Types:

– Post-Traumatic Arthritis (65%) – Primary Osteoarthritis (10%) – Inflammatory Arthritis

  • Rhuematoid, Psoriatic, Gout, Pseudogout

– Neuropathic – Osteonecrosis – Septic Arthritis – Hemophilia

slide-24
SLIDE 24

Ankle Arthritis

  • Radiographs:

– Weightbearing 3 views ankle

  • AP, Lateral, and Oblique
  • Weightbearing shows us true cartilage wear and how

close the bones get with functional loading

slide-25
SLIDE 25

Ankle Arthritis

  • Nonoperative Treatment Options

– Activity Modification

  • Avoid hills, uneven ground, impact
  • Try unloaded exercise (pool, bike, kayak, rower)

– Weight loss – Rocker sole shoe – Orthotics – Immobilization/Bracing (ASO, boot, SMAFO, Arizona) – PT – NSAIDs – Injections – Alternative (accupuncture, Willow Curve?, Australian Dream?)

slide-26
SLIDE 26

Ankle Arthritis

  • Ankle Injection

– Antero-Medial (my first choice)

  • Soft spot between medial malleolus,

medial talar dome, and anterior tibial tendon

– Antero-Lateral

  • Soft spot between lateral malleolus, lateral

talar dome, latearal tibia, and extensor digitorum longus tendons

– Go where the spurs aren’t

  • Find the wide open space
  • Range the ankle to help
  • Ankle distraction can help get needle in
slide-27
SLIDE 27

Ankle Arthritis

  • Operative Treatment Options

– Debridement, Excision spurs – Distraction Arthroplasty – Supramalleolar Osteotomy – Ankle Fusion – Total Ankle Allograft Replacement – Total Ankle Replacement

slide-28
SLIDE 28

Ankle Arthritis

  • Outcome Issues:

– Debridement, Excision spurs

  • Possible faster progression of arthritis

– Supramalleolar Osteotomy

  • Short term success, nonunions

– Distraction Arthroplasty

  • Short lived, if it works

– Allograft Arthroplasty

  • Less than 50/50 chance of success
slide-29
SLIDE 29

Ankle Arthritis

  • Fusion or Replacement?
  • Fusion:

– Nonunion rate 10% – Subtalar arthritis rate 90% at 10 years

  • Replacement:

– Range of motion increase of 11 degrees – Lucency rate 23% at 4.5 years – Total reoperation rate 11% (impingement, cysts, loosening, failure) – Implant survival 90% at 10 years

  • Both patients are generally happy
  • Replacement patients score higher due to motion
  • Does replacement protect against adjacent joint arthritis?

– Yes, compared to fusion.

slide-30
SLIDE 30

Ankle Fusion, Subtalar Arthritis

  • 52 y.o. healthy woman
  • MVA 30 years ago, tibia fx
  • Ankle and knee arthritis
slide-31
SLIDE 31
slide-32
SLIDE 32
slide-33
SLIDE 33
slide-34
SLIDE 34
slide-35
SLIDE 35
slide-36
SLIDE 36

Ankle fusion 3 years ago

  • Presents to me with subtalar arthritis
slide-37
SLIDE 37
slide-38
SLIDE 38
slide-39
SLIDE 39
slide-40
SLIDE 40
slide-41
SLIDE 41
slide-42
SLIDE 42
slide-43
SLIDE 43
slide-44
SLIDE 44
slide-45
SLIDE 45
slide-46
SLIDE 46
slide-47
SLIDE 47

Her Theoretical Timelines

Ankle Fusion

  • Year 0: ankle fusion
  • Year 3: subtalar fusion
  • Year 4: total knee
  • Year 5: convert to total ankle
  • Year 7: doing well
  • 4 surgeries
  • 5 years of pain needing

surgeries

Ankle Replacement

  • Year 0: Total Ankle
  • No need for subtalar fusion?
  • No need for total knee yet?
  • Would total ankle need

revision? Hopefully not for 10+ years.

  • 1 surgery?
  • = less than a year of pain?
slide-48
SLIDE 48

Total Ankles: Our Series

  • My Training:

– 75 total ankles during fellowship year at Duke

  • 3 surgeons, large academic center
  • 4 Years at PeaceHealth in Bellingham

– Now over 60 total ankles (Taranow combined) – Only 3 re-operations = 5%, (compared to 11%)

  • 2 spur debridements, 1 cyst grafting
  • No failures, no infections, no wound problems
slide-49
SLIDE 49

Patient Selection & Pre-op Optimization

  • Diabetics

– HbA1C < 7 – Tight perioperative glucose control

  • Smokers

– Must quit prior to surgery

  • Rheumatoid Arthritis

– Consult with rheumatologist, many meds can be taken

  • Lymphedema controlled
  • Hypovitaminosis D

– Correct to > 30

  • Dental Infections resolved
slide-50
SLIDE 50

Contraindications

  • Absolute:

– Neuropathic Joint

  • Charcot Arthropathy, severe peripheral neuropathy

– Severe ankle or foot deformity – Severely scarred soft tissues, plastics flaps – Open Ulcer or active infection – Extreme laxity (Marfan’s) – Motor functional weakness/paralysis – High functional demand patients (contact sports, construction)

  • Relative:

– Osteonecrosis – Previous ankle infection – Uncontrolled diabetes – Severe Lymphedema – Severe vascular insufficiency – Young age?

slide-51
SLIDE 51

Total Ankle Surgical Team

In The Room:

  • Dr. Kiesau
  • Dr. Taranow
  • Ortho PA Assist
  • Anesthesiologist
  • Scrub Technician
  • Nurse Circulator
  • Radiology Technician
  • Device Representative
  • The patient, too!

Peri-operative:

  • many clinic/hospital

providers & staff

slide-52
SLIDE 52

Anesthesia

  • Popliteal Block

– Intra- and Post-operative pain control – Lasts about 16 hours

  • Combined with general

anesthesia

slide-53
SLIDE 53

Total Ankle Surgery Info

  • 2-3 hours if straightforward
  • 4-8 hours if complex

– Additional procedures to correct other deformities

  • 1 night admission
  • Can usually bear weight at 2 weeks postop
  • Reimburses only 70% of a total knee or hip

– takes twice as long to perform – Typically uses two surgeons

slide-54
SLIDE 54

Typical Postop Care

  • 1 night admission
  • Splint, nonweightbearing, elevation, scooter
  • Stitches out at 10-14 days
  • Start walking in a boot
  • Work on range of motion
  • Wean to ASO brace at 6 weeks
  • Can do PT if needed
  • Regular activities at 3 - 4 months
  • Gradual improvements over the year
slide-55
SLIDE 55

Maintenance

  • Similar to arthritis management:

– Weight loss – Activity modification

  • Low impact exercise/sports ok (hiking, biking,

groomers)

  • High impact are not (running, soccer, moguls)

– Radiographs every 1 – 2 years

slide-56
SLIDE 56

A Few Cases

  • The awesome ones, of course!
slide-57
SLIDE 57

Post-traumatic Ankle Arthritis

  • 64 y.o. lady
  • Prior tibial shaft fracture
  • Healed in valgus angulation deformity
  • Developed knee, ankle and subtalar arthritis
  • Total knee replacement
slide-58
SLIDE 58

Post-traumatic valgus arthritis

slide-59
SLIDE 59
slide-60
SLIDE 60

CT

slide-61
SLIDE 61

After osteotomy, subtalar fusion

slide-62
SLIDE 62

After osteotomy, subtalar fusion

slide-63
SLIDE 63

STAR

slide-64
SLIDE 64

Total Ankle Bone Cuts

slide-65
SLIDE 65

STAR after Osteotomies

slide-66
SLIDE 66
slide-67
SLIDE 67

1 Year Postop

slide-68
SLIDE 68

Disaster Strikes!

  • But, it’s not her.
slide-69
SLIDE 69
slide-70
SLIDE 70

Failed Buechal-Pappas Ankle

  • 70 y.o. male, healthy
  • Ankle replacement 14 years ago in NYC
  • Previous triple arthrodesis
  • Wears SMAFO brace
  • Constant pain, instability
slide-71
SLIDE 71
slide-72
SLIDE 72
slide-73
SLIDE 73
slide-74
SLIDE 74
slide-75
SLIDE 75
slide-76
SLIDE 76
slide-77
SLIDE 77
slide-78
SLIDE 78
slide-79
SLIDE 79
slide-80
SLIDE 80
slide-81
SLIDE 81

OR Plan

  • Fusion hardware in room
  • Ex-plant
  • Ankle reduction
  • Inbone total ankle
  • Bone grafting tibia and fibula
  • ORIF fibula
  • Allograft tendon lateral

ligament repair

  • Say a prayer
slide-82
SLIDE 82

INBONE

slide-83
SLIDE 83

1 Year

slide-84
SLIDE 84

1 Year

slide-85
SLIDE 85

1 Year

slide-86
SLIDE 86

1 Year

slide-87
SLIDE 87

Not everyone gets a total ankle

  • 28 y.o. female, healthy
  • Open ankle fracture, ORIF
  • 1 year later: Tibial AVN, equinus, pain
  • Infectious workup negative
slide-88
SLIDE 88
slide-89
SLIDE 89

1 Year later

slide-90
SLIDE 90
slide-91
SLIDE 91

6 Weeks

slide-92
SLIDE 92

STAR

slide-93
SLIDE 93

Speaking of disasters…

slide-94
SLIDE 94

Severe Varus

  • 58 y.o. male, no medical problems
  • Post-traumatic arthrtitis, MVA, multiple

surgeries

  • Uses Arizona brace daily
  • 22 degree varus deformity
  • equinus
slide-95
SLIDE 95
slide-96
SLIDE 96
slide-97
SLIDE 97
slide-98
SLIDE 98
slide-99
SLIDE 99

Preop Video

slide-100
SLIDE 100
slide-101
SLIDE 101
slide-102
SLIDE 102
slide-103
SLIDE 103
slide-104
SLIDE 104

OR Plan

  • Inbone Total

Ankle

  • Medial Malleolar

Osteotomy

  • Lateral Ligament

Reconstruction

  • 1st MT

Dorsiflexion Osteotomy

slide-105
SLIDE 105
slide-106
SLIDE 106
slide-107
SLIDE 107
slide-108
SLIDE 108
slide-109
SLIDE 109
slide-110
SLIDE 110
slide-111
SLIDE 111
slide-112
SLIDE 112
slide-113
SLIDE 113
slide-114
SLIDE 114

Walking Videos

Pre-Op 3 Months

slide-115
SLIDE 115

Walking Videos

Pre-Op 6 Months

slide-116
SLIDE 116

1 ½ Years Postop

slide-117
SLIDE 117

1 ½ Years Postop

slide-118
SLIDE 118

1 ½ Years Postop

slide-119
SLIDE 119

Photos

Pre-Op Post-Op

slide-120
SLIDE 120

Photos

Pre-Op Post-Op

slide-121
SLIDE 121

Photos

slide-122
SLIDE 122
slide-123
SLIDE 123

Sydney, Aus

slide-124
SLIDE 124
slide-125
SLIDE 125
slide-126
SLIDE 126

Thank You

slide-127
SLIDE 127

Pre Post Comparison

slide-128
SLIDE 128

Pre Post Comparison
