Valuing Green Infrastructure GI VAL Paul Nolan , Director, The - - PowerPoint PPT Presentation

▶
valuing green infrastructure gi val
SMART_READER_LITE
LIVE PREVIEW

Valuing Green Infrastructure GI VAL Paul Nolan , Director, The - - PowerPoint PPT Presentation

Aug 17, 2022 160 likes •524 views

Valuing Green Infrastructure GI VAL Paul Nolan , Director, The Mersey Forest The Mersey Forest www.merseyforest.org.uk/plan St Helens Urban GI Journey in NW England Concept Fringe Action Plan introduced 2004-2006 Regional Economic GI

slide-1
SLIDE 1

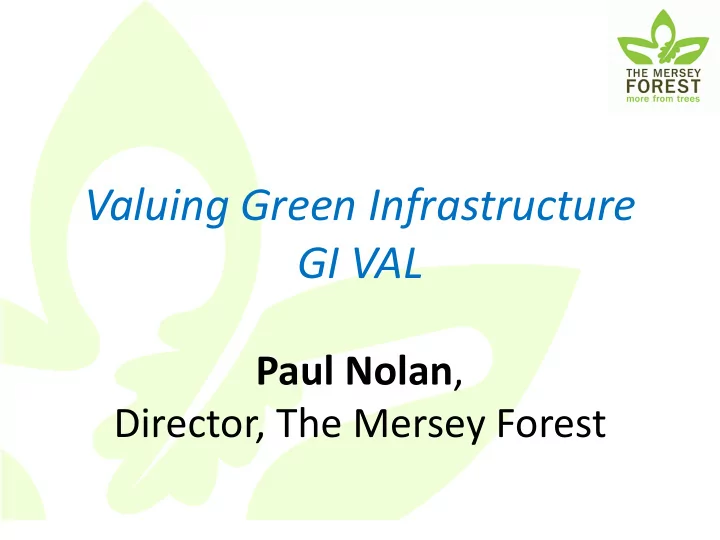

Valuing Green Infrastructure GI VAL

Paul Nolan, Director, The Mersey Forest

slide-2
SLIDE 2

The Mersey Forest

slide-3
SLIDE 3

www.merseyforest.org.uk/plan

slide-4
SLIDE 4

GI Journey in NW England

2004 2014 2005 2012 2006 2008 2010

Concept introduced

2009 2007 2013 2011

Seminar: GI Planning in NW GI Unit & Think Tank www.ginw.co.uk Regional Economic Strategy Natural Economy NW 2007-2009 GI Forum Regional Spatial Strategy GI Guide Site Informer tool ForeStClim 2008-2014 Liverpool City Region & Warrington GI Framework NW Climate Change Action Plan GRaBS 2009-2011 GIFT-T! 2011-2014 Liverpool GI Strategy Valuation Toolkit v1 Abolition of regional planning; setting up LEPs Natural Environment White Paper National Planning Policy Framework Natural Economy Investment Forum GI Solutions to Pinch Point Issues Economic value report GI & Climate Change Framework GI & EU Structural & Investment Fund briefings STAR tools St Helens Urban Fringe Action Plan 2004-2006 Mouth of Weaver masterplan Chat Moss vision Mersey Forest Plan Atlantic Gateway Pinch Points Study Mapping method paper NW GI prospectus Weaver Valley GI Plan Value of mapping GI report GI for Liverpool & Manchester City Regions report Sankey Valley GI Plan

slide-5
SLIDE 5

GI Economic Benefits Framework

slide-6
SLIDE 6

What’s it worth? www.ginw.co.uk

slide-7
SLIDE 7

Use r Guide

Spre a dshe e t-b a se d

Calc ulator

+

The Toolkit - www.ginw.co.uk

slide-8
SLIDE 8

GREEN INFRASTRUCTURE ASSET / INTERVENTION FUNCTION BENEFIT VALUE

I n mone tar

y te rms M M M M M

I n quantitative te rms

Qt Qt

I n qualitative te rms

Ql Ql

SHELTER FROM WIND EVAPO- TRANSPIRATION CARBON SEQUESTRATION PARTICULATE FILTERING CLIMATE CHANGE ADAPTATION & MITIGATION HEALTH & WELL BEING £ REDUCED BUILDING HEATING £ AVOIDED CO2 °C REDUCED TEMPERATURES £ MARKET VALUE OF CO2 STORED £ REDUCED POLUTION CONTROL REDUCTION PULMONARY DISEASES

slide-9
SLIDE 9
slide-10
SLIDE 10

Tool index

Monetary Quantitative Qualitative

1.1 Reduced building energy consumption for heating

□ □ ■

Monetisation and quantification functional for residential properties only 10 years

1.2 Avoided carbon emissions from building energy saving for heating

□ □ ■

Monetisation and quantification functional for residential properties only 10 years

1.3 Avoided damage from wind and storms

x x ■

Monetisation and quantification require further research t.b.d.

Reduction of urban heat island effect 1.4 Reduction of peak summer surface temperatures

x ■ ■

Monetisation requires further reserch t.b.d.

1.5 Reduced energy consumtion for cooling

■ ■ ■

10 years

1.6 Avoided carbon emissions from building energy saving for cooling

□ □ ■

Monetisation and quantification functional for green roofs only 10 years

1.7 Carbon stored and sequestered in woodland and forests

□ □ ■

Monetisation and quantification functional for broadleaf woodland only 50 years, benefit accrual period 20- 25 years w ith new tree planting

1.8 Carbon stored and sequestered in non-woodland based landscapes

x x ■

Monetisation and quantification require further research t.b.d.

  • 1. CLIMATE

CHANGE ADAPTATION & MITIGATION Shelter from wind Cooling through shading and evapo- transpiration Carbon storage and sequestration

Benefit groups Functions Tools Recommended timeframe for value assessment Tool Outputs

Tool index

slide-11
SLIDE 11

How does it work?

Input Black Box Output

slide-12
SLIDE 12
  • Data on the project

– Area, green infrastructure interventions – Type of green infrastructure

  • Woodland, green roofs

– Access improvements – Quality of improvements – designated site etc. – Population – House prices – Average wage

Input

slide-13
SLIDE 13
slide-14
SLIDE 14
  • For each benefit type

– Model (where available) of the economic benefit – Peer reviewed or “industry standard” models – Ability to include additional information if you

  • pen the black box!

– Or leave default settings and go straight to

  • utputs

Black Box

slide-15
SLIDE 15

Output

slide-16
SLIDE 16

Economic value and benefit quantification

slide-17
SLIDE 17
slide-18
SLIDE 18

Report

slide-19
SLIDE 19

Into the spreadsheet

Back to the Black Box

slide-20
SLIDE 20

Good bits

  • Has been used on many projects
  • Now at version 1.5
  • Talks the language of economic

development and regeneration.

  • Capable of producing useful

information to help get a better picture of the broad value of a project.

  • Seems to be acceptable even

with caveats

  • BUT ....
slide-21
SLIDE 21

Bad bits.

  • No tools for some benefits - yet
  • 11 economic benefits structure

good for communication but not for robust assessment.

  • Extensive use of benefit transfer –

but problems with evidence transferability.

  • Problems with evidence

robustness.

  • Range and sensitivity gaps.
  • Clunky!
slide-22
SLIDE 22

What next?

– Look to update the model – Increase the number of tools – Tackle the identified “bad” bits – Link to Geographic Information System

  • Potential for scenario

modelling

  • Potential for Dynamic

Interactive Cost Benefit assessments

slide-23
SLIDE 23

Thank You

Paul Nolan Director The Mersey Forest

paulnolan@merseyforest.org.uk www.merseyforest.org.uk

slide-24
SLIDE 24

Case Study

  • Wirral Waters

– One of the largest regeneration sites in UK – Part of Atlantic Gateway – Economic Development Zone

slide-25
SLIDE 25
slide-26
SLIDE 26
slide-27
SLIDE 27
slide-28
SLIDE 28

Investments

Setting the Scene for Growth

  • £1.4m

– Green Streets – Community engagement – Address the lack of green infrastructure in the area

Local Sustainable Transport Fund

  • £500,000

– Improving access routes to encourage walking /cycling – Green Streets

slide-29
SLIDE 29

Run the data

slide-30
SLIDE 30
slide-31
SLIDE 31

Gross Value Added and other economic value

GVA - £12m Other economic value £16m

1 Climate Change Adaptation & Mitigation 2 Water management & Flood Alleviation 4 Health & Well-being 5 Land & Property Values 7 Labour Productivity 8 Tourism 10 Biodiversity 1 Climate Change Adaptation & Mitigation 4 Health & Well- being 10 Biodiversity

slide-32
SLIDE 32
slide-33
SLIDE 33

Conclusion

  • GI Val enabled us to join the conversation!
  • GI now seen as a key part of the development

programme

– Relatively low cost kick start to an area that was struggling to attract investment – GI outside the development boundary had positive feedback from residents – GI as part of TIF programme

  • Anecdotal evidence of land price increase
slide-34
SLIDE 34
  • GI i

incr ncreasing la land v value - encourages investment generally and allows sites to more easily be brought forward for development.

  • Reducing t

the time me to

  • developme

ment /r /reducing vo voids– bringing forward the date at which income is received.

Influencing investment decisions

slide-35
SLIDE 35

Northern Forest

slide-36
SLIDE 36

36

Urban GreenUP Kick-off meeting – 06/06/2017

URBAN GreenUP is the demonstration of an innovative methodology to re-naturing cities through NBS interventions, considering new technologies, towards the adaptation of the cities to fight against climate change.
