12/18/15 Value of Continuous Liviu Klein MD, MS Monitoring of Associate Professor Pulmonary Artery Director, Mechanical Circulatory Support and Pressures in Heart Heart Failure Device Programs Failure Liviu.Klein@ucsf.edu Financial

slide-1

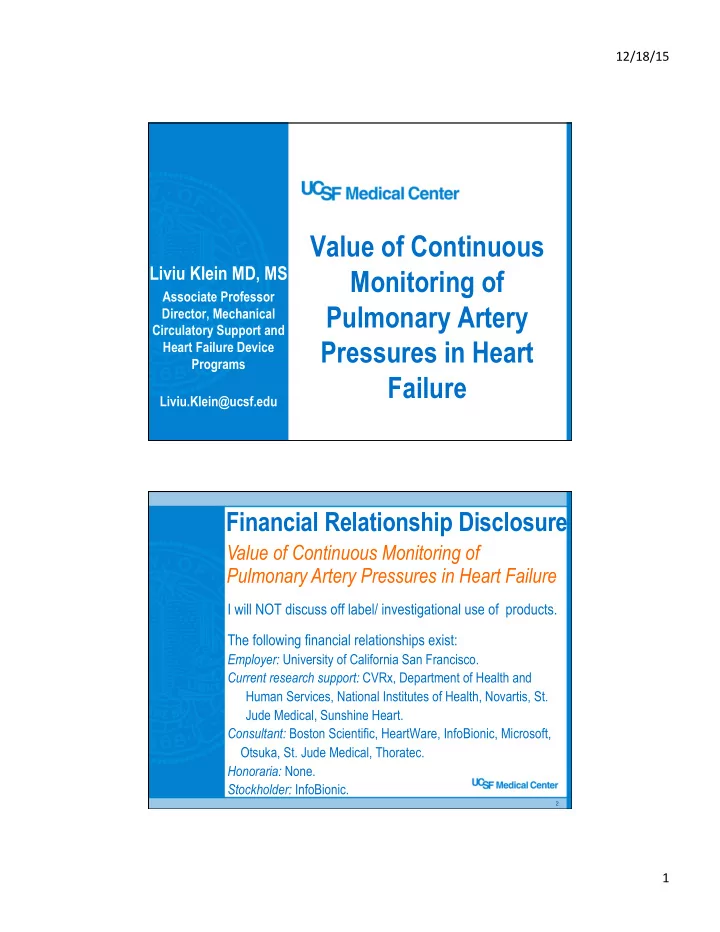

SLIDE 1

12/18/15 ¡ 1 ¡

Liviu Klein MD, MS

Associate Professor Director, Mechanical Circulatory Support and Heart Failure Device Programs Liviu.Klein@ucsf.edu

Value of Continuous Monitoring of Pulmonary Artery Pressures in Heart Failure

2

Financial Relationship Disclosure

I will NOT discuss off label/ investigational use of products. The following financial relationships exist:

Employer: University of California San Francisco. Current research support: CVRx, Department of Health and Human Services, National Institutes of Health, Novartis, St. Jude Medical, Sunshine Heart. Consultant: Boston Scientific, HeartWare, InfoBionic, Microsoft, Otsuka, St. Jude Medical, Thoratec. Honoraria: None. Stockholder: InfoBionic.

Value of Continuous Monitoring of Pulmonary Artery Pressures in Heart Failure

slide-2
SLIDE 2

12/18/15 ¡ 2 ¡

3

Heart Failure Hospitalizations

Go AS et al. Circulation. 2014; 129: e28-e292.

4

High Post Discharge Mortality

Solomon SD et al. Circulation. 2007; 116: 1482-1487.

slide-3
SLIDE 3

12/18/15 ¡ 3 ¡

Dharmarajan K et al. JAMA. 2013; 309: 355-363.

Heart Failure ReHospitalizations

6

Heart Failure ReHospitalizations

Dharmarajan K et al. JAMA. 2013; 309: 355-363.

slide-4
SLIDE 4

12/18/15 ¡ 4 ¡

Heart Failure Signs/ Symptoms in Hospitalized Patients

Admission Discharge

Symptoms (%)

Dyspnea on exertion 79 58 Dyspnea at rest 42 5 Orthopnea 50 12 PND 33 4 Fatigue 53 57

Signs (%)

JVP > 8 cm 33 6 Rales 57 13 S3 gallop 20 6 Edema > 2+ 50 13

Gattis WA et al. J Am Coll Cardiol. 2004; 43: 1534-1540.

  • Among pts. with severe heart failure 1

– PCWP 33 ± 6 mmHg, CI 1.8 ± 0.5, LVEF 0.18 ± 0.06 – CXR: 27% no congestion, 41% minimal congestion

  • Among pts. with moderate heart failure 2

– PCWP 30 ± 9 mmHg, CI 2.1 ± 0.8, LVEF 0.18 ± 0.06 – No rales 84%, no edema 80%, no JVP 50%, no orthopnea 22%

  • Hemodynamic congestion may not be

recognized clinically (doesn’t translate into symptoms/signs) until too late

Congestion Does not Translate in EARLY Signs/Symptoms

1 Mahdyoon H et al. Am J Card. 1989; 63: 625-630. 2 Stevenson LW et al. JAMA. 1989; 261: 884-889.

slide-5
SLIDE 5

12/18/15 ¡ 5 ¡

Ability to Predict High PWP

  • Sens. Spec. PPV

NPV Dyspnea on exertion 66 52 45 27 Orthopnea 66 47 61 37 Edema 46 73 79 46 JVD 70 79 85 62 S3 73 42 66 44 CXR Cardiomegaly 97 10 61

  • Redistribution

60 68 75 52 Interstitial edema 60 73 78 53 Pleural effusion 43 79 76 47

Adapted from Chakko S. et al. Am J Med. 1991; 90: 353-358. Adapted from Butman SM. Et al. J Am Coll Cardiol. 1993; 22: 968-975.

Abnormal LV function (Sys and/or Dia)

Neurohormonal activation => ↑ Blood volume ↑ LV diastolic pressure Hemodynamic congestion (Increased PWP)

Alveolar edema ↑ PA Pressure

↑ RV + RA Pressure Systemic congestion (Leg edema; JVD; Hepatomegaly)

S Y M P T O M S

The Congestion Iceberg in Heart Failure

Redistribution in pulmonary vascular bed + interstitial edema

↑ Hydrostatic pressure ↑ Oncotic pressure ↑ Permeability Lymphatic drainage capacity Alveolar-capillary membrane integrity Abnormal lung mechanics Respiratory muscle dysfunction Other factors

Dyspnea

slide-6
SLIDE 6

12/18/15 ¡ 6 ¡

Main Reasons for Broken Care

Symptoms worsen

Patient MD Office

ED

Hospitalization Readmission

Doesn’t recognize early signs and symptoms Limited time Limited staff Limited diagnostics Limited monitoring Limited intervention Limited patient education Only alternative ED MD with no patient relationship Safest route medically and legally Pressure on length

  • f stay shortens

time to test new medication regimen

  • r educate

Symptoms worsen

R e a c t i v e C a r e

Standard of Care for Heart Failure in 2015

slide-7
SLIDE 7

12/18/15 ¡ 7 ¡

13

Weights and Heart Failure Hospitalizations

Chaudhry SI et al. Circulation. 2007; 116: 1549-1554.

14

Weights and Non Heart Failure Hospitalizations

Chaudhry SI et al. Circulation. 2007; 116: 1549-1554.

slide-8
SLIDE 8

12/18/15 ¡ 8 ¡

15

Lynga P et al. Eur J Heart Fail. 2012; 14: 438-444.

16

Lynga P et al. Eur J Heart Fail. 2012; 14: 438-444.

Weights and Heart Failure Hospitalizations

slide-9
SLIDE 9

12/18/15 ¡ 9 ¡

Main Reasons for Broken Care

Symptoms worsen

Patient MD Office

ED

Hospitalization Readmission

Doesn’t recognize early signs and symptoms Limited time Limited staff Limited diagnostics Limited monitoring Limited intervention Limited patient education Only alternative ED MD with no patient relationship Safest route medically and legally Pressure on length

  • f stay shortens

time to test new medication regimen

  • r educate

Symptoms worsen

P r

  • a

c t i v e C a r e

18

Chaudhry SI et al. New Engl J Med. 2010; 363: 2301-2309.

Telemonitoring and HF Hospitalizations: TELE-HF

slide-10
SLIDE 10

12/18/15 ¡ 10 ¡

19

Ong M. AHA 2015.

Telemonitoring and Heart Failure : BEAT HF

20

Ong M. AHA 2015.

Telemonitoring and Heart Failure : BEAT HF

slide-11
SLIDE 11

12/18/15 ¡ 11 ¡

21

Ong M. AHA 2015.

Telemonitoring and Heart Failure : BEAT HF Telemonitoring and Readmissions

slide-12
SLIDE 12

12/18/15 ¡ 12 ¡

Main Reasons for Broken Care

Symptoms worsen

Patient MD Office

ED

Hospitalization Readmission

Doesn’t recognize early signs and symptoms Limited time Limited staff Limited diagnostics Limited monitoring Limited intervention Limited patient education Only alternative ED MD with no patient relationship Safest route medically and legally Pressure on length

  • f stay shortens

time to test new medication regimen

  • r educate

Symptoms worsen

D i r e c t e d C a r e H e m

  • d

y n a m i c

24

Hemodynamics and Outcomes

Fonarow GC et al. Circulation 1994; 90: I-488 PCWP > 16 mm Hg PCWP < 16 mm Hg CI > 2.6 L/min/m2 CI < 2.6 L/min/m2

Mortality Risk (%) Mortality Risk (%)

6 12 18 24 10 20 30 40 50 60 6 12 18 24 10 20 30 40 50 60

Time (months)

P = NS P = 0.001

slide-13
SLIDE 13

12/18/15 ¡ 13 ¡

25

Congestion Precedes Most Heart Failure Hospitalizations

Zile MR et al. Circulation. 2008; 118: 1433-1441.

26

Congestion Precedes Most Heart Failure Hospitalizations

Zile MR et al. Circulation. 2008; 118: 1433-1441.

slide-14
SLIDE 14

12/18/15 ¡ 14 ¡ Nitinol Loops

  • 10 mm diameter
  • Maintain sensor position in vessel

Fused silica housing with silicone coating Inductor coil Pressure sensitive capacitor

Heart Failure Pressure Sensor

Sensor

  • No battery
  • No leads
  • Small size (3.5 x 2 x 15mm)

CardioMEMS™ HF System

PA Sensor and Delivery System

120 cm 4.5 cm

Patient Electronics System PA Pressure Database

Physician Access Via Secure Website

slide-15
SLIDE 15

12/18/15 ¡ 15 ¡

29

Flow around sensor

No Impact on Blood Flow

Sensor in Distal PA

slide-16
SLIDE 16

12/18/15 ¡ 16 ¡

Abraham WT et al. Am Heart J. 2011; 161: 558-566.

Accuracy of PA Measurements

slide-17
SLIDE 17

12/18/15 ¡ 17 ¡

Abraham WT et al. Lancet. 2011; 377: 658-666.

CHAMPION Trial

Abraham WT et al. Lancet. 2011; 377: 658-666.

CHAMPION Trial

slide-18
SLIDE 18

12/18/15 ¡ 18 ¡

Abraham WT et al. Lancet. 2011; 377: 658-666.

CHAMPION Trial

Abraham WT et al. Lancet. 2015; in press.

CHAMPION Trial – Long Term

slide-19
SLIDE 19

12/18/15 ¡ 19 ¡

Abraham WT et al. Lancet. 2015; in press.

CHAMPION Trial – Long Term

Abraham WT et al. Lancet. 2015; in press.

CHAMPION Trial – Long Term

slide-20
SLIDE 20

12/18/15 ¡ 20 ¡

Goldberg LR et al. HRS 2015

CHAMPION Trial: Symptoms vs. PAP Management A Year Later @ UCSF

slide-21
SLIDE 21

12/18/15 ¡ 21 ¡

  • Congestion is the lead cause of HF hospitalizations
  • Congestion contributes to progression of HF
  • Patients leave hospital with congestion, resulting in

high rehospitalization rate

  • Congestion is often subclinical and difficult to assess

when present

  • Significant dissociation between hemodynamic and

clinical congestion, even when hemodynamics are very abnormal

  • Need for better monitoring of degree and changes in

congestion (more accurate and sensitive)

Congestion in Heart Failure

Conclusions

  • Monitoring PAP/ PWP can provide early

warning of condition worsening/ decompensation much better than body weight and before symptoms

  • Most changes occur over a few days - weeks
  • Having a treatment algorithm based on PAP/

PWP values is key to successful treatment and preventing heart failure readmissions

  • Always treat to max: drive pressures down to

patient’s normal
