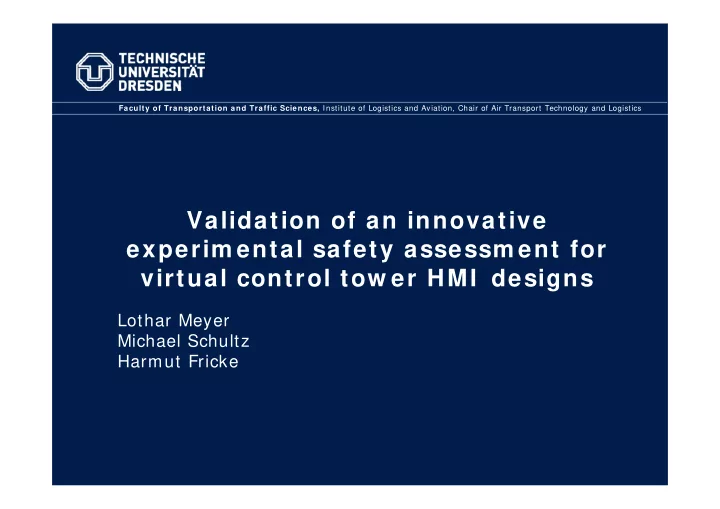

Faculty of Transportation and Traffic Sciences, Institute of Logistics and Aviation, Chair of Air Transport Technology and Logistics

Validation of an innovative experim ental safety assessm ent for virtual control tow er HMI designs

Lothar Meyer Michael Schultz Harmut Fricke

slide-2
SLIDE 2

Faculty of Transportation and Traffic Sciences, I nstitute of Logistics and Aviation, Chair of Air Transport Technology and Logistics

SESAR Innovation Days 2011

Introduction

  • Introduction to the Virtual Tower Control Project and

hazards in the HMI design

  • Problem definition
  • Approach to assess design configurations
  • Experimental setup
  • Results
  • Outlook

Dipl.- Ing Lothar Meyer 2

slide-3
SLIDE 3

Faculty of Transportation and Traffic Sciences, I nstitute of Logistics and Aviation, Chair of Air Transport Technology and Logistics

SESAR Innovation Days 2011

Introduction

  • VICTOR (DFS)
  • Raice, Raptor (DLR)
  • Advanced Remote Tower

(Saab)

Dipl.- Ing Lothar Meyer 3

Main funct Main function is

  • n is t

to sub substitute visual info titute visual inform rmation ation

slide-4
SLIDE 4

Faculty of Transportation and Traffic Sciences, I nstitute of Logistics and Aviation, Chair of Air Transport Technology and Logistics

SESAR Innovation Days 2011

Display systems for remote control surveillance Systems for HMI design

  • Video camera

– Pan tilt camera – Panorama view

  • Infrared camera
  • Radar (primary and secondary)
  • Tracking functions on the video

screen

  • Airport status monitor
  • Weather monitor

Dipl.- Ing Lothar Meyer 4

Source: Source: DLR DLR Source: Source: DLR DLR

slide-5
SLIDE 5

Faculty of Transportation and Traffic Sciences, I nstitute of Logistics and Aviation, Chair of Air Transport Technology and Logistics

SESAR Innovation Days 2011

Hazard definition and identification

  • A hazard is a corrupted or incomplete perception of

visual information in the context of ATCOs tasks

  • 27 hazards were identified by 5 ATCOs in a workshop
  • 13 with severity class A (Accident)
  • Proposed hazard classification

Dipl.- Ing Lothar Meyer 5

Traffic Traffic situation situation Object Object appearance appearance Aerodrome Aerodrome status status Airspace Airspace monitoring monitoring

!

slide-6
SLIDE 6

Faculty of Transportation and Traffic Sciences, I nstitute of Logistics and Aviation, Chair of Air Transport Technology and Logistics

SESAR Innovation Days 2011

Hazard examples

Inability to

  • detect objects on RWY when checking RWY occupancy for

giving a landing clearance (wildlife, a/ c, ground vehicles, pedestrian)

  • detect weather conditions (wind shearing)
  • check a/ c for abnormal appearance (protection of Pitot-

sensors not removed, engine failure and smoke generation)

  • check gears in the case of a low pass tower
  • detect unauthorized movements in the area of responsibility
  • to immediately detect go arounds of a/ c

A complete overview will be published soon.

Dipl.- Ing Lothar Meyer 6

slide-7
SLIDE 7

Faculty of Transportation and Traffic Sciences, I nstitute of Logistics and Aviation, Chair of Air Transport Technology and Logistics

SESAR Innovation Days 2011

risk contributing design parameters as causes

Dipl.- Ing Lothar Meyer 7

slide-8
SLIDE 8

Faculty of Transportation and Traffic Sciences, I nstitute of Logistics and Aviation, Chair of Air Transport Technology and Logistics

SESAR Innovation Days 2011

Motivation and approach Which design parameters contribute most to mitigate risk? Assum ptions

  • A set of configuration setups of the HMI are available
  • Boundary conditions are determined

– Weather – Traffic volume / density – Airport layout – Concept of operations

Concept

  • Provoke hazard occurrence by performing experiments

(HIL) with threat appearance

  • Varying design parameters (assumed as independent

input variable)

  • Assess HMI setups by resulting frequency of occurrence

Dipl.- Ing Lothar Meyer 8

slide-9
SLIDE 9

Faculty of Transportation and Traffic Sciences, I nstitute of Logistics and Aviation, Chair of Air Transport Technology and Logistics

SESAR Innovation Days 2011

Experimental Virtual Control Tower

  • Video system
  • Secondary ground

surveillance

  • Secondary airborne

Surveillance Radar (SSR)

  • Keystrokes for

clearance indication

  • Keystrokes to indicate successfully detected

threat appearances

Dipl.- Ing Lothar Meyer 9

slide-10
SLIDE 10

Faculty of Transportation and Traffic Sciences, I nstitute of Logistics and Aviation, Chair of Air Transport Technology and Logistics

SESAR Innovation Days 2011

Design issues Crossing view (pointed angle to RWY) Panoramic view (180°)

Dipl.- Ing Lothar Meyer 10

slide-11
SLIDE 11

Faculty of Transportation and Traffic Sciences, I nstitute of Logistics and Aviation, Chair of Air Transport Technology and Logistics

SESAR Innovation Days 2011

Implemented threat appearance

Dipl.- Ing Lothar Meyer 11

Go around Go around Unauthorized overrun of l Unauthorized overrun of lineup stop bars by a/c neup stop bars by a/c and ground vehic and ground vehicle An Anima imal appearance appearance

slide-12
SLIDE 12

Faculty of Transportation and Traffic Sciences, I nstitute of Logistics and Aviation, Chair of Air Transport Technology and Logistics

SESAR Innovation Days 2011

Design configurations

  • Baseline A
  • B and C each including one variation of A

Dipl.- Ing Lothar Meyer 12

Configuration Point of view Secondary Ground Surveillance A Panoramic Available B Panoramic Not available C Crossing Available

slide-13
SLIDE 13

Faculty of Transportation and Traffic Sciences, I nstitute of Logistics and Aviation, Chair of Air Transport Technology and Logistics

SESAR Innovation Days 2011

Experimental concept

  • Operational scenario includes

– Inbound traffic (automated landing clearances) – Outbound traffic (automated push back and taxi clearance) – Hazard appearances – Airport (single runway layout)

  • Primary Task

– Clear for lineup – Clear for take off

  • Secondary Task

– Detect threat events

Dipl.- Ing Lothar Meyer 13

slide-14
SLIDE 14

Faculty of Transportation and Traffic Sciences, I nstitute of Logistics and Aviation, Chair of Air Transport Technology and Logistics

SESAR Innovation Days 2011

Experimental concept

Test person Trafficgenerator Runway Incursion Violation of vortex seperation minima Line up overrun Go around Animal occurrences Experimental Virtual Control Tower Traffic data Visualize Detect Clear traffic Trigger Accident

Dipl.- Ing Lothar Meyer 14

  • Traffic inbound (go around): 12 (4)
  • Traffic outbound (overrun): 13 (3)
  • Friction test vehicles (overrun): 4 (2)
  • Animal appearance: 4
  • Endurance of one run: 34 minutes
slide-15
SLIDE 15

Faculty of Transportation and Traffic Sciences, I nstitute of Logistics and Aviation, Chair of Air Transport Technology and Logistics

SESAR Innovation Days 2011

Execution of the experiment

  • 13 test persons performed the execution
  • Varying sequence of configuration A,B and C

Dipl.- Ing Lothar Meyer 15

slide-16
SLIDE 16

Faculty of Transportation and Traffic Sciences, I nstitute of Logistics and Aviation, Chair of Air Transport Technology and Logistics

SESAR Innovation Days 2011

Violation of the primary task

  • The missing ground

surveillance (B) contributes most to the frequency of RWY incursion and violation of vortex separation minima.

  • The panoramic view/

ground surveillance availability (A) contributes least.

Dipl.- Ing Lothar Meyer 16

0.5 1 1.5 2 2.5 3 3.5 4

RWY Incursion Violation of vortex separation minima A B C A B C

4.5 5 7

~ ~ ~ ~

slide-17
SLIDE 17

Faculty of Transportation and Traffic Sciences, I nstitute of Logistics and Aviation, Chair of Air Transport Technology and Logistics

SESAR Innovation Days 2011

Violation of the secondary task

Dipl.- Ing Lothar Meyer 17

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%

A v e r a g e r a t e

  • f

m a t c h e d e v e n t s A v e r a g e r a t e

  • f

m a t c h e d a n i m a l s A v e r a g e r a t e

  • f

m a t c h e d

  • v

e r r u n i n g g r

  • u

n d v e h i c l e s A v e r a g e r a t e

  • f

m a t c h e d g

  • a

r

  • u

n d s A v e r a g e r a t e

  • f

m a t c h e d

  • v

e r r u n i n g a / c

A B C A B A B C A B C A B C

relative frequency

  • f occurrence

C

  • The missing ground

surveillance (B) contributes most to successfully detect animals and go arounds

  • The missing ground

surveillance (B) contributes most to not detect overrunning events

  • f a/ c and ground

vehicles

  • The crossing view (C)

contributes little to the frequency to detect go around events compared to (A)

Detec tection r ion rate te

slide-18
SLIDE 18

Faculty of Transportation and Traffic Sciences, I nstitute of Logistics and Aviation, Chair of Air Transport Technology and Logistics

SESAR Innovation Days 2011

Conclusion

  • An assessment of HMI setups has been

performed that points out contributing effects on the probability of hazard

  • ccurrence.
  • The assessment identifies safety relevant

design parameters.

  • The development of safety requirements may

take into account identified safety relevant design parameters.

Dipl.- Ing Lothar Meyer 18

slide-19
SLIDE 19

Faculty of Transportation and Traffic Sciences, I nstitute of Logistics and Aviation, Chair of Air Transport Technology and Logistics

SESAR Innovation Days 2011

Outlook

  • Multiple Airport Control: Assess new concepts of
  • peration
  • Varying input variable: maximum number of

controlled movements at a time

Dipl.- Ing Lothar Meyer 19

slide-20
SLIDE 20

Faculty of Transportation and Traffic Sciences, I nstitute of Logistics and Aviation, Chair of Air Transport Technology and Logistics

SESAR Innovation Days 2011

Outlook

Dipl.- Ing Lothar Meyer 20

  • LiDAR-supported detection (high contrast)
  • (A) Seperated views (Video + LiDAR)
  • (B) Merged view Video-LiDAR
slide-21
SLIDE 21

Faculty of Transportation and Traffic Sciences, I nstitute of Logistics and Aviation, Chair of Air Transport Technology and Logistics

SESAR Innovation Days 2011

Thank you.
