SLIDE 1
1 09/11/07
2 09/11/07
What is WSD?
The culture count doubled. Culture Laboratory Culture Anthropological Culture
Sense Inventory
Using UMLS CUIs for WSD in the Biomedical Domain Bridget T. McInnes - - PowerPoint PPT Presentation
Using UMLS CUIs for WSD in the Biomedical Domain Bridget T. McInnes - - PowerPoint PPT Presentation

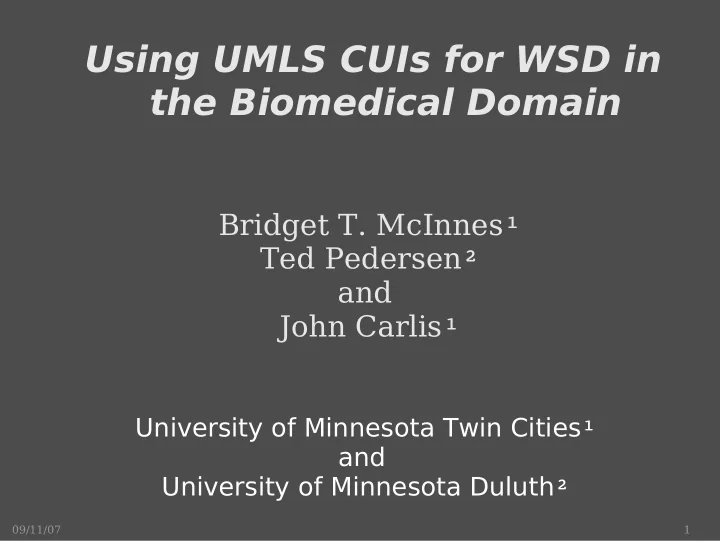

Using UMLS CUIs for WSD in the Biomedical Domain Bridget T. McInnes Ted Pedersen and John Carlis University of Minnesota Twin Cities and University of Minnesota Duluth 09/11/07 1 What is WSD? The culture count doubled. Culture
SLIDE 2
SLIDE 3
3 09/11/07
Sense Inventory: UMLS
Unified Medical Language System contains a list of Concept Unique Identifiers (CUIs) which are concepts (senses) associated with a word
- r term
Culture Laboratory Culture (C0430400) Anthropological Culture (C0010453)
Sense Inventory: UMLS
SLIDE 4
4 09/11/07
UMLS: Semantic Network
framework encoded with different semantic and syntactic structures Anthropological Culture (C0010453)
Semantic Type(s): Idea or Concept Semantic Type(s): Laboratory Procedure Semantic Type: Mental Process semantic relation: assesses_effect_of semantic relation: result_of
Laboratory Culture (C0430400)
SLIDE 5
5 09/11/07
MetaMap
Concept mapping system
maps text to concepts in the UMLS provides a wealth of information for all words in a document
phrasal information Part of speech (POS) of a word CUI of a word Semantic types of a word
SLIDE 6
6 09/11/07
Example
The culture count doubled
count
CUI: Count (C0750480) semantic type: Idea or Concept (idcn) pos: noun
doubled
CUI: Duplicate (C0205173) semantic type: Functional Concept (ftcn) pos: verb
SLIDE 7
7 09/11/07
Supervised Approaches
Leroy and Rindflesch 2005
Semantic types, semantic relations, part-
- f-speech, and head information (from
MetaMap)
Joshi, Pedersen and Maclin 2005
unigrams
in the same sentence as the ambiguous word in the same abstract as the ambiguous word
Liu, Teller and Friedman 2004
unigrams, direction and orientation of unigrams and collocations
SLIDE 8
8 09/11/07
Questions
SLIDE 9
9 09/11/07
Questions
Would UMLS CUIs be an improvement
- ver semantic types?
SLIDE 10
10 09/11/07
Questions
Would UMLS CUIs be an improvement
- ver semantic types?
Would the biomedical specific feature CUIs be an improvement over the more general feature unigrams?
SLIDE 11
11 09/11/07
Questions
Would UMLS CUIs be an improvement
- ver semantic types?
Would the biomedical specific feature CUIs be an improvement over the more general feature unigrams? Would increasing the context window in which surrounding CUIs are found improve the results?
SLIDE 12
12 09/11/07
Our supervised approach
Algorithm:
Naïve Bayes from WEKA datamining package using 10 fold cross validation
Features:
UMLS CUIs obtained from MetaMap
that occur in the same sentence as the ambiguous word more than one time (s-1-cui) that occur in the same abstract as the ambiguous word more than one time (a-1-cui)
SLIDE 13
13 09/11/07
Example
... The culture count doubled. The cells multiplied by twice the expected rate ...
C0750480 Count (2) C0205173 Duplicate (1) ... C0750480 Count (2) C0205173 Duplicate (3) C0007634 Cells (4) C1517001 Expected (1) C1521828 Rate (3) ...
Sentence: Abstract:
SLIDE 14
14 09/11/07
Example Instances Extract Relevant CUIs Training Data Test Data
Algorithm
Naïve Bayes Algorithm Sense Tagged Test Data
SLIDE 15
15 09/11/07
Dataset
National Library of Medicine's Word Sense Disambiguation (NLM-WSD) Dataset
50 words from the 1998 MEDLINE abstracts 100 instances for each of the 50 words Each instance has been tagged by MetaMap The target word was manually assigned a UMLS concept
- r None
Average number of concepts per ambiguous word is 2.26 (not including None)
SLIDE 16
16 09/11/07
Data subsets
Liu subset
Liu, Teller and Friedman 2004 22 out of the 50 words in NLM-WSD
Leroy subset
Leroy and Rindflesch 2005 15 out of the 50 words in NLM-WSD
Joshi subset
Joshi, Pedersen and Maclin 2005 28 out of the 50 words in NLM-WSD
(union of Leroy and Liu subsets)
SLIDE 17
17
Results
SLIDE 18
18 09/11/07
Results for Question 1
Would CUIs be an improvement over semantic types?
SLIDE 19
19 09/11/07
Comparative results with Leroy and Rindflesch 2005
s-1-cui a-1-cui s-0-Leroy 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75
Accuracy using Leroy subset
71% 74.5% 65.6%
SLIDE 20
20 09/11/07
Significance of Differences
Pairwise t-test
s-1-cui (71%) and s-0-Leroy (65.6%)
p <= 0.001
a-1-cui (74.5%) and s-0-Leroy (65.6%)
p <= .00005
SLIDE 21
21 09/11/07
Results for Question 2
Would the biomedical specific feature CUIs be an improvement over the more general feature unigrams?
SLIDE 22
22 09/11/07
Comparative results with Joshi, Pedersen and Maclin 2005
s-1-cui a-1-cui s-4-Joshi a-4-Joshi 10 20 30 40 50 60 70 80 90
Accuracy using Joshi subset
77.7% 80% 82.5% 79.3%
SLIDE 23
23 09/11/07
Significance of Results
Pairwise t-test
s-1-cui (77.7%) and s-4-Joshi (79.3%)
p < 0.135
a-1-cui (80.0%) and a-4-Joshi (82.5%)
p < 0.003
SLIDE 24
24 09/11/07
Results for Question 3
Would increasing the size of the context window in which surrounding CUIs are found improve the results, as seen by Joshi, Pedersen and Maclin using unigrams?
SLIDE 25
25 09/11/07
Comparative results between size of context window
s-1-cui a-1-cui 10 20 30 40 50 60 70 80
Accuracy using NLM-WSD dataset
83.3% 85.6%
SLIDE 26
26 09/11/07
Significance of Results
Pairwise t-test
s-1-cui (83.3%) and a-1-cui (85.6%)
p < 0.0006
SLIDE 27
27 09/11/07
Comparative results with Liu, Teller and Friedman 2004
a-1-cui s-0-Liu 10 20 30 40 50 60 70 80 90
Accuracy using the Liu subset
81.9% 85.5%
SLIDE 28
28 09/11/07
Significance of Results
Pairwise t-test
a-1-cui (81.9%) and s-1-Liu (85.5%)
p < 0.001
SLIDE 29
29 09/11/07
Conclusions
CUIs result in more accurate disambiguation than semantic types and are comparable to unigrams Incorporating more surrounding context improves the results MetaMap generates useful information that can used as features for supervised disambiguation
SLIDE 30
30 09/11/07
Future Work
Combination approach Exploring additional UMLS features Unsupervised approach using information from the UMLS
SLIDE 31
31 09/11/07
