Using Real-Time Data to Automate Variable Speeds and Traveler Information Winner of 2015 ITS America Best New Innovative Product, Service, or Application Presented by Jim Peters, P .E., PTOE 2015 ITS California Meeting TRANSPORTATION

slide-1

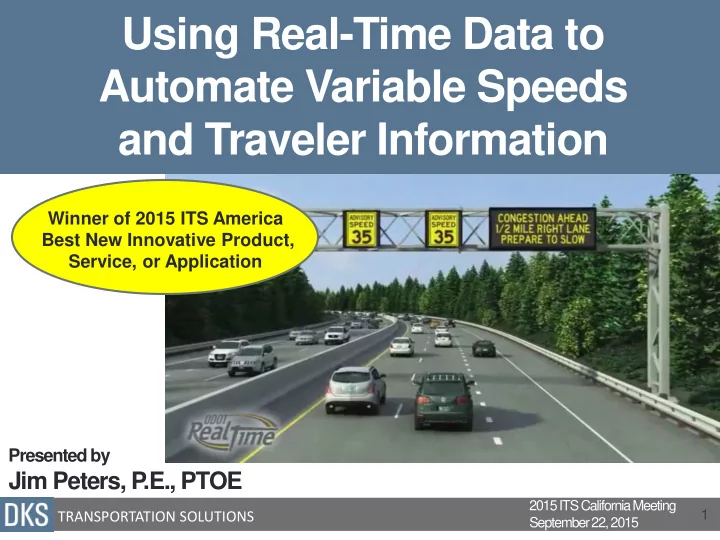

SLIDE 1

TRANSPORTATION SOLUTIONS

2015 ITS California Meeting September 22, 2015

Presented by

Jim Peters, P .E., PTOE

Winner of 2015 ITS America Best New Innovative Product, Service, or Application

Using Real-Time Data to Automate Variable Speeds and Traveler Information

1

slide-2
SLIDE 2

TRANSPORTATION SOLUTIONS

Variable Speed Systems in Oregon

2

slide-3
SLIDE 3

TRANSPORTATION SOLUTIONS

3

Highway 217 in Portland, Oregon

slide-4
SLIDE 4

TRANSPORTATION SOLUTIONS

4

Crash Problem on Highway 217

Over 200 crashes a year 70% of crashes are rear-end collisions

Icons made by Freepik from www.flaticon.com

50% of crashes

  • ccur during

peak periods

slide-5
SLIDE 5

TRANSPORTATION SOLUTIONS

5

Active Traffic Management Systems Deployed

slide-6
SLIDE 6

TRANSPORTATION SOLUTIONS

The variable advisory speed, queue warning, & travel time systems automatically respond to real-time traffic and weather conditions

6

slide-7
SLIDE 7

TRANSPORTATION SOLUTIONS

Statewide Variable Speed System

Congestion Responsive Subsystem Weather Responsive Subsystem Operator Control Subsystem

Automated Variable Speed Subsystems

7

slide-8
SLIDE 8

TRANSPORTATION SOLUTIONS

Congestion Responsive System

8

  • Each subzone’s speed

determined by the lower of:

  • Local 85th percentile

speed

  • Downstream speed +

step (5-10 mph)

  • Speeds measured by dual

loops and radar

  • Speeds < 30 mph display

“SLOW”

slide-9
SLIDE 9

TRANSPORTATION SOLUTIONS

Weather Responsive System

9

slide-10
SLIDE 10

TRANSPORTATION SOLUTIONS

Regulatory vs. Advisory Speeds

10

slide-11
SLIDE 11

TRANSPORTATION SOLUTIONS

Automated Freeway Queue Warning

11

slide-12
SLIDE 12

TRANSPORTATION SOLUTIONS

Automated Freeway Travel Times

12

slide-13
SLIDE 13

TRANSPORTATION SOLUTIONS

Branding Variable Speed Systems in Oregon

“ODOT RealTime” http://www.tripcheck.com/realtime/

13

slide-14
SLIDE 14

TRANSPORTATION SOLUTIONS

Highway 217 Results

14

Icons made by Freepik from www.flaticon.com

25%

Reduction in crash- related incidents

8 to 18%

Reduction in travel times

50%

Reduction in travel time variability

slide-15
SLIDE 15

TRANSPORTATION SOLUTIONS

Thank you

Jim Peters DKS Associates jim.peters@dksassociates.com Carl Olson DKS Associates carl.olson@dksassociates.com Josh Crain DKS Associates jvc@dksassociates.com

15

Dennis Mitchell Oregon Department of Transportation dennis.j.mitchell@odot.state.or.us Galen McGill Oregon Department of Transportation galen.e.mcgill@odot.state.or.us
