Seventh International Conference on Business Sustainability 2017 URBAN AND REVERSE LOGISTICS An application to commercial areas Sergio Rubio 1 , Juan-Ramn Sicilia 1 and Beatriz Jimnez-Parra 2 1 School of Industrial Engineering. University

slide-1

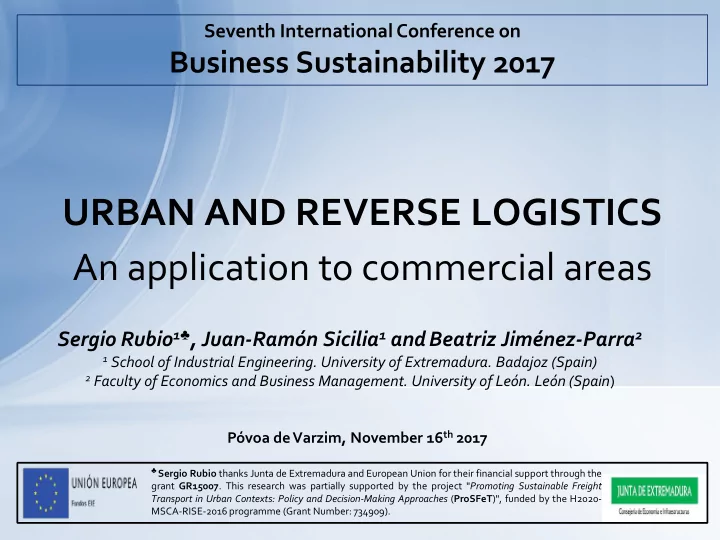

SLIDE 1

Sergio Rubio1♣, Juan-Ramón Sicilia1 and Beatriz Jiménez-Parra2

1 School of Industrial Engineering. University of Extremadura. Badajoz (Spain) 2 Faculty of Economics and Business Management. University of León. León (Spain)

URBAN AND REVERSE LOGISTICS An application to commercial areas

Póvoa de Varzim, November 16th 2017

Seventh International Conference on

Business Sustainability 2017

♣ Sergio Rubio thanks Junta de Extremadura and European Union for their financial support through the

grant GR15007. This research was partially supported by the project "Promoting Sustainable Freight Transport in Urban Contexts: Policy and Decision-Making Approaches (ProSFeT)", funded by the H2020- MSCA-RISE-2016 programme (Grant Number: 734909).

slide-2
SLIDE 2

Outline

1. Urban and reverse logistics 2. Challenges and opportunities for collaboration 3. Analysis of commercial areas in Badajoz:

– Shopping Street at Menacho – Shopping Centre at El Faro

4. Some proposals for improvement 5. Conclusions

2

slide-3
SLIDE 3

Urban Logistics

  • According to United Nations (2015), globally, more

people live in urban areas than in rural areas:

– 54% of the world’s population residing in urban areas in 2014 – By 2050, 66% of the world’s population is projected to be urban – Northern America (82%), Latin America and Caribbean (80%) and Europe (73%) are the most urbanized regions

  • European cities continue to grow:

– The level of urbanisation in Europe is expected to rise to 82% by 2050 (90% in DK, BE, and NL) 3

slide-4
SLIDE 4

Urban Logistics

  • A growing urban population will lead to increased

demand for goods and services, so increased demand for urban logistics

  • Urban Logistics may be defined as meaning the

movement of goods, equipment and waste into, out, from, within or through an urban area (European Commission, 2013).

4

slide-5
SLIDE 5

Urban Logistics

  • Urban (city) logistics can contribute towards making

urban areas more attractive and productive (Taniguchi et al., 2014)

  • Urban freight transport is one of the main

challenges in this context:

– emissions, – pollution, – congestion, etc. 5

slide-6
SLIDE 6

Urban Logistics

  • Some data on urban freight transport:

– Urban freight is an important traffic component in cities (10-15% of vehicle equivalent Kilometres) – Urban freight is approximately 6% of all transport GHG emissions – The load factors for delivery vehicles in cities are very low (38% for vans in London)

  • Sustainable city logistics must be the solution to the

social, environmental and economic negative impacts caused by freight transport in many cities around the world (Grosso et al., 2014).

6

slide-7
SLIDE 7

Reverse Logistics

  • In recent years, Reverse Logistics (RL) has attracted

the attention of companies and academia.

  • Apple, Canon, Caterpillar, Dell, Electrolux, Hewlett-

Packard, or IBM include Reverse Logistics practices in their operational processes.

  • RL is focused on the management of the recovery of

products once they are no longer desired or can no longer be used by consumers, in order to obtain an economic return through reuse, remanufacturing or recycling (Flapper et al. 2005).

7

slide-8
SLIDE 8

Reverse Logistics

Drivers for implementing RL systems:

  • Social reasons: CO2 emissions, waste generation,…
  • Legal reasons: Environmental legislation: WEEE,

packaging material, EOL vehicles, etc. Extended Producer Responsibility.

  • Economic reasons:
  • Direct: raw materials, disposal costs, added

value from returned products

  • Indirect: green image, improve customer

relationships

8

slide-9
SLIDE 9

Reverse Logistics

According to De Brito and Dekker (2004), RL can be defined as: “the process

  • f

planning, implementing and controlling backward flows of raw materials, in process inventory, packaging and finished goods, from a manufacturing, distribution or use point, to a point of recovery or point of proper disposal”

9

slide-10
SLIDE 10

Reverse Logistics

10

Raw materials Components and parts Manufacturing Distribution Customer

RECYCL CLING NG REMANU NUFACTU CTURI RING NG REUSE SE COMME MERCIA IAL RETURN RNS DISP SPOSA SAL FORWARD FLOW REVERSE FLOW

Flows in the Supply Chain

slide-11
SLIDE 11

Challenges & Opportunities

  • In the European context some initiatives have been

developed:

– ERTRAC: European Road Transport Advisory Council – ALICE: Alliance for Logistics Innovation through Collaboration in Europe

  • The ERTRAC-ALICE goal:

To identify research priorities related to urban freight, returns and urban logistics in order to improve the efficiency, the sustainability and the safety of these activities

11

slide-12
SLIDE 12

Challenges & Opportunities

According to ERTRAC-ALICE initiative it is necessary to research the following issues:

  • Integration of direct and reverse flows: implications
  • f e-commerce, recycling and commercial returns .
  • Logistics management models in an increasing

recycling society urban environment .

  • Combining flow waste from industry (construction

material and the others) and domestic.

12

slide-13
SLIDE 13

Challenges & Opportunities

  • Reverse logistics developments in the field of the

design of networks for recovery of EoL products could be very useful.

  • Issues related to reverse logistics and urban freight

logistics to be analysed:

– Network design for waste management – Commercial returns in urban areas – Business trends: e-commerce, home and personalised deliveries. 13

slide-14
SLIDE 14

Analysis of commercial areas

  • Based on a methodology (Sanz & Pastor, 2009) that

helps to take decisions about how to design a logistic model able to achieve an efficient urban freight distribution in any given scenario.

  • Our contribution includes:

– A reverse logistics approach – A measurement scale – A quantitative example 14

slide-15
SLIDE 15

Analysis of commercial areas

15 Urban context Point of Sale Reverse logistics Quantitative analysis Sensitivity analysis Results Proposals for improvement

slide-16
SLIDE 16

Analysis of commercial areas

16 URBAN CONTEXT (30%) POINT OF SALE (40%) REVERSE LOGISTICS (30%)

  • City (25%)
  • Neighbourhood

(25%)

  • Street (25%)
  • Surroundings (25%)
  • Facilities (60%)
  • Demand (40%)
  • Waste mgmt. (70%)
  • Returns (30%)

Weights and scales were suggested by experts

slide-17
SLIDE 17

Analysis of commercial areas

1) Urban context:

1.1) City:

  • City population
  • Entries to the city
  • Logistics platforms
  • Entries to the commercial areas
  • Congestion level
  • Urban consolidation centres
  • Traffic decision support systems

17

slide-18
SLIDE 18

Analysis of commercial areas

1) Urban context:

1.2) Neighbourhood:

  • Entries to the neighbourhood
  • Residential vs commercial neighbourhood
  • Congestion level
  • Architectonic elements: streets, pavement, historic

downtown, etc.

  • Traffic decision support systems

18

slide-19
SLIDE 19

Analysis of commercial areas

1) Urban context:

1.3) Street:

  • Sort of street: pedestrian area, vehicle restrictions,

time windows, etc.

  • Congestion level
  • Structural or physical restrictions in the street

1.4) Commercial area surroundings:

  • Drop-off facilities
  • Pavement state
  • Accessibility

19

slide-20
SLIDE 20

Analysis of commercial areas

2) Point of sale (POS):

2.1) Facilities:

  • Loading and unloading space, parking and regulations
  • Systems and mechanisms for loading and unloading
  • Merchandise routes to POS
  • Useful area of POS

2.2) Demand:

  • Relevance of the POS
  • Demand forecast
  • Opening hours
  • Commercial offer variety

20

slide-21
SLIDE 21

Analysis of commercial areas

3) Reverse logistics:

3.1) Waste management:

  • Collection containers availability
  • Waste collection system organization

3.2) Commercial returns:

  • Own system vs 3PL provider
  • Timetable
  • Collection points

21

slide-22
SLIDE 22

Analysis of commercial areas

  • Shopping street at Menacho

– Menacho is the main shopping street in Badajoz – More than 140 shops – Parking area for 750 vehicles

22

slide-23
SLIDE 23

Analysis of commercial areas: Menacho street

23 URBAN CONTEXT POINT OF SALE REVERSE LOGISTICS

  • Pedestrian area
  • Access restrictions
  • Parking restrictions

for delivery services

  • Opening hours

10.00-21.00

  • Load/unload public

areas (8.00-13.00 and 16.00-18.00)

  • Non-priority

deliveries

  • Excellent access

with pallet trucks

  • Warehouses

available for hiring

  • Online shop project
  • Public waste

management system (WMS)

  • Waste collection

shared with residents

  • Different waste

management behaviour

  • Recycling and waste

separation are not promoted

slide-24
SLIDE 24

Analysis of commercial areas

  • Shopping centre at El Faro

– El Faro is a mall located at the border with Portugal – 78 shops and 16 restaurants – Parking area for 2,500 vehicles – 66,000 m2 for shopping, leisure and food services.

24

slide-25
SLIDE 25

Analysis of commercial areas: El Faro

25 URBAN CONTEXT POINT OF SALE REVERSE LOGISTICS

  • Access by car, bus

and bicycle

  • Highway access
  • Free parking for

2,500 vehicles

  • Traffic information

service

  • Opening hours

10.00-22.00

  • Seven load/unload

decks (6.00-10.00)

  • Priority deliveries
  • Direct access from

decks to shops

  • No lockers or

distribution centres

  • Centralised waste

management system

  • 7 compactors for

cardboard waste

  • 1 compactors for
  • rganics waste
  • 1 compactor for

plastic waste

  • Waste collecting

hours (22.00-10.00)

slide-26
SLIDE 26

Analysis of commercial areas: Menacho street

Criteria Sub-criteria Score Max Score (0-10) Weight Final score Urban context City 20.5 80 2.56 25% 0.64 Neighbourhood 14 50 2.80 25% 0.70 Street 12 40 3.00 25% 0.75 Surroundings 29 50 5.80 25% 1.45 Sub-total 3.54 30% 1.06 Point of Sale Facilities 58 60 9.67 60% 5.80 Demand 20.3 40 5.08 40% 2.03 Sub-total 7.83 40% 3.13 Reverse Logistics Waste Management 20 60 3.33 70% 2.33 Commercial Returns 5 20 2.50 30% 0.75 Sub-total 3.08 30% 0.925

TOTAL 5.12

slide-27
SLIDE 27

Analysis of commercial areas: El Faro

Criteria Sub-criteria Score Max Score (0-10) Weight Final score Urban context City 20.5 80 2.56 25% 0.64 Neighbourhood 29 50 5.80 25% 1.45 Street 36 40 9.00 25% 2.25 Surroundings 45 50 9.00 25% 2.25 Sub-total 6.59 30% 1.98 Point of Sale Facilities 50 60 8.33 60% 5.00 Demand 27.5 40 6.88 40% 2.75 Sub-total 7.75 40% 3.10 Reverse Logistics Waste Management 55 60 9.17 70% 6.42 Commercial Returns 15 20 7.50 30% 2.25 Sub-total 8.67 30% 2.60

TOTAL 7.68

slide-28
SLIDE 28

Analysis of commercial areas: Results

Criteria Shopping Street Menacho Shopping Centre El Faro Urban Context 3.54 6.59 Point of Sale 7.83 7.75 Reverse Logistics 3.08 8.67 TOTAL 5.12 7.68 28

slide-29
SLIDE 29

Some proposals for improvement

  • For Menacho shopping street, based on a SWOT

analysis:

29 Strengths:

  • Location
  • Wide commercial offer

Weaknesses:

  • Congestion
  • Shared load/unload areas
  • Poor reverse logistics

Opportunities:

  • E-commerce project
  • A new pedrestrian area

Threats:

  • Shopping centres
  • Traffic regulations in this

area – P1: Urban consolidation centre – P2: Centralised waste management system

slide-30
SLIDE 30

Some proposals for improvement

  • For El Faro shopping centre, based on a SWOT

analysis:

30 Strengths:

  • Entries and access
  • Low cogestion
  • RevLog organization

Weaknesses:

  • Deliveries time window,

just in the morning Opportunities:

  • Close to the new

logistics plattform

  • New entry from South

Threats:

  • Engagement of public

administrations in urban logistics – P1: Deck management system for deliveries – P2: Lockers for night deliveries

slide-31
SLIDE 31

Conclusions

  • Commonalities between urban logistics and reverse

logistics: social, legal and economic drivers

  • Contribution of RL to new issues in urban logistics:

– Network design for waste management, – Commercial returns in urban areas, – Business trends: e-commerce, home and personalised deliveries.

  • An analysis of urban and reverse logistics was

developed and applied to commercial areas

  • Some proposals for improvement were highlighted

31

slide-32
SLIDE 32

References

  • De Brito, M.P., Dekker, R. (2004). A Framework for reverse logistics. En Dekker, R.,

Fleischmann, M., Inderfurth, K., Van Wassenhove, L.N. (Eds.): Reverse logistics. Quantitative models for closed-loop supply chains (pp. 3-27). Ed. Springer-Verlag. Berlin.

  • European Commission (2013). Together towards competitive and resource-efficient

urban mobility. A call to action on urban logistics. SWD (2013) 524 Final. Brussels.

  • Flapper, S.D.P., Van Nunen, J.A.E.E., Van Wassenhove, L.N. (2005). Managing

closed-loop supply chains. Ed. Springer. New York.

  • Grosso, R. Muñuzuri, J., Cortés, P., Carrillo, J. (2014). City logistics: Are sustainability

policies really sustainable? Dirección y Organización 53, 45-50.

  • Sanz, G., Pastor, R. (2009). Metodología para la definición de un sistema logístico

que trate de lograr una distribución urbana de mercancías eficiente. Dirección y Organización 37,60-66.

  • Taniguchi, E., Thompson, R. G., Yamada, T. (2014). Recent trends and innovations in

modeling city logistics. Procedia – Social and Behavioral Sciencies 125, 4-14.

  • United Nations (2015). World Urbanization Prospects: The 2014 Revision.

Department

  • f

Economic and Social Affairs, Population Division. (ST/ESA/SER.A/366).

32

slide-33
SLIDE 33

Questions?

Muito obrigado!

33

slide-34
SLIDE 34

Sergio Rubio1♣, Juan-Ramón Sicilia1 and Beatriz Jiménez-Parra2

1 School of Industrial Engineering. University of Extremadura. Badajoz (Spain) 2 Faculty of Economics and Business Management. University of León. León (Spain)

URBAN AND REVERSE LOGISTICS An application to commercial areas

Póvoa de Varzim, November 16th 2017

Seventh International Conference on

Business Sustainability 2017

♣ Sergio Rubio thanks Junta de Extremadura and European Union for their financial support through the

grant GR15007. This research was partially supported by the project "Promoting Sustainable Freight Transport in Urban Contexts: Policy and Decision-Making Approaches (ProSFeT)", funded by the H2020- MSCA-RISE-2016 programme (Grant Number: 734909).
