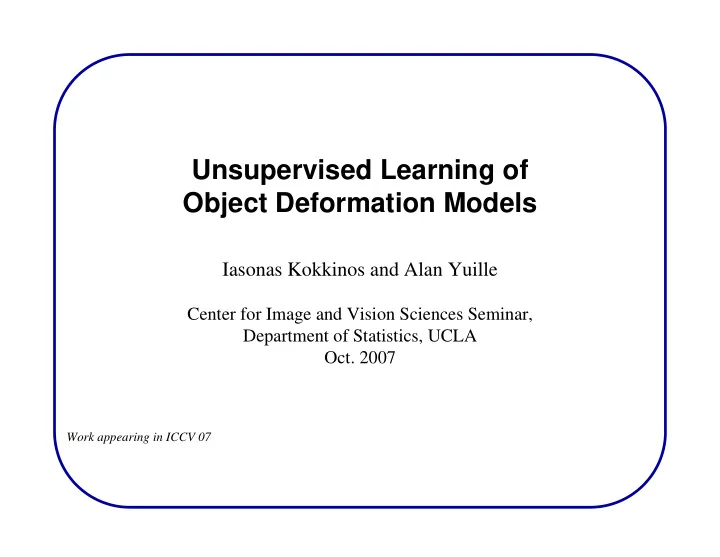

Unsupervised Learning of Object Deformation Models

Work appearing in ICCV 07

Iasonas Kokkinos and Alan Yuille

Center for Image and Vision Sciences Seminar, Department of Statistics, UCLA

  • Oct. 2007
slide-2
SLIDE 2

Modelling ShapeVariation via Deformations

  • Top-down approach:

– Model variation in shape and appearance separately (`one thing at a time’) – Shape modelling via deformations

  • Success Stories:

– Deformable Templates, Active Contours. – ASM-AAM models. – MRF models for object detection/tracking.

  • Our goal: Learn without manual annotations.

I(S(x)) = T(x) X S(X) Template Instance

slide-3
SLIDE 3
  • Appearance and shape of interest points.

+ Efficient, scale-invariant detection + Automated learning of object detection models

  • Not really generative models
  • Therefore unsuitable for
  • Segmentation
  • Tracking/analysis
  • Other tasks in the `pipeline’
  • Questionable shape models (Gaussians for fixed set of interest points)

Mainstream on Learning Object Models

Parallelograms: 4 point model? All contour info can be recovered. But why require `magic picture’ skills?

slide-4
SLIDE 4

Primal Sketch Representation

  • Image sketch: low-level summary of pixel information

– Marr, Perceptual grouping, Lindeberg, Guo, Wu & Zhu.

  • Lindeberg Edges & Ridges: Focus on Scale Invariance

Smoothed Image Edge Strength Ridge Strength

  • Remove appearance variation, focus on shape.
  • Extract information related to boundaries/symmetry axes.
  • Use as features for both modelling and detection.

Scale

slide-5
SLIDE 5

Datasets

  • Overall goal is to learn models and use them for object detection.
  • Datasets from detection benchmarks were used, containing

unsegmented images with significant noise and occlusions.

Cars: Aggarwal and Roth, ECCV 02 Horses: Borenstein & Ullman, ECCV 02 Cows: Leibe & Schiele, ECCV 04 Faces: Fergus et al, CVPR Hands: Gomez & Stegmann, imm.dtu.dk

slide-6
SLIDE 6

Learning Active Appearance Models

slide-7
SLIDE 7
  • Composite deformations modelled as superposition of simpler ones.
  • Combination of
  • Model fitting:

– Minimization of – Stochastic GD, Newton Raphson, Inverse Compositional

  • Model Learning?

AAMs: Linear, Global Deformation Models

Shape : & Texture: for Synthesis:

slide-8
SLIDE 8

Unsupervised Learning of AAMs

  • Goal: register training images with prototype template.

– Unknowns: template, deformation basis and coefficients.

  • Previous Work:

– Vetter, Jones & Poggio, CVPR 97: Bootstrapping

  • Iterate: AAM fitting - optical flow - PCA on optical flow

– Cootes et al. ECCV 2004: Diffeomorphisms

  • Guarantee 1-1 mapping, but not of the typical PCA type.

– Baker, Matthews, Schneider, PAMI 04: Coding Length

  • Global reconstruction criterion.
  • Our Contributions

– EM Formulation – Mean Shift Clustering for Eigenvector Initialization – `Feature Transport’ PDE.

slide-9
SLIDE 9

AAM Learning Block Diagram

s S T M: Update E: Deform New Eigenvector Mean Shift Clustering Primal Sketch Input Images AAM Fit EM Loop Model Parameters Registrations

slide-10
SLIDE 10

EM Approach to Learning AAMs

  • Starting Points

– ‘Coding’ criterion (BMS ’04)

  • EM- formulation
  • Parameters:

Synthesis model for deformations and template.

  • Hidden variables:

Coefficients matching template with individual images.

  • EM-based minimization:

– E-step: Posterior on hidden variables, given parameters.

  • model fitting, estimate

– M-step: Maximize expected log-likelihood

  • maximize observation likelihood w.r.t. basis elements & template.
slide-11
SLIDE 11

Mean Shift Clustering for Initialization

  • Alternative views of Primal Sketch Contours:

– 2D images, 1D contours, 0D point sets.

  • Phrase registration as clustering of points.
  • Nonparametric clustering: Mean Shift

– Variation: remove motion component along contour orientation. – Collapses contour `spaghetti’ onto single contour. – Used for eigenvector initialization and template construction.

slide-12
SLIDE 12

Feature Transport PDE

  • Problem Addressed:

– Deformations can `swallow’ template features. – Instead of matching template to image, its features are hidden.

  • `Feature Transport’ idea: do not `accelerate’ across features.

– Constraint on deformation field – Project onto nearest function satisfying constraint – Calculus of Variations:

slide-13
SLIDE 13

Deformation Eigenmodes

slide-14
SLIDE 14

Registration Results: Improvements in Template Clarity

slide-15
SLIDE 15

Quantitative Results

  • 50 Images from each category, 18-50 landmarks per image.
  • Error measure:

– Backward wrap images to template coordinate system. – Calculate covariance of landmark locations. – Estimate `radius’ of containing circle

Green: Only translation Blue: Learned model Red: Manual Model

slide-16
SLIDE 16

Learning Part-Based Models

slide-17
SLIDE 17

Part-Based Deformation models

  • AAM limitations:

– Global deformation models. – No occlusion or layered appearance modelling. – Local minima due to greedy fitting.

  • Part-Based Models (Graphical Models):

– Each object part corresponds to a node on the graph. – Node state: parameters of local deformation model – Clique potentials: kinematic constraints.

  • Divide-and-conquer-type modelling of deformations.

– Small set of simple models. – Inference can avoid local minima, handle occlusions.

Template Deformed State of i Deformed Template

slide-18
SLIDE 18

Model Initialization

  • Part Detection:

– Cluster ridges (symmetry axes) using Mean Shift – But now only move along contour orientation – Detected Parts:

  • Initial parameter estimates: obtained from AAM fitting results.
slide-19
SLIDE 19

Learning the Model via EM.

  • Split problem unknowns

– Hidden variables: Node states for each individual image. – Parameters: clique expressions, network structure, template.

  • E-step: Estimate posterior distribution on hidden states

– Tree-structured model. – Inference on graphs.

  • M-step: Use posterior to update model parameters

– Hinged joint model estimation for clique potentials (Least Squares). – Structure Learning (Minimum Spanning Tree). – Learning the observation model (Niblack Thresholding).

slide-20
SLIDE 20

Nonparametric Belief Propagation for the E-step

  • Belief propagation algorithm: circulate messages in graph
  • NBP (Sudderth Ihler et. al, CVPR’03):

– Sample-based approximation to messages. – Gibbs-sampling based computation of product between messages. – Posterior on nodes:

  • Still, problematic if we must evaluate

by cropping, rotating, and rescaling e.g. 100 image patches for each node.

Problem!

slide-21
SLIDE 21

Speeding Up the E-step

  • Use binary templates in appearance model (Niblack thresholding).
  • For each state being summed over:

– Deform part template correspondingly – Sum ridge/edge strength within/outside template interior. – Use as feature in observation potential expression.

  • Key idea: replace summations using Stoke’s theorem:

S1 S2 S3 T S1 S2 S3 T Binary Template Ridge interior Edge interior

slide-22
SLIDE 22

Part-Based Model Results

  • Top-down Syntheses:

– Sketch image using most likely samples from the node posteriors.

  • Quantitative Results:

– Better than AAM, almost as good as manual model

10 20 30 5 10 Landmark #

Cows

RCD

AAM MRF−M MRF−U

10 20 30 40 10 20 Landmark #

Horses

RCD

AAM MRF−M MRF−U

slide-23
SLIDE 23

Top-down fitting results

slide-24
SLIDE 24

Conclusions & Discussion

  • Modelling deformations

– Basic prerequisite for building accurate models. – Requires `handholding’ and careful design.

  • Primal Sketch greatly facilitates modelling

– Amenable to Mean Shift clustering – Averaging over training set provides boundaries & symmetry axes. – Facilitates part detection by clustering symmetry axes. – Removes appearance information.

  • Learning difficulty & performance:

– Learned AAM performed equally with manually trained AAM. – Learning Part-Based models is feasible, but there is place for improvement.

slide-25
SLIDE 25
  • Use for detection

– How can we combine the sparse set of primal sketch tokens to detect an object?

  • Extend learning:

– Use 1-D aspect of primal sketch. – Learn the hierarchy of parts building up the object? – Allow alternative structures (And-Or graph)?

  • Use top-down models for segmentation

– Top-down filling in does most of the work – Use hallucinated edges and ridges to segment the image

  • Model appearance variation.

Future Work

CVPR 06 ICCV 07
