Outline Introduction JavaScript Measurements Results Conclusions Understanding the Dynamics of JavaScript Sylvain Lebresne, Gregor Richards, Johan Ostlund, Tobias Wrigstad, Jan Vitek Purdue University July 6, 2009 1 / 28 Outline

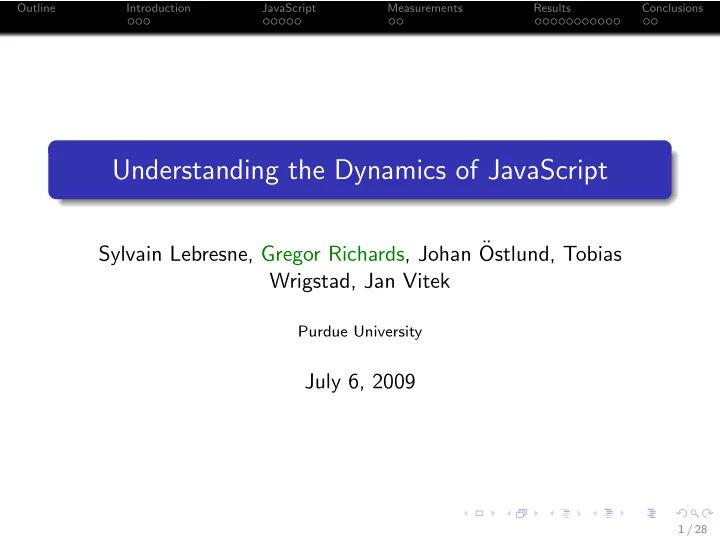

slide-1
SLIDE 1

Outline Introduction JavaScript Measurements Results Conclusions

Understanding the Dynamics of JavaScript

Sylvain Lebresne, Gregor Richards, Johan ¨ Ostlund, Tobias Wrigstad, Jan Vitek

Purdue University

July 6, 2009

1 / 28

slide-2
SLIDE 2

Outline Introduction JavaScript Measurements Results Conclusions

1

Introduction

2

JavaScript

3

Measurements

4

Results

5

Conclusions

2 / 28

slide-3
SLIDE 3

Outline Introduction JavaScript Measurements Results Conclusions

Introduction

3 / 28

slide-4
SLIDE 4

Outline Introduction JavaScript Measurements Results Conclusions

Introduction — The Significance of JavaScript1

Language of “Web 2.0” Dynamic language used for large, structured web programs Supplanting Java applets, Flash

1JavaScript is also known as ECMAScript, JScript 4 / 28

slide-5
SLIDE 5

Outline Introduction JavaScript Measurements Results Conclusions

Introduction — Motivation

Understand real-world patterns used in dynamic languages Do dynamic languages beget untypable code? Potential for type analysis of JavaScript What patterns in JavaScript could be recreated in a static context

5 / 28

slide-6
SLIDE 6

Outline Introduction JavaScript Measurements Results Conclusions

Introduction — JavaScript and Types

Extremely dynamic, flexible object system No static notion of type But is the dynamicity used?

6 / 28

slide-7
SLIDE 7

Outline Introduction JavaScript Measurements Results Conclusions

JavaScript

7 / 28

slide-8
SLIDE 8

Outline Introduction JavaScript Measurements Results Conclusions

JavaScript — The Language

Imperative, object-oriented Minimalistic standard library 3rd-party libraries abstract the type system (Prototype.js, jQuery, Ext)

8 / 28

slide-9
SLIDE 9

Outline Introduction JavaScript Measurements Results Conclusions

JavaScript — Prototypes

Objects have a prototype, which is another object Field lookup looks in the object itself, then its prototype Prototype chains act like subtype relationships

9 / 28

slide-10
SLIDE 10

Outline Introduction JavaScript Measurements Results Conclusions

JavaScript — Terminology

Constructors have a prototype field, the prototype of objects created by the constructor: X.prototype is not the prototype of X, but the prototype of objects created by X The prototype of an object is accessible in many implementations by the field proto

10 / 28

slide-11
SLIDE 11

Outline Introduction JavaScript Measurements Results Conclusions

JavaScript — Prototypes Example

11 / 28

slide-12
SLIDE 12

Outline Introduction JavaScript Measurements Results Conclusions

JavaScript — Prototypes Example

function List(v, n) { this.v = v; this.n = n; } List List.prototype prototype

11 / 28

slide-13
SLIDE 13

Outline Introduction JavaScript Measurements Results Conclusions

JavaScript — Prototypes Example

function List(v, n) { this.v = v; this.n = n; } List.prototype.map = function(f) { return new List(f(this.v), this.n ? this.n.map(f) : null); }

List List.prototype List.prototype.map prototype map 11 / 28

slide-14
SLIDE 14

Outline Introduction JavaScript Measurements Results Conclusions

JavaScript — Prototypes Example

function List(v, n) { this.v = v; this.n = n; } List.prototype.map = function(f) { return new List(f(this.v), this.n ? this.n.map(f) : null); } var l = new List(1, null);

List List.prototype List.prototype.map l prototype map 11 / 28

slide-15
SLIDE 15

Outline Introduction JavaScript Measurements Results Conclusions

JavaScript — Prototypes Example

function List(v, n) { this.v = v; this.n = n; } List.prototype.map = function(f) { return new List(f(this.v), this.n ? this.n.map(f) : null); } var l = new List(1, null);

List List.prototype List.prototype.map l prototype map map

11 / 28

slide-16
SLIDE 16

Outline Introduction JavaScript Measurements Results Conclusions

JavaScript — Prototypes Example

function List(v, n) { this.v = v; this.n = n; } List.prototype.map = function(f) { return new List(f(this.v), this.n ? this.n.map(f) : null); } var l = new List(1, null); delete(List.prototype.map);

List List.prototype l prototype

11 / 28

slide-17
SLIDE 17

Outline Introduction JavaScript Measurements Results Conclusions

Questions

12 / 28

slide-18
SLIDE 18

Outline Introduction JavaScript Measurements Results Conclusions

Questions

How often do prototypes change after first instantiation?

12 / 28

slide-19
SLIDE 19

Outline Introduction JavaScript Measurements Results Conclusions

Questions

How often do prototypes change after first instantiation? How often do prototype chains change after first instantiation?

12 / 28

slide-20
SLIDE 20

Outline Introduction JavaScript Measurements Results Conclusions

Questions

How often do prototypes change after first instantiation? How often do prototype chains change after first instantiation? How often are entirely new fields or methods added to live

  • bjects?

12 / 28

slide-21
SLIDE 21

Outline Introduction JavaScript Measurements Results Conclusions

Questions

How often do prototypes change after first instantiation? How often do prototype chains change after first instantiation? How often are entirely new fields or methods added to live

  • bjects?

What is the object-to-prototype ratio?

12 / 28

slide-22
SLIDE 22

Outline Introduction JavaScript Measurements Results Conclusions

Questions

How often do prototypes change after first instantiation? How often do prototype chains change after first instantiation? How often are entirely new fields or methods added to live

  • bjects?

What is the object-to-prototype ratio? How complex/deep are prototype hierarchies?

12 / 28

slide-23
SLIDE 23

Outline Introduction JavaScript Measurements Results Conclusions

Questions

How often do prototypes change after first instantiation? How often do prototype chains change after first instantiation? How often are entirely new fields or methods added to live

  • bjects?

What is the object-to-prototype ratio? How complex/deep are prototype hierarchies? Do JavaScript programs make use of type introspection?

12 / 28

slide-24
SLIDE 24

Outline Introduction JavaScript Measurements Results Conclusions

Questions

How often do prototypes change after first instantiation? How often do prototype chains change after first instantiation? How often are entirely new fields or methods added to live

  • bjects?

What is the object-to-prototype ratio? How complex/deep are prototype hierarchies? Do JavaScript programs make use of type introspection? What is the ratio of message sends and field updates?

12 / 28

slide-25
SLIDE 25

Outline Introduction JavaScript Measurements Results Conclusions

Measurements

13 / 28

slide-26
SLIDE 26

Outline Introduction JavaScript Measurements Results Conclusions

Measurements — Dirtiness

Primary measurement is “dirtiness” of objects Dirtying actions:

Addition or deletion of a property Update of a method Update of the prototype field

14 / 28

slide-27
SLIDE 27

Outline Introduction JavaScript Measurements Results Conclusions

Measurements — Dirtiness

Primary measurement is “dirtiness” of objects Dirtying actions:

Addition or deletion of a property Update of a method Update of the prototype field

Intuition:

“Clean” objects are nearly statically typable “Dirty” objects use dynamic features

14 / 28

slide-28
SLIDE 28

Outline Introduction JavaScript Measurements Results Conclusions

Measurements — Dirtiness

Primary measurement is “dirtiness” of objects Dirtying actions:

Addition or deletion of a property Update of a method Update of the prototype field

Intuition:

“Clean” objects are nearly statically typable “Dirty” objects use dynamic features

Update of a field explicitly ignored

14 / 28

slide-29
SLIDE 29

Outline Introduction JavaScript Measurements Results Conclusions

Measurements — Test Cases

SunSpider tests

Popular for benchmarking JavaScript implementations “(...) avoids microbenchmarks, and tries to focus on the kinds

  • f actual problems developers solve with JavaScript today,

(...)”

Real web pages

Amazon, Basecamp, Facebook, Gmail, LivelyKernel, NASA Random walk (normal web surfing activity)

15 / 28

slide-30
SLIDE 30

Outline Introduction JavaScript Measurements Results Conclusions

Results — Objects

Results broken down by objects, in these categories:

Regular objects: objects created by new (and array literals.) Constructors: functions used to create regular objects. Functions: functions that are not used as a constructor. Prototypes: objects created as prototypes of functions.

16 / 28

slide-31
SLIDE 31

Outline Introduction JavaScript Measurements Results Conclusions

Results — Object Dirtiness

Regular Objects Prototypes Constructors Other Functions Objects 3d-cube 20491 (0.02%) 23 (0%) 1 (0%) 14 (0%) 20529 (0.02%) 3d-raytrace 10742 (0.61%) 36 (0%) 3 (0%) 25 (0%) 10806 (0.61%) binary-trees 42072 (0%) 11 (0%) 1 (0%) 2 (0%) 42086 (0%) v8-crypto 1076 (44%) 140 (2.86%) 5 (20%) 127 (0%) 1348 (35.5%) v8-deltablue 22854 (0%) 87 (1.15%) 15 (73.33%) 64 (3.12%) 23020 (0.07%) v8-raytrace 399685 (0.02%) 361 (1.94%) 18 (100%) 335 (5.37%) 400399 (0.03%) v8-richards 3000 (0%) 46 (0%) 7 (0%) 31 (0%) 3084 (0%) amazon 31589 (21.6%) 20909 (0%) 1 (100%) 20750 (4.9%) 73249 (10.7%) basecamp 4381 (5.2%) 1796 (0.4%) 0 (0%) 1663 (0%) 7840 (3%) facebook 72231 (28.5%) 22692 (1.4%) 167 (69.5%) 22407 (13.1%) 117497 (20.4%) gmail 55833 (24%) 11140 (0.06%) 1899 (98.8%) 8338 (40.4%) 77210 (24.1%) livelykernel 316717 (7.1%) 70036 (0%) 1 (0%) 69845 (0.01%) 456599 (4.9%) nasa 93989 (3.1%) 13853 (2.7%) 24 (4.2%) 13352 (0.06%) 121218 (2.7%) random 47921 (16.4%) 12680 (0.15%) 189 (55%) 12338 (0.4%) 73128 (11%)

Regular object dirtiness usually due to “optional” fields or

  • bject literals

v8-crypto: bignums constructor does not always create some fields; created instead by later functions such as fromInt v8-raytrace: optional shader function added to some (but not all) objects

17 / 28

slide-32
SLIDE 32

Outline Introduction JavaScript Measurements Results Conclusions

Results — Object Dirtiness

Regular Objects Prototypes Constructors Other Functions Objects 3d-cube 20491 (0.02%) 23 (0%) 1 (0%) 14 (0%) 20529 (0.02%) 3d-raytrace 10742 (0.61%) 36 (0%) 3 (0%) 25 (0%) 10806 (0.61%) binary-trees 42072 (0%) 11 (0%) 1 (0%) 2 (0%) 42086 (0%) v8-crypto 1076 (44%) 140 (2.86%) 5 (20%) 127 (0%) 1348 (35.5%) v8-deltablue 22854 (0%) 87 (1.15%) 15 (73.33%) 64 (3.12%) 23020 (0.07%) v8-raytrace 399685 (0.02%) 361 (1.94%) 18 (100%) 335 (5.37%) 400399 (0.03%) v8-richards 3000 (0%) 46 (0%) 7 (0%) 31 (0%) 3084 (0%) amazon 31589 (21.6%) 20909 (0%) 1 (100%) 20750 (4.9%) 73249 (10.7%) basecamp 4381 (5.2%) 1796 (0.4%) 0 (0%) 1663 (0%) 7840 (3%) facebook 72231 (28.5%) 22692 (1.4%) 167 (69.5%) 22407 (13.1%) 117497 (20.4%) gmail 55833 (24%) 11140 (0.06%) 1899 (98.8%) 8338 (40.4%) 77210 (24.1%) livelykernel 316717 (7.1%) 70036 (0%) 1 (0%) 69845 (0.01%) 456599 (4.9%) nasa 93989 (3.1%) 13853 (2.7%) 24 (4.2%) 13352 (0.06%) 121218 (2.7%) random 47921 (16.4%) 12680 (0.15%) 189 (55%) 12338 (0.4%) 73128 (11%)

Prototypes are dirty if modified after the first instance is created

Adding fields to Object.prototype and String.prototype v8-crypto: “static” fields zero and one

18 / 28

slide-33
SLIDE 33

Outline Introduction JavaScript Measurements Results Conclusions

Results — Object Dirtiness

function BigNum(val) { ... } BigNum.ZERO = new BigNum(0); BigNum.ONE = new BigNum(1);

19 / 28

slide-34
SLIDE 34

Outline Introduction JavaScript Measurements Results Conclusions

Results — Object Dirtiness

function BigNum(val) { ... } BigNum.ZERO = new BigNum(0); BigNum.ONE = new BigNum(1); BigNum.prototype.add = function(to) { ... }

19 / 28

slide-35
SLIDE 35

Outline Introduction JavaScript Measurements Results Conclusions

Results — Object Dirtiness

function BigNum(val) { ... } BigNum.ZERO = new BigNum(0); BigNum.ONE = new BigNum(1); BigNum.prototype.add = function(to) { ... } function BigNum(val) { ... } BigNum.prototype.add = function(to) { ... } BigNum.ZERO = new BigNum(0); BigNum.ONE = new BigNum(1);

19 / 28

slide-36
SLIDE 36

Outline Introduction JavaScript Measurements Results Conclusions

Results — Object Dirtiness

Regular Objects Prototypes Constructors Other Functions Objects 3d-cube 20491 (0.02%) 23 (0%) 1 (0%) 14 (0%) 20529 (0.02%) 3d-raytrace 10742 (0.61%) 36 (0%) 3 (0%) 25 (0%) 10806 (0.61%) binary-trees 42072 (0%) 11 (0%) 1 (0%) 2 (0%) 42086 (0%) v8-crypto 1076 (44%) 140 (2.86%) 5 (20%) 127 (0%) 1348 (35.5%) v8-deltablue 22854 (0%) 87 (1.15%) 15 (73.33%) 64 (3.12%) 23020 (0.07%) v8-raytrace 399685 (0.02%) 361 (1.94%) 18 (100%) 335 (5.37%) 400399 (0.03%) v8-richards 3000 (0%) 46 (0%) 7 (0%) 31 (0%) 3084 (0%) amazon 31589 (21.6%) 20909 (0%) 1 (100%) 20750 (4.9%) 73249 (10.7%) basecamp 4381 (5.2%) 1796 (0.4%) 0 (0%) 1663 (0%) 7840 (3%) facebook 72231 (28.5%) 22692 (1.4%) 167 (69.5%) 22407 (13.1%) 117497 (20.4%) gmail 55833 (24%) 11140 (0.06%) 1899 (98.8%) 8338 (40.4%) 77210 (24.1%) livelykernel 316717 (7.1%) 70036 (0%) 1 (0%) 69845 (0.01%) 456599 (4.9%) nasa 93989 (3.1%) 13853 (2.7%) 24 (4.2%) 13352 (0.06%) 121218 (2.7%) random 47921 (16.4%) 12680 (0.15%) 189 (55%) 12338 (0.4%) 73128 (11%)

Emulation of class-based behavior common, further investigation needed

20 / 28

slide-37
SLIDE 37

Outline Introduction JavaScript Measurements Results Conclusions

Results — Constructors and Functions

Object.prototype.inherits = function(shuper) { function Inheriter() {} Inheriter.prototype = shuper.prototype; this.prototype = new Inheriter(); this.superConstructor = shuper; } function List(...) = { ... } function ColorList(...) = { ColorList.superConstructor.call(this, ...); ... } ColorList.inherits(List);

21 / 28

slide-38
SLIDE 38

Outline Introduction JavaScript Measurements Results Conclusions

Results — Dirtiness Sources

Results broken down by source of dirtiness

Method addition Method update Field addition Prototype update Deletion

22 / 28

slide-39
SLIDE 39

Outline Introduction JavaScript Measurements Results Conclusions

Results — Dirtiness Sources

3d-cube 3d-raytrace binary-trees v8-crypto v8-deltablue v8-raytrace v8-richards amazon basecamp facebook gmail livelykernel nasa random 1000 2000 3000 4000 5000 6000 7000

Deletions

23 / 28

slide-40
SLIDE 40

Outline Introduction JavaScript Measurements Results Conclusions

Results — Dirtiness Sources

3d-cube 3d-raytrace binary-trees v8-crypto v8-deltablue v8-raytrace v8-richards amazon basecamp facebook gmail livelykernel nasa random 5000 10000 15000 20000 25000

  • Meth. add.

Field add.

24 / 28

slide-41
SLIDE 41

Outline Introduction JavaScript Measurements Results Conclusions

Results — Dirtiness Sources

  • Meth. add.
  • Meth. upd.

Field add.

  • Proto. upd.

Deletions Avg. Obj./Tot. Obj./Tot. Obj./Tot. Obj./Tot. Obj./Tot. (Med.) 3d-cube 0/0 0/0 16/4 0/0 0/0 4.0 (2) 3d-raytrace 2/2 0/0 124/64 0/0 0/0 1.9 (2) binary-trees 0/0 0/0 0/0 0/0 0/0 0.0 (0) v8-crypto 61/4 0/0 950/475 0/0 0/0 2.1 (2) v8-deltablue 11/8 0/0 10/2 12/12 0/0 2.2 (2) v8-raytrace 587/77 10/5 180/36 33/33 0/0 6.4 (2) v8-richards 0/0 0/0 0/0 0/0 0/0 0.0 (0) amazon 2160/4198 39/67 7050/59769 2/2 1174/1896 8.4 (2) basecamp 112/819 7/7 142/1883 0/0 0/0 11.6 (2) facebook 5212/16432 256/648 19787/84912 72/72 352/727 4.3 (2) gmail 2123/4258 68/180 10982/35783 1896/1896 6001/19972 3.3 (2) livelykernel 21605/42346 0/0 15555/16584 0/0 0/0 2.6 (2) nasa 421/2045 361/361 2621/6127 7/7 1/3 2.6 (1) random 1885/4037 24/1563 6188/48988 121/121 69/173 6.8 (2)

In Gmail, 1896 prototype field updates, 1899 updates to constructors; strongly suggests class emulation

25 / 28

slide-42
SLIDE 42

Outline Introduction JavaScript Measurements Results Conclusions

Results — Other Results

Ratio of message sends to field updates

The vast majority of programs have a low ratio; used imperatively, not functionally

Length of prototype chains

Max length 10 (gmail) SunSpider’s chains were all short (≤ 4) Real programs had greater max length (all ≥ 6) All programs had ≈ 2 average

Calls to typeof

Rare in SunSpider, common in real programs

26 / 28

slide-43
SLIDE 43

Outline Introduction JavaScript Measurements Results Conclusions

Conclusions and Future Work

Certain dynamic actions are common in JavaScript Many can be avoided by identifying patterns and refactoring Potential exists for static type analysis of JavaScript programs

27 / 28

slide-44
SLIDE 44

Outline Introduction JavaScript Measurements Results Conclusions

Questions?

28 / 28
