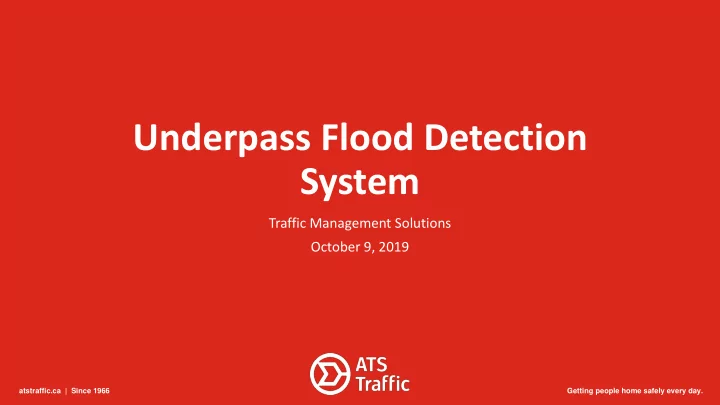

Underpass Flood Detection System

Traffic Management Solutions October 9, 2019

Working together to create safer communities since 1966.

Getting people home safely every day. atstraffic.ca | Since 1966

About Us

• Family owned & operated for over 50 years
• Branches in 4 provinces across Canada
• Top 50 Best Managed Companies

• Traffic Detection/Traffic Management
• Data Collection
• Video Detection
• Traffic Counting Systems
• Vehicle Preemption
• Smart Sign Program
• Intersection Technology

Building Smarter Cities

Flood Detection Solution

Whitemud Underpass Detection System

Recent Extreme Weather Events in Alberta

• “Infrastructure (such as buildings,

roads, bridges, pipelines and electricity transmission) is generally sensitive to gradual changes in temperature and precipitation patterns…

• …Extreme weather events can

easily overwhelm the capacity of infrastructure.” – Alberta.ca

Financial Impacts

• Between 1983 and 2008, Alberta averaged around

$100 million a year in catastrophic losses due to

extreme events (hailstorms, wildfire, flooding, etc.).

This value increased substantially starting in 2009.

• Alberta averaged $673 million a year in insured

losses from extreme weather events from 2009 to 2012.

• According to the Insurance Bureau of Canada,

Alberta has experienced the 2 most costly

disasters in the country's history with the Fort

McMurray wildfires at $3.58 billion and the 2013 southern Alberta floods at $1.7 billion.

CHALLENGE

• Since the year 2000, underpass locations on Whitemud

Drive have become severely flooded during storms on at least three documented occasions.

• Drainage specialists estimate there is a 20-percent

chance of flooding per year, as the pipe system below the Whitemud is only built to sustain a one-in-five-year storm.

• There are five underpasses along Whitemud Drive that

have been identified as high-risk locations, including the 106th Street overpass - where a total of 10 drivers were rescued with lifeboats during a storm in July of 2016.

JAMLOGIC SOFTWARE

REMOTELY

MONITOR, MAINTAIN AND MANAGE

YOUR TRAFFIC CONTROL EQUIPMENT FROM ANY PC, LAPTOP, TABLET OR SMARTPHONE! MESSAGE SIGN MODEM GET FREE ACCESS TO JAMLOGIC SIMPLY BY ADDING A HIGH-SPEED GPS MODEM TO YOUR EQUIPMENT.

PRINCIPLES ARE THE SAME:

Provide real-time information to motorists at key decision points to help increase

SAFETY andMOBILITY.

OPEN ENDED ARCHITECTURE

COLLECT TRAFFIC DATA ANALYZE & COMPUTE AUTOMATE & OUTPUT

HOW THIS ALL WORKS

System Components

Full Matrix PCMS-1500LP PORTABLE CHANGEABLE MESSAGE SIGN (PCMS)

MESSAGE SIGNS

AXIS PTZ CAMERAS

INTERACTIVE LIST & MAP VIEWS

Other Smart Applications

TRUCK CONFLICT APPLICATION

AUTOMATED QUEUE WARNING (AQW)

AQW

Based on real-time traffic data, Queue Detection and Warning Systems automatically inform travelers of the presence of downstream stop-and-go traffic with the use of message signs positioned upstream. The benefit is that motorists can anticipate the upcoming situation and the result is the reduced rear-end collisions. Successful applications have seen a reduction of up to 70% in rear-end collisions.

TRAVEL TIME / ALTERNATE ROUTES

TRAVEL TIME / ALTERNATE ROUTES

Travel Time and Alternate Route applications are continuously updated automatically to provide current travel time or length

• f delay time between the driver’s location and a specific

destination downstream. The benefit is the motoring public is informed and can make alternate route decisions. It also prevents long unexpected backups and potential read-end collisions.

Asset Management – Reflektar and The Smart Sign Program

APWA

October 9, 2019

The Process

1. Data Collection 2. Asset Identification and Attribution

• 3. Management

4. Insights & Smart Decision Making

Data Collection – Example: Signs

Sign Data

GIS System

LiDAR

On Foot Spreadsheets/Paper Records

Data Collection Method - LiDAR

Asset Attribution

Manufacturing Data

LiDAR Data

Install Data Inspection Data

SIGN DATA

1. Data Collection 2. Asset Identification and Attribution

• 3. Management

4. Insights & Smart Decision Making

Asset Attribution - Manufacturing

Asset Attribution - LiDAR

➔ Unique ID generated for each sign ➔ Location (Latitude and Longitude, in decimal degrees) ➔ Support Type: Wood, Square, U-Channel, I-Beam, Bridge, Cantilever, Signal Post etc… ➔ Image of sign ➔ Date of imagery ➔ Cardinal Direction the sign faces ➔ Sign Classification (Regulatory, Warning, Guide, etc) ➔ Sign Type/Code (example: RA-1 for Stop Sign) ➔ Sign Location (left, right, median, overhead) ➔ Measured height of sign ➔ Measured width of sign ➔ Vertical clearance from ground ➔ Distance from road edge ➔ Sheeting Type ➔ Color of sign background (predominant if multiple) ➔ Color of Text

Asset Attribution – Install/Inspection

➔ Installer/Inspector ➔ Install Date ➔ Support Type: Wood, Square, U-Channel, I-Beam, Bridge, Cantilever, Signal Post etc… ➔ Sign Mounting Hardware Type/s ➔ Image of sign ➔ Sign Condition Reporting ➔ Retroreflectivity ➔ Direction Sign Faces ➔ Distance from curb ➔ Height from ground

Asset Management – System

1. Data Collection 2. Asset Identification and Attribution

• 3. Management

4. Insights & Smart Decision Making

Asset Data

Task Task Task Task Task Task

Asset Management - Maps

Asset Management – Digital Work Orders

1. Data Collection 2. Asset Identification and Attribution

• 3. Management

4. Insights & Smart Decision Making

Asset Insights- Data

1. Data Collection 2. Asset Identification and Attribution

• 3. Management

4. Insights & Smart Decision Making

Reflektar – What is it?

Other Municipal Assets

Asset Type Recordable Task Examples

Signs

Install, Replacement, Inspection & Retroreflectivity, Relocate

Bridges

Inspection, Clearance Measurement

Light Standards

Inspection, Replacement of standard, replacement of Light

Roads

Maintenance, Pothole Analysis, Rut Analysis

Workzones

Set-up, Audit, Take-down, daily drive-through

Pothole Analysis

• POTHOLE ANALYSIS
