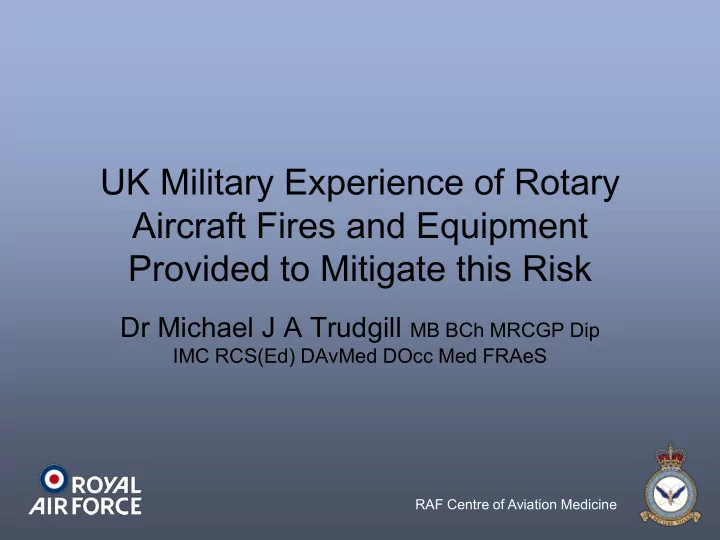

UK Military Experience of Rotary Aircraft Fires and Equipment Provided to Mitigate this Risk

Dr Michael J A Trudgill MB BCh MRCGP Dip

IMC RCS(Ed) DAvMed DOcc Med FRAeS

RAF Centre of Aviation Medicine

Outline

• Overview of Rotary

Aircraft fires

• UK Military experience
• Recent UK ensemble

testing

RAF Centre of Aviation Medicine

Rotary Aircraft Fires

• All Rotary aircraft
• Dramatic and frequently

tragic

• Hydraulic
• Electrical
• Mechanical
• Fuel fires
• UK experience

RAF Centre of Aviation Medicine

UK Rotary Accident Fires

• Data reviewed from 1995-

2009 (15 Years)

• 44 Rotary Accidents
• 7 Fires (16%)
• 5 Post crash fires (11.5%)
• 2 In flight fires (4.5%)

RAF Centre of Aviation Medicine

Aircraft Control Measures

• Crashworthy fuel systems
• Fuel tanks/seams/crash

valves/engineering design

• Hot surface ignition
• Anti mist kerosene
• Inert gases
• Extinguishers
• (US Army statistics-helio-

no reduction in post crash fire)

RAF Centre of Aviation Medicine

Personal Protective Equipment

• Fire proof clothing
• Reduces rate of tissue

heating allowing wearer time to escape

• Flame resistant shell
• Insulating layer

RAF Centre of Aviation Medicine

Operational Conflicts

• Non Signature
• Low thermal burden
• Integration and Comfort
• Ground pattern
• Nomex flight suit
• Boots
• Undergarments

RAF Centre of Aviation Medicine

Compromise

• FR CS 95 developed
• Education
• Ongoing commitment to

develop FR low burden AEA

RAF Centre of Aviation Medicine

BTTG BURN TRIALS

• Burn trials of current
• perational clothing

ensembles to ISO 13506

• Clearance of new UBACS
• Test a range of Head

mounted equipment

• Test a range of trousers-

JSFAW

RAF Centre of Aviation Medicine

Test Conditions

• 4 or 5 second burn

duration

• 1200 deg C propane

flame from 12 burners

• Heat Flux 84kW/m2
• Behaviour during burn
• Behaviour post burn
• Subsequent equipment

condition

• Heat transfer

RAF Centre of Aviation Medicine

Measurements

• 150 thermistors across

manikin

• Measure at 10, 30 60 and

90 seconds

• Heat flux used to

estimate skin burn

• Takata and Stoll skin

model

• Skin burn results plotted
• n a dermatome type

map

RAF Centre of Aviation Medicine

Results

RAF Centre of Aviation Medicine

Further Analysis

• Body divided into regions

relating to items of equipment

• Torso- Survival vest
• Arms- UBACS
• Legs-Trousers and long johns
• Head-Helmets, masks and

head over's

• Small number of thermistors
• Small number of burns
• Data susceptible to equipment

positioning

RAF Centre of Aviation Medicine

Head Protection

• Effect of flash fire on various helmets
• Visors
• Visor covers
• Masks
• Face shields
• Scarf (shemag)
• Head over

RAF Centre of Aviation Medicine

Helmets

RAF Centre of Aviation Medicine

Shemag and Head over

RAF Centre of Aviation Medicine

Helmets and Headover

RAF Centre of Aviation Medicine

Head Protection

Predicted Head and Neck Burns

• 2

3 8 13 18 23 28 33 38 43 48 4B4L+HEADOVER 4B4L+HEADOVER 4B4L+FACEMASK 4B4L+FACEMASK 10R+PQ MASK ALPHA EAGLE+FACEMASK ALPHA EAGLE APACHE HELMET 4A+SHEMAG Head and Neck equipment Worn Burn Severity HEAD

RAF Centre of Aviation Medicine

Torso Burns

• Effect of layers
• Adequacy of minimal

ensemble

• Molle System
• Jacket functionality
• Effect on survival aids
• Fragmentation vest
• Ballistic plates

RAF Centre of Aviation Medicine

Torso

TORSO BURN

• 6

4 14 24 34 44 54 64 61M 61M+UBACS 61M+UBACS 61M UBACS TUCKED IN 61M+FRAG VEST 61M+FRAG VEST+CERAMIC PLATES 60M+DYNEMA PLATES+COLLECTOR 60M No plates or survival aids 61M+FRONT AND REAR CERAMIC PLATES Burn Score Front Back

RAF Centre of Aviation Medicine

Results

• More layers better
• Frag vest good protection
• Molle system survives
• Jacket pockets protect survival

aids ?ammo

• Dynema Plate undamaged
• Ceramic plate undamaged!
• Plate rear cover-cordura
• Decisions regarding layers on

UBACS vest vindicated

RAF Centre of Aviation Medicine

RAF Centre of Aviation Medicine

Arms

• Double sleeve
• Single sleeve
• Neoprene inserts

RAF Centre of Aviation Medicine

Single sleeve vs double

RAF Centre of Aviation Medicine

Arms

ARM BURNS

• 1

4 9 14 19 24 29 34 39 44 CAM UBACS 1a MK16 FR 2 CAM UBACS 1b CAM UBACS 1c CAM UBACS 4 GROUND UBACS 5 CAM UBACS 6 PECOC 7 no neoprene PECOC 8 plus neoprene Garment Worn Burn Severity RIGHT ARM LEFT ARM

RAF Centre of Aviation Medicine

Neoprene

• Minimal welding to
• verlying fabric
• Provides additional

protection

RAF Centre of Aviation Medicine

Trousers

• Comparison of various

ensembles

• Kermel viscose
• FR Rayon 65%,Aramid

25%,Nylon 10%

• 90% Nomex
• Kermel and cotton

undergarments

• Repairs and AVTUR

RAF Centre of Aviation Medicine

TROUSERS

RAF Centre of Aviation Medicine

RAF Centre of Aviation Medicine

AVTUR, REPAIRS AND HOMEGROWN

RAF Centre of Aviation Medicine

TROUSER BURN

10 20 30 40 50 60 70 80 90 100 KERMEL LONGJOHNS+FR CS95 MK16A+COTTON LONG JOHNS KERMEL LONGJOHNS+FR CS95 KERMEL LONGJOHNS+FR CS95 COTTON LONGJOHNS+FR CS95 ARMY ELEMENT PANT(COLD WEATHER,NO UNDERGARMENT) COTTON LONGJOHNS+FR CS95 AV TUR LEFT LEG COTTON LONGJOHNS+US FR COMBAT TROUSER ANTI MICROBIAL SHORTS+FR CS95 Garment Worn Burn Severity Right leg Left leg

RAF Centre of Aviation Medicine
