JavaUI: Effects for Controlling UI Object Access Colin S. Gordon, Werner M. Dietl, Michael D. Ernst, Dan Grossman University of Washington https://github.com/csgordon/javaui Invalid UI Updates public static void method1() {

slide-1
SLIDE 1

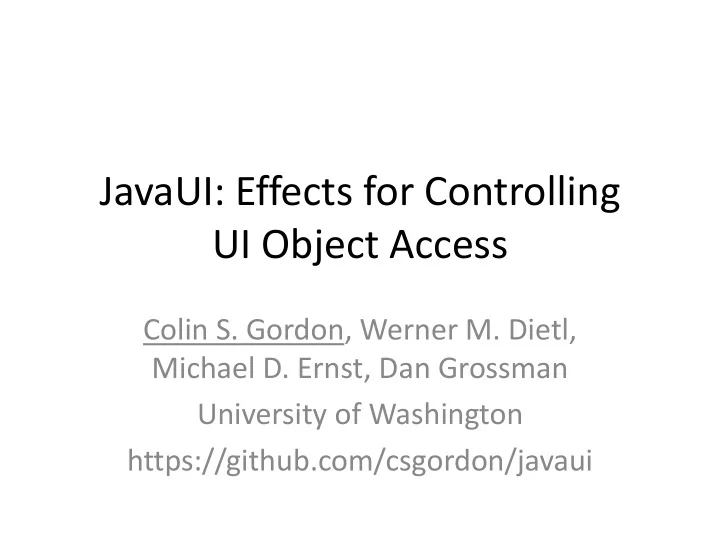

JavaUI: Effects for Controlling UI Object Access

Colin S. Gordon, Werner M. Dietl, Michael D. Ernst, Dan Grossman University of Washington https://github.com/csgordon/javaui

slide-2
SLIDE 2

… public static void method1() { mylabel.setText(“Hello from method1()”); } public static void method2() { mylabel.setText(“Hello from method2()”); }

2

http://www.myeclipseide.com/PNphpBB2-printview-t-26285-start-0.html

Hello from method1()

Invalid UI Updates

// Corrected method2 public static void method2() { Display.syncExec(new Runnable { void run() { mylabel.setText(“Hello from method2()”); } }); }

slide-3
SLIDE 3

GUI Threading Errors are Common*

  • In Top 3 SWT Exceptions
  • Tens of thousands of search results
  • >2700 Eclipse bug reports
  • Possibly long-lived

– One >10 years old in Eclipse!

*Zhang et al. (ISSTA’12)

3

slide-4
SLIDE 4

GUI Thread Discipline

  • GUI frameworks use a distinguished UI thread
  • Only UI thread may access UI objects directly

– Most GUI methods must run only on UI thread – E.g. JLabel.setText()

  • Calling methods on wrong threads results in

– Bugs – Crashes – Assertion failures

Background Thread UI Thread

4

slide-5
SLIDE 5

Appeal of the UI Thread Discipline

Use syncExec(new Runnable{ run(){ … } }):

  • Simple specification
  • Allows for responsive UIs
  • Forced atomicity specs
  • Simple (no) synchronization on UI objects
  • Simple dynamic enforcement (assertions)

5

Need to track calling contexts well

slide-6
SLIDE 6

Calling Context Confusion

public void updateView() { setupTitle(this.title); }

  • Can I directly touch the UI from this method?
  • When is it safe to call this method?

– UI libraries* don’t document this behavior well

  • *Mainly SWT & JFace
  • These calling context questions are easy to get

wrong.

– Results in bugs

6

slide-7
SLIDE 7

JavaUI’s Contributions

  • Static effect system to prevent bad UI access

– Sound – Simple approach to effect polymorphism – Annotations document threading assumptions

  • Implementation

– Uses Checker Framework – https://github.com/csgordon/javaui

  • Evaluation

– Effective on >140,000 LOC

  • Lessons for other effect systems

7

slide-8
SLIDE 8

Outline

  • Preventing GUI Threading Errors
  • Evaluating JavaUI
  • Lessons & Conclusions

8

slide-9
SLIDE 9

Alternatives: Detecting Bad UI Access

  • Standard concurrency analyses don’t apply
  • Runtime checks & runtime exceptions

– Cause of current crashes (still useful!)

  • Make UI access safe from any thread

– Locking

  • Deadlock-prone
  • Slower?

– Retry operations on UI thread

  • Weird UI update interleavings

9

slide-10
SLIDE 10

Effects for UI Methods

  • Effects: constrain

process of computation

  • @UIEffect: code must

run on UI thread

  • @SafeEffect: code may

run on any thread

Background Thread @SafeEffect Background Thread @SafeEffect UI Thread @UIEffect

10

@UIEffect @Safe Effect

slide-11
SLIDE 11

UI Effects Detect Errors

class JLabel { … @UIEffect public void setText(String s); … } … class Client { … @SafeEffect public void updateView() { myJlabel.setText("New Title"); // ERROR } @UIEffect public void refreshView() { myJlabel.setText("New Title"); // OK } }

11

slide-12
SLIDE 12

Polymorphic Effects

interface Runnable { @??Effect public void run(); }

  • @UIEffect?

– Breaks background thread uses…

  • @SafeEffect?

– Breaks sending code to UI thread…

  • Must preserve API compatibility!

– Can’t split the interface

12

slide-13
SLIDE 13

An Effect-Polymorphic Type

  • Intuitively:

interface Runnable<E implements Effect> { @Effect(E) public void run(); }

  • Actual syntax:

@PolyUIType interface Runnable { @PolyUIEffect public void run(); }

13

slide-14
SLIDE 14

Instantiating Effect-Polymorphism

  • Instantiate implicit effect parameter via type

qualifiers:

@Safe Runnable s = ...; s.run(); // has the safe effect (background!) @UI Runnable u = ...; u.run(); // has the UI effect (UI code!)

14

slide-15
SLIDE 15

Safely Running Code on the UI Thread

  • Background threads must send code to the UI

thread:

class org.eclipse.swt.widgets.Display { @SafeEffect static void syncExec(@UI Runnable runnable); @SafeEffect static void asyncExec(@UI Runnable runnable); }

15

slide-16
SLIDE 16

Safe Calls to UI Methods

@SafeEffect public void updateView() { myJlabel.setText("New Title"); // ERROR Display.syncExec(new @UI Runnable { @UIEffect void run() { myJlabel.setText("New Title"); // OK }); }

16

slide-17
SLIDE 17

Outline

  • Preventing GUI Threading Errors
  • Evaluating JavaUI
  • Lessons & Conclusions

17

slide-18
SLIDE 18

Evaluating JavaUI

  • Annotated 8 programs, >140,000 LOC:

– EclipseRunner – HudsonEclipse – S3dropbox – SudokuSolver – Eclipse Color Theme – LogViewer – JVMMonitor – Subclipse

18

Compare to prior work Large, popular Eclipse plugins

slide-19
SLIDE 19

Applying JavaUI to Legacy Code

  • Run javac with JavaUI annotation processor
  • Examine error reports
  • Add annotations to clarify program
  • Repeat until you can’t fix more errors

One-time process! Lower incremental cost.

19

*.java Developer Javac + JavaUI Code Annotations UI Error Reports UI-Error- Free Program

slide-20
SLIDE 20

Results

* 3-4 Warnings / bug, compound expressions ** Dead code with wrong effect

20

Program EclipseRunner HudsonEclipse S3dropbox SudokuSolver Eclipse Color Theme LogViewer JVMMonitor Subclipse Warnings 1 13 2 2 1 9 19 UI Defects 1 3* 2 2 Other Defects 1** False Positives 2 1 9 13 Unknown 5 Annos / KLOC 10 4 21 8 3 17 7 8

slide-21
SLIDE 21

JavaUI Effectiveness

  • Modest annotation burden

– 7 annotations / 1000 LOC – Careful choice of defaults, scoped default controls

  • Usually not hard to annotate a project

– 4300 LOC/hour for last four projects

  • Few false positives

– Usually code smells – Would be avoided if starting with JavaUI

21

slide-22
SLIDE 22

False Positives in 140,000 LOC

  • 12 code smells: global property store issues

– Dictionary w/ callbacks of both effects

  • 5 legacy issues: pre-generics code + subtyping

– Implicitly, List<T extends @Safe Object> – Can’t add @UI IChangeListener (not <: @Safe Object)

  • 5 ambiguous design (unknown)

– No documentation

  • 1 subtyping abuse
  • 7 require data-dependent effects

22

slide-23
SLIDE 23

Subtyping Abuse

  • Many methods are intended to have a specific effect

– Modest docs, no checks: devs bend the rules

  • E.g., @SafeEffect override of @UIEffect method, used

safely but stored as supertype:

class Super { @UIEffect public void m() {…} } class Sub extends Super { @Override @SafeEffect public void m() {…} } … Super s = new Sub(); // field decl … s.m(); // ERROR: UI effect, but safe context

– Creates errors; introduce explicitly safe subclass

  • Or override @SafeEffect method with @UIEffect, but

control data flow of bad subclass (no easy fix)

23

slide-24
SLIDE 24

Effects Depending on Runtime Values

  • Dynamic thread checks

if (currThread.isUIThread()) …

– Different branches have different effects – Sometimes boolean dataflow is also present

  • Argument-qualifier-dependent effects

@EffectFromQual(“runnable”) public static void showWhile(Display display, @PolyUI Runnable runnable);

– Effect of showWhile() depends on the effect of the Runnable – Also on whether display is null…

24

slide-25
SLIDE 25

Outline

  • Preventing GUI Threading Errors
  • Evaluating JavaUI
  • Lessons & Conclusions

25

slide-26
SLIDE 26

Lessons for Other Effect Systems

  • Effect system design:

– Scoping defaults to lower annotation burden – One effect variable may be enough

  • Poor framework design:

– Should separate effects, but don’t

  • Effect system features:

– Implicit effect polymorphism everywhere – If effects are associated with runtime values, programs will have data-dependent effects

26

slide-27
SLIDE 27

Related Work

  • CheckThread

– Open source tool – Effect system? – Unsound for inheritance

  • GUI Error Detector (Zhang, Lu, Ernst, ISSTA’12)

– Unsound automatic control flow analysis – Similar false-positive rate – No guarantee (we found a new bug)

  • Thread Coloring (PPoPP’10)

– Supports arbitrary declared thread roles – Complicated design – Unclear annotation burden

  • None support polymorphism (e.g. run())

27

slide-28
SLIDE 28

JavaUI

  • Polymorphic effect system for UI bugs
  • Simple & effective on > 140,000 LOC

– Found 9 bugs, modest annotation burden – Lessons for future effect systems

http://github.com/csgordon/javaui http://types.cs.washington.edu

28

slide-29
SLIDE 29

Backup Slides

29

slide-30
SLIDE 30

Checked Exceptions for UI Threading

class JLabel{ void setText(String) throws WrongThreadException; } … void updateView() { myJLabel.setText("New Title"); } // ERROR

+ Easily marks code that must run on UI thread! + Potentially sound

  • If user catching were prohibited
  • It would be a sound static effect system for these errors

– Breaks legacy code

30
