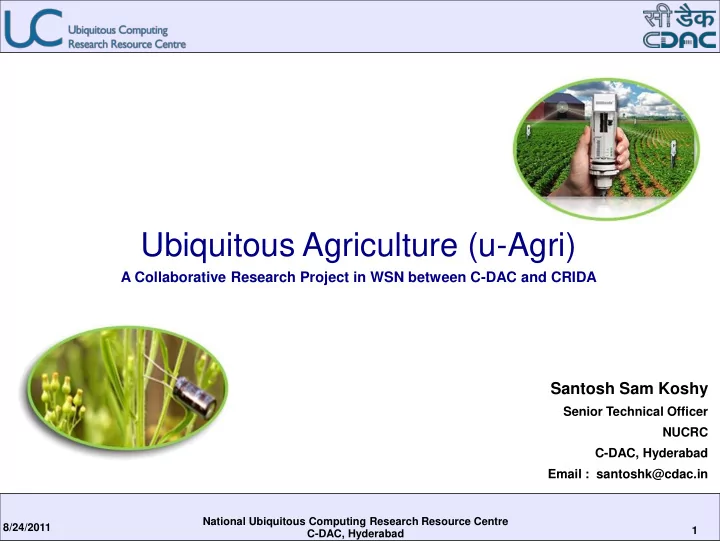

Ubiquitous Agriculture (u-Agri)

A Collaborative Research Project in WSN between C-DAC and CRIDA

Santosh Sam Koshy

Senior Technical Officer NUCRC C-DAC, Hyderabad Email : santoshk@cdac.in

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-2
SLIDE 2

2 8/24/2011

Agenda

  • Introduction to Ubiquitous Computing
  • u-Agri
  • System Architecture
  • System Components
  • Deployment Photographs
  • Results
  • Future Plans
  • Outcome of One Day Brainstorming on WSN in Agriculture

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-3
SLIDE 3

3 8/24/2011

Ubiquitous Computing

 Establishment

  • f

National Level Ubiquitous Computing Research Resource Centres

 Wireless Sensor Network applications

 Ubiquitous Agriculture  Smart Parking  Intelligent Intrusion Detection System

– WSN Hardware Development – Adaptive Framework for WSN Application development – Ubiquitous Learning and Security – Context Aware Frameworks – Medical and Health related applications

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-4
SLIDE 4

4 8/24/2011

u-Agri Objectives

  • Collaboration with Domain Experts
  • Aggregation of weather parameters from WSN
  • Temperature, Relative Humidity, Leaf Wetness
  • Rainfall, Solar Radiation, Wind Speed & Direction
  • Soil Moisture & Soil Temperature
  • Identification of suitable area in Agriculture for pilot experiment
  • Development of Decision Support Models
  • Dissemination of DSS Advisories

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-5
SLIDE 5

5 8/24/2011

Pilot Experiment

  • Collaborative Research with Central Research Institute for Dryland

Agriculture (CRIDA)

  • Pest & Disease Forewarning

– Selected crop: Groundnut – Pest & Disease : Groundnut Leaf Miner & Groundnut Leaf Spot

  • Decision Support Advisory Models

– Leaf Wetness Index based advisory for Leaf Spot – Temperature-Relative Humidity Index based advisory for Leaf Spot – Growing Degree Day Calculations for Leaf Miner

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-6
SLIDE 6

6 8/24/2011

System Architecture

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-7
SLIDE 7

7 8/24/2011

WSN Deployment Plan

  • 6 motes sensing
  • Temperature
  • Relative Humidity
  • Leaf Wetness
  • 1 mote sensing
  • Solar Radiation,
  • Wind Speed & Direction
  • Rainfall
  • Deployment in CRIDA Research Farms ~ 1 Acre
  • Gateway Subsystem for Data Aggregation & Storage on Remote DB

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-8
SLIDE 8

8 8/24/2011

Field Deployment @ CRIDA Farm, Hayatnagar

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-9
SLIDE 9

9 8/24/2011

Field Deployment

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-10
SLIDE 10

10 8/24/2011

Domain Requirements @ Farm Site

  • Sensing Intervals
  • Temp and RH
  • Hourly
  • Leaf Wetness
  • 5 minutes
  • Rainfall
  • Aggregated at EoD
  • Solar Radiation
  • Hourly
  • Wind Speed

– Hourly

  • Wind Direction
  • 15 minutes
  • Data aggregation for a continuous span of 90 - 120 days

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-11
SLIDE 11

11 8/24/2011

Gateway Deployment @ CRIDA, Hayatnagar

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-12
SLIDE 12

12 8/24/2011

Activities at the Gateway

  • Data Conversion Engine

– Performs data conversion into standard engineering units

  • Local Storage

– Weather data is stored into a sqlite database locally

  • Remote Storage

– Runs independent database storage module which parses sqlite

database and stores weather data remotely into RAS

– Creates and maintains connection to RAS using CDMA modem

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-13
SLIDE 13

13 8/24/2011

Remote Administration System

  • Website hosting sensor data aggregated from the fields.
  • www.ubicomp.in/uAgri
  • Graphical Analysis of Sensor Data
  • Decision Support Advisory Models
  • LWI based Advisory for Groundnut Leaf Spot
  • T/RH Index based Advisory for Groundnut Leaf Spot
  • Growing Degree Day Calculations for Groundnut Leaf Miner
  • SMS based Pest Management Advisories

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-14
SLIDE 14

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad 14 8/24/2011

www.ubicomp.in/uagri

slide-15
SLIDE 15

15 8/24/2011

Online Data Analysis

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-16
SLIDE 16

16 8/24/2011

Graphical Analysis

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-17
SLIDE 17

17 8/24/2011

Leaf Wetness Index Based Advisory

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-18
SLIDE 18

18 8/24/2011

LWI Based Advisory for Groundnut Leaf Spot

  • If the cumulative Leaf Wetness Index (LWI) for the past 7 days

exceeds 3.3, Fungicide administration is advised

  • Reference: Butler et al, 1994
  • Wetness Hours
  • Wetness Index

The Wetness Index is calculated in relation to the Wetness Hours accumulated for the whole day using the following

If (WH/day <= 20) { WI = WH/20; } else { WI = 4.5 – 0.175*WH; }

The Wetness Index is aggregated for the past 7 days

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-19
SLIDE 19

19 8/24/2011

WSN Data Results

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-20
SLIDE 20

20 8/24/2011

WSN LWI Based Advisory

Crop : Groundnut Disease : Leaf Spot

FP = Farmer’s Practice SS = Scheduled Sprays WSN = WSN Advisory NT = No Treatment Kharif 2009 Rabi 2009 FP SS WSN NT FP SS WSN NT

No of treatments

(cost per spray per ha = 620)

1 2 1 3 8 4

Yield with the RBD

(Kg per ha)

  • 1400

750 1650 1318 Benefit Ratio 1.1 2.18 3.35

  • National Ubiquitous Computing Research Resource Centre

C-DAC, Hyderabad

slide-21
SLIDE 21

21 8/24/2011

Deployment Photographs @ CRIDA, Hayatnagar

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-22
SLIDE 22

Deployment at Ananthapur

  • Collaborating Organization : CRIDA, ARS Ananthapur
  • Deployment Coverage Area : 10 Acres
  • Total Groundnut Cultivation : > 100 Acres
  • Motes : > 25 C-DAC Motes
  • Sensors Deployed : Temperature, Relative Humidity & Leaf Wetness
  • Selected crop: Groundnut
  • Pest & Disease : Groundnut Leaf Miner & Groundnut Leaf Spot
  • Decision Support Advisory Models

– Leaf Wetness Index based advisory for Leaf Spot – Temperature-Relative Humidity Index based advisory for Leaf Spot

slide-23
SLIDE 23

23 8/24/2011

Deployment Photographs @ Ananthapur

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-24
SLIDE 24

24 8/24/2011

Indigenous Motes Developed @ C-DAC

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-25
SLIDE 25

25 8/24/2011

Project Status & Future Plans

  • Project Status

– Completed 4 seasons in groundnut crop at CRIDA Hayatnagar – Deployment at ARS Ananthapur completed. Preparing for 1st season in Kharif 2011 – Decision Support Advisory is integrated with SMS Gateway

  • Future Plans

– Deployment at Farmer fields at Kadiri, Ananthapur – Correlation of Remote Sensing Data and WSN Data – Targeting other crops and agricultural practices like irrigation control and soil management

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-26
SLIDE 26

26 8/24/2011 National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad

slide-27
SLIDE 27

Organizations Participating

slide-28
SLIDE 28

Outcomes of the Brainstorming

  • 1. Integration of WSN & Remote Sensing
  • 2. Decision Support Advisory Systems
  • 3. WSN in Pest Management
  • 4. Integration of WSN and Mobile Technology
  • 5. Sensor Development
  • 6. Historical Data Sets
slide-29
SLIDE 29

Outcomes of the Brainstorming

  • Additional Areas for WSN

– Soil Health & Nutrient Analysis – Plant Health – Drought Monitoring – Irrigation Control – Food & Grain Storage – Climate Change – Crop Weather Insurance – Ground Water Detection – Market Information

  • 1. Continued Activity
  • 2. Collaborative Effort
  • 3. Low Cost – Long Range
  • 4. Patents
  • 5. Technology Commercialization
slide-30
SLIDE 30

30 8/24/2011

Many Thanks!

Acknowledgements CRIDA Department of IT

National Ubiquitous Computing Research Resource Centre C-DAC, Hyderabad
